Įvadas
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Rx Clear Maxi Force Pump Dual Speed 1.5 HP. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
The Rx Clear Maxi Force Pump is engineered for maximum performance and energy efficiency in above-ground pool applications. It is designed to circulate, filter, and clean your pool water effectively throughout the season.
Saugos informacija
Always follow basic safety precautions when installing and operating this electrical equipment. Failure to follow instructions can result in serious injury or death.
- Prieš atlikdami techninę priežiūrą, atjunkite maitinimą.
- Užtikrinkite tinkamą įžeminimą ir sujungimą.
- Nenaudokite, jei pažeistas maitinimo laidas.
- Keep children away from the pump area.
- Dėl elektros instaliacijos kreipkitės į kvalifikuotą elektriką.
Produktas baigtasview

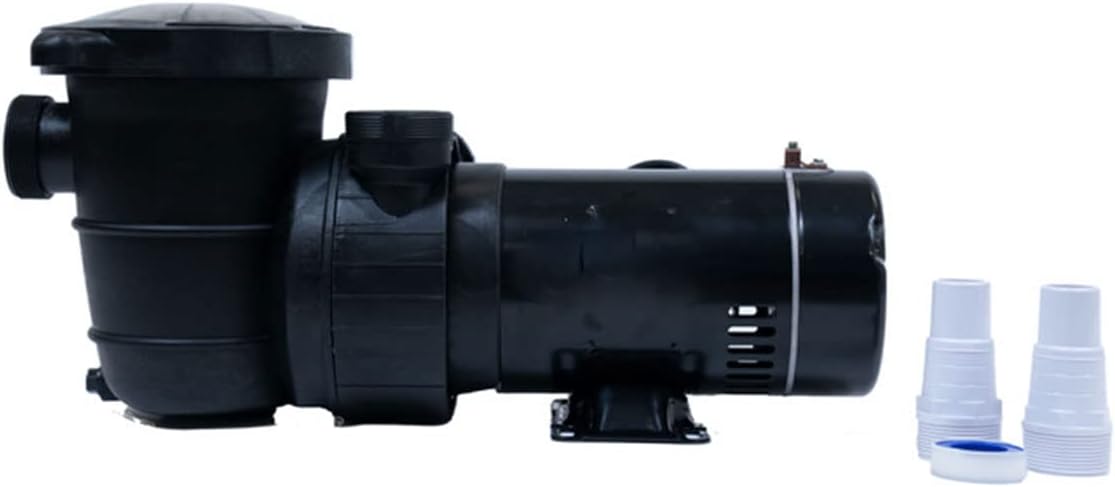

1 pav.: šonas view of the Rx Clear Maxi Force Pump, showing the motor and pump housing with included fittings.
2 paveikslas: viršuje view of the pump, highlighting the clear lid for the strainer basket and the power cord connection.
3 pav.: priekis view of the pump, showing the intake port and the strainer basket housing.
4 pav. Iš arti view of the pump's threaded connection ports for plumbing.
Sąranka ir diegimas
Vietos reikalavimai
- Install the pump as close to the pool as possible to minimize friction loss.
- Užtikrinkite, kad vieta būtų gerai vėdinama ir apsaugota nuo tiesioginių saulės spindulių bei per didelės drėgmės.
- Aplink siurblį palikite pakankamai vietos techninei priežiūrai ir oro cirkuliacijai.
- Siurblį montuokite ant tvirto, lygaus pagrindo, kad būtų išvengta vibracijos ir triukšmo.
Santechnikos jungtys
The pump features standard threaded ports for connection to your pool's plumbing system. Use appropriate PVC fittings and pipe dope or Teflon tape to ensure watertight seals. The intake (suction) port is typically located at the front of the pump, and the discharge (return) port is on top.
Elektros jungtys
This pump operates on 115 Volts and comes with a standard 6-foot, 3-prong power cord. Ensure the electrical supply matches the pump's voltage requirements. Always connect to a Ground Fault Circuit Interrupter (GFCI) protected outlet. Consult local electrical codes and a qualified electrician for permanent wiring installations.
Svarbu: The pump must be properly grounded and bonded to the pool structure and other metallic equipment.
Naudojimo instrukcijos
Siurblio užpildymas
- Įsitikinkite, kad visi vožtuvai yra atidaryti, kad vanduo galėtų tekėti į siurblį.
- Remove the clear lid from the strainer basket and fill the basket with water until it overflows.
- Replace the lid, ensuring it is securely tightened to prevent air leaks.
- Turn on the pump. It should begin to draw water and expel air from the return lines.
- If the pump does not prime within a few minutes, turn it off, re-check for air leaks, and repeat the priming process.
Dual Speed Operation
The Rx Clear Maxi Force Pump features a 2-speed manual switch motor. This allows you to select between a high-speed setting for maximum circulation and cleaning, and a low-speed setting for energy-efficient daily filtration.
- Didelis greitis: Use for initial pool cleaning, vacuuming, backwashing, or when rapid water turnover is desired.
- Mažas greitis: Ideal for continuous daily filtration, maintaining water clarity, and reducing energy consumption.
Refer to the switch on the motor for speed selection. Always ensure the pump is off before changing speeds to prevent damage.
Priežiūra
Sietų krepšelio valymas
The strainer basket collects debris before it enters the pump impeller. A clogged basket reduces pump efficiency and can lead to damage.
- Išjunkite siurblį ir atjunkite maitinimą.
- Close any necessary valves to prevent water from draining from the pool.
- Unscrew the clear lid of the strainer basket.
- Remove the basket and empty any debris. Rinse thoroughly with water.
- Patikrinkite dangtelio O žiedą, ar nėra įtrūkimų ar susidėvėjimo. Jei reikia, pakeiskite.
- Reinsert the clean basket, ensuring it seats properly.
- Replace the lid, tightening it securely.
- Jei reikia, prieš paleisdami siurblį iš naujo, jį pripildykite.
Žieminimas
Before freezing temperatures arrive, it is crucial to properly winterize your pump to prevent damage.
- Išjunkite siurblį ir atjunkite maitinimą.
- Drain all water from the pump by removing the drain plugs (typically located at the bottom of the pump housing).
- Store the pump in a dry, protected area where it will not freeze.
- Ensure all plumbing lines connected to the pump are also drained or winterized according to pool closing procedures.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Siurblys neužpildytas | Low water level, air leak in suction line, clogged strainer basket, closed valve. | Check pool water level, inspect all connections for leaks, clean strainer basket, ensure all valves are open. Re-prime pump. |
| No water flow / Low flow | Clogged strainer basket, clogged impeller, air leak, filter dirty, closed valve. | Clean strainer basket, check impeller for debris, inspect for air leaks, clean or backwash filter, open all valves. |
| Siurblys kelia didelį triukšmą | Air leak in suction, cavitation (not enough water), worn bearings, debris in impeller. | Check for air leaks, ensure adequate water supply, contact qualified service technician for bearing issues, clear impeller. |
| Siurblys neįsijungia | No power, tripped GFCI, faulty motor. | Check power supply, reset GFCI, contact qualified service technician if motor is faulty. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelio numeris | MX215DNSBS |
| Stilius | Dual Speed 1.5 HP |
| ttage | 115 voltų |
| Dabartinė Amps | 10/3.6 Amps |
| Maksimalus srautas | 83 galono per minutę (GPM) |
| Maitinimo šaltinis | Su laidu elektra |
| Prekės svoris | 25.85 svaro |
| Įtraukti komponentai | Pool Pump, Standard 6 foot 3 Prong Power Cord |
| UPC | 840304201587 |
Garantija ir palaikymas
Specific warranty details for the Rx Clear Maxi Force Pump Dual Speed 1.5 HP are not provided within this manual. Please refer to the product packaging or the manufacturer's official websvetainę, kurioje rasite išsamią informaciją apie garantiją.
For technical support, replacement parts, or further assistance, please contact Rx Clear customer service. Contact information can typically be found on the product packaging or the official Rx Clear websvetainę.
You can visit the official Rx Clear Store for more information: Rx Clear Store
