Įvadas
Ačiū, kad pirkoteasing the EENOUR SB6620 LED Camping Lantern. This manual provides important information regarding the safe operation, maintenance, and specifications of your new lantern. Please read this manual thoroughly before use and retain it for future reference.
Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- EENOUR SB6620 LED Lantern
- USB-C įkrovimo laidas
- Vartotojo vadovas (šis dokumentas)
- Baterijos (iš anksto įdiegtos)
Image: Contents of the EENOUR SB6620 LED Lantern package, showing the lantern, USB-C cable, and user manual.
Produkto savybės
- Įkraunamas dizainas: Equipped with a universal Type-C charging port for convenient recharging.
- Universalus apšvietimas: Features 3 color switching options and 4 lighting modes.
- Bepakopis pritemdymas: Adjust brightness from 10% to 100% with a dial switch.
- High Brightness & 360° Illumination: Up to 280 lumens for effective, all-around illumination.
- Pailgintas akumuliatoriaus veikimo laikas: Provides up to 48 hours of continuous lighting.
- Patvarus ir atsparus vandeniui: IPX6 rated for water and splash resistance, made from reinforced ABS material.
- Nešiojami: Compact size and lightweight design (280g).
- Daugiafunkcis: Tinka camping, hiking, emergencies, night fishing, and more.
Image: The EENOUR SB6620 LED Lantern illuminating a camping table, demonstrating its 360-degree high brightness.
Image: Collage showing the EENOUR SB6620 LED Lantern in diverse applications, including tent lighting, emergency use, as a night light, and for mountain climbing.
Sąranka
Pradinis įkrovimas
Before first use, fully charge the lantern. Connect the provided USB-C cable to the lantern's charging port and plug the other end into a compatible USB power source (e.g., wall adapter, power bank, computer USB port). The charging indicator will show the charging status. A full charge typically takes 3-4 hours.
Placement and Hanging
The lantern can be placed on any flat surface or hung using its integrated handle. The handle allows for easy attachment to tent hooks, stands, or car interiors.
Image: The EENOUR SB6620 LED Lantern hanging from a hook, demonstrating its versatility for placement.
Naudojimo instrukcijos
Maitinimo įjungimas/išjungimas ir režimo perjungimas
The lantern features a single dial switch for all operations:
- Maitinimo įjungimas/išjungimas: Press the dial switch once to turn the lantern on. Press it again to turn it off.
- Režimo perjungimas: While the lantern is on, press the dial switch repeatedly to cycle through the 4 lighting modes:
- Light Strip (Amber)
- Candle Light Mode (Flickering Amber)
- LED Light (Daylight White)
- Mixed Mode (Light Strip + LED Light)

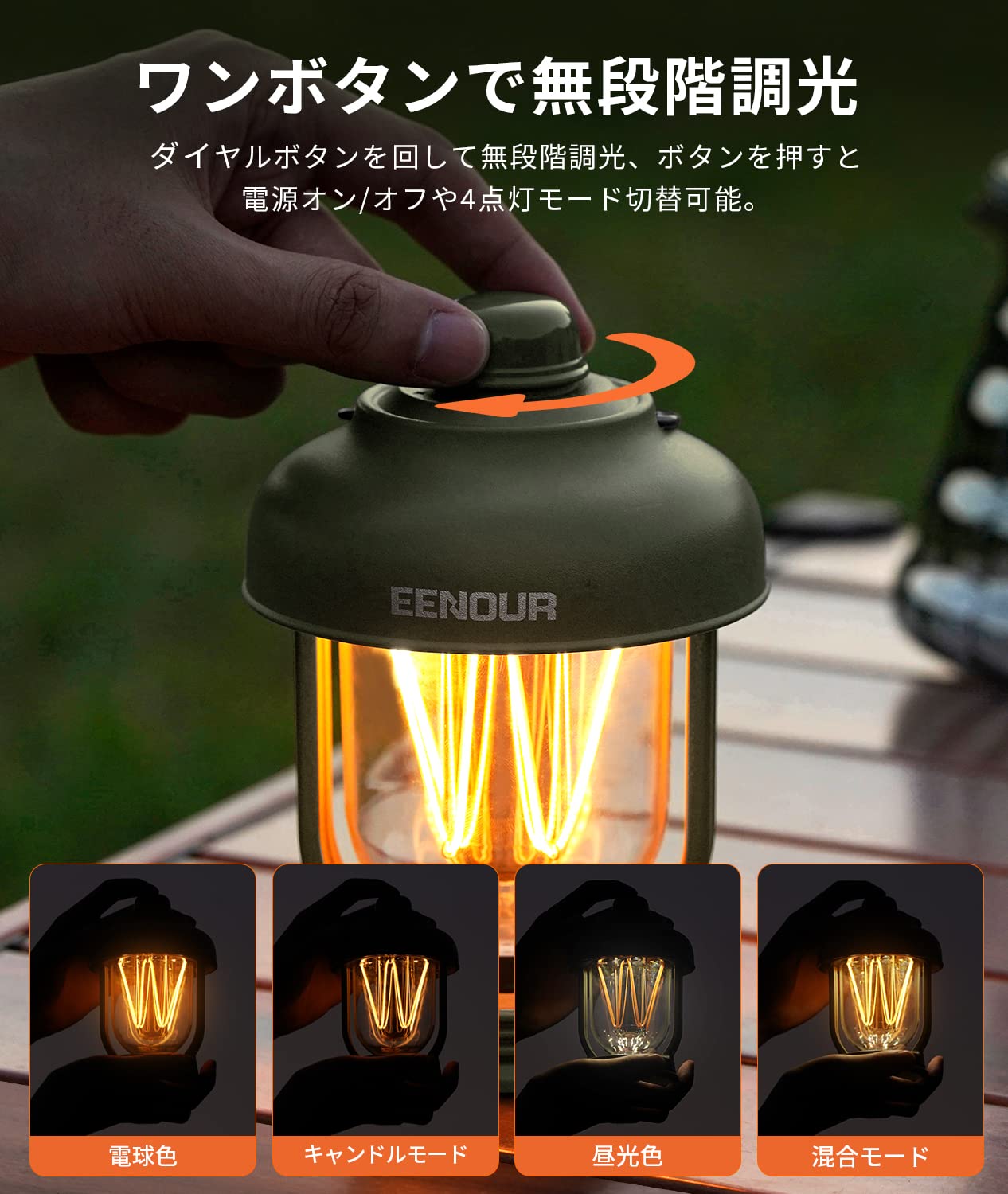

Image: Illustration of the dial switch operation and the four distinct lighting modes available on the EENOUR SB6620 LED Lantern.
Bepakopis pritemdymas
Norėdami sureguliuoti ryškumą:
- While the lantern is on, rotate the dial switch clockwise to increase brightness (10% to 100%).
- Rotate the dial switch counter-clockwise to decrease brightness (100% to 10%).
Spalvų perjungimas
The lantern offers 3 color options by combining the amber light strip with the daylight white LED. These are integrated into the 4 lighting modes as described above.
Žibinto įkrovimas
When the battery is low, connect the USB-C cable to the charging port. The charging indicator will illuminate. Once fully charged, the indicator will change or turn off, depending on the model. Avoid overcharging to prolong battery life.
Priežiūra
- Valymas: Nuvalykite žibintą minkšta, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Saugykla: Store the lantern in a cool, dry place when not in use. For long-term storage, charge the battery to about 50% every 3-6 months to maintain battery health.
- Atsparumas vandeniui: The lantern is IPX6 waterproof, meaning it can withstand powerful water jets. However, it is not designed for prolonged submersion. Ensure the charging port cover is securely closed to maintain water resistance.
Image: The EENOUR SB6620 LED Lantern under a water spray, illustrating its IPX6 water resistance.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Žibintas neįsijungia. | Baterija išsikrovusi. | Charge the lantern fully using the USB-C cable. |
| Ryškumo reguliuoti negalima. | Dial switch not rotated correctly. | Ensure the lantern is on and rotate the dial switch slowly to adjust brightness. |
| Žibintas neįkraunamas. | Sugedęs kabelis arba maitinimo šaltinis. | Išbandykite kitą USB-C laidą arba maitinimo adapterį. Įsitikinkite, kad jungtys tvirtos. |
| Vandens patekimas po poveikio. | Įkrovimo prievado dangtelis neužsandarintas. | Always ensure the charging port cover is tightly sealed before exposing the lantern to water. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Modelis | SB6620 |
| Baterijos talpa | 2000 mAh |
| Šviesos srautas (maks.) | 280 liumenų |
| Baterijos veikimo laikas (maks.) | 48 Hours (at lowest brightness) |
| Įkrovimo laikas | 3-4 valandos |
| Atsparumas vandeniui | IPX6 |
| Medžiaga | Akrilnitrilo butadieno stirenas (ABS) |
| Matmenys (skersmuo x aukštis) | 9.5 cm x 13 cm |
| Svoris | 280 g |
| Maitinimo šaltinis | LED |
Image: Detailed product specifications and dimensions for the EENOUR SB6620 LED Lantern.
Saugos informacija
- Do not look directly into the LED light to avoid eye strain.
- Laikyti vaikams nepasiekiamoje vietoje.
- Neardykite ir nemodifikuokite žibinto. Tai gali jį sugadinti ir panaikinti garantiją.
- Įkrovimui naudokite tik pridedamą USB-C laidą arba sertifikuotą lygiavertį laidą.
- Ilgą laiką nelaikykite žibinto ekstremaliose temperatūrose arba tiesioginiuose saulės spinduliuose.
- Išmeskite gaminį atsakingai, laikydamiesi vietinių taisyklių.
Garantija ir palaikymas
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official EENOUR website. Please have your model number (SB6620) and purchase date ready when contacting support.
