1. Įvadas
The GYS Nomad Power Pro 24 XL is a high-performance, portable lithium battery jump starter designed for 24V vehicles such as trucks and buses. This versatile device also functions as an autonomous power bank and features an integrated LED emergency lamp. It is equipped with multiple safety protections, including safeguards against short circuits and reverse polarity, ensuring secure operation.
This manual provides essential information for the safe and effective use, setup, operation, and maintenance of your Nomad Power Pro 24 XL.
2. Saugos instrukcijos
Prieš naudodami šį gaminį, perskaitykite visus saugos įspėjimus ir instrukcijas. Nesilaikant šių instrukcijų, gali kilti elektros smūgis, gaisras ir (arba) sunkūs sužalojimai.
- Akių apsauga: Dirbdami su baterijomis, visada dėvėkite tinkamas akių apsaugos priemones (apsauginius akinius).
- Vėdinimas: Dirbant uždarose patalpose, užtikrinkite tinkamą vėdinimą.
- Degios medžiagos: Keep the jump starter away from flammable materials, fuel, and other combustible liquids.
- Vaikai ir augintiniai: Prietaisą laikykite vaikams ir naminiams gyvūnėliams nepasiekiamoje vietoje.
- Poliškumas: Visada prijunkite laidąamps to the correct battery terminals (red to positive, black to negative). Reverse polarity can cause damage to the device and vehicle.
- Sugadintas įrenginys: Do not operate the jump starter if it is damaged, dropped, or malfunctioning. Contact customer support.
- Įkrovimas: Only use the provided charger to recharge the unit.
- Vandens ekspozicija: Saugokite įrenginį nuo lietaus ar drėgnų sąlygų.
- Temperatūra: Do not store or operate the unit in extreme temperatures.
3. Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- GYS Nomad Power Pro 24 XL Jump Starter Unit
- Heavy-Duty Jump Start Clamps (raudona ir juoda)
- USB-C į USB-A įkrovimo laidas
- 12 V automobilio įkroviklis
- 100–240 V kintamosios srovės įkroviklis
- Apsauginis dėklas
The reverse side of the carrying case details the product's multi-functionality and lists all included accessories.
4. Produkto ypatybės
The GYS Nomad Power Pro 24 XL offers a range of features for automotive and portable power needs:
- 24V Jump Starting: Instantaneous starting for 24V vehicles, including trucks and construction machinery, with a starting current of 1400 A and a peak current of 3000 A.
- Integruota išorinė baterija: Equipped with two USB ports (5V/2.1A) and one 12V/3.5A output port for charging electronic devices.
- LED Emergency Lamp: Features a powerful integrated LED light with multiple modes for emergency situations or working in low-light conditions.
- LCD ekranas: Provides clear display of battery status and operational information.
- Pažangios saugos apsaugos: Includes protection against short circuits, reverse polarity, over-discharge, over-charge, and overheating.
- Nešiojamas dizainas: Compact and robust design with an integrated carrying handle for easy transport.

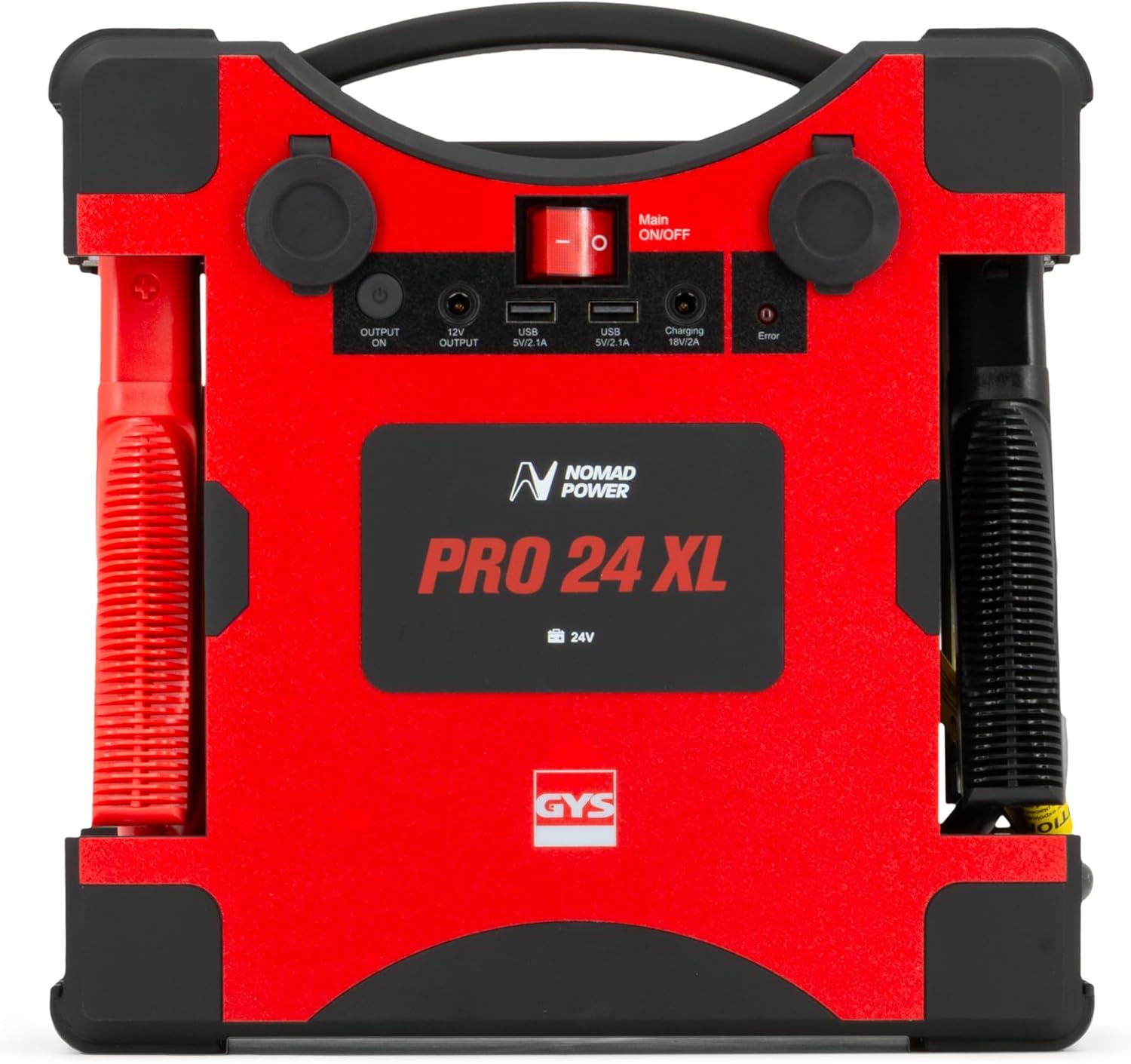

The control panel on top of the unit includes the main power switch, USB charging ports, and a 12V output.
The device features a powerful LED light, useful for emergency situations or working in low-light conditions.
5. Sąranka
5.1 Pradinis įkrovimas
Before first use, fully charge the Nomad Power Pro 24 XL. This ensures optimal performance and battery longevity.
- Connect the provided AC charger to the unit's charging input (18V/2A).
- Plug the AC charger into a standard wall outlet (100-240V).
- The LCD screen will indicate the charging status. Charge until the display shows 100% or a full charge indicator.
- Visiškai įkrovę atjunkite įkroviklį.
5.2 Baterijos lygio tikrinimas
Regularly check the internal battery level using the LCD screen to ensure the unit is ready for use, especially before jump-starting a vehicle.

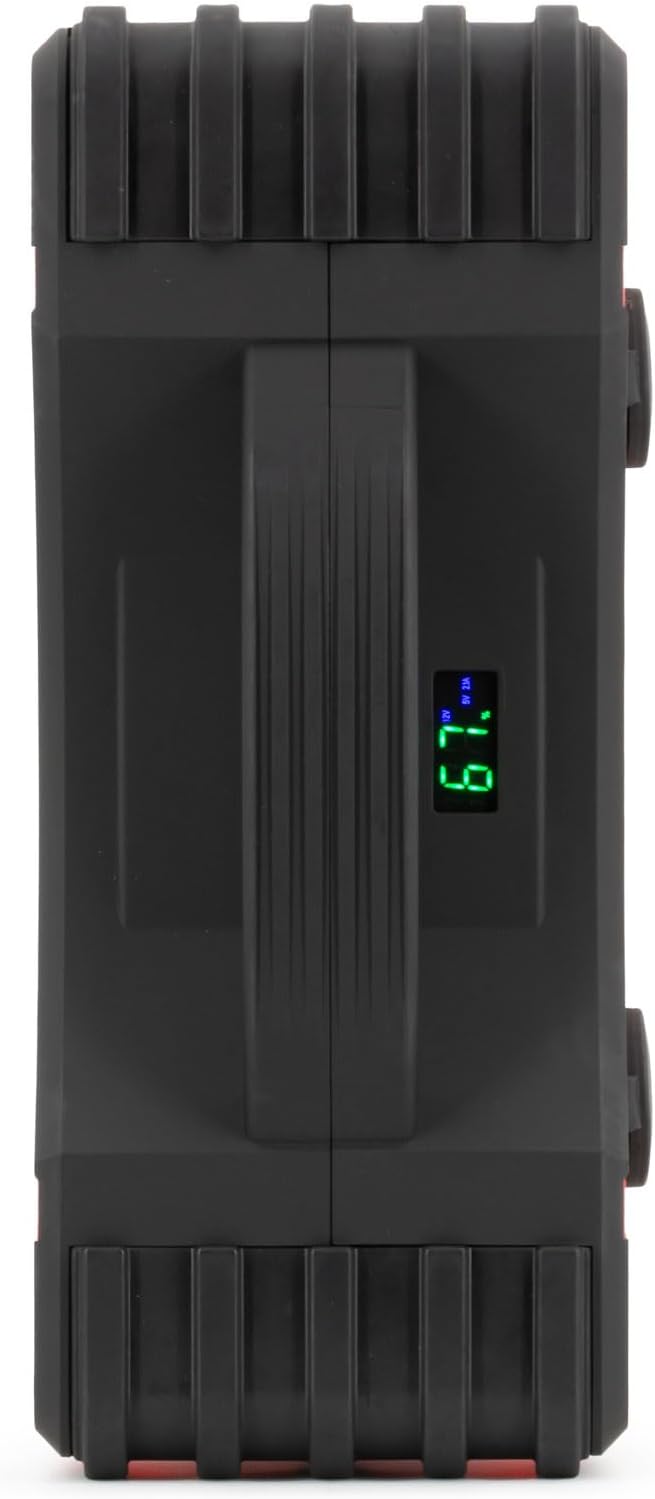

The side of the unit features an LCD screen that displays important information such as battery charge level.
6. Naudojimo instrukcijos
6.1 Jump Starting a 24V Vehicle
Ensure the Nomad Power Pro 24 XL is sufficiently charged before attempting a jump start.
- Išjunkite transporto priemonę: Ensure the vehicle's ignition is off and all accessories (lights, radio, etc.) are turned off.
- Prijunkite raudoną Clamp: Prijunkite raudona (positive, +) clamp prie teigiamas (+) terminal of the vehicle's battery.
- Prijunkite Black Clamp: Prijunkite juodas (negative, -) clamp prie neigiamas (-) terminal of the vehicle's battery. Alternatively, connect the black clamp to a solid, unpainted metal part of the vehicle's chassis, away from the battery and fuel lines.
- Turn On Jump Starter: Switch the main ON/OFF button on the Nomad Power Pro 24 XL to the 'ON' position.
- Užvesti transporto priemonę: Attempt to start the vehicle. If it does not start immediately, wait 30 seconds before trying again. Do not crank for more than 5 seconds per attempt.
- Atjunkite Clamps: Kai tik transporto priemonė užsives, nedelsdami atjunkite juodas (-) klamp pirma, tada raudona (+) klamp.
- Išjunkite starterį: Switch the main ON/OFF button on the Nomad Power Pro 24 XL to the 'OFF' position.
The GYS Nomad Power Pro 24 XL unit, featuring its robust design and integrated battery clamps transporto priemonės užvedimui.
6.2 Naudojimas kaip išorinės baterijos
The Nomad Power Pro 24 XL can charge various electronic devices.
- USB išvestis: Connect your device's USB charging cable to one of the two USB output ports (5V/2.1A).
- 12V išėjimas: For devices requiring 12V power, connect them to the 12V/3.5A output port.
- Ensure the unit is powered on to activate the output ports.
6.3 LED L naudojimasamp
Integruotas LED lamp provides illumination in three modes.
- Press the dedicated light button to cycle through the modes: On (constant light), Strobe, SOS, and Off.
- Lamp is useful for roadside emergencies, working in dark environments, or as a signaling device.
7. Priežiūra
7.1 Įrenginio įkrovimas
To maintain optimal battery health and readiness, recharge the Nomad Power Pro 24 XL after each use, or at least every 3 months if not used regularly.
- Use only the provided AC charger or 12V car charger.
- Do not overcharge the unit; disconnect once fully charged.
7.2 Saugykla
- Store the unit in its protective carrying case in a cool, dry place, away from direct sunlight and extreme temperatures.
- Prieš sandėliavimą įsitikinkite, kad įrenginys yra išjungtas.
7.3 Valymas
- Nuvalykite įrenginį minkštu, sausu skudurėliu.
- Nenaudokite stiprių chemikalų ar abrazyvinių valiklių.
- Laikykite klampšvarus ir be korozijos.
8. Problemų sprendimas
If you encounter issues with your Nomad Power Pro 24 XL, refer to the following common problems and solutions:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Transporto priemonė neužsiveda | Low charge on jump starter Neteisingas klamp ryšį Vehicle battery severely discharged Vehicle issue (not battery related) | Recharge the jump starter fully Patikrinkite clamp polarity and connection points Allow more time for the jump starter to provide charge (if applicable) or try again after a short pause Consult a mechanic |
| Užvedimo užvediklis nekraunamas | Įkroviklis netinkamai prijungtas Sugedęs įkroviklis arba lizdas Unit's internal battery issue | Ensure charger is securely plugged into unit and outlet Try a different outlet or charger Susisiekite su klientų aptarnavimo tarnyba |
| USB/12V output not working | Įrenginys išjungtas Device cable is faulty Device requires more power than available | Įjunkite pagrindinį maitinimo jungiklį Išbandykite kitą laidą arba įrenginį Check device power requirements |
| Error indicator on LCD | Atvirkštinis poliškumas Trumpasis jungimas Perteklinė temperatūra | Atjungti klamps and reconnect with correct polarity Check for any short circuits in the connection Allow unit to cool down before use |
If the problem persists after attempting these solutions, please contact GYS customer support.
9. Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Modelio numeris | 025905 |
| Prekės ženklas | GYS |
| Baterijos tipas | Ličio jonų |
| Baterijos talpa | 8 Ah (236.8 Wh) |
| ttage | 24 voltų |
| Pradinė srovė | 1400 A |
| Didžiausia srovė | 3000 A |
| USB išvestis 1 | 5V / 2.1A |
| USB išvestis 2 | 5V / 2.1A |
| 12V išėjimas | 12V / 3.5A |
| Įkrovimo įvestis | 18V / 2A |
| Gaminio matmenys (I x P x A) | 28 x 28 x 11 cm |
| Prekės svoris | 5.16 kilogramo |
| Transporto priemonės paslaugos tipas | Bus, Truck |
10. Garantija ir palaikymas
For warranty information, please refer to the documentation provided with your purchase or visit the official GYS websvetainėje. Išsaugokite pirkimo įrodymą garantiniams reikalavimams.
If you require technical assistance, have questions about the product, or need to report an issue, please contact GYS customer support through their official channels. Contact details are typically available on the GYS websvetainėje arba produkto pakuotėje.
