1. Įvadas
The BAANOOL BN-311B/C is a compact 2G GPS tracker designed for real-time location tracking of vehicles and motorcycles. This device provides anti-theft features and various alert functions, operating without any monthly subscription fees for its platform. It requires a 2G network SIM card for operation and can be managed via a free web platform or a dedicated mobile application.
Image 1.1: The BAANOOL BN-311B/C GPS Tracker, highlighting its compact design and core functionalities such as real-time positioning, waterproof rating, and various alert features. It also indicates the necessity of a SIM card for use.
Pagrindinės funkcijos:
- Real-time positioning and tracking
- Anti-theft capabilities including engine cut-off (remote)
- Multiple alert functions: over speed, GEO-fence, motion, low battery, power disconnection, blind area, SOS (for 311C model)
- Nemokama web platform and mobile application (BAANOOL IOT)
- Vandeniui atsparus dizainas
- Built-in GPS/GSM antennas
- Worldwide coverage (requires compatible 2G SIM card)
2. Sąranka ir diegimas
2.1 Packing List Verification
Prieš montuodami patikrinkite, ar pakuotėje yra visi komponentai:
Image 2.1: Contents of the BAANOOL GPS-311B package, including the gift box, user manual, GPS unit, relay, and wiring harness.
- Dovanų dėžutė
- vadovas
- GPS unit (BAANOOL-311B/C)
- Relė
- Pakinktai
2.2 SIM kortelės montavimas
The tracker requires a 2G-enabled SIM card to function. Ensure the SIM card has an active data plan and is inserted correctly into the device. The device will not operate without a properly installed and activated SIM card.
2.3 Maitinimo šaltinio prijungimas
The BAANOOL BN-311B/C GPS tracker must be connected to the vehicle's on-board power supply. Use the provided wiring harness to connect the device to the vehicle's electrical system. Professional installation is recommended to ensure correct wiring and prevent damage to the device or vehicle.
2.4 Mobilioji programėlė ir Web Platformos sąranka
To manage and monitor your tracker, download the BAANOOL IOT application from the Apple App Store or Google Play Store. Alternatively, access the free web platform. Follow the in-app or web platform instructions to register your device using its unique IMEI number.
2.2 pav.: pvz.amples of the BAANOOL GPS-311B tracker installed on a motorcycle and an electric vehicle, demonstrating its application in different vehicle types.
3. Naudojimo instrukcijos
3.1 Stebėjimas realiuoju laiku
Įdiegus ir sukonfigūravus įrenginį, galite view the real-time location of your vehicle or motorcycle through the BAANOOL IOT app or web platform. The location updates are transmitted via the 2G network.
3.2 Įspėjimo funkcijos
The tracker supports various alert functions to enhance security and monitoring:
- Perviršio greičio signalas: Praneša, jei transporto priemonė viršija iš anksto nustatytą greičio apribojimą.
- GEO tvora: Allows you to set virtual boundaries. An alert is sent if the vehicle enters or exits these areas.
- Judėjimo signalas: Triggers an alert if the vehicle moves when it should be stationary.
- Senkančios baterijos signalas: Informuoja, kai sekiklio vidinė atsarginė baterija išsikrauna.
- Power Disconnection Alarm: Alerts you if the tracker's main power supply is cut off.
- Blind Area Alarm: Notifies you if the tracker enters an area with no GPS signal.
- SOS Alarm (for 311C model): Allows for an emergency alert to be sent to pre-set contacts.
These alerts can be configured and managed through the BAANOOL IOT application or web platforma.
3.3 Nuotolinio valdymo funkcijos
For enhanced security, the tracker offers remote control capabilities:
- Engine Cut-off: Remotely disable the vehicle's engine via the app or web platform. This feature is intended for emergency use only.
- Remote Controller (for 311C model): The 311C model may include a physical remote for certain functions. Refer to the specific manual for the 311C for details.
3.4 Historical Playback
The platform allows you to review the historical routes and activities of the tracker, providing insights into past movements and stops.
4. Priežiūra
The BAANOOL BN-311B/C GPS tracker is designed for durability and requires minimal maintenance.
4.1 Atsparumas vandeniui
The device features a waterproof design, protecting it from splashes and rain. However, it is not designed for submersion. Ensure the device is securely installed in a location that minimizes direct exposure to harsh elements.
Image 4.1: The BAANOOL GPS-311B tracker demonstrating its waterproof capability through exposure to water splashes.
4.2 Bendroji priežiūra
- Laikykite prietaisą švarų ir be dulkių ir šiukšlių.
- Stenkitės ilgą laiką nelaikyti prietaiso ekstremaliose temperatūrose arba tiesioginiuose saulės spinduliuose.
- Įsitikinkite, kad visos jungtys yra saugios.
5. Problemų sprendimas
If you encounter issues with your BAANOOL BN-311B/C GPS tracker, consider the following troubleshooting steps:
- Nėra signalo / neprisijungus: Check if the SIM card is correctly inserted and has an active 2G data plan. Verify that the device is in an area with 2G network coverage.
- Netiksli vieta: Įsitikinkite, kad prietaisas turi aiškų view dangaus, kad būtų užtikrintas optimalus GPS signalo priėmimas. Kliūtys gali turėti įtakos tikslumui.
- Įrenginys neįsijungia: Check the power connection to the vehicle's battery. Ensure the wiring harness is correctly installed and receiving power.
- App/Platform Issues: Ensure your mobile device or computer has a stable internet connection. Try restarting the app or refreshing the web puslapį.
If problems persist after attempting these steps, please contact BAANOOL customer support for further assistance.
6. Specifikacijos

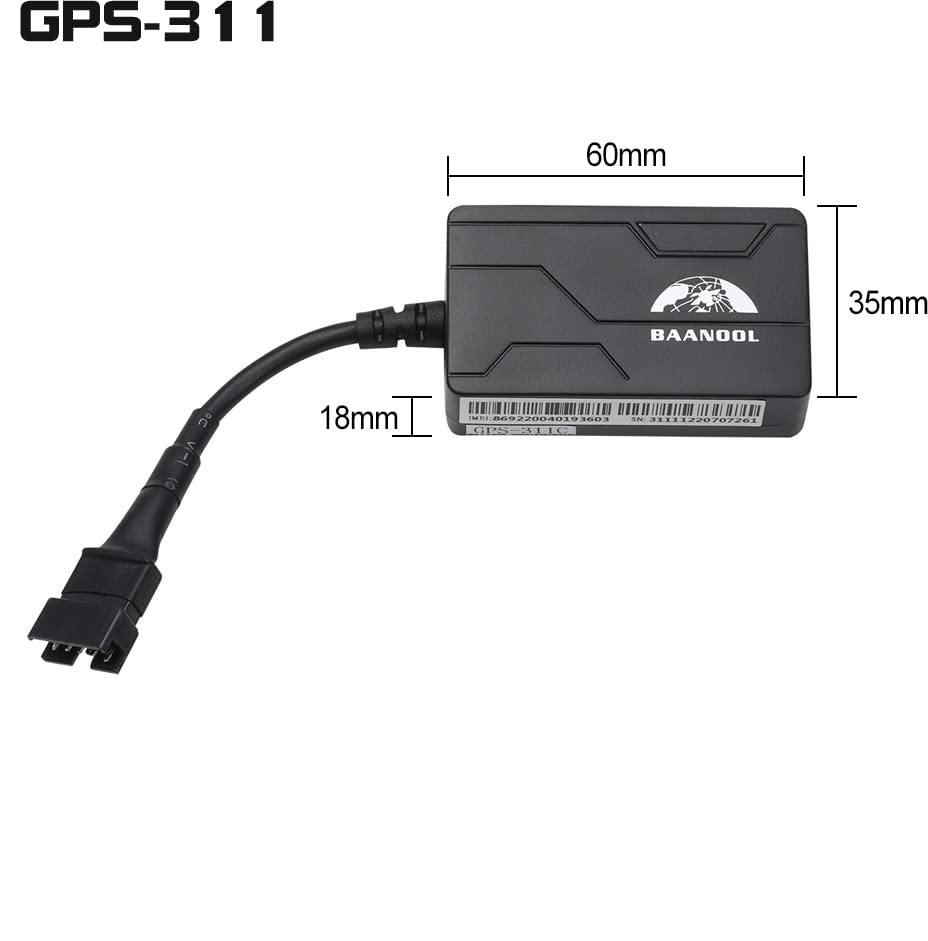

Image 6.1: Physical dimensions of the BAANOOL GPS-311B tracker, showing a length of 60mm, width of 35mm, and height of 18mm.
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | BAANOOL |
| Modelis | BAANOOL-311B (2G) |
| Pakuotės matmenys | 11.7 x 8.1 x 5 cm |
| Prekės svoris | 180 g |
| Reikalingos baterijos | 1 Lithium Ion battery (not included) |
| Ypatingos savybės | Atsparus vandeniui |
| Ryšio technologija | Cellular (2G Network) |
| Suderinami įrenginiai | Išmanusis telefonas |
| Palaikoma programa | Signalizacija |
| Gamintojas | BAANOOL |
7. Garantija ir palaikymas
BAANOOL provides comprehensive support for its products.
7.1 Informacija apie garantiją
All BAANOOL GPS trackers come with a 15 mėnesių garantija nuo įsigijimo datos. Ši garantija taikoma gamybos defektams ir užtikrina, kad gaminys veikia taip, kaip numatyta, įprastai naudojant.
7.2 Pagalba klientams
As an original manufacturer, BAANOOL offers complete after-sales service. If you experience any issues with your device or require technical assistance, please contact BAANOOL customer support. Provide your product model and a detailed description of the problem to receive a prompt and effective solution.
