VIVOSUN 8500W 240V Electric Garage Heater User Manual

Svarbios saugos instrukcijos

Please read and understand all safety information in this manual before attempting to assemble, operate, or install this electric heater. Failure to comply with these instructions may result in electric shock, fire, property damage, or personal injury.

• This heater is designed for 240V electrical systems and requires a dedicated circuit. It does not use a traditional plug. Professional electrical installation is highly recommended to ensure proper wiring and safety.
• Do not operate the heater with a damaged cord or if the heater malfunctions or has been dropped or damaged in any manner.
• Degias medžiagas, tokias kaip baldai, pagalvės, patalynė, popierius, drabužiai ir užuolaidos, laikykite bent 3 pėdų (0.9 m) atstumu nuo šildytuvo priekio ir laikykite juos toliau nuo šonų bei galo.
• Kad išvengtumėte galimo gaisro, jokiu būdu neuždenkite oro įleidimo ar išleidimo angų. Nenaudokite ant minkštų paviršių, pavyzdžiui, lovos, kur angos gali užsikimšti.
• Šildytuvo viduje yra įkaitusių ir kibirkščiuojančių dalių. Nenaudokite jo vietose, kur naudojamas arba laikomas benzinas, dažai arba degūs garai ar skysčiai.
• Šis šildytuvas naudojimo metu įkaista. Kad išvengtumėte nudegimų, neleiskite plika odai liesti karštų paviršių. Perkeldami šį šildytuvą, naudokite rankenas.
• Visada atjunkite šildytuvą, kai nenaudojate.
• Nekiškite ir neleiskite pašaliniams daiktams patekti į ventiliacijos arba išmetimo angas, nes tai gali sukelti elektros smūgį, gaisrą arba sugadinti šildytuvą.
• The heater is equipped with an alarm light and a built-in sensor to monitor temperature. The light will turn on if parts of the heater get too hot, and the unit will automatically shut off if overheating is detected.

Produktas baigtasview

The VIVOSUN 8500W Electric Garage Heater (Model EH-0004) is a powerful heating solution designed for large spaces. It features a robust construction and intelligent controls for efficient and safe operation.

Pagrindinės funkcijos:

• Galingas šildymas: Delivers a maximum power of 8500W and a heat output of 29010 BTU/h, capable of warming spaces up to 1250 sq. ft.
• Trys veikimo režimai: Offers 'Fan only', 'Low (5600W)', and 'High (8500W)' settings to suit various heating needs.
• Skaitmeniniai valdikliai: Equipped with an intelligent LED touch panel, remote control, and an 8-hour timer function for convenient operation.
• Reguliuojamas termostatas: Allows setting and maintaining desired temperatures between 50°F to 95°F (10°C-35°C).
• Targeted Heating: Features multiple adjustable vertical angles and four individually adjustable louvers for precise heat direction.
• Padidintas saugumas: Built with robust SPCC cold-rolled steel, durable heating elements, and ETL certification. Includes an alarm light and automatic shut-off for overheating protection.
• Universalus montavimas: Designed for secure wall or ceiling mounting with included hardware.

Image: VIVOSUN 8500W Electric Garage Heater with digital display and remote control.

Image: Illustration of the three operating modes: High 8500W, Low 5600W, and Fan Only.

Sąranka ir diegimas

This VIVOSUN garage heater is a 240V unit with a no-plug design, requiring direct wiring to a dedicated circuit. It is crucial to follow all local electrical codes and safety regulations. We strongly advise hiring a licensed electrician for installation.

Diegimo žingsniai:

1. Išjunkite maitinimą: Ensure power is turned off at the main circuit breaker panel before beginning any electrical work.
2. Prieigos laidai: Remove all screws from the bottom panel of the heater to access the wiring compartment.
3. Run Wiring: Run the appropriate gauge wiring (e.g., #10 AWG for 40A breaker) through a cut-out on the side of the heater. Connect the wires to the Power Block inside the heater. This heater requires connection to 240V double live wires and does not require a neutral wire.
4. Saugūs ryšiai: Torque all terminal screws and power block lugs tightly with the required torque (40 in-lbs).
5. Montavimas: The heater can be mounted on a wall or ceiling. Use the provided mounting bracket and hardware. Ensure the mounting surface can support the heater's weight (approximately 20 lbs) and that there is sufficient clearance around the unit (minimum 13 inches from wall, 7 3/8 inches from ceiling, and 8 feet from floor).
6. Reguliuokite kampus: Once securely mounted, adjust the vertical angles and louvers to direct heat as needed.
7. Atkurti maitinimą: After installation is complete and all connections are secure, turn on power at the main circuit breaker panel.

Image: Multi-angle installation options for wall and ceiling mounting, showing adjustable angles and minimum distance requirements.

Image: Detailed wiring diagram for connecting the 240V electric garage heater to a service panel with a double-pole breaker.

Naudojimo instrukcijos

The VIVOSUN 8500W Electric Garage Heater can be operated using the intelligent LED touch panel on the unit or the included remote control.

Valdymo skydelis ir nuotolinio valdymo funkcijos:

• Maitinimo įjungimas/išjungimas: Norėdami įjungti arba išjungti šildytuvą, paspauskite maitinimo mygtuką.
• Režimo pasirinkimas: Cycle through the three modes: 'Fan only', 'Low (5600W)', and 'High (8500W)'.
• Temperatūros reguliavimas: Use the temperature up/down buttons to set your desired temperature between 50°F to 95°F (10°C-35°C). The built-in thermostat will maintain this temperature.
• Laikmačio funkcija: Activate the 8-hour timer to automatically shut off the heater after a set period.
• °F/°C perjungimas: Switch between Fahrenheit and Celsius temperature displays.

Image: The heater's digital control panel and remote control, highlighting various functions.

Priežiūra

Regular maintenance ensures the longevity and efficient operation of your VIVOSUN garage heater. Always disconnect power before performing any maintenance.

• Valymas: Reguliariai valykite šildytuvo išorę minkšta, d šluosteamp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Oro įsiurbimo / išmetimo angos: Ensure the air intake and exhaust vents are free from dust, debris, and obstructions. Use a vacuum cleaner with a brush attachment to gently clean these areas.
• Patikra: Regularly inspect the power wiring for any signs of damage, fraying, or loose connections. If any issues are found, contact a licensed electrician for repair.
• Saugykla: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place away from direct sunlight and moisture.

Trikčių šalinimas

If you encounter issues with your VIVOSUN garage heater, refer to the following common troubleshooting steps:

• Šildytuvas neįsijungia:
  • Check the main circuit breaker to ensure power is supplied to the heater.
  • Verify that the heater is properly wired for 240V. If the fan runs slowly, it may indicate incorrect voltage (e.g., 120V instead of 240V).
  • Ensure the power button on the unit or remote is pressed.
• Šildytuvas negamina šilumos:
  • Check the selected mode; ensure it is set to 'Low' or 'High' heat, not 'Fan only'.
  • Verify the thermostat setting. If the ambient temperature is above the set temperature, the heater will not activate.
  • Check for any overheating alarm lights. If illuminated, the unit may have shut off due to high temperature. Allow it to cool down.
• Nuotolinio valdymo pultas neveikia:
  • Pakeiskite nuotolinio valdymo pulto baterijas.
  • Įsitikinkite, kad tarp nuotolinio valdymo pulto ir šildytuvo jutiklio nėra jokių kliūčių.
• Neįprasti garsai ar kvapai:
  • Nedelsdami išjunkite ir atjunkite šildytuvą.
  • Inspect for any foreign objects in the fan or heating elements.
  • If burning smells persist, contact a licensed electrician or VIVOSUN support.

For issues not covered here, please contact VIVOSUN customer support.

Specifikacijos

Detailed technical specifications for the VIVOSUN 8500W Electric Garage Heater (Model EH-0004).

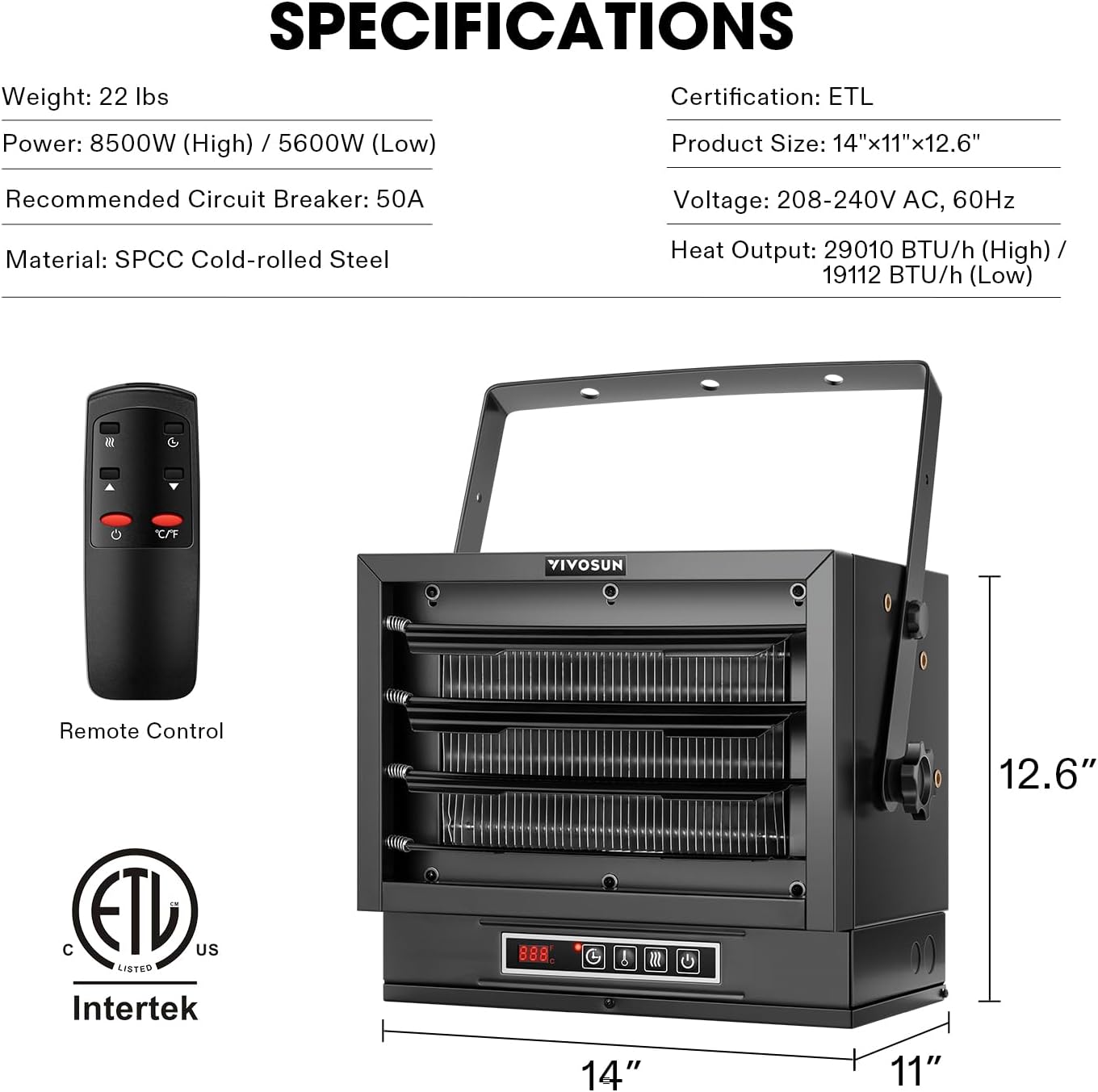

Image: Product specifications including power, voltage, dimensions, and ETL certification.

Garantija ir palaikymas

For warranty information, technical support, or any questions regarding your VIVOSUN 8500W Electric Garage Heater, please refer to the warranty card included with your product or visit the official VIVOSUN website. You may also contact VIVOSUN customer service directly for assistance.
