ECOWITT HP2560C

Ecowitt HP2560 Wi-Fi Weather Station Instruction Manual

Įvadas

The Ecowitt HP2560 is a Wi-Fi enabled weather station display console featuring a 7-inch TFT screen. It includes a built-in indoor temperature, humidity, and barometric pressure sensor. This console acts as a gateway, connecting with various Ecowitt sensors to send data to the internet via Wi-Fi.

It supports displaying a wide range of weather data, including outdoor temperature and humidity, wind speed and direction, and rain data, when paired with compatible Ecowitt sensors (sold separately).

Vartotojai gali view live data, manage sensor calibration, and publish data to online weather services like Weather Underground, WOW, Weather Cloud, and Ecowitt Weather via mobile applications.

Sąranka

Išpakavimas ir pirminė apžiūra

Carefully remove all components from the packaging. Ensure the display console and any included accessories are present and undamaged.

Įjungimas

Connect the DC 5V 1A power adapter to the console and a power outlet. The console will power on automatically.

Indoor Sensor Probe

Unfold the temperature sensor probe of the HP2560 TFT display console to ensure accurate indoor temperature readings.

„Wi-Fi“ konfigūracija

The console functions as a Wi-Fi gateway. Connect it to your home Wi-Fi network to enable data upload to online services. Refer to the WS View Plus/Ecowitt APP for detailed Wi-Fi setup instructions.

Ecowitt HP2560 Wi-Fi Weather Station console
Image: Ecowitt HP2560 Wi-Fi Weather Station console with its integrated antenna and display.
Close-up of the HP2560 display showing weather parameters
Vaizdas: Stambus planas view of the HP2560 display console showing indoor and outdoor temperature, humidity, wind, and barometric pressure readings.

Naudojimo instrukcijos

Rodyti daugiauview

The 7-inch TFT display shows real-time indoor temperature, humidity, and barometric pressure. When connected to external Ecowitt sensors, it also displays outdoor temperature, humidity, wind speed/direction, and rainfall data.

Palieskite Mygtukai

Utilize the touch buttons located below the screen for navigation and settings adjustments.

Mobilioji programa

Download the WS View Plus or Ecowitt APP to your mobile device. This app allows you to view live data, manage sensor settings, and perform calibration.

Internet Weather Services

The HP2560 supports uploading all collected sensor data to various internet weather platforms, including Weather Underground, WOW, Weather Cloud, and Ecowitt Weather. Custom sites using Wunderground or Ecowitt protocols are also supported.

Suderinamumas su jutikliu

The console is designed to connect with a wide range of Ecowitt sensors. This includes up to 8 WH51 soil moisture sensors, WH31 thermo-hygrometers, WN36 pool thermometers, WN34 thermometers; up to 4 WH41/WH43 air quality sensors, WH55 water leak detectors; and 1 WS90 outdoor sensor array, WH40 rain gauge sensor, WH45 air quality sensor, or WS68 anemometer sensor.

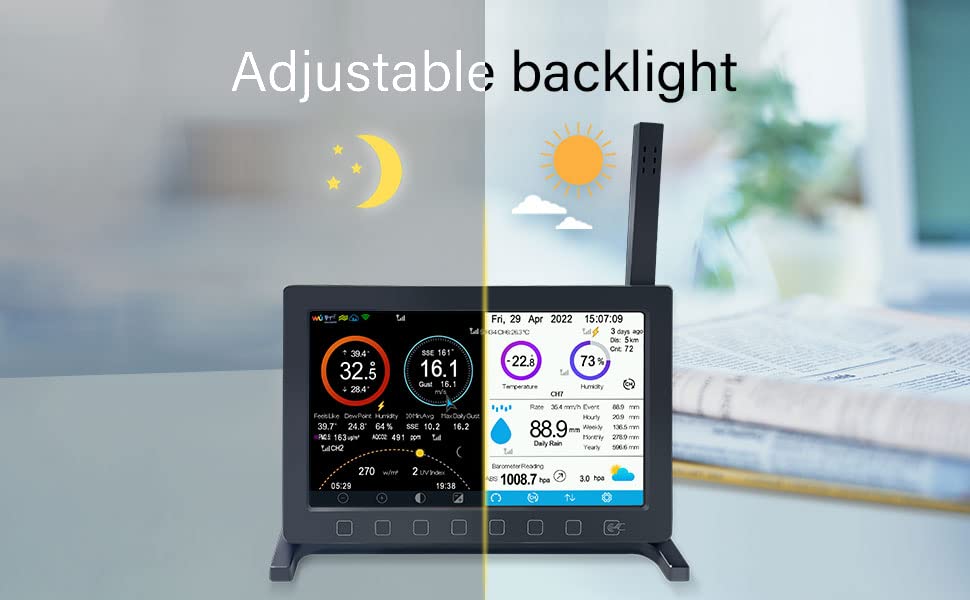

Ecowitt HP2560 display with adjustable backlight
Image: The Ecowitt HP2560 display console demonstrating its adjustable backlight feature, showing both bright daytime and dim nighttime settings for optimal viewing.

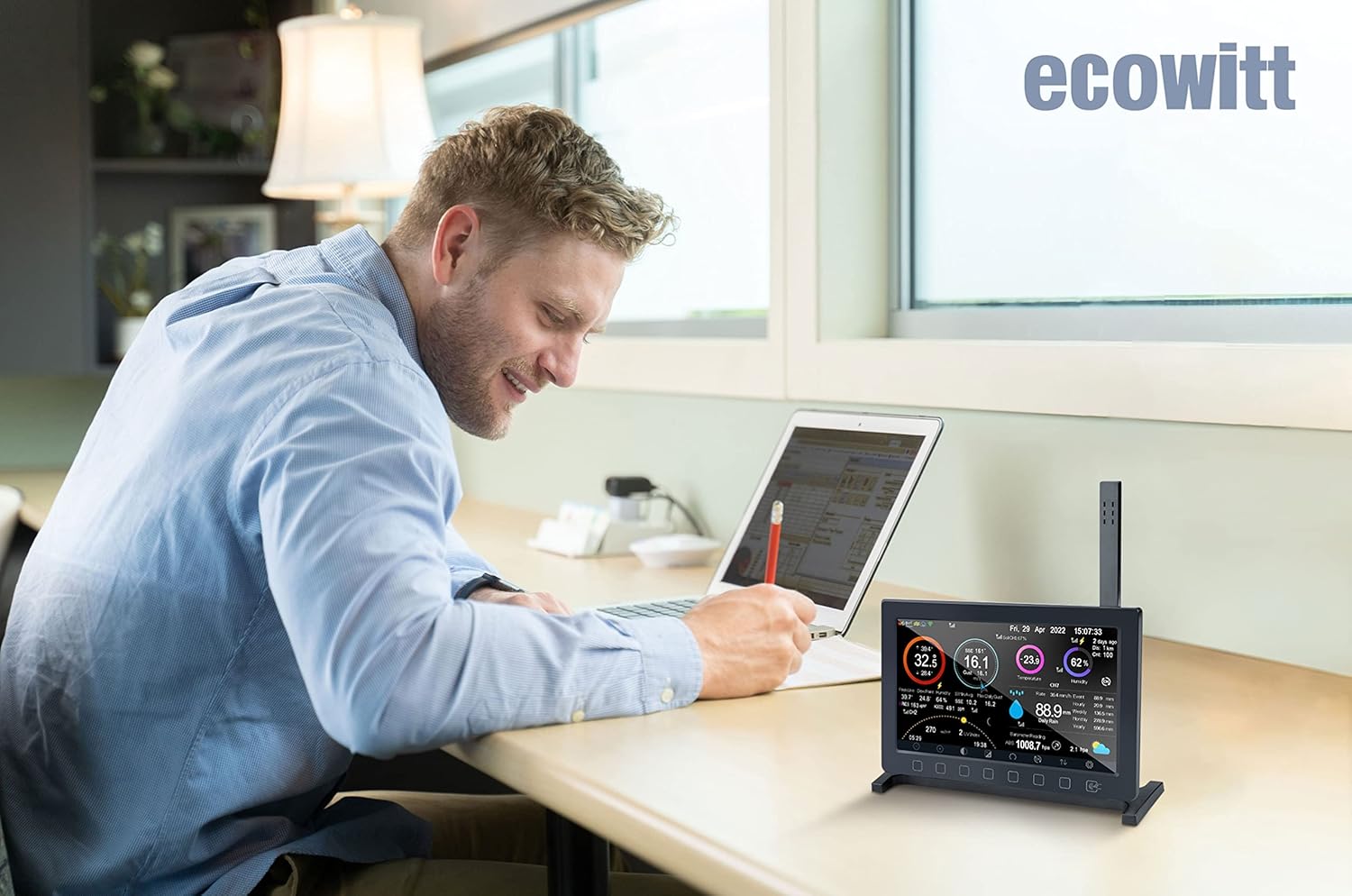

User interacting with Ecowitt HP2560 console
Image: A user interacting with the Ecowitt HP2560 weather station console on a desk, illustrating its use in a home or office environment.

Priežiūra

Temperatūros jutiklio zondas

Regularly ensure the indoor temperature sensor probe is unfolded for accurate readings. If it is folded, indoor temperature accuracy may be compromised.

Programinės aparatinės įrangos naujiniai

The console supports firmware updates via a micro SD card (max 32GB, Fat32 format, SD card not included). Check the Ecowitt websvetainę, kurioje rasite naujausias programinės įrangos versijas ir instrukcijas.

Valymas

Use a soft, dry cloth to clean the display and console exterior. Avoid abrasive cleaners or solvents.

Trikčių šalinimas

Nėra ekrano / maitinimo

Ensure the DC 5V 1A power adapter is securely connected and the power outlet is functional.

Inaccurate Indoor Temperature

Verify that the indoor temperature sensor probe is fully unfolded.

No Outdoor Sensor Data

Check that external Ecowitt sensors are properly installed, powered, and within range of the HP2560 console. Refer to individual sensor manuals for specific setup instructions.

„Wi-Fi“ ryšio problemos

Ensure the console is within range of your Wi-Fi router. Re-check Wi-Fi settings using the WS View Plus/Ecowitt APP. If issues persist, try restarting the console and your router.

Data Upload Failure

Confirm stable internet connection. Verify settings for internet weather services within the mobile application.

Palaikymas

For further assistance, visit the Ecowitt support websvetainėje arba susisiekite su jų klientų aptarnavimo tarnyba.

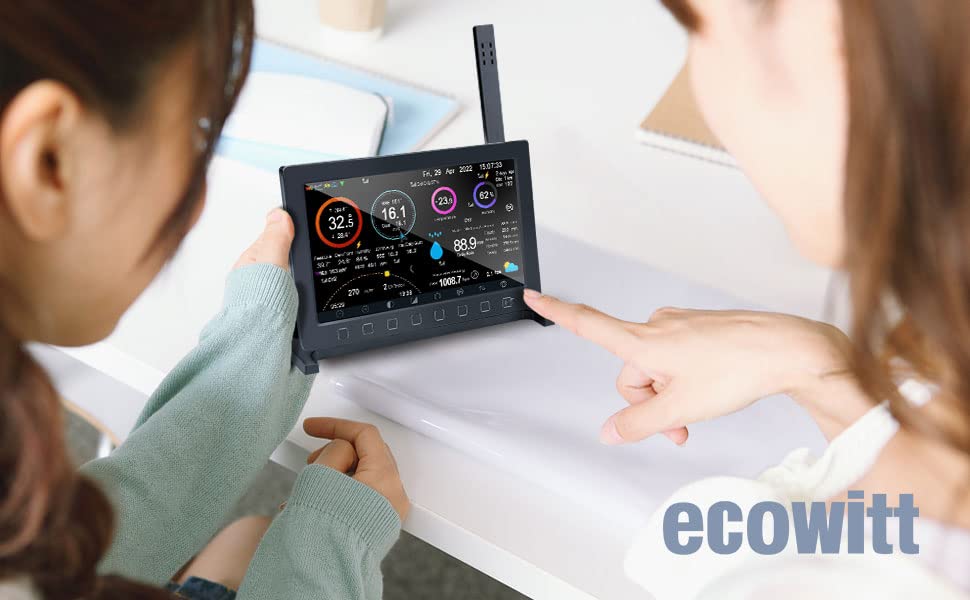

Person pointing at the Ecowitt HP2560 display
Image: A person pointing at the Ecowitt HP2560 display, highlighting its interactive touch screen interface.

Specifikacijos

Prekės ženklasEKOVITA
Modelio numerisHP2560C
Ekrano tipas7.5'' TFT Display
Maitinimo šaltinisDC 5V 1A
RyšysWi-Fi (915 MHz RF Frequency)
Indoor Temperature Accuracy0.3 °C
Ypatingos savybėsSupports Ecowitt Sensors, Custom server data hosting (Wunderground/Ecowitt protocol), Pushes data to cloud weather services, Micro SD card support for firmware updates (max 32G, Fat32, not included), Touch Buttons
Įtraukti komponentaiInstrukcijų vadovas
Prekės svoris10.5 uncijos
Pakuotės matmenys8.19 x 4.76 x 1.26 colio

Informacija apie garantiją

This product is covered by a standard return policy, typically allowing returns or replacements within 30 days of purchase. For specific warranty terms and conditions, please refer to your purchase documentation or contact Ecowitt customer support.

Palaikymas

Internetiniai ištekliai

Access detailed data graphs and download history records on the official Ecowitt Weather server: ecowitt.net.

Įspėjimai el. Paštu

Email alert functions are available for Wittboy weather sensors when integrated with the system.

Susisiekite su palaikymo tarnyba

Dėl techninės pagalbos ar klausimų apsilankykite ECOWITT Store on Amazon arba žr. kontaktinę informaciją, pateiktą ant jūsų produkto pakuotės.

Ecowitt HP2560 console in a home setting
Image: The Ecowitt HP2560 weather station console displayed in a contemporary living space, showcasing estetinį integravimą į namų aplinką.
