1. Įvadas
This manual provides essential information for the safe and efficient operation of the Bewinner A2-8015 1.5KW Variable Frequency Drive (VFD). Please read this manual thoroughly before installation, operation, or maintenance to ensure proper usage and prevent potential hazards.
2. Saugos informacija
ĮSPĖJIMAS: Electrical shock hazard. Only qualified personnel should install, operate, and maintain this device. Disconnect all power before servicing.
- Įsitikinkite, kad įvesties ttage matches the VFD's specifications (AC180-250V).
- Nenaudokite dažnio keitiklio su pažeistais laidais arba jungikliu.asing.
- Install the VFD in a well-ventilated area, away from direct sunlight, moisture, and corrosive gases.
- Tinkamas įžeminimas yra būtinas siekiant išvengti elektros smūgio.
- Avoid touching internal components when power is connected.
3. Produktas baigtasview ir Savybės
The Bewinner A2-8015 is a 1.5KW Variable Frequency Drive designed for precise motor speed control. It features a robust design and user-friendly interface.
Pagrindinės funkcijos:
- Industrial-grade ABS plastic casing for heat resistance, flame retardancy, and shock protection.
- Equipped with standard inverter functions suitable for diverse applications.
- User-friendly design with a clear display and intuitive keyboard for easy operation.
- Efficient heat dissipation system featuring a large aluminum-based heat sink and a powerful cooling fan.
- Manufactured under strict quality control for high safety and reliability.

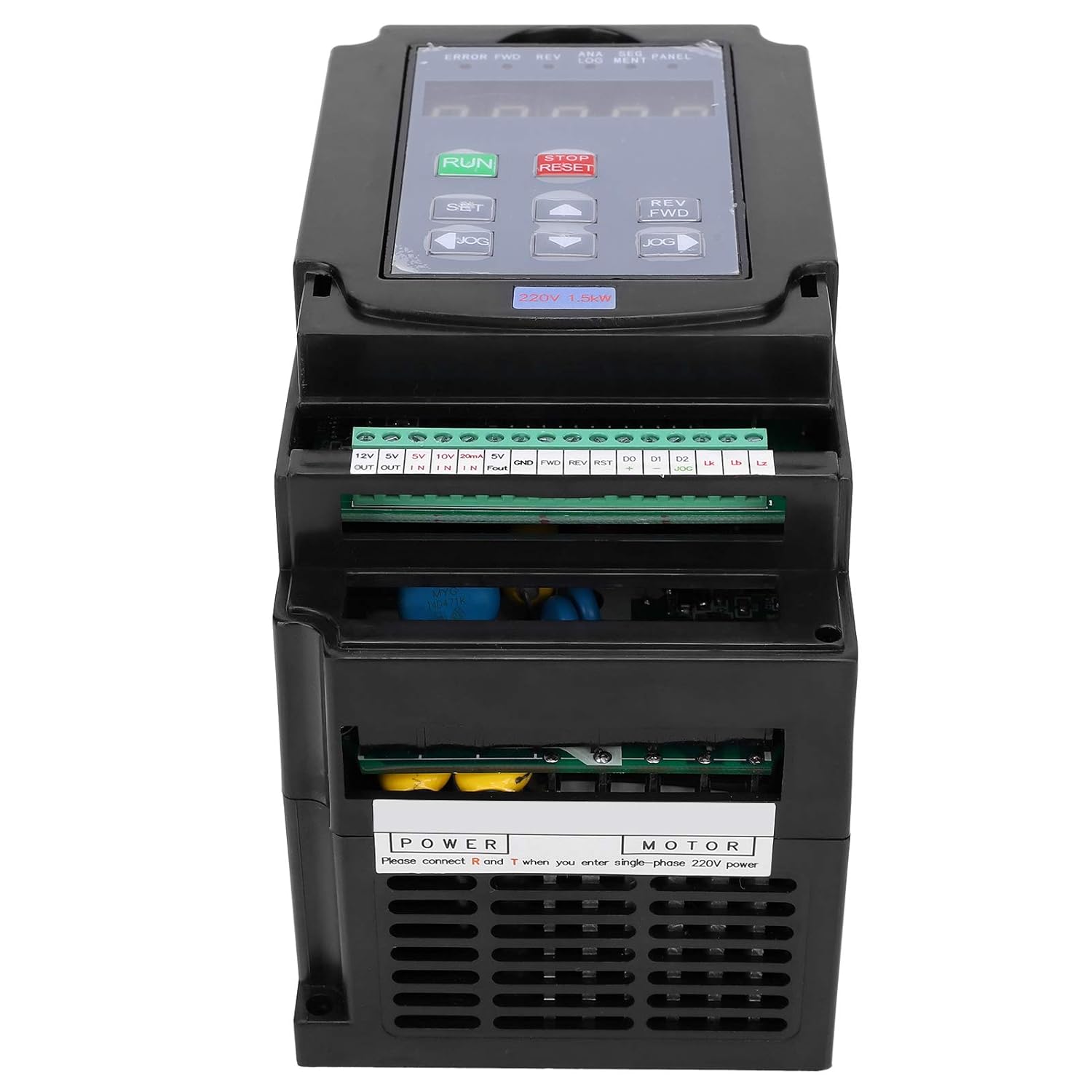

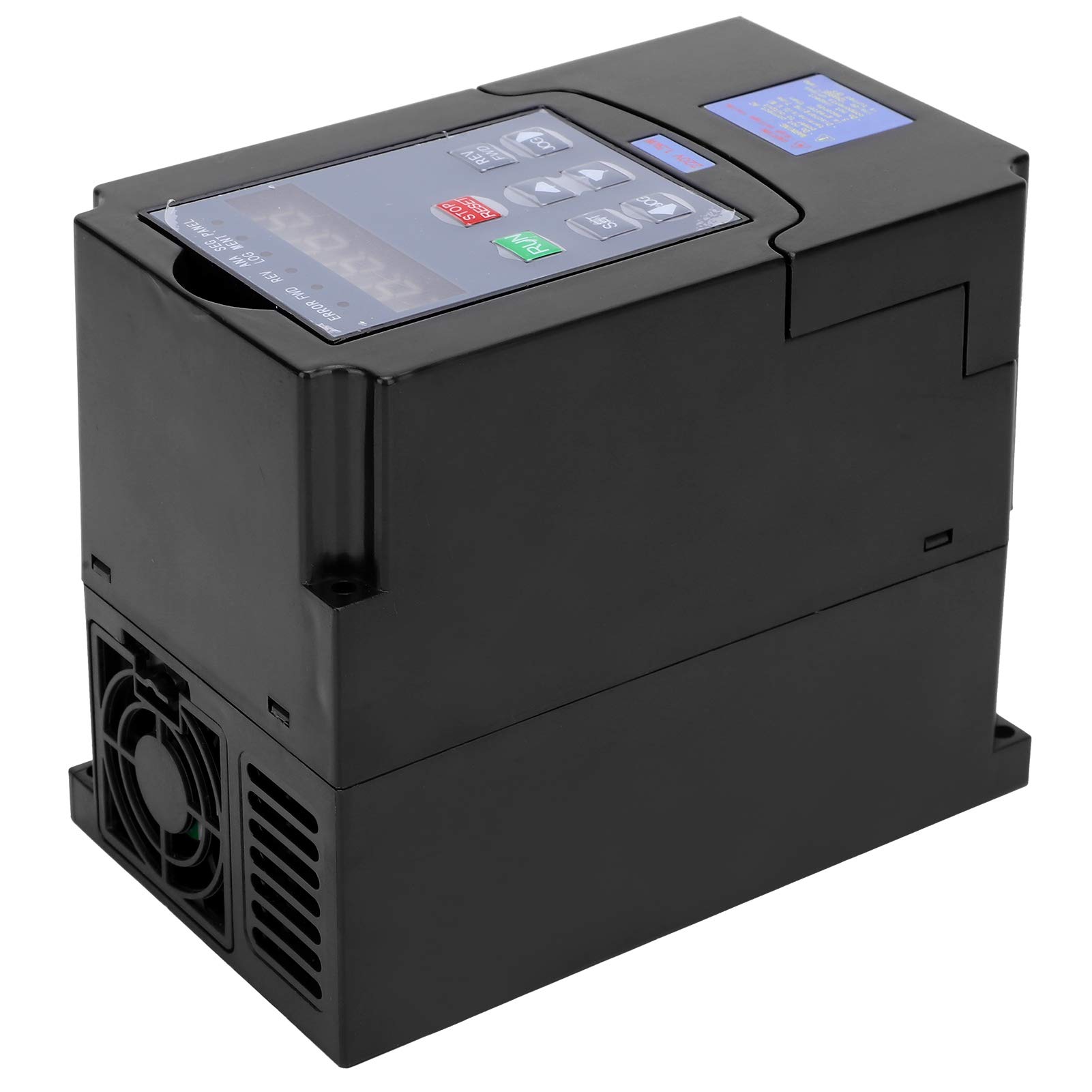

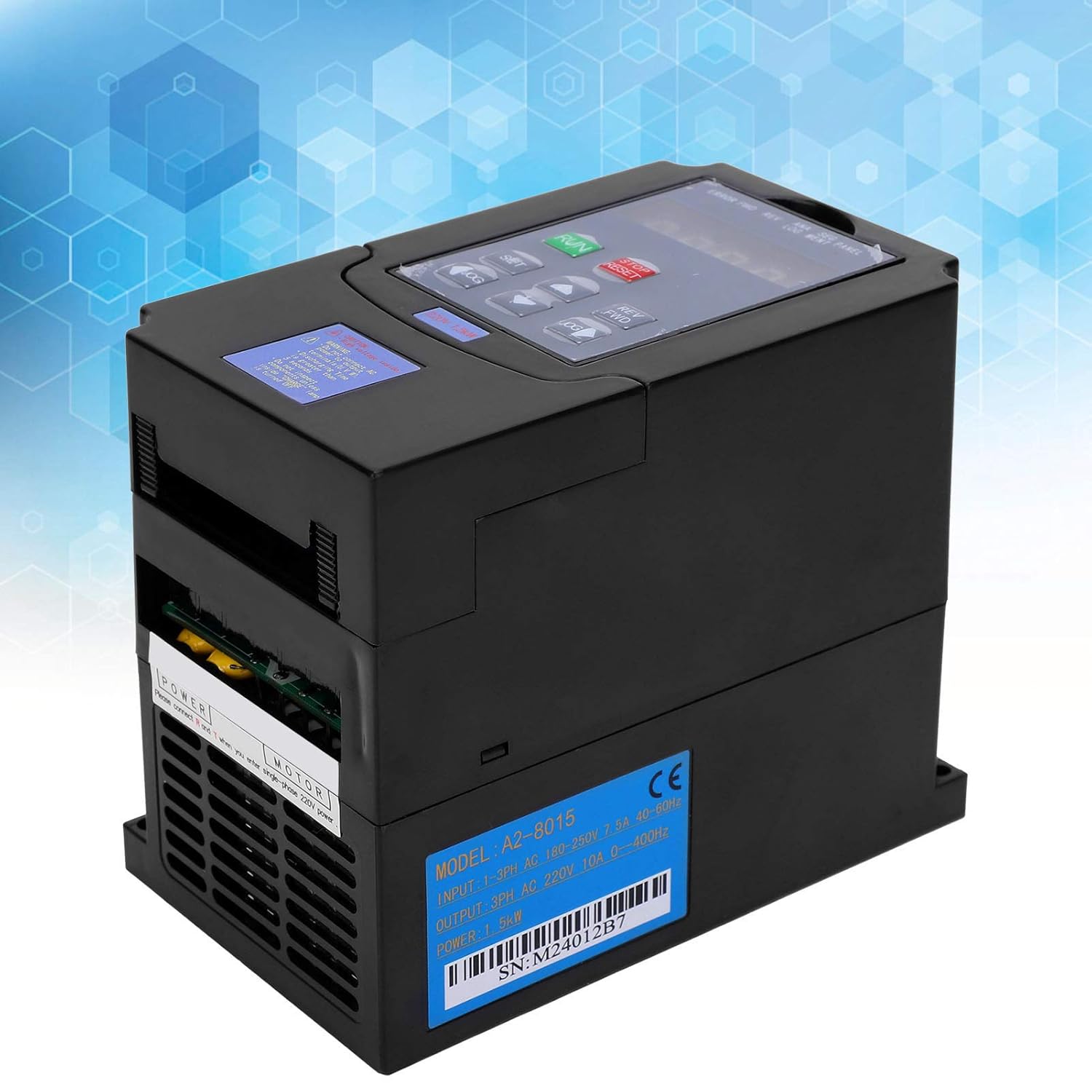

Produktas Views:
4. Specifikacijos
| Parametras | Vertė |
|---|---|
| Prekės tipas | Kintamo dažnio pavara |
| Modelis | A2-8015 |
| Medžiaga | Plastic Shell (ABS) |
| Įvesties tomastage | 1-phase/3-phase AC180-250V, 7.5A, 40-60Hz |
| Išėjimas ttage | 3-phase 220V, 10A, 0-400Hz |
| Galia | 1.5 kW |
| Taikomas variklis | 180-250V Motor |
| Gaminio matmenys | Apytiksliai 140 x 115 x 80 mm (5.5 x 4.5 x 3.1 colio) |
| Tipinės programos | Spindle motors, lathes, milling machines, pumps, treadmills, conveyors, winders, mixers, extruders, separators, compressors, fans, elevators, centrifuges, and other machinery. |
5. Sąranka ir diegimas
5.1 Sujungimo schema
Refer to the internal wiring diagram on the device and the following general guidelines for connection. Ensure all connections are secure and insulated.
- Power Input (L1, L2, L3 or L, N): Connect the AC180-250V power supply to the designated input terminals. For single-phase input, connect to L and N.
- Variklio išvestis (U, V, W): Connect the three-phase motor to the output terminals U, V, W.
- Įžeminimas (GND): Ensure the VFD is properly grounded to a reliable earth ground.
- Valdymo terminalai: Connect external control signals (e.g., start/stop, speed reference, emergency stop) to the corresponding control terminals as per your application requirements. Consult the detailed wiring diagram provided with the product for specific terminal functions.
5.2 Montavimas
Mount the VFD vertically on a stable, non-flammable surface. Ensure adequate clearance around the unit for proper airflow and heat dissipation. Avoid mounting in areas with excessive vibration or dust.
6. Naudojimo instrukcijos
The VFD features a humanized keyboard and clear display for easy operation.
6.1 Pagrindinės operacijos
- Maitinimas: Apply power to the VFD. The display will illuminate.
- Variklio užvedimas: Paspauskite BĖGTI mygtuką varikliui užvesti.
- Variklio sustabdymas: Paspauskite STOP/ATSTATYTI mygtuką varikliui sustabdyti.
- Dažnio / greičio reguliavimas: Naudokite UP ir ŽEMYN arrow buttons to adjust the output frequency, thereby controlling the motor speed.
- Keisti kryptį: Naudokite REV/FWD button to toggle the motor rotation direction.
- Jog Operation: Paspauskite BĖGIMAS button for momentary motor operation.
6.2 Parametrų nustatymai
To access and modify advanced parameters, press the NUSTATYTI button. Navigate through the menus using the arrow keys and confirm selections with the NUSTATYTI button. Refer to the comprehensive parameter list in the included physical manual for detailed descriptions and adjustment ranges.
7. Priežiūra
Reguliarus techninis aptarnavimas užtikrina jūsų dažnio keitiklio ilgaamžiškumą ir patikimą veikimą.
- Valymas: Periodically clean the VFD's exterior and cooling fins to prevent dust accumulation, which can hinder heat dissipation. Use a soft, dry cloth. Do not use liquid cleaners.
- Ventiliatoriaus patikrinimas: Check the cooling fan for obstructions or unusual noise. Ensure it operates freely.
- Terminalo jungtys: Periodically inspect all wiring terminals for tightness. Loose connections can cause overheating or intermittent operation.
- Aplinkosaugos patikrinimas: Užtikrinkite, kad darbo aplinka išliktų nurodytuose temperatūros ir drėgmės diapazonuose.
8. Problemų sprendimas
Šiame skyriuje pateikiami dažniausiai pasitaikančių problemų sprendimai. Dėl čia nepaminėtų problemų kreipkitės į techninę pagalbą.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Variklis neužsiveda | No power, incorrect wiring, emergency stop active, parameter error. | Check power supply, verify wiring, release emergency stop, check motor parameters. |
| VFD rodo klaidos kodą | Viršsrovė, viršįtampistage, nesuprantamatage, overheat, motor overload. | Refer to the physical manual's error code section for specific meanings and remedies. Address the underlying cause (e.g., reduce load, check input voltagir). |
| Motor runs erratically or at incorrect speed | Incorrect frequency setting, motor parameter mismatch, poor connection. | Adjust frequency, verify motor parameters (e.g., rated frequency, poles), check motor wiring. |
| Per didelis triukšmas ar vibracija | Motor imbalance, mechanical issue, VFD parameter settings. | Inspect motor and load for mechanical issues. Adjust VFD carrier frequency or other motor control parameters if applicable. |
9. Pakuotės turinys
Išpakuodami įsitikinkite, kad yra visi toliau išvardyti daiktai:
- 1 x Variable Frequency Drive (Bewinner A2-8015)
- 1 x Vartotojo vadovas (kinų ir anglų kalbomis)
10. Garantija ir palaikymas
Information regarding specific warranty terms and conditions is typically provided with the product documentation. For technical support or service inquiries, please refer to the contact information provided in the included physical user manual or contact your point of purchase.
Note: Spare parts availability information is not available at this time.
