Retevis Ailunce HA1G GMRS Handheld Radio Instruction Manual

1. Įvadas

The Retevis Ailunce HA1G is a robust GMRS handheld radio designed for reliable communication in various environments. It features IP67 waterproofing, NOAA weather alerts, USB-C charging, and repeater compatibility. This manual provides essential information for setting up, operating, and maintaining your radio.

2. Sąranka ir komponentai

2.1 Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

• 1 x HA1G GMRS Handheld Radio
• 1 x garsiakalbio mikrofonas
• 1x įkroviklio adapteris
• 1 x Desktop Charging Base
• 1 x Lithium Ion Battery (2800mAh)
• 1 x USB-C laidas
• 1 x diržo segtukas
• 1 x Rankinis dirželis
• 1 x Vartotojo vadovas

Image: All components included in the Retevis Ailunce HA1G GMRS Radio package, including the radio, speaker microphone, charging accessories, battery, belt clip, hand strap, and user manual.

2.2 Produktas baigtasview

Familiarize yourself with the radio's physical components:

Vaizdas: Priekinė ir šoninė view of the HA1G radio with labels for Power/VOL Knob, Channel Knob, LED indicator, Audio output speaker, PTT button, SK1/SK2 programmable keys, Keypad, LCD display, SP/MIC/Program Jack, Battery Pack, and Antenna.

2.3 Baterijos įdėjimas ir įkrovimas

The HA1G radio is equipped with a 2800mAh Lithium Ion battery for extended use. It supports two charging methods: via the desktop charging base or directly via a USB-C cable.

• Montavimas: Sulygiuokite bateriją su radijo imtuvo galine dalimi ir stumkite ją į vietą, kol ji tvirtai spragtelės.
• Stalinio kompiuterio įkrovimas: Place the radio with the battery installed into the desktop charging base. Connect the charger adapter to the base and a power outlet. The LED indicator on the radio will show charging status.
• USB-C įkrovimas: For convenience, the radio can be charged directly using a USB-C cable connected to the battery pack. This is ideal for outdoor or on-the-go charging.

Image: The 2800mAh battery being charged in the desktop charging base, illustrating its large capacity for all-day use.

Image: The HA1G radio being charged via its desktop base and a separate image showing the USB-C port on the battery for outdoor charging.

3. Naudojimo instrukcijos

3.1 Įjungimas / išjungimas ir garsumas

To power on the radio, rotate the Power/VOL knob clockwise. Continue rotating to adjust the volume. To power off, rotate the knob counter-clockwise until it clicks.

3.2 Channel Selection and Transmission

Use the Channel Knob on top of the radio to select desired channels. Press and hold the PTT (Push-To-Talk) button on the side to transmit. Release the PTT button to receive.

Image: The HA1G GMRS radio in an outdoor setting, highlighting its long-range capabilities with 22 GMRS channels and 8 repeater channels.

3.3 VFO Mode and CHIRP Programming

The HA1G supports VFO (Variable Frequency Oscillator) mode, allowing users to manually input frequencies via the keypad. For advanced programming and channel management, the radio is compatible with CHIRP software, enabling easy setup of new channels and settings via a PC.

3.4 Dual Band Receiving

The radio can receive and monitor two channels simultaneously, enhancing situational awareness.

Image: The HA1G radio display showing two active frequencies for dual band receiving.

3.5 NOAA orų perspėjimas

The HA1G includes 12 NOAA channels to receive real-time weather warnings and updates. This feature is crucial for outdoor enthusiasts to adjust plans and ensure safety during travel.

Image: Icons representing various weather conditions, indicating the NOAA weather alert function of the HA1G radio.

3.6 VOX funkcija

When used with the included waterproof speaker microphone, the VOX (Voice Operated Exchange) function allows for hands-free communication. You can transmit by speaking into the microphone without pressing the PTT button.

Image: The external speaker microphone for the HA1G radio, designed for convenient communication.

3.7 Avarinis aliarmas

In an emergency, simply press the designated button to send an emergency signal to a preset recipient. The radio will emit a siren and flashing lights to help emergency teams quickly locate your position.

Image: The HA1G radio displaying an emergency alarm icon, indicating its safety feature.

3.8 Ekrano ryškumo reguliavimas

The 1.77-inch color backlit screen features adjustable brightness, ensuring readability of radio information day or night, even under strong sunlight.

Image: A hand holding the HA1G radio outdoors, demonstrating the screen's adjustable brightness for clear visibility in sunlight.

4. Priežiūra

To ensure the longevity and optimal performance of your Retevis Ailunce HA1G radio, follow these maintenance guidelines:

• Valymas: Nuvalykite radiją minkšta, damp audinys. Venkite naudoti stiprių cheminių medžiagų ar abrazyvinių valiklių.
• Vandeniui atspari priežiūra: Although IP67 waterproof, ensure all port covers are securely closed before exposing the radio to water. After exposure to saltwater, rinse with fresh water and dry thoroughly.
• Akumuliatoriaus priežiūra: Store the battery in a cool, dry place when not in use. Avoid overcharging or completely draining the battery to prolong its lifespan.
• Saugykla: Radijo imtuvą laikykite sausoje, be dulkių aplinkoje, toliau nuo ekstremalių temperatūrų.

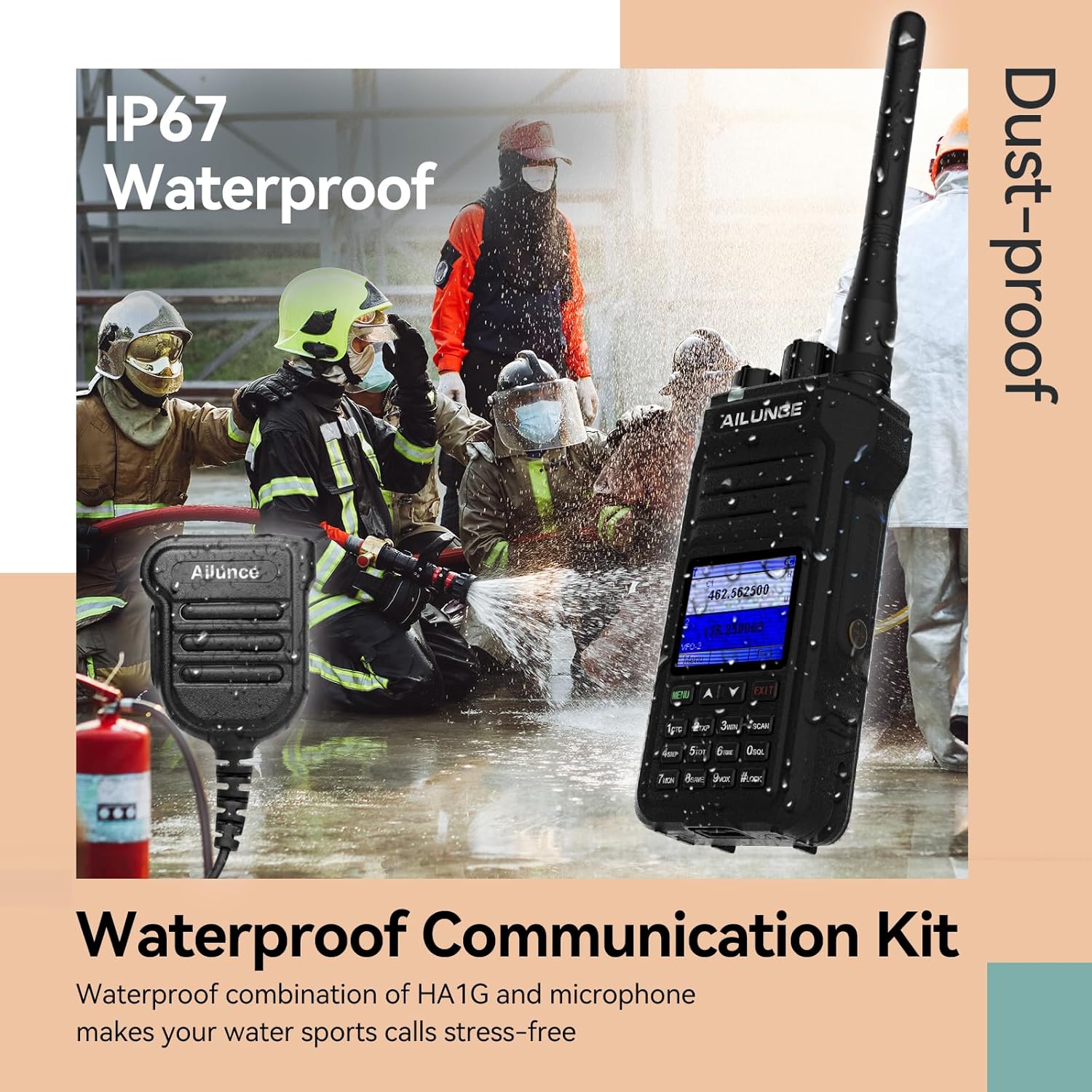

Image: The HA1G radio being splashed with water, demonstrating its IP67 waterproof and dustproof capabilities.

5. Problemų sprendimas

If you encounter issues with your HA1G radio, refer to the following common troubleshooting steps:

• Nėra galios: Ensure the battery is fully charged and correctly installed. Check the Power/VOL knob is rotated clockwise.
• Negalima perduoti / gauti: Verify that you are on the correct channel and that the volume is adjusted appropriately. Check for any interference or obstructions. Ensure the PTT button is functioning correctly.
• Prasta garso kokybė: Adjust the squelch level and microphone gain settings in the radio's menu. Ensure the speaker microphone is securely connected if in use.
• Repeater Issues: Confirm the repeater's frequency and CTCSS/DCS codes are correctly programmed.

6. Specifikacijos

7. Garantija ir palaikymas

Retevis provides a 2-year warranty for the radio body and a 1-year warranty for accessories. A 30-day no-reason return policy is also available. For service beyond the warranty period, maintenance is offered, with buyers responsible for associated costs.

Jei turite klausimų ar reikia pagalbos, susisiekite su „Retevis“ klientų aptarnavimo tarnyba „Amazon“ svetainėje. Atsakymai paprastai pateikiami per 12 valandų.
