Parkside PAAL 6000 C2 Rechargeable Work Light Instruction Manual

1. Įvadas

Thank you for choosing the Parkside PAAL 6000 C2 Rechargeable Work Light. This versatile and robust work light is designed to provide powerful illumination in various environments, featuring multiple operating modes, a USB power bank function, and durable construction. Please read this manual carefully before use to ensure proper operation and maintenance.

2. Produkto ypatybės

• Mobilus Lamp with USB Power Bank Function: Charge your mobile devices on the go.
• Powerful 20W COB LED: Užtikrina ryškų ir efektyvų apšvietimą.
• 4 darbo režimų: Max. brightness, 50% power saving mode, SOS signal, and red flashing light.
• Dvigubos USB prievados: Includes 2 USB ports for charging external devices.
• Baterijos būsenos indikatorius: Located under a protective cover for easy monitoring.
• Shock-Resistant Housing: Features rubber edges for enhanced durability.
• IP65 Jet Protection: Resistant to water jets, suitable for outdoor use.
• Foldable Magnetic Stand: Ensures secure placement on metallic surfaces.
• Pakabinimo variantas: Can also be hung for versatile lighting angles.

3. Pakuotės turinys

Prašome patikrinti, ar visi daiktai yra ir yra geros būklės:

• 1 x Parkside PAAL 6000 C2 Rechargeable Work Light
• 1x USB laidas
• 1 x Car Charging Adapter
• 1x maitinimo šaltinis

Image: Included accessories - USB cable, car charger, and power supply.

4. Saugos instrukcijos

• Do not look directly into the LED light when it is on, as it may cause eye damage.
• Prietaisą laikykite vaikams nepasiekiamoje vietoje.
• Do not attempt to disassemble or modify the work light. This may void the warranty and pose safety risks.
• Use only the provided charging accessories or compatible alternatives.
• Ensure the protective cover for the USB ports is securely closed when not in use, especially in wet conditions.
• Stenkitės ilgą laiką nelaikyti prietaiso ekstremaliose temperatūrose arba tiesioginiuose saulės spinduliuose.

5. Produktas baigtasview

Familiarize yourself with the main components of your work light:

• Priekyje: COB LED panel for illumination.
• Atgal: Solar panel (for charging), USB output ports, USB-C input port, power button, and battery indicator lights.
• Šonai: Rotatable stand/handle with magnetic base.

Vaizdas: priekis view of the work light with its powerful LED panel illuminated.

Paveikslėlis: Nugara view of the work light, detailing the USB ports, power button, and battery indicator lights under a protective flap.

6. Operacija

The work light features a single power button to cycle through its lighting modes.

1. Power On / Max Brightness: Press the power button once to turn on the light at maximum brightness.
2. 50% Power Saving Mode: Press the power button a second time to switch to 50% brightness.
3. SOS signalas: Press the power button a third time for the white SOS flashing signal.
4. Raudona mirksi lemputė: Press the power button a fourth time for the red flashing emergency light.
5. Išjungti: Press the power button a fifth time to turn off the light.

Using the Power Bank Function:

• Open the protective cover on the back of the unit.
• Connect your mobile device to one of the USB output ports using a compatible USB cable.
• The work light will automatically begin charging your device.
• Monitor the battery indicator lights to check the remaining power of the work light.

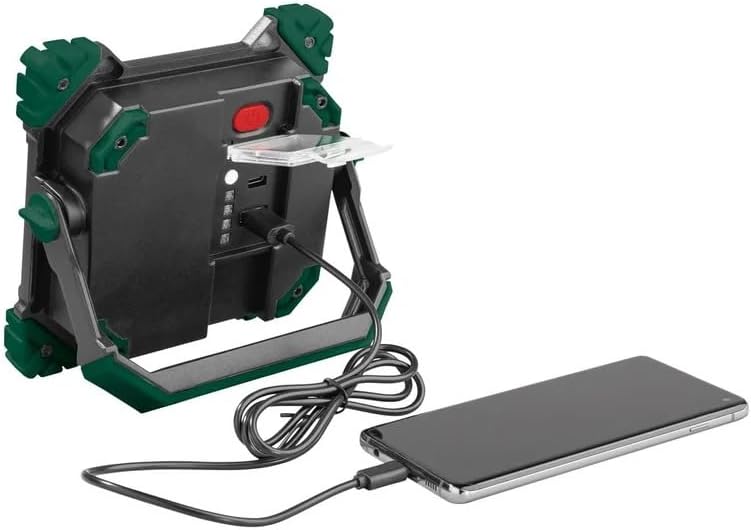

Image: The work light functioning as a power bank, charging a smartphone via its USB port.

7. Charging the Work Light

The Parkside PAAL 6000 C2 can be charged via USB-C or its integrated solar panel.

USB-C įkrovimas:

• Open the protective cover on the back of the unit.
• Connect the provided USB cable to the USB-C input port on the work light and to a power source (e.g., wall adapter, car charger, computer USB port).
• The battery indicator lights will illuminate to show the charging progress. All lights will be solid when fully charged.

Saulės įkrovimas:

• Place the work light with the solar panel facing direct sunlight.
• The solar charging indicator light will show when the device is receiving power.
• Solar charging is slower than USB-C charging and is best used for maintaining charge or in emergencies.

8. Montavimas ir išdėstymas

The integrated foldable stand offers multiple positioning options:

• Magnetinis tvirtinimas: The stand has a magnetic base, allowing the light to be securely attached to metallic surfaces for hands-free operation.
• Laisvai pastatomos: Fold out the stand to position the light on any flat surface.
• Kabantis: The stand can also be used as a handle or hook to hang the light.

Image: The work light positioned on a surface, demonstrating its adjustable stand.

9. Priežiūra ir priežiūra

• Prietaisą valykite minkšta, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Ensure the USB ports are dry before charging or using the power bank function.
• Kai nenaudojate, laikykite darbo žibintą vėsioje, sausoje vietoje.
• Charge the battery at least once every three months to prolong its lifespan if stored for extended periods.

10. Problemų sprendimas

• Šviesa neįsijungia: Check battery level. Recharge the device if necessary.
• Įrenginys neįkraunamas: Ensure the charging cable is properly connected and the power source is active. Try a different cable or power source.
• Mobile device not charging from work light: Ensure the work light has sufficient battery power. Check the connection cable.
• Sumažintas ryškumas: Battery may be low. Recharge the device.

11. Specifikacijos

12. Oficialūs produktų vaizdo įrašai

Watch these official videos for a visual guide on using your Parkside PAAL 6000 C2 Rechargeable Work Light:

13. Garantija ir palaikymas

Dėl garantijos informacijos ir klientų aptarnavimo žr. kartu su pirkiniu pateiktus dokumentus arba susisiekite su pardavėju. Išsaugokite pirkimo įrodymą, jei prireiktų pateikti garantinį ieškinį.
