Fudajo 2-in-1 Pet Stroller

Įvadas

This manual provides detailed instructions for the assembly, operation, and maintenance of your Fudajo 2-in-1 Pet Stroller. Designed for small to medium dogs and cats up to 20 kg (44 lbs), this versatile stroller offers a comfortable and secure way to transport your pet during walks, errands, or vet visits. Its foldable design and detachable carrier ensure convenience and flexibility for various situations.

Saugos informacija

• Didžiausia apkrova: Do not exceed the maximum weight of 20 kg (44 lbs). Overloading can compromise stability and safety.
• Always secure your pet inside the carrier using a harness or leash attachment point to prevent them from jumping out.
• Ensure all locking mechanisms are fully engaged before placing your pet in the stroller or moving it.
• Do not leave pets unattended in the stroller, especially on inclines or near traffic.
• Avoid using the stroller on excessively steep inclines or highly uneven terrain that could cause it to tip over.
• Regularly inspect the stroller for any signs of wear, damage, or loose parts before each use.

Pakuotės turinys

Please check that all components are present in your package:

• Vežimėlio rėmas
• Detachable Pet Carrier
• Priekiniai ratai (2)
• Galiniai ratai (2)
• Apatinis laikymo krepšelis
• Instrukcijų vadovas (šis dokumentas)

Sąranka

1. Rėmo išskleidimas: Carefully unfold the stroller frame until it fully extends and locks into place. Listen for a click sound to confirm it's secure.
2. Ratų pritvirtinimas: Insert the front wheels into their designated slots at the front of the frame. Repeat for the rear wheels. Ensure all wheels are firmly attached and rotate freely.
3. Installing the Bottom Storage Basket: Attach the storage basket to the hooks or clips located on the lower part of the stroller frame.
4. Mounting the Pet Carrier: Align the detachable pet carrier with the attachment points on the stroller frame. Press down firmly until it clicks securely into place.

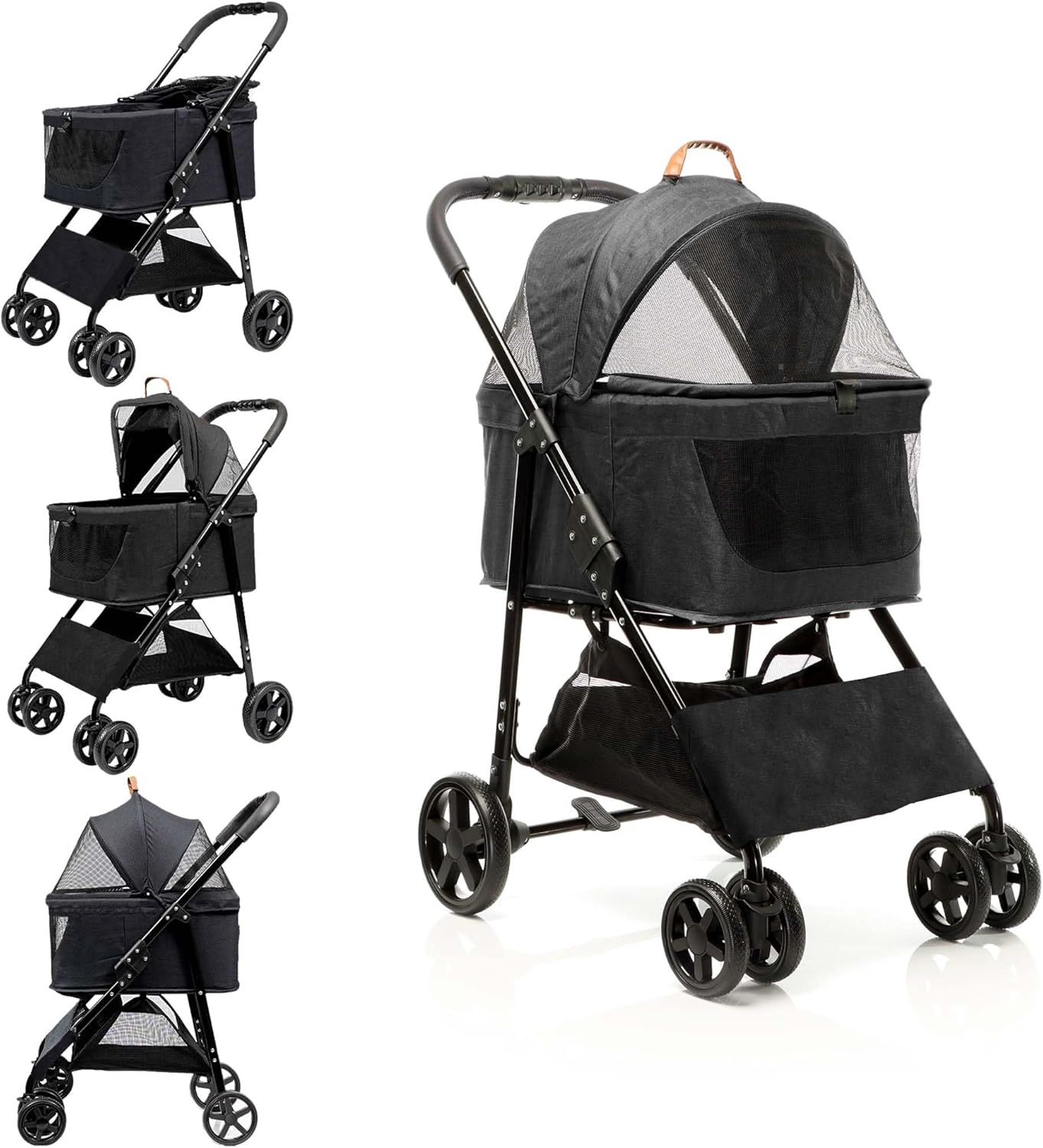

Image: The Fudajo 2-in-1 Pet Stroller fully assembled, showcasing its black frame and carrier with mesh windows.

Vaizdas: Keli views of the Fudajo 2-in-1 Pet Stroller, demonstrating its compact folded state and the carrier detached from the frame.

Naudojimo instrukcijos

Using the Stroller:

1. Augintinio apgyvendinimas: Open the front mesh cover of the carrier using the zipper. Gently place your pet inside and secure them using the internal leash clip if desired. Close the zipper completely.
2. Ventilation and Sun Protection: The carrier features breathable mesh on the front and rear for optimal ventilation. The opaque top provides protection from direct sunlight.
3. Manevravimas: The durable EVA rubberized wheels are suitable for various surfaces, including paved roads, forest paths, and field trails. The front wheels can swivel for easy turning or be locked for straight-line travel (refer to image below for wheel lock).
4. Stabdymas: Engage the rear wheel brakes when stopping or parking the stroller to prevent accidental movement.

Detaching the Carrier:

1. Locate the release mechanisms on both sides of the carrier where it connects to the frame.
2. Press or slide the release buttons/levers simultaneously and lift the carrier upwards to detach it from the frame.
3. The detached carrier can be used for manual transport or as a pet seat in a vehicle.

Vežimėlio sulankstymas:

1. First, remove the pet carrier from the frame.
2. Locate the folding mechanism on the stroller frame (typically near the handle or base).
3. Activate the mechanism and fold the frame compactly for convenient storage or transport.

Vaizdas: Išsamus view of the pet carrier, showing a small dog inside, the internal leash clip, and a beagle in the carrier.

Vaizdas: Išsprogdintas view highlighting key components like the handle, wheel attachment, and carrier features.

Image: Technical diagram showing the overall dimensions of the assembled pet stroller in millimeters.

Image: Technical diagram showing the dimensions of the detachable pet carrier in millimeters.

Image: Visual guide demonstrating how to detach the carrier and fold the stroller frame for compact storage.

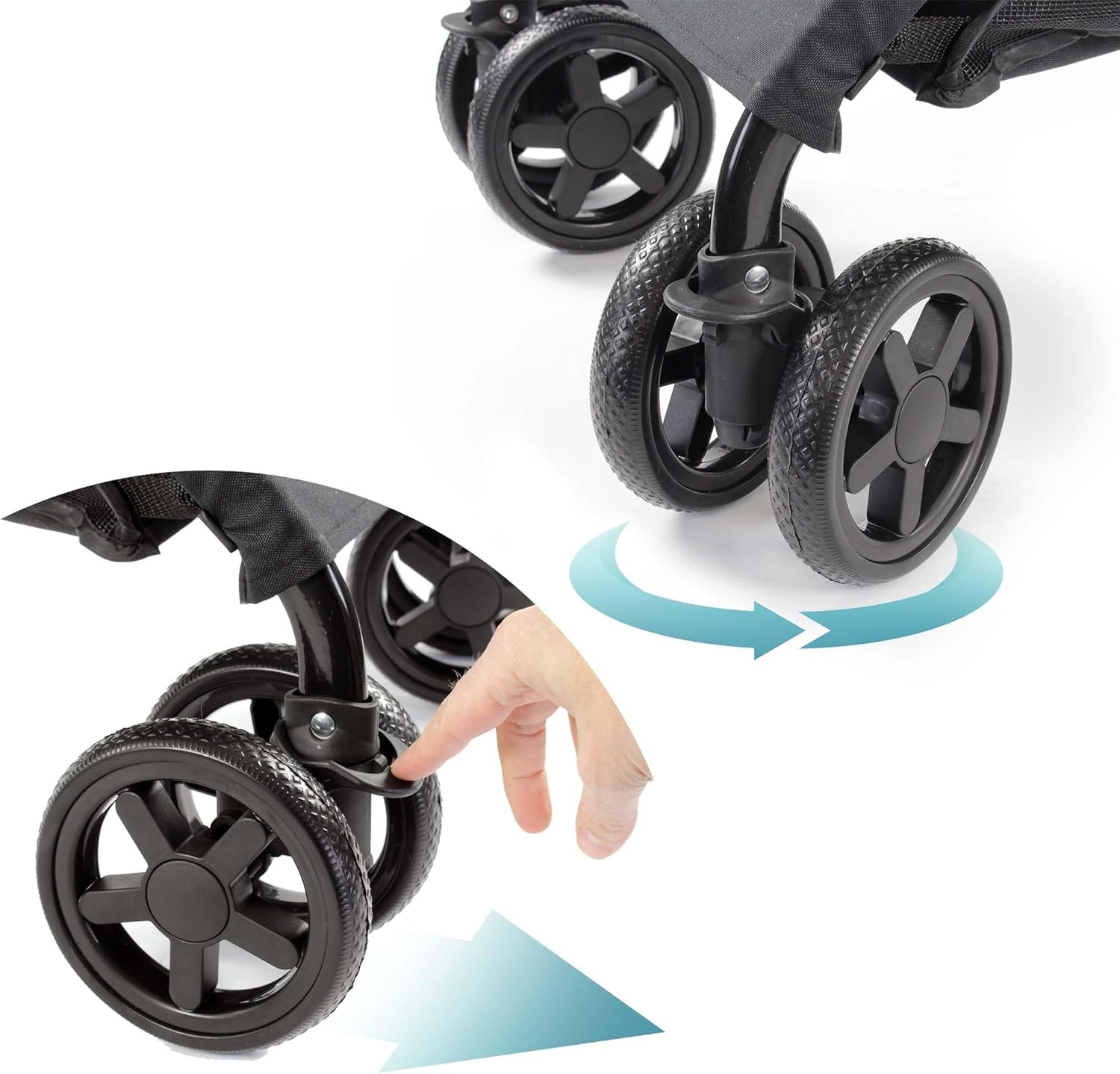

Image: Close-up showing the mechanism to lock or unlock the swivel function of the front wheels.

Priežiūra

• Valomasis audinys: The fabric parts of the carrier can be spot cleaned with a damp cloth and a mild, pet-safe detergent. Allow to air dry completely before reassembly or storage. Do not machine wash.
• Valymo rėmas: Nuvalykite metalinį rėmą reklamaamp cloth to remove dirt and dust. Avoid using abrasive cleaners or solvents that could damage the finish.
• Ratų priežiūra: Periodically check the wheels for any accumulated debris (e.g., hair, dirt) and remove it. Ensure the wheels spin freely. If they become stiff or squeaky, a small amount of silicone-based lubricant can be applied to the axles.
• Saugykla: When not in use, store the stroller in a dry, cool place away from direct sunlight to prevent material degradation.

Trikčių šalinimas

Specifikacijos

Garantija ir palaikymas

For warranty information or technical support regarding your Fudajo 2-in-1 Pet Stroller, please refer to the contact details provided at the point of purchase or visit the official Fudajo website. Please retain your proof of purchase for any warranty claims or service requests.
