UTRAI JS-MINI Portable Car Jump Starter User Manual

1. Įvadas

Thank you for choosing the UTRAI JS-MINI Portable Car Jump Starter. This device is designed to provide a reliable solution for starting vehicles with dead batteries, and also functions as a portable power bank and LED flashlight. Please read this manual carefully before use to ensure safe and optimal performance.

Image 1.1: UTRAI JS-MINI Jump Starter and its applications for different vehicles.

2. Saugos informacija

Always observe the following safety precautions to prevent electric shock, explosion, fire, or injury.

• Neardykite užvedimo įrenginio. Neteisingas surinkimas gali sukelti gaisrą arba elektros smūgį.
• Do not use this device to jump start vehicles with a voltage kitokia nei 12V.
• Do not use the jump starter if the smart clamp cable or the device itself is damaged.
• Nejunkite teigiamo ir neigiamo jungčiųamps kartu.
• Laikyti vaikams nepasiekiamoje vietoje.
• Laikyti vėsioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių ir aukštos temperatūros.
• Išmanusis klamp cable features 8 protections: short circuit protection, reverse connection protection, low voltage apsauga, didelio tūriotage protection, overload protection, overheat protection, reverse charging protection, and reverse connection protection. If an error occurs, an audible alert will sound.

Image 2.1: Visual representation of the multiple safety protections integrated into the smart clamp.

3. Pakuotės turinys

Patikrinkite pakuotę, ar joje yra šie daiktai:

• 1 x UTRAI JS-MINI Portable Car Jump Starter
• 1 x Smart Jump Cable (with clamps)
• 1 x USB Type-C įkrovimo laidas
• 1 x Vartotojo vadovas

Image 3.1: All items included in the UTRAI JS-MINI Jump Starter package.

4. Produktas baigtasview

The UTRAI JS-MINI is a compact and powerful jump starter. It features a 13000mAh battery capacity and a 1000A peak current, capable of starting 12V vehicles (up to 7.5L petrol or 5.5L diesel engines). It also includes two USB output ports for charging mobile devices and an integrated LED flashlight.

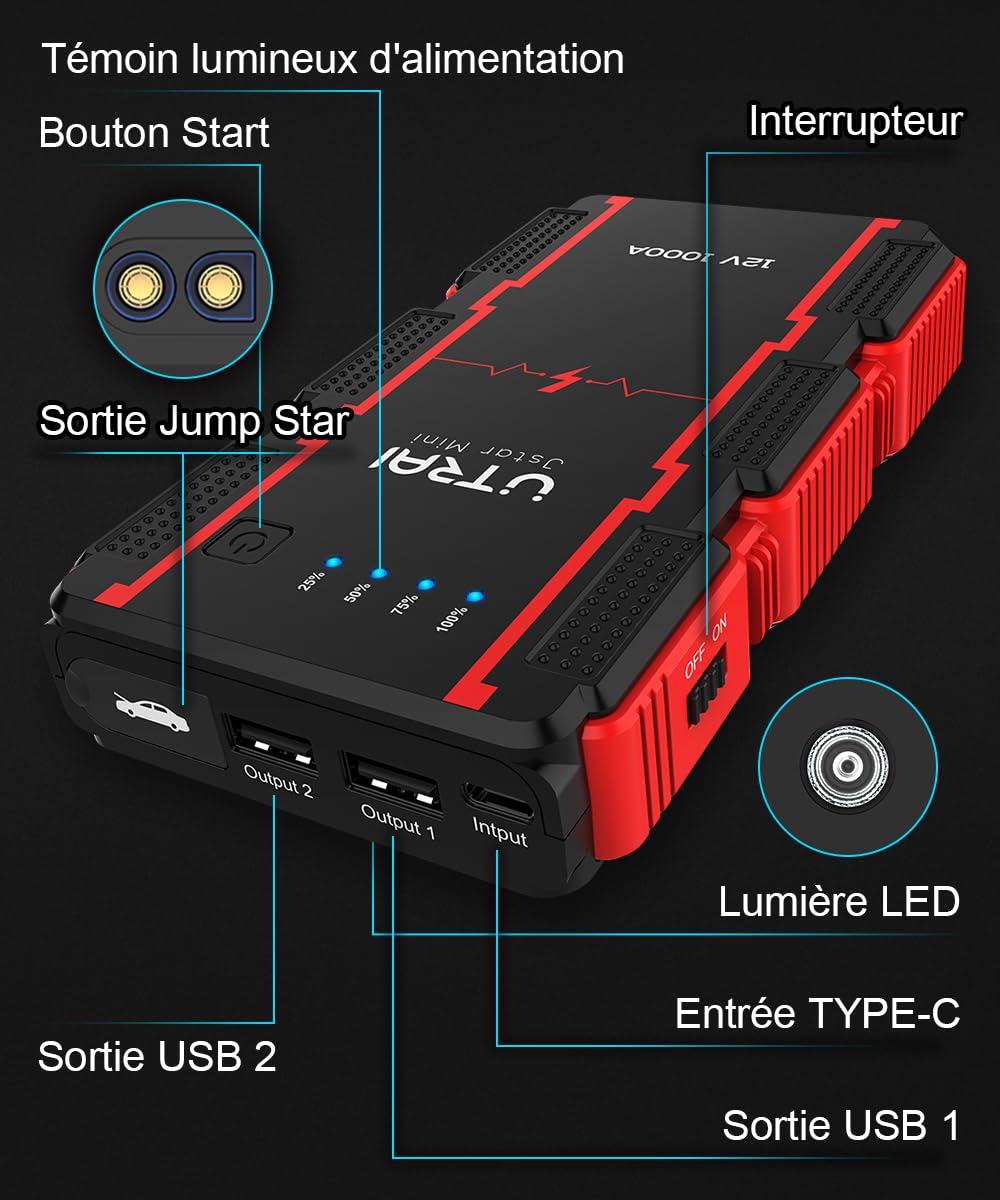

4.1 paveikslas: Priekinė ir šoninė dalys view of the jump starter, highlighting the power button, LED indicators, USB outputs, and Type-C input.

Image 4.2: The compact size of the UTRAI JS-MINI, comparable to a smartphone.

5. Sąranka

5.1 Pradinis įkrovimas

Before first use, fully charge the jump starter. Connect the provided USB Type-C charging cable to the jump starter's input port and a USB power adapter (not included). The LED indicators will show the charging progress. All four LEDs will be solid when fully charged.

6. Naudojimo instrukcijos

6.1 Transporto priemonės užvedimas šuoliu

1. Įsitikinkite, kad užvedimo jungiklis yra įkrautas bent 75 % (šviečia trys LED indikatoriai).
2. Insert the smart jump cable into the jump start output port of the device.
3. Prijunkite raudoną (+) jungtįamp prie teigiamo automobilio akumuliatoriaus gnybto ir juodo (-) gnybtoamp prie neigiamo terminalo.
4. Užtikrinkite išmanųjį užraktąamp indicator light is solid green, indicating a safe connection. If it flashes or beeps, check the connections.
5. Užveskite savo transporto priemonės variklį.
6. Kai variklis užsives, nedelsdami nuimkite išmanųjį laikiklį.ampnuo automobilio akumuliatoriaus, tada atjunkite išmanųjį laidą nuo užvedimo įrenginio.

Image 6.1: Visual instructions for connecting the jump starter and starting a vehicle.

Image 6.2: The smart cable clamps feature an LED screen for precise operational feedback during jump starting.

6.2 Naudojimas kaip nešiojamos išorinės baterijos

The UTRAI JS-MINI can charge your electronic devices via its two USB output ports (5V/3A and 5V/2.1A).

1. Prijunkite savo įrenginio USB įkrovimo laidą prie vieno iš užvedimo įrenginio USB išvesties prievadų.
2. Įkroviklis automatiškai pradės krauti jūsų įrenginį.

Image 6.3: The jump starter functioning as a portable charger for multiple devices.

6.3 LED žibintuvėlio naudojimas

The integrated LED flashlight has three modes: Flashlight, Strobe, and SOS.

1. Norėdami įjungti žibintuvėlį, 3 sekundes palaikykite nuspaudę maitinimo mygtuką.
2. Press the power button once to switch between Flashlight, Strobe, and SOS modes.
3. Norėdami išjungti žibintuvėlį, dar kartą paspauskite ir 3 sekundes palaikykite nuspaudę maitinimo mygtuką.

Image 6.4: The versatile 3-mode LED flashlight, useful for camping, emergencies, and road trips.

7. Priežiūra

7.1 Įkrovimas

To maintain battery health, it is recommended to fully charge the jump starter every 3-6 months, even if not in use.

7.2 Saugykla

Store the device in a cool, dry environment, away from direct sunlight, moisture, and flammable materials. The ideal storage temperature is between 0°C and 40°C (32°F and 104°F).

8. Problemų sprendimas

• Įrenginys neįsijungia: Ensure the device is charged. If not, connect it to a charger.
• Transporto priemonė neužsiveda: Patikrinkite, ar išmanusis klampyra teisingai prijungti prie akumuliatoriaus gnybtų (raudonas prie teigiamo, juodas prie neigiamo). Įsitikinkite, kad išmanusis jungiklisamp indicator is solid green. The vehicle battery might be severely discharged; try waiting a few minutes after connecting before attempting to start.
• Išmanusis klamp beeping/flashing: This indicates an error (e.g., reverse polarity, short circuit). Disconnect the clamps and re-check connections according to the instructions.
• Charging slow or not at all: Įsitikinkite, kad įkrovimo laidas ir adapteris veikia tinkamai.

9. Specifikacijos

10. Garantija ir palaikymas

The UTRAI JS-MINI Portable Car Jump Starter comes with a 1-year warranty. For any questions, technical support, or warranty claims, please contact UTRAI customer service through your purchase platform or the contact information provided in the product packaging.
