TruVoice BT85 Bluetooth Wireless Headset User Manual

1. Įvadas

This manual provides comprehensive instructions for the setup, operation, and maintenance of your TruVoice BT85 Bluetooth Wireless Headset. Designed for clear communication and extended use, the BT85 features noise suppression technology, a noise-canceling microphone, and multi-device connectivity.

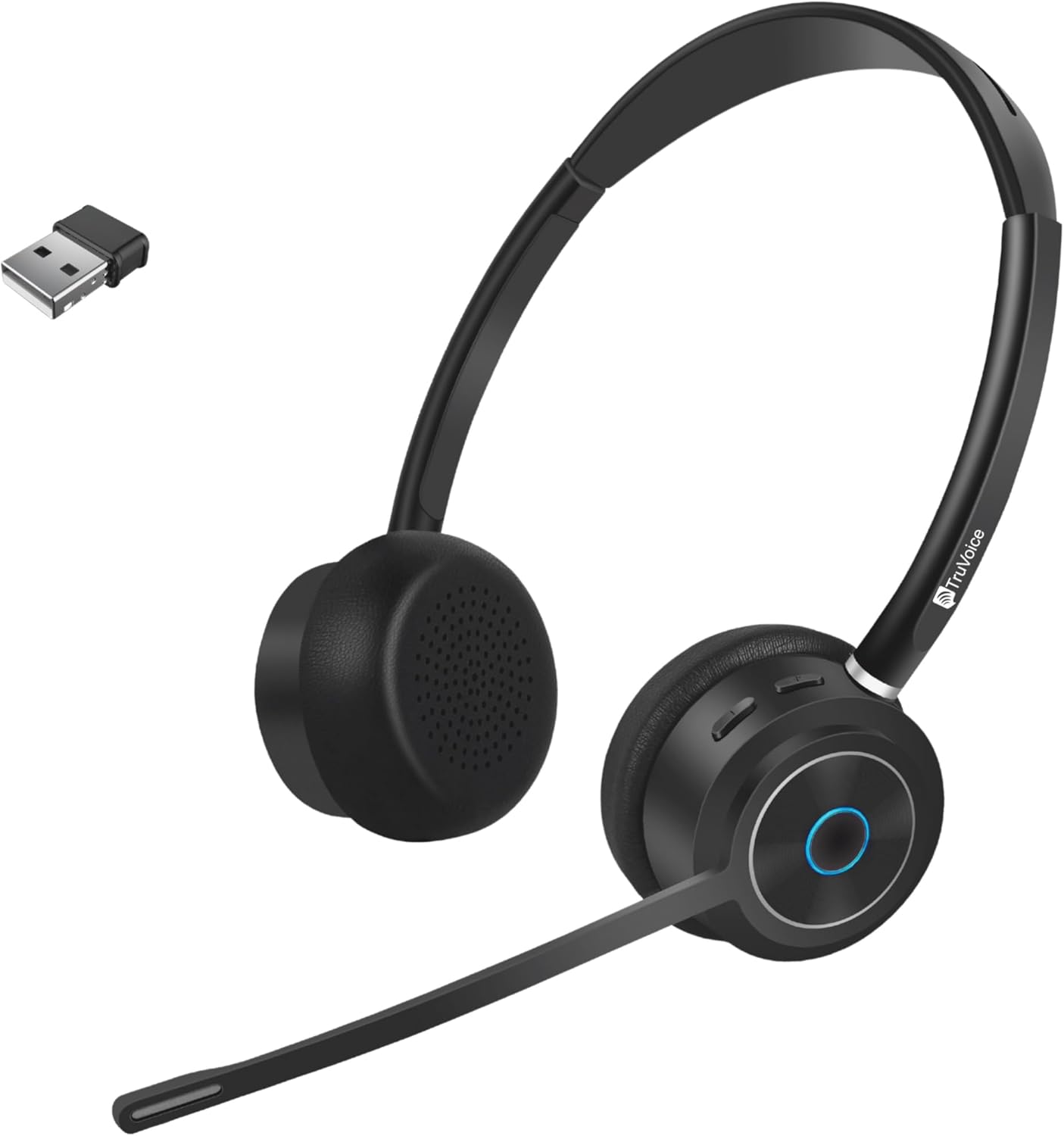

Image 1.1: TruVoice BT85 Bluetooth Wireless Headset with included USB dongle.

2. Kas yra dėžutėje

Upon unboxing your TruVoice BT85 headset, please verify that all the following components are included:

• TruVoice BT85 Bluetooth Wireless Headset
• V5.2 USB Dongle
• USB įkrovimo laidas
• Ausų pagalvėlės (iš anksto sumontuotos arba atsarginės)
• Galvos juosta (integruota)
• Apsauginis dėklas
• Vartotojo vadovas (šis dokumentas)

3. Sąrankos vadovas

3.1. Pradinis įkrovimas

Before first use, fully charge your headset. Connect the provided USB charging cable to the headset's charging port and to a USB power source (e.g., computer USB port or wall adapter). A full charge typically takes approximately 90 minutes. The LED indicator on the headset will change to indicate charging status (refer to LED indicator section for details).

3.2. Susiejimas su įrenginiais

The BT85 headset supports simultaneous connection with two Bluetooth devices (multipoint connectivity).

1. Using the USB Dongle (Recommended for Computers):

   Insert the V5.2 USB Dongle into an available USB port on your computer. The dongle will automatically pair with the headset. Ensure the headset is powered on and in pairing mode if it doesn't connect automatically. The headset is designed for plug-and-play functionality with most operating systems.

2. Direct Bluetooth Pairing (for Smartphones, Tablets, or other Bluetooth-enabled devices):
   • Įsitikinkite, kad laisvų rankų įranga išjungta.
   • Press and hold the Multi-functional Key (usually the main button on the earcup) until the LED indicator flashes blue and red, indicating pairing mode.
   • On your device, navigate to Bluetooth settings and search for new devices.
   • Select "TruVoice BT85" from the list of available devices.
   • Once connected, the LED indicator will turn solid blue or flash blue periodically.

Image 3.1: Key features of the BT85 headset, including the multi-functional key and charging indicators.

4. Naudojimo instrukcijos

4.1. Maitinimo įjungimas/išjungimas

• Maitinimas: Press and hold the Power button (or Multi-functional Key) for approximately 3 seconds until you hear an audible prompt or see the LED indicator light up.
• Išjungti: Press and hold the Power button (or Multi-functional Key) for approximately 5 seconds until you hear an audible prompt or the LED indicator turns off.

4.2. Skambučių valdymas

The BT85 headset is equipped with a Uni-Directional Noise Cancellation Microphone and Qualcomm cVc Echo Canceling Noise Suppression Technology for clear calls.

• Atsiliepti / Baigti skambutį: Press the Multi-functional Key once.
• Atmesti skambutį: Press and hold the Multi-functional Key for 2 seconds.
• Nutildyti / įjungti mikrofoną: Locate the dedicated mute button on the headset (refer to product diagram if available). Press it once to mute, and again to unmute.

Image 4.1: The BT85 headset provides crystal clear voice calls with advanced noise suppression.

Image 4.2: The uni-directional noise cancellation microphone reduces background noise for improved speech transmission.

4.3. Garsumo valdymas

Adjust the listening volume using the dedicated volume buttons on the headset. These are typically marked with '+' and '-' symbols.

4.4. Baterijos veikimo laikas

The BT85 headset offers extended battery performance:

• Budėjimo laikas: Iki 500 valandų
• Nepertraukiamo pokalbio laikas: Iki 22 valandų
• Media Playing Time: Iki 19 valandų

Image 4.3: Detailed battery performance of the BT85 headset.

4.5. Universalus suderinamumas

The BT85 headset is compatible with a wide range of UC (Unified Communications) computer voice platforms and devices, including:

• Microsoft Teams (includes remote call answer)
• Skype
• Padidinti
• Avaya
• Cisco
• Ring Central
• Vonage Nextiva
• 3CX
• And many more UC platforms.

It also connects with computers, cell phones, and desk phones that have Bluetooth headset capabilities.

Image 4.4: The BT85 headset offers universal compatibility with leading UC platforms.

5. Priežiūra

Proper maintenance ensures the longevity and optimal performance of your TruVoice BT85 headset.

• Valymas: Use a soft, dry, lint-free cloth to clean the headset. For ear cushions, gently wipe with a slightly damp cloth and allow to air dry completely before use. Do not use harsh chemicals or abrasive materials.
• Saugykla: When not in use, store the headset in its protective case to prevent dust accumulation and physical damage. Avoid exposing the headset to extreme temperatures, humidity, or direct sunlight.
• Įkrovimas: Always use the provided USB charging cable. Avoid overcharging by disconnecting the headset once fully charged.

6. Problemų sprendimas

If you encounter issues with your TruVoice BT85 headset, please refer to the following common solutions:

Image 6.1: Ergonomic design features of the BT85 headset for all-day comfort.

7. Specifikacijos

Detailed technical specifications for the TruVoice BT85 Headset:

8. Garantija ir palaikymas

TruVoice stands behind the quality of its products. For warranty information and technical support, please refer to the official TruVoice websvetainėje arba susisiekite tiesiogiai su jų klientų aptarnavimo tarnyba.

Additional protection plans may be available for purchase to extend coverage beyond the standard warranty period. Please check with your retailer for details on available protection plans.

For direct inquiries, you may contact TruVoice Telecom, the seller of this product.
