1. Produktas baigtasview
The iKiKin V600 OBD2 Scanner is a professional diagnostic tool designed to help identify and resolve issues with your vehicle's engine system. It provides comprehensive diagnostic functions, including reading and clearing fault codes, viewing live data, and performing various system tests. This manual will guide you through the setup, operation, and maintenance of your V600 scanner.

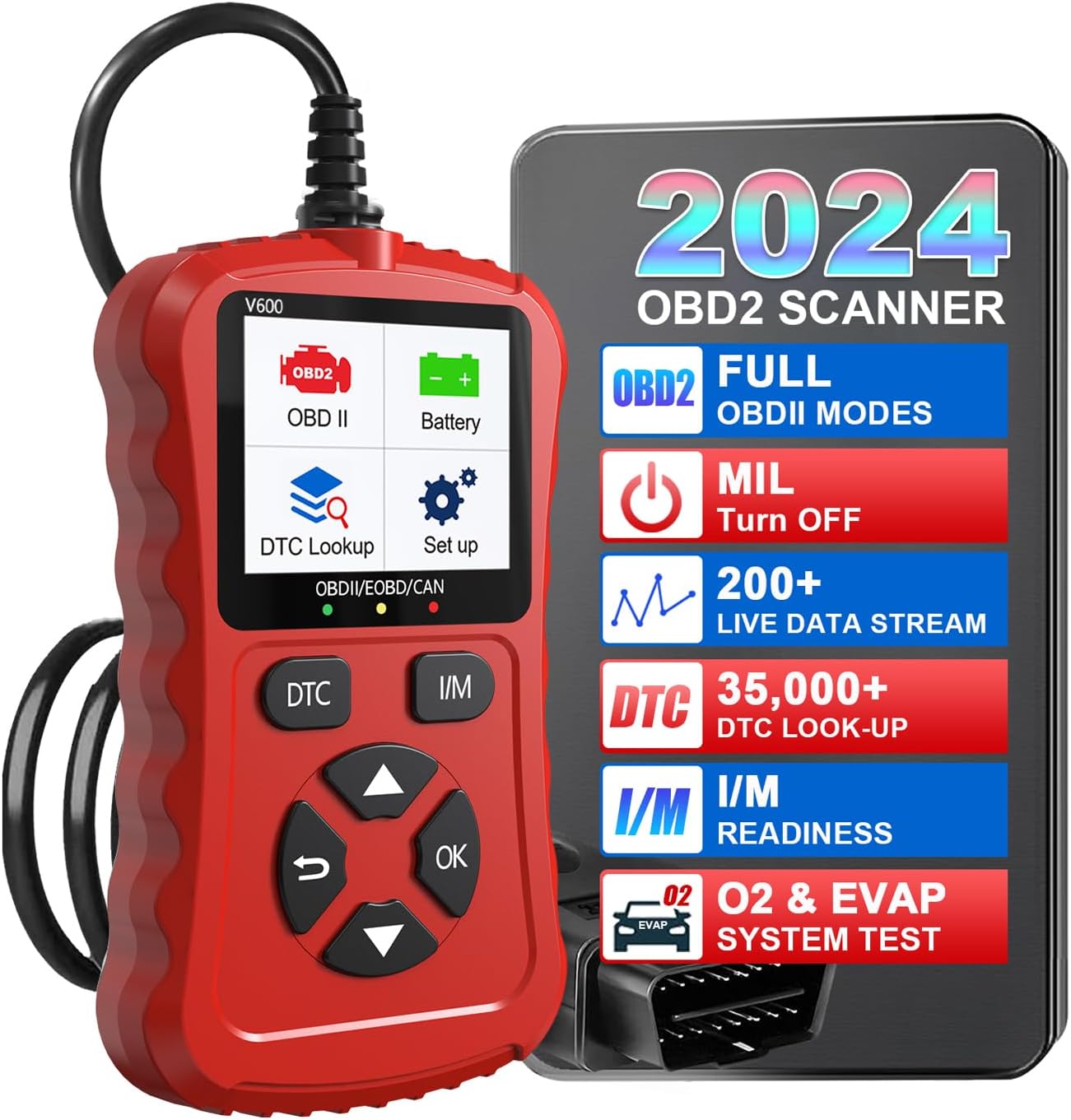

Image: The iKiKin V600 OBD2 Scanner, highlighting its main display and key features.
Vaizdas: Išsamus views of the V600 scanner's physical features, including its screen, indicator lights, and ergonomic design.
2. Pakuotės turinys
Atidarius pakuotę, patikrinkite jos turinį, kad įsitikintumėte, jog joje yra visi reikalingi daiktai:
- OBD2 Code Scanner
- Kabelis
- Vartotojo vadovas
3. Pagrindinės savybės
- Daugiafunkcinės funkcijos: Built-in OBD2 DTC lookup library, read and erase codes, view freeze frame, I/M readiness, vehicle information, data flow, real-time curve, vehicle speed, calculate load value, engine coolant temperature, engine speed.
- OBDII suderinamumas: Supports 9 protocols compatible with most 1996 US-Based, 2000 EU-Based, and Asian cars, and newer OBD II & CAN domestic or import vehicles.
- Kelių kalbų palaikymas: Supports 9 languages including English, German, Dutch, Spanish, French, Italian, Russian, Chinese, Japanese, and Korean.
- Patogus vartotojui dizainas: Clear 128 x 64 pixels LCD screen. No battery or charger needed; powered directly from the vehicle's OBDII Data Link Connector.
- Naudojimo paprastumas: Provides accurate and fast results, reads and clears engine trouble codes in seconds.
- Cost and Time Saving: Enables self-diagnosis of fault codes and definitions, reducing the need for mechanic visits.
4. Vehicle Compatibility and Language Support
The V600 scanner offers wide automotive compatibility, supporting vehicles from various regions and adhering to multiple communication protocols.
- US-Based Vehicles: Compatible with most vehicles manufactured since 1996.
- EU-Based Vehicles: Compatible with most vehicles manufactured since 2000.
- Azijos automobiliai: Compatible with most vehicles manufactured since 2008.
- Palaikomi protokolai: SAE J1850 PWM, SAE J1850 VPW, ISO 9141-2, ISO14230-4 KWP (5 baud init), ISO14230-4 KWP (fast init), ISO15765-4 CAN (11bit ID, 500 Kbaud), ISO15765-4 CAN (29bit ID, 500 Kbaud), ISO15765-4 CAN (11bit ID, 250 Kbaud), ISO15765-4 CAN (29bit ID, 250 Kbaud).
- Palaikomos kalbos: English, German, Dutch, Spanish, French, Italian, Russian, Chinese, Japanese, Korean.
Image: Visual representation of the V600's broad vehicle compatibility and extensive language and protocol support.
5. Darbo pradžia (sąranka)
Follow these steps to connect and power on your iKiKin V600 OBD2 Scanner:
- Raskite OBDII prievadą: The OBDII (On-Board Diagnostics II) port is typically located under the dashboard on the driver's side of the vehicle. Refer to your vehicle's owner's manual if you cannot find it.
- Prijunkite skaitytuvą: Plug the V600 scanner's cable connector firmly into the vehicle's OBDII port.
- Maitinimas: Once connected, the scanner will automatically power on, drawing power directly from the vehicle's battery via the OBDII port. No external power source or batteries are required.
- Užvesti transporto priemonę (nebūtina): For some diagnostic functions, it may be necessary to turn the vehicle's ignition to the 'ON' position (engine off) or start the engine. Follow the on-screen prompts of the scanner.
6. Operating the V600 Scanner
Pagrindinio meniu naršymas
The V600 scanner features a user-friendly interface with dedicated buttons for navigation:
- Rodyklės aukštyn/žemyn: Naršykite meniu parinktis.
- Rodyklės į kairę/dešinę: Move cursor or change values (if applicable).
- Gerai mygtukas: Patvirtinkite pasirinkimą arba įeikite į papildomą meniu.
- Return Button (U-turn arrow): Grįžti į ankstesnį ekraną arba išeiti iš funkcijos.
- DTC mygtukas: Quick access to Diagnostic Trouble Codes.
- I/M mygtukas: Greita prieiga prie I/M parengties būsenos.
Diagnostinės funkcijos
The V600 offers a range of diagnostic capabilities:
- Skaitykite kodus: Retrieves Diagnostic Trouble Codes (DTCs) from the vehicle's computer, indicating specific issues.
- Ištrinti kodus: Clears DTCs from the vehicle's computer and turns off the Check Engine Light (MIL). Ensure the underlying issue is resolved before clearing codes.
- View Sustabdyti kadrą: Displays a snapshot of sensor data recorded by the vehicle's computer at the moment a fault code was set. This helps in diagnosing intermittent problems.
- I/M pasirengimas: Checks the status of the vehicle's emission-related monitors to determine if they have completed their diagnostic cycles. Essential for emission testing.
- Duomenų srautas: Displays real-time live data from the vehicle's sensors in numerical or graphical format, such as engine RPM, vehicle speed, coolant temperature, etc.
- Real-Time Curve: Graphically displays dynamic data parameters over time, allowing for visual analysis of sensor performance.
- EVAP sistemos bandymas: Pradeda transporto priemonės garavimo išmetimo kontrolės sistemos nuotėkio bandymą.
- DTC paieškos biblioteka: Provides definitions for generic and manufacturer-specific Diagnostic Trouble Codes, helping you understand the meaning of each code.
- Informacija apie transporto priemonę: Nuskaito transporto priemonės identifikavimo numerį (VIN), kalibravimo ID ir kalibravimo patvirtinimo numerį (CVN).
- Baterijos tūristage: Tests and displays the current voltage automobilio akumuliatoriaus vertė realiuoju laiku.

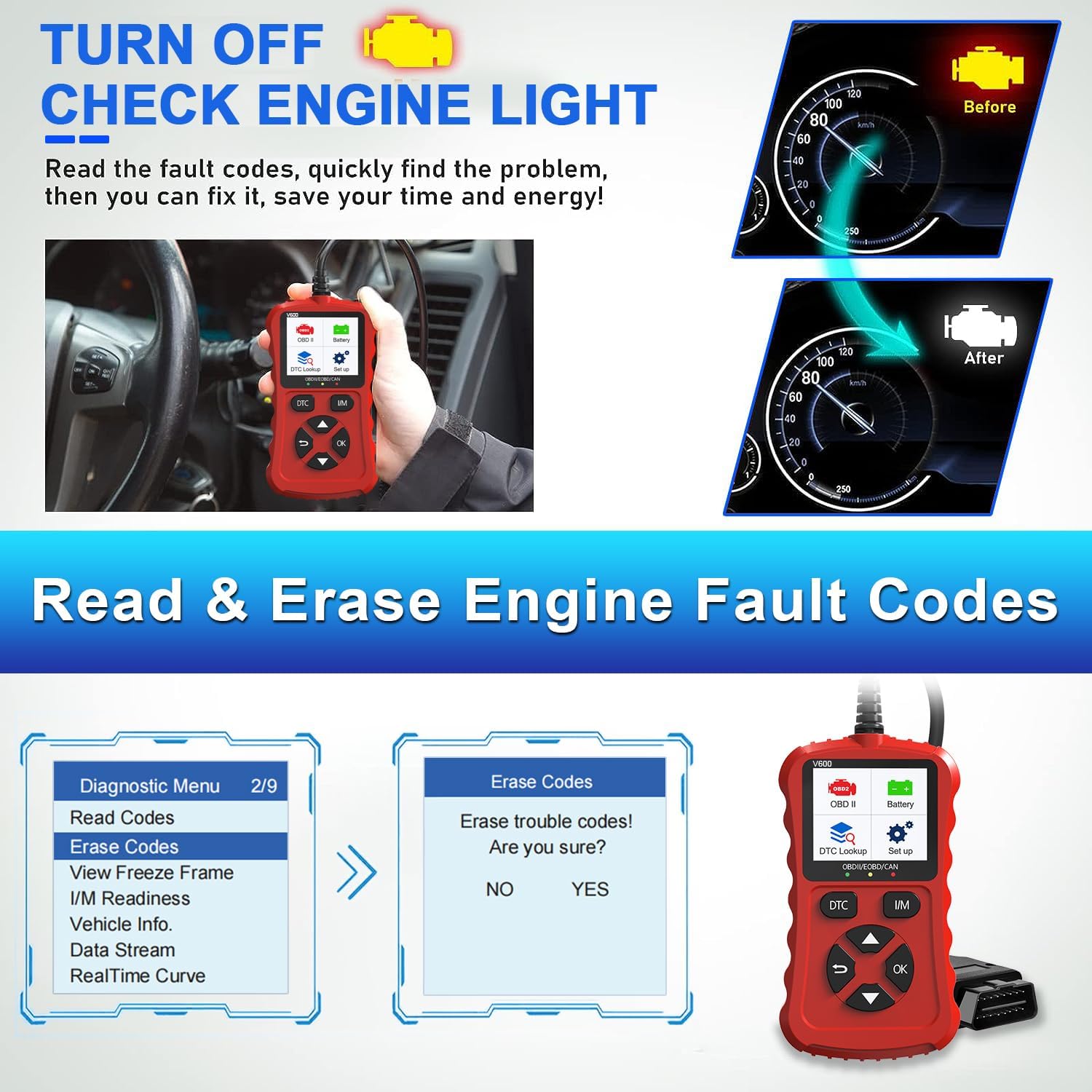

Image: Demonstrates how to read and clear engine fault codes, effectively turning off the check engine light.

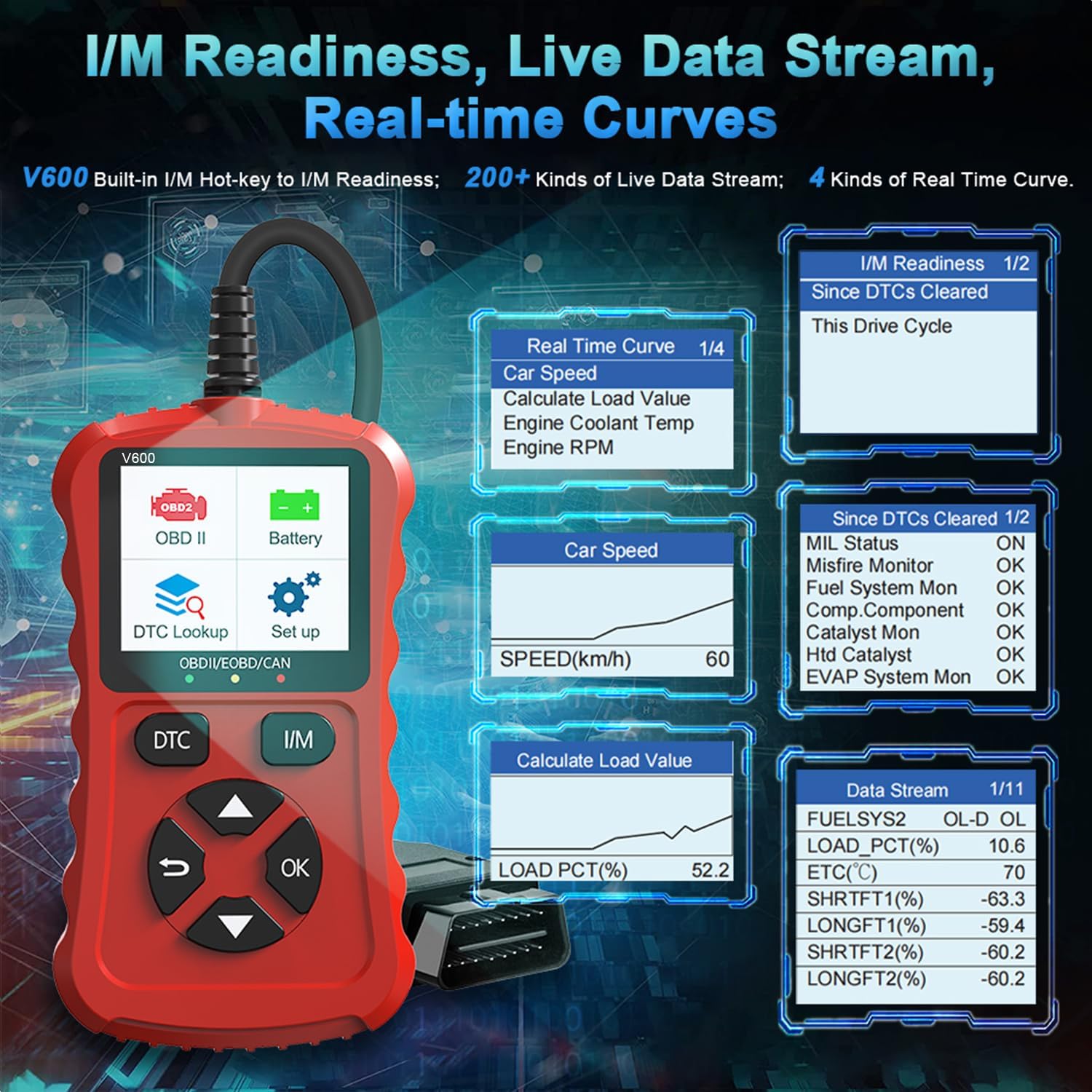

Image: Shows the I/M Readiness screen, examples of live data streams, and real-time curve displays for various vehicle parameters.

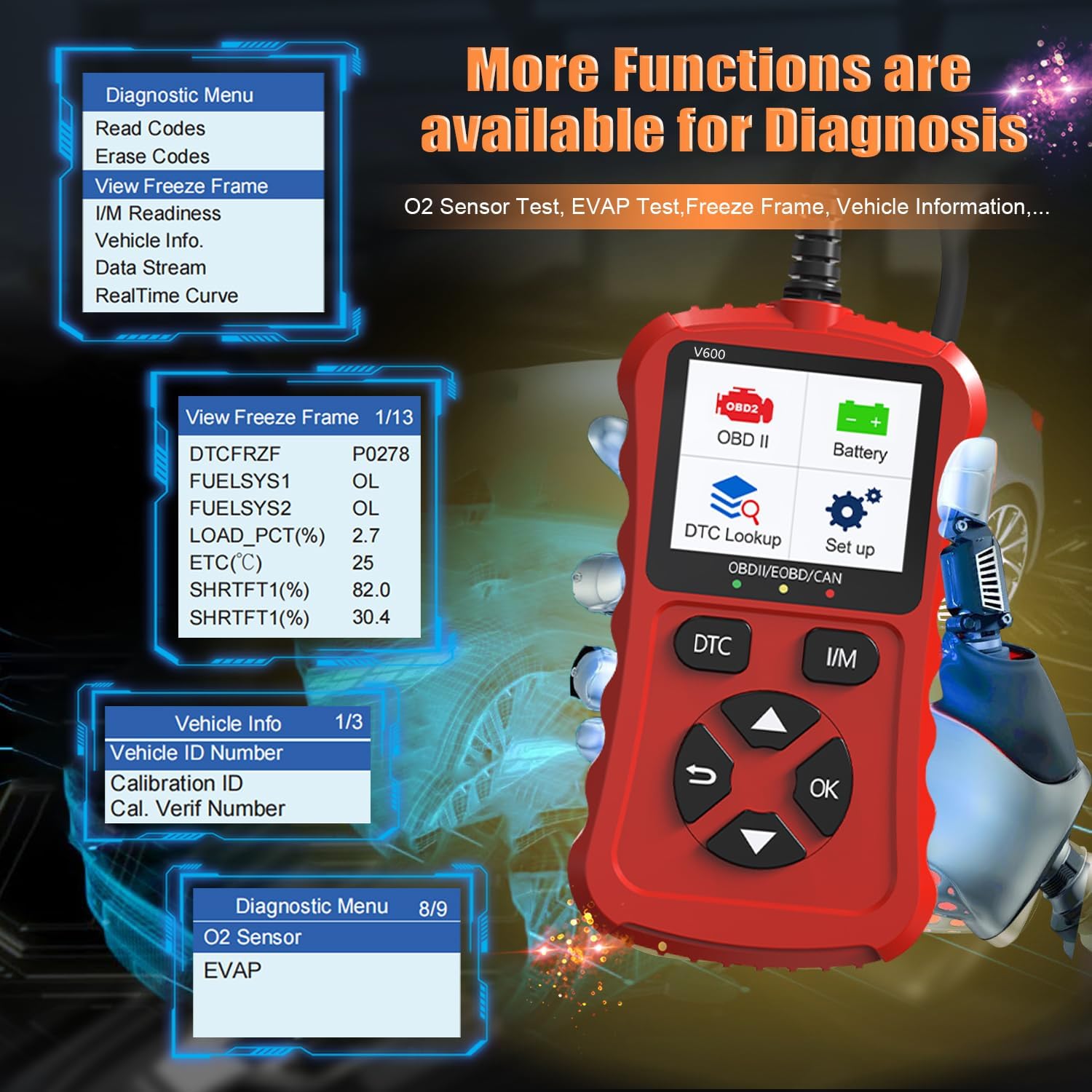

Image: Illustrates the availability of advanced diagnostic functions like Freeze Frame data, Vehicle Information retrieval, O2 Sensor tests, and EVAP system tests.
7. Priežiūra ir priežiūra
To ensure the longevity and optimal performance of your iKiKin V600 OBD2 Scanner, follow these maintenance guidelines:
- Valymas: Skaitytuvo išorę valykite minkštu, sausu skudurėliu. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Saugykla: Store the scanner in a dry, cool environment, away from direct sunlight, excessive heat, or moisture. Keep it in its original packaging or a protective case when not in use.
- Kabelio priežiūra: Avoid bending or crimping the diagnostic cable excessively. Always grasp the connector when plugging or unplugging it from the vehicle's OBDII port.
- Programinės įrangos atnaujinimai: Patikrinkite gamintojo website periodically for any available software updates to ensure your scanner has the latest features and vehicle compatibility.
8. Įprastų problemų šalinimas
Common Scenarios Addressed by V600
The V600 scanner is designed to help diagnose and address various common vehicle issues, such as:
- Ignition ring failure
- Persistent flashing lights
- Difficulty finding car faults
- Car is difficult to start
- Variklis netikėtai išsijungia
Image: Illustrates common vehicle problems that the V600 scanner can help diagnose.
Nėra maitinimo / įrenginys neįsijungia
- Patikrinkite ryšį: Ensure the scanner's cable is securely plugged into the vehicle's OBDII port.
- Transporto priemonės uždegimas: Make sure the vehicle's ignition is turned to the 'ON' position (engine off) or the engine is running, as required by your vehicle.
- Transporto priemonės akumuliatorius: Verify that your vehicle's battery has sufficient charge. The scanner draws power from the vehicle.
- OBDII Port Fuse: Check the fuse for your vehicle's OBDII port. Refer to your vehicle's owner's manual for fuse box location and diagram.
Ryšio klaida
- Patikrinkite suderinamumą: Ensure your vehicle is OBDII compliant (most 1996 US-based, 2000 EU-based, and 2008 Asian vehicles and newer).
- Uždegimo būsena: Confirm the vehicle's ignition is in the correct position (usually 'ON' or engine running).
- Kabelio vientisumas: Inspect the diagnostic cable for any signs of damage or wear.
- Try Another Vehicle: If possible, test the scanner on another OBDII-compliant vehicle to rule out an issue with your specific vehicle's port.
9. Techninės specifikacijos
| Specifikacija | Vertė |
|---|---|
| Prekės ženklas | iKiKin |
| Modelis | V600 |
| Prekės modelio numeris | V600 |
| Gamintojo dalies numeris | V600 |
| ASIN | B0CS6F5R3N |
| Operacinė sistema | Android 4.0 (Note: This refers to the internal system, not user-facing OS) |
| UPC | 724873545856 |
| Pasiekiama pirmoji data | 12 m. sausio 2024 d |
10. Garantija ir klientų aptarnavimas
The iKiKin V600 OBDII scan tool comes with a 12 mėnesių garantija from the date of purchase. Additionally, lifetime free updates are offered to ensure your device remains current with the latest vehicle data and features.
For technical support, inquiries, or assistance, please feel free to contact our after-sale service team. You can reach us via the Q&A section on the product page, email, or hotline. Our team is dedicated to providing prompt and helpful support.
