Įvadas
Thank you for choosing the DS18 S69 Select 6x9 3-Way Coaxial Speakers. These speakers are engineered to deliver a dynamic and clear audio experience for your vehicle's sound system. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your speakers.

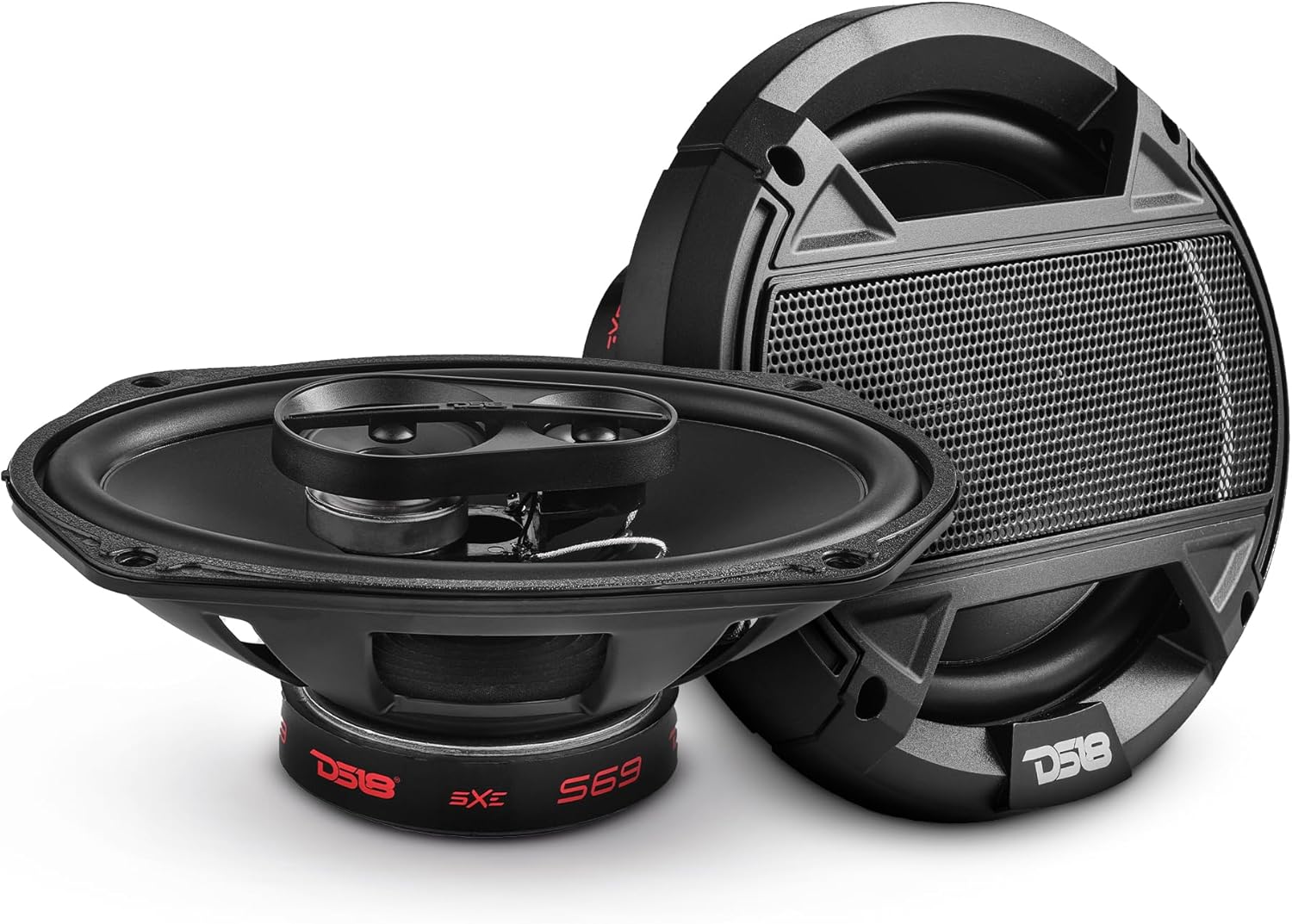

Image: A pair of DS18 S69 6x9 inch coaxial speakers, illustrating their design and included grill.
Produktas baigtasview
The DS18 S69 speakers are designed for high-quality audio reproduction in automotive environments. Key features include:
- Galingas našumas: Each speaker handles 80W RMS power and up to 240W maximum power, providing robust sound output.
- Didelis jautrumas: With a sensitivity of 90.8dB, these speakers efficiently convert power into sound, ensuring clear audio at various volume levels.
- Aukščiausios kokybės konstrukcija: The woofer features a PPI cone, rubber surround, and a durable steel basket with a black matte finish for enhanced sound quality and longevity.
- Advanced Tweeter Technology: Equipped with two tweeters (2.3" and 1.1") utilizing Mylar diaphragms and Barium Ferrite magnets for crisp high-frequency response.
- Dviejų krypčių bendraašis dizainas: Integrates woofer, midrange, and tweeter elements into a single unit for a full-range sound experience.
- Included Grills: Protective grills are provided for installation flexibility and speaker protection.
Image: DS18 S69 speaker highlighting key power and size specifications, confirming grill inclusion.
Vaizdas: Išsamus view of the DS18 S69 speaker's tweeter assembly and cone material, with technical specifications.
Kas yra dėžutėje
Your DS18 S69 package includes:
- One pair of DS18 S69 6x9 inch 3-Way Coaxial Speakers
- Speaker Grills (one pair)
Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Modelio pavadinimas | S69 |
| Garsiakalbio tipas | Koaksialinis |
| Garsiakalbio dydis | 6x9 Inches (6.9 Inches) |
| RMS galios valdymas | 80 vatų |
| Didžiausia išėjimo galia | 240 vatų |
| Varža | 4 omų |
| Jautrumas (signalo ir triukšmo santykis) | 90.8 dB |
| Dažnio atsakas | 35Hz - 20 KHz |
| Žemų dažnių garsiakalbio skersmuo | 6 colių |
| Aukštų dažnių garsiakalbio skersmuo | 2.3 colių |
| Montavimo tipas | Durų tvirtinimas |
| Montavimo gylis | 2.83 colio (72 mm) |
| Gaminio matmenys (D x P x A) | 3.15 "D x 9.2" P x 6.5" A |
| Prekės svoris | 6.3 svaro |
| Rekomenduojamas Hi Pass Crossover | 50 Hz |
| Suderinami įrenginiai | Car, Truck, Golf Cart, ATV, UTV, Bus |
Image: Dimensional drawing of the DS18 S69 speaker, detailing overall size, mounting depth, and cut-out requirements.
Sąranka ir diegimas
Proper installation is crucial for optimal speaker performance and safety. If you are unsure about any steps, it is recommended to seek professional assistance.
Saugos priemonės:
- Prieš pradėdami bet kokius elektros darbus, atjunkite automobilio akumuliatorių, kad išvengtumėte trumpojo jungimo.
- Dėvėkite tinkamas apsaugos priemones, įskaitant akių apsaugą.
- Ensure all wiring is properly insulated and secured to prevent damage or interference.
Diegimo žingsniai:
- Paruošimas: Identify the speaker mounting locations in your vehicle (typically door panels or rear deck). Remove existing speakers if present.
- Mounting Area Check: Verify that the mounting depth (2.83" / 72mm) and cut-out dimensions (5.9x8.66" / 150x220mm) are compatible with your vehicle's speaker openings. Modifications may be necessary.
- Laidai: Prijunkite garsiakalbio laidus prie savo amplifier or head unit to the terminals on the DS18 S69 speakers. Ensure correct polarity (positive to positive, negative to negative) to avoid phase issues.
- Saugūs garsiakalbiai: Place the speakers into the mounting locations and secure them using appropriate screws. Do not overtighten.
- Install Grills: If desired, attach the provided speaker grills over the installed speakers for protection and a finished look.
- Bandymo sistema: Reconnect the vehicle's battery. Turn on your audio system and test the speakers at a low volume to ensure proper functionality and sound quality.
Vaizdas: Galinis view of the DS18 S69 speaker, illustrating the magnet structure and connection points for wiring.
Naudojimo instrukcijos
Once installed, your DS18 S69 speakers will operate as part of your vehicle's audio system. Follow these guidelines for optimal performance:
- Pradinis atkūrimas: Pradėkite atkūrimą mažu garsumu ir palaipsniui didinkite jį iki patogaus klausymosi lygio.
- Crossover nustatymai: Jei jūsų pagrindinis įrenginys arba amplifier has adjustable crossover settings, it is recommended to set a high-pass filter at 50Hz to protect the speakers from damaging low frequencies.
- Išlyginimas: Adjust your audio system's equalizer settings to fine-tune the sound to your personal preference. Avoid excessive boosting of bass or treble, which can lead to distortion or speaker damage.
- Garsumo valdymas: While these speakers can handle significant power, prolonged listening at maximum volume levels can cause listener fatigue and potential speaker damage. Listen responsibly.
Priežiūra
To ensure the longevity and continued performance of your DS18 S69 speakers, follow these simple maintenance tips:
- Valymas: Gently wipe the speaker cones and grills with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive materials.
- Aplinkos apsauga: Nors garsiakalbiai skirti naudoti automobiliuose, venkite jų laikymo per didelėje drėgmėje ar ekstremaliose temperatūrose. Šie garsiakalbiai nėra atsparūs vandeniui.
- Patikrinkite laidus: Periodically check speaker wiring connections to ensure they are secure and free from corrosion or damage.
- Grill Care: If grills are removed for cleaning, ensure they are reinstalled correctly to protect the speaker components.
Trikčių šalinimas
If you encounter issues with your DS18 S69 speakers, refer to the following table for common problems and solutions:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra garso iš garsiakalbio | Atsilaisvinę arba neteisingi laidai; Amplifier/head unit off; Speaker damage | Check all wiring connections and polarity; Ensure audio source is on and functioning; Inspect speaker for visible damage. |
| Iškraipytas garsas | Volume too high; Incorrect equalizer settings; Amplifier clipping; Damaged speaker | Reduce volume; Adjust equalizer settings; Check amplifier gain settings; Inspect speaker for damage. |
| Silpnas arba nesubalansuotas garsas | Incorrect wiring polarity; Fader/balance settings incorrect; One speaker damaged | Verify correct wiring polarity for all speakers; Adjust fader/balance on head unit; Test individual speakers to identify faulty unit. |
| Dumbimas ar zvimbimas | Ground loop issue; Loose wiring; Electrical interference | Check ground connections; Secure all wiring; Install a ground loop isolator if necessary. |
Informacija apie garantiją
The DS18 S69 Select 6x9 3-Way Coaxial Speakers come with a limited warranty. Please refer to the warranty card included with your purchase or visit the official DS18 websvetainėje rasite išsamias sąlygas, susijusias su draudimo apsauga, jos trukme ir pretenzijų nagrinėjimo tvarka.
Pagalba klientams
For further assistance, technical support, or inquiries regarding your DS18 S69 speakers, please contact DS18 customer service or visit their official website. You can also find more information and products at the DS18 Amazon Store.
