Įvadas
This manual provides comprehensive instructions for the installation, operation, and maintenance of your RecPro RV Tankless Hot Water Heater. Designed for recreational vehicles, this 60,000 BTU on-demand gas heater delivers consistent hot water, enhancing your travel experience. Please read this manual thoroughly before installation and use to ensure safe and efficient operation.
Svarbi saugos informacija
ĮSPĖJIMAS: Netinkamas montavimas, reguliavimas, keitimas, aptarnavimas ar techninė priežiūra gali sukelti žalą turtui, sužalojimą arba mirtį. Prieš montuodami arba atlikdami techninę priežiūrą, atidžiai perskaitykite montavimo, naudojimo ir priežiūros instrukcijas.
- Užtikrinkite tinkamą vėdinimą.
- Nelaikykite ir nenaudokite benzino ar kitų degių garų ir skysčių šalia šio ar kito prietaiso.
- Verify all gas and water connections are secure and leak-free before operation.
- Montavimą ir techninę priežiūrą turėtų atlikti tik kvalifikuoti darbuotojai.
Sąranka ir diegimas
This section outlines the general steps for installing your RecPro RV Tankless Hot Water Heater. Professional installation is recommended.
Prieš montavimą kontrolinis sąrašas:
- Confirm correct model and door size (18" door for this unit).
- Ensure adequate space for installation and ventilation.
- Gather necessary tools and materials (e.g., sealant, wrenches, gas line fittings).
- Verify RV's propane supply and 12V DC electrical system are compatible.
Diegimo žingsniai:
- Montavimas: Securely mount the unit in the designated exterior compartment of your RV. Ensure the unit is level and properly sealed to prevent water intrusion.
- Dujų jungtis: Connect the RV's propane supply line to the 3/8" NPT propane fitting on the water heater. Use appropriate thread sealant and check for leaks using a leak detection solution.
- Vandens jungtys: Connect the cold water inlet and hot water outlet lines. Ensure proper flow direction.
- Elektros jungtis: Connect the 12V DC power supply to the unit's electrical terminals. Ensure correct polarity.
- Nuotolinio valdymo pulto montavimas: Install the wired remote control in a convenient interior location. Connect the remote cable to the water heater unit.
- Vėdinimas: Ensure the exhaust vent is clear and unobstructed. Do not block any openings on the exterior door.
Naudojimo instrukcijos
Your RecPro RV Tankless Hot Water Heater is designed for user-friendly operation via the wired remote control.

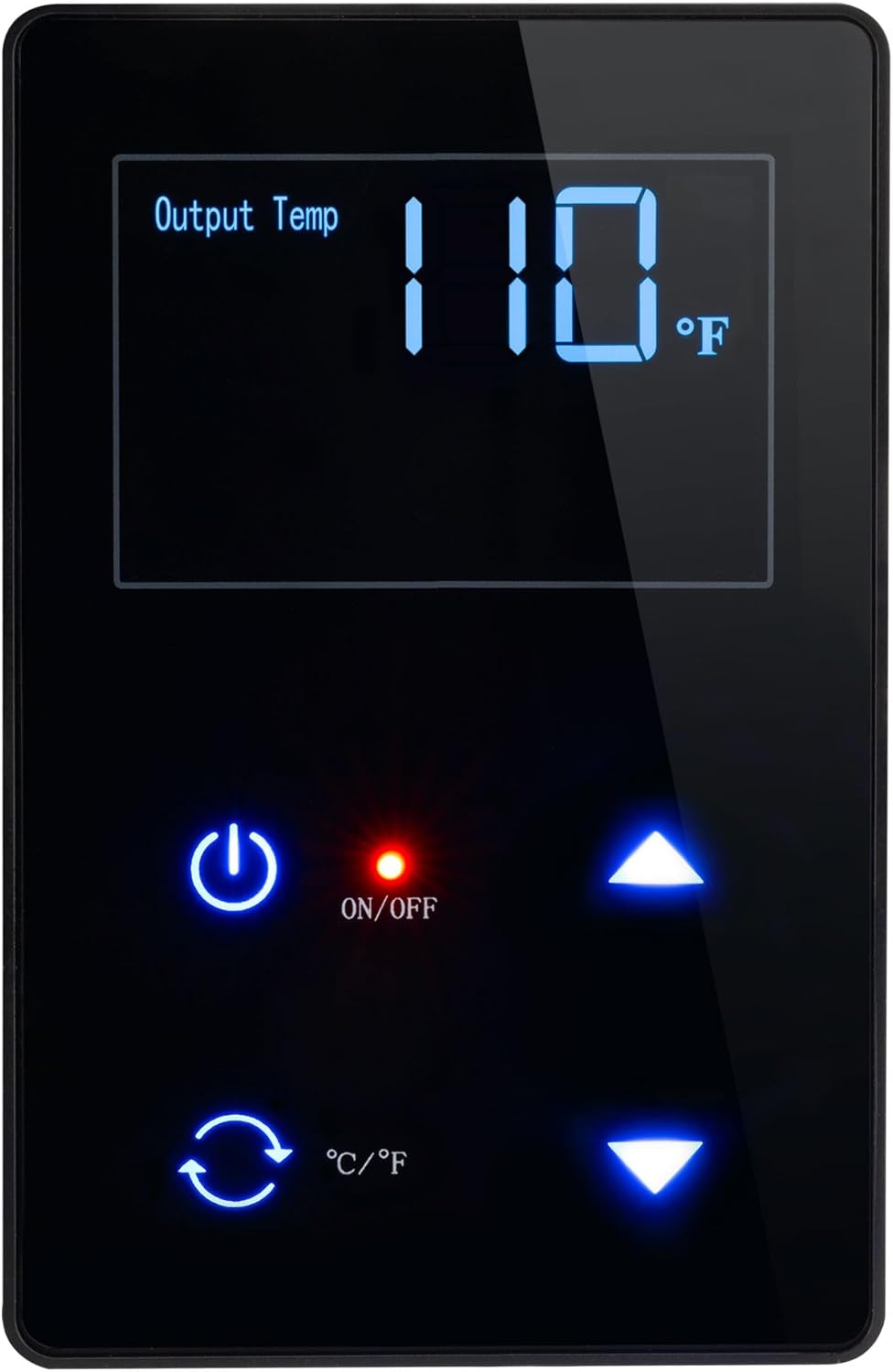

Nuotolinio valdymo pulto funkcijos:
- Maitinimo mygtukas: Paspauskite, kad įjungtumėte arba išjungtumėte įrenginį.
- Temperatūros reguliavimas: Naudokite Up ir Žemyn arrows to set your desired hot water temperature. The maximum temperature is 122°F (50°C).
- °C/°F Toggle: Paspauskite C / F button to switch between Celsius and Fahrenheit temperature displays.
- Ekranas: The digital display shows the current output temperature.
Įrenginio paleidimas:
- Ensure propane supply is open and water supply is connected.
- Turn on the unit using the power button on the remote control.
- Set your desired temperature.
- Open a hot water faucet in your RV. The heater will automatically ignite and begin producing hot water.
The unit features a low water flow startup, ensuring efficient operation even with minimal water demand. Electronic gas modulation technology maintains a consistent hot water temperature.
Priežiūra
Regular maintenance ensures the longevity and efficient performance of your tankless water heater.
- Kasmetinė apžiūra: Have a qualified technician inspect the unit annually, including gas connections, water lines, and electrical components.
- Vėdinimo patikrinimas: Periodically inspect the exhaust vent and air intake for obstructions (e.g., debris, insect nests). Keep the exterior door openings clear.
- Žieminimas: In freezing temperatures, ensure the unit is properly winterized to prevent damage. This typically involves draining all water from the system and potentially using RV antifreeze. The unit has automatic freezing protection, but proper winterization is still crucial for RV systems.
- Išorinis valymas: Keep the exterior door clean. Do not use abrasive cleaners.
Trikčių šalinimas
Šiame skyriuje pateikiami dažniausiai pasitaikančių problemų, su kuriomis galite susidurti, sprendimai.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra karšto vandens / Įrenginys neužsidega | No propane supply, low water flow, electrical issue, remote off. | Check propane tank and lines. Ensure adequate water pressure. Verify 12V power and remote is on. |
| Nenuosekli vandens temperatūra | Fluctuating water flow, incorrect temperature setting. | Maintain consistent water flow. Adjust temperature setting on remote. |
| Įrenginys greitai įsijungia ir išsijungia | Insufficient water flow, air in lines. | Increase water flow. Bleed air from hot water lines. |
| Error code on remote | Specifinis sistemos gedimas. | Refer to the full owner's manual for a list of error codes and their corresponding solutions. Contact customer support if the issue persists. |
For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact RecPro customer support.
Specifikacijos
| Prekės ženklas | RecPro |
| Modelio numeris | RP-1057-60BTU |
| Gaminio matmenys | 15"W x 15"H (Unit), 18" Door |
| BTU reitingas | 60,000 XNUMX BTU |
| Maitinimo šaltinis | Gas Powered (Propane) |
| ttage | 12 voltų DC |
| Vattage | 20 vatų |
| Maksimali temperatūra | 122 laipsniai pagal Farenheitą (50 °C) |
| Ypatingos savybės | Adjustable thermostat, Automatic freezing protection, Automatic ignition, Flame Failure Protection, Remote controlled |
| Prekės svoris | 20.3 svaro |
| Įtraukti komponentai | Remote control, Tankless hot water heater |
| UPC | 193652105800 |
Informacija apie garantiją
The RecPro RV Tankless Hot Water Heater comes with a 1 metų gamintojo garantija. This warranty covers defects in materials and workmanship under normal use and service. For specific terms, conditions, and to make a warranty claim, please refer to the official warranty documentation included with your product or contact RecPro customer support.
Pagalba klientams
For technical assistance, troubleshooting, or warranty inquiries, please contact RecPro customer support. You can find contact information on the RecPro webvietoje arba pakavimo medžiagose.
