AvosDim Plissé Roof Window Mosquito Screen Instruction Manual

Important Notice Regarding Instructions

DĖMESIO: The printed instructions included with your product may contain outdated information regarding the cutting method for the screen fabric. This digital instruction manual provides the most current and optimized recommendations for assembly. Please disregard any conflicting information in the printed leaflet and follow the guidelines provided here for successful installation.

1. Produktas baigtasview

The AvosDim Plissé Roof Window Mosquito Screen is designed to provide effective insect protection while allowing fresh air circulation through your roof window or skylight. Its pleated design ensures discretion and maintains natural light clarity. The frame is made of white powder-coated aluminum, and the screen fabric is grey polyphenylene (PPE), designed to be barely visible. This model is adjustable in both height and width to fit various window sizes.

Image 1: AvosDim Plissé Roof Window Mosquito Screen in use.

• Adjustable Dimensions: The frame can be shortened in both height and width for a custom fit.
• Visuotinis suderinamumas: Designed to be compatible with most brands and models of roof windows and skylights.
• Optimalus oro srautas: The fine mesh allows for excellent air circulation while keeping insects out.
• Maintained Clarity: The grey screen fabric preserves visibility and natural light.
• Diskretiškas dizainas: The white aluminum frame and grey PPE fabric blend seamlessly with most interiors.
• Adjustable Position: The pleated screen can be partially opened to your desired position.

2. Pakuotės turinys

Prieš pradėdami montavimą, patikrinkite, ar yra visi komponentai.

• Screen fabric (pleated canvas)
• Aliuminis profiles (frame components)
• Mounting accessories (screws, clips, etc.)

3. Saugos instrukcijos

• Always wear appropriate safety gear, such as gloves and eye protection, when cutting profiles or handling tools.
• Laikykite smulkias dalis ir įrankius vaikams nepasiekiamoje vietoje.
• Ensure the installation area is stable and well-lit.
• If using power tools, follow the manufacturer's safety guidelines for those tools.
• Do not attempt to install the screen if you are unsure about any step; seek professional assistance.

4. Sąranka ir diegimas

This mosquito screen is designed for exterior mounting and can be adjusted to fit your specific roof window dimensions. The following steps outline the general installation process.

4.1. Measure Your Window

Accurately measure the width and height of the opening where the mosquito screen will be installed. Note the minimum and maximum compatible frame sizes:

• Minimum frame size: L 480 x H 200 mm
• Maximum frame size: L 1140 x H 1480 mm

Image 2: Adjustable dimensions and compatible frame sizes.

4.2. Cutting the Profiles and Fabric

Based on your measurements, you will need to cut the aluminum profiles and potentially the screen fabric to the required size. Refer to the specific cutting formulas provided in the optimized PDF version of the instructions (which this manual reflects) to ensure precise cuts. Incorrect cutting can render the product unusable.

Note: The product is designed for universal compatibility with various roof window brands and models.

Image 3: Universal compatibility of the pleated screen.

4.3. Assembly of the Frame

Assemble the cut aluminum profiles to form the screen frame. Ensure all connections are secure and the frame is square.

4.4. Attaching the Screen Fabric

Carefully attach the pleated screen fabric to the assembled frame according to the detailed instructions. Ensure the fabric is taut and properly aligned within the guides.

4.5. Mounting the Screen to the Window

Mount the completed mosquito screen frame to the exterior of your roof window using the provided mounting accessories. Follow the specific steps for securing the frame to ensure a stable and effective installation.

5. Operacija

The AvosDim Plissé Roof Window Mosquito Screen operates manually.

• To open the screen, gently pull the handle to slide the pleated fabric across the window opening.
• To close the screen, push the handle back to retract the fabric.
• The screen can be positioned partially open to allow for flexible airflow and light control.

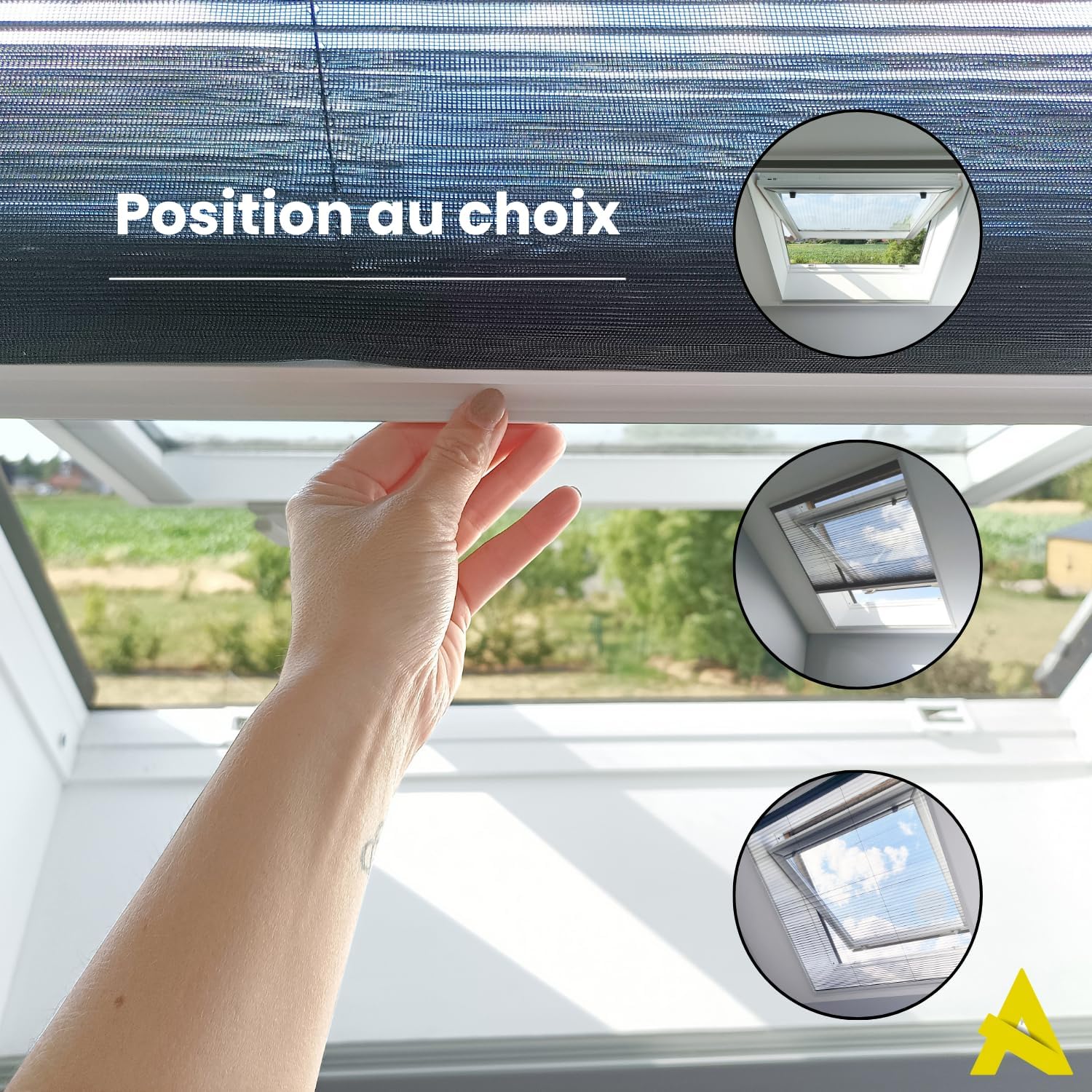

Image 4: Demonstrating adjustable screen positions.

Image 5: The fine mesh allows for renewed air circulation.

Image 6: The screen maintains clarity and offers a discreet presence.

Image 7: Optimal natural light is maintained.

6. Priežiūra

To ensure the longevity and optimal performance of your AvosDim mosquito screen, follow these maintenance guidelines:

• Tinklelio valymas: Gently wipe the screen fabric with a soft, damp cloth to remove dust and debris. Avoid harsh chemicals or abrasive cleaners, as these can damage the mesh.
• Rėmo valymas: Clean the aluminum frame with a mild soap solution and a soft cloth. Dry thoroughly to prevent water spots.
• Reguliarus patikrinimas: Periodically check the frame and mesh for any signs of wear or damage. Ensure all mounting screws are tight.
• Venkite kliūčių: Keep the screen's tracks clear of any obstructions to ensure smooth operation.

7. Problemų sprendimas

If you encounter issues with your mosquito screen, refer to the following common problems and solutions:

• Screen does not slide smoothly:
  • Check the tracks for any debris or obstructions and clean them.
  • Ensure the frame is installed correctly and is not warped or misaligned.
  • Verify that the screen fabric is properly seated in its guides.
• Screen fabric appears loose or sags:
  • This may indicate an issue with the initial assembly or cutting. Review the installation steps, particularly those related to fabric tension.
• Insects are still entering:
  • Ensure the screen is fully closed when in use.
  • Check for any gaps between the screen frame and the window frame. Adjust mounting if necessary.
  • Inspect the mesh for tears or holes.
• Difficulty with initial assembly/cutting:
  • Re-read the "Important Notice" at the beginning of this manual. Ensure you are following the optimized cutting and assembly instructions.
  • Double-check all measurements before cutting.

8. Specifikacijos

9. Informacija apie garantiją

For detailed warranty information, please refer to the official AvosDim websvetainėje arba susisiekite su pirkimo vieta. Išsaugokite pirkimo įrodymą, jei prireiktų pateikti garantinį prašymą.

10. Pagalba ir kontaktai

If you require further assistance or have questions not covered in this manual, please contact AvosDim customer support through their official websvetainėje arba mažmenininke, iš kurio įsigijote produktą.
