1. Įvadas
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Pulsar PG2300iS Inverter Generator and No-Spill 2.5 Gallon Fuel Can. Please read this manual thoroughly before using the products and keep it for future reference. Proper use and maintenance will ensure optimal performance and longevity.
Image 1.1: The Pulsar PG2300iS Inverter Generator, showcasindėl kompaktiško dizaino ir valdymo skydelio.
2. Saugos informacija
2.1 Bendrosios saugos priemonės
- Visada naudokite generatorių gerai vėdinamoje patalpoje, kad išvengtumėte apsinuodijimo anglies monoksidu. Niekada nenaudokite patalpoje.
- Veikiant generatoriui, laikykite vaikus ir naminius gyvūnus atokiau nuo jo.
- Nenaudokite generatoriaus lyjant ar esant šlapiai aplinkai.
- Įsitikinkite, kad visos elektros jungtys yra tvirtos ir tinkamai įžemintos.
- Turn off the generator and allow it to cool before refueling.
- Store fuel in an approved container, like the No-Spill fuel can, in a cool, well-ventilated area away from ignition sources.
2.2 Kuro tvarkymo sauga
- Gasoline is highly flammable. Handle with extreme care.
- Do not smoke or allow open flames near fuel or the generator.
- Avoid spilling fuel. If spilled, wipe it up immediately and dispose of rags properly.
- Always use fresh, clean, unleaded gasoline.
Image 2.1: The No-Spill 2.5 Gallon Fuel Can, designed for safe and controlled fuel dispensing.
3. Sąranka
3.1 Išpakavimas ir pradinė apžiūra
Carefully remove all components from the packaging. Inspect for any shipping damage. If any damage is found, contact your dealer immediately.
3.2 Generator Setup (Pulsar PG2300iS)
- Įpilkite variklio alyvos: Locate the oil fill cap/dipstick. Add the recommended type and amount of engine oil (refer to the generator's specific oil requirements, typically 10W-30). Do not overfill.
- Pridėti kuro: Ensure the generator is off and cool. Open the fuel tank cap. Using the No-Spill fuel can, carefully add fresh, unleaded gasoline to the fuel tank. Do not fill above the maximum fill line.
- Patikrinkite jungtis: Verify all hoses and electrical connections are secure.
3.3 Fuel Can Preparation (No-Spill 2.5 Gallon)
- Filling the Can: Unscrew the main cap. Fill the can with gasoline, ensuring not to overfill. Securely replace the cap.
- Spout Attachment: Ensure the spill-proof spout is securely attached to the can.
3.1 paveikslėlis: Stambus planas view of the No-Spill fuel can's thumb button controlled spout for precise pouring.
4. Operacija
4.1 Starting the Pulsar PG2300iS Generator
- Ensure the generator is on a level surface and in a well-ventilated area.
- Pasukite kuro čiaupą į padėtį „ĮJUNGTA“.
- Droselio svirtį perkelkite į padėtį „DROSELIS“ (jei variklis šaltas).
- Pasukite variklio jungiklį į „ON“ padėtį.
- Tvirtai traukite starterio rankenėlę, kol variklis užsives.
- Varikliui užsivedus, palaipsniui perkelkite droselio svirtį į „RUN“ padėtį.
4.2 Elektros prietaisų prijungimas
- Allow the generator to run for a few minutes before connecting any devices.
- Plug your 120V AC devices into the (2) AC 120V 13A outlets.
- For charging USB devices, use the (1) 5V USB port.
- For 12V DC applications, use the (1) 12V 8A Cigarette outlet.
- Neviršykite generatoriaus vardinės darbinės galiostage iš 1800W.
4.3 Ekonominis režimas
The PG2300iS features an Economy Mode switch. When activated, the engine speed adjusts automatically to the load, improving fuel efficiency and reducing noise. For sensitive electronics or high-demand loads, it is recommended to turn Economy Mode off.
4.4 Lygiagretus veikimas
The PG2300iS is capable of parallel operation, allowing two units to be connected for increased power output. This requires a separate parallel kit (sold separately). Follow the instructions provided with the parallel kit for safe connection and operation.
Image 4.1: Two Pulsar PG2300iS generators connected via a parallel kit to double the power output.
4.5 Generatoriaus sustabdymas
- Atjunkite visas elektros apkrovas.
- Pasukite variklio jungiklį į padėtį „OFF“.
- Pasukite kuro čiaupą į padėtį „OFF“.
4.6 Using the No-Spill Fuel Can
- Pouring Fuel: Position the spout into the receiving tank opening. Press the thumb button on the spout to begin pouring. Release the button to stop. This controlled flow minimizes spills.
- Spout Features: The 7/8-inch funnel spout is designed to fit various tank openings. An attached dust cover keeps the spout clean, and an integrated 20 mesh stainless steel screen helps filter debris.
5. Priežiūra
5.1 Generator Maintenance (Pulsar PG2300iS)
- Alyvos keitimas: Variklio alyvą keiskite po pirmųjų 20 darbo valandų, vėliau kas 50–100 valandų arba kasmet, atsižvelgiant į tai, kas įvyksta anksčiau.
- Oro filtras: Oro filtrą tikrinkite ir valykite kas 50 darbo valandų arba dažniau, jei aplinka dulkėta. Jei filtras pažeistas, pakeiskite.
- Uždegimo žvakė: Inspect the spark plug every 100 hours. Clean or replace as needed. Ensure proper gap.
- Kuro filtras: Inspect and clean or replace the fuel filter annually.
- Saugykla: For long-term storage, drain the fuel tank and carburetor, or use a fuel stabilizer. Store in a dry, clean area.
5.2 Fuel Can Maintenance (No-Spill 2.5 Gallon)
- Valymas: Periodically inspect the can and spout for dirt or debris. Clean with appropriate solvents if necessary.
- Patikra: Check for cracks, leaks, or damage to the can or spout. Replace if damaged to prevent spills and hazards.
6. Problemų sprendimas
6.1 Generator Troubleshooting
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Variklis neužsives | No fuel, low oil, choke incorrect, spark plug issue, engine switch off | Add fuel, add oil, adjust choke, check/clean spark plug, turn engine switch ON |
| Nėra išvesties galios | Overload, circuit breaker tripped, faulty connection | Reduce load, reset circuit breaker, check connections |
| Variklis dirba nelygiai | Pasenęs kuras, užsiteršęs oro filtras, uždegimo žvakės problema | Drain/replace fuel, clean air filter, check/clean spark plug |
6.2 Fuel Can Troubleshooting
- Slow Flow: Ensure the vent is clear. Check for debris in the spout.
- Nutekėjimas: Ensure the cap and spout are securely tightened. Inspect for cracks or damage.
7. Specifikacijos
7.1 Pulsar PG2300iS Inverter Generator
- Peak Wattage: 2300 vatų
- Bėgantis Vatastage: 1800 vatų
- Kuro tipas: Benzino
- Variklio tipas: Vieno cilindro, keturtaktis, OHV
- Variklio darbinis tūris: 418 Cubic Centimeters (Note: This displacement seems unusually high for a 2300W generator, typically associated with much larger engines. Please verify with product labeling if concerned.)
- Veikimo laikas: Up to 30 hours (at 1/4 load)
- Triukšmo lygis: 59 dB (from 10 feet)
- Išparduotuvės: (2) AC 120V 13A, (1) 12V 8A Cigarette, (1) 5V USB
- Ypatingos savybės: Stable Sine Wave, Recoil Start, Low Oil Shut-off, AVR, Parallel Capability, Portable

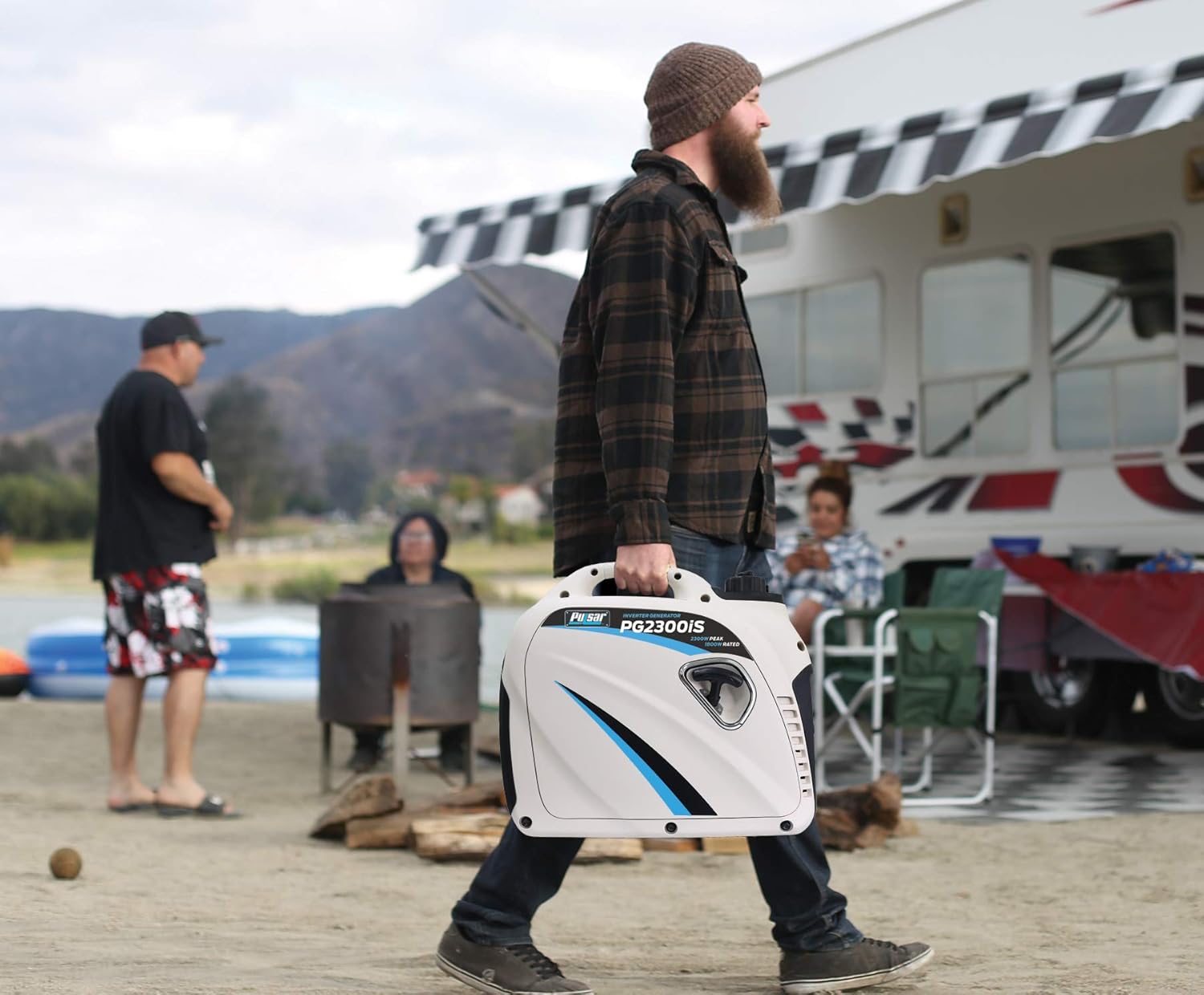

Image 7.1: The Pulsar PG2300iS generator being carried, highlighting its portability.
7.2 No-Spill 2.5 Gallon Fuel Can (Model 765-102 / 1405)
- Talpa: 2.5 galonų (10 litro)
- Matmenys: 11.75 colių ilgis x 8 colių plotis x 10 colio aukštis
- Snapelis: Thumb button control, 7/8-inch funnel spout, autostop removable nozzle
- Savybės: Attached dust cover, integrated 20 mesh stainless steel screen, treated can body for low permeation
- Sertifikatai: ASTM F-85299 (Gasoline)
Image 7.2: The No-Spill 2.5 Gallon Fuel Can with its dimensions clearly indicated.
For more information, visit the official No-Spill websvetainė: m.nospill.com
8. Garantija ir palaikymas
Pulsar products are backed by a limited warranty. Please refer to the warranty card included with your generator for specific terms and conditions. For technical support, parts, or warranty claims, please contact Pulsar customer service directly. Keep your purchase receipt as proof of purchase.
For the No-Spill fuel can, refer to the manufacturer's documentation for warranty details. General support and product information can often be found on the manufacturer's websvetainę.
