NIIMBOT D11H Label Printer User Manual

1. Įvadas

The NIIMBOT D11H is a compact, portable, and inkless thermal label printer designed for various labeling needs. It connects wirelessly via Bluetooth to your smartphone, allowing for easy creation and printing of high-resolution labels. This manual provides essential information for setting up, operating, and maintaining your device.

2. Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi toliau išvardyti daiktai:

• 1x NIIMBOT D11H Label Printer
• 1x Label Roll (pre-installed or included)
• 1x USB Type-C įkrovimo laidas
• 1x User Manual (Japanese)

3. Sąranka

3.1. Etikečių popieriaus įdėjimas

1. Slide the cover button on the side of the printer to open the paper compartment.
2. Insert the label roll into the compartment with the labels facing upwards, ensuring it is correctly aligned.
3. Pull a small portion of the label paper out through the printer's exit slot.
4. Saugiai uždarykite dangtelį.

3.2. Įjungimas

Press and hold the power button located on the front of the printer for 3 seconds until the indicator light turns green, indicating the device is powered on.

3.3. Programėlės atsisiuntimas ir „Bluetooth“ ryšys

1. Download the "NIIMBOT" app from the App Store (iOS) or Google Play Store (Android).
2. Įjunkite „Bluetooth“ savo išmaniajame telefone.
3. Open the NIIMBOT app and tap on the "Connect" or "Printer Connection" option. The app will automatically scan for nearby devices.
4. Select your NIIMBOT D11H printer from the list of available devices to establish a Bluetooth connection.

4. Naudojimo instrukcijos

4.1. Etikečių kūrimas

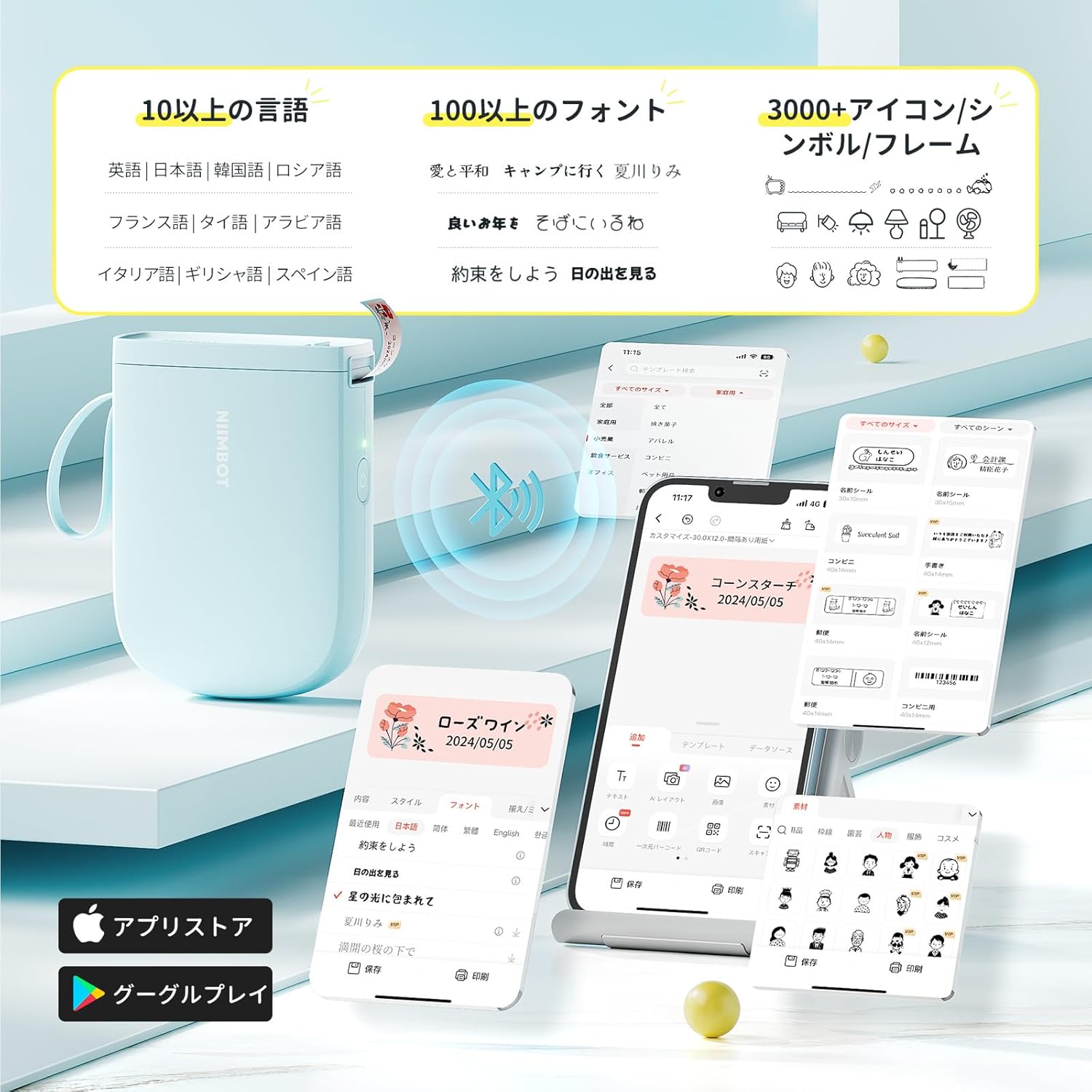

The NIIMBOT app offers a wide range of features for label creation:

• Teksto įvestis: Easily type and customize text with over 20 fonts and various styles.
• Šablonai: Utilize automatic template matching and thousands of image elements for quick design.
• Vaizdo atpažinimas: Import images for printing.
• Brūkšninis kodas / QR kodas: Generuokite ir spausdinkite brūkšninius kodus ir QR kodus.
• Paketinis spausdinimas: Efektyviai spausdinkite kelias etiketes.

4.2. Etikečių spausdinimas

Once your label design is complete in the app, tap the "Print" button. You can adjust the number of copies and print density before confirming. The printer will automatically feed and cut the labels.

4.3. Universalios programos

The NIIMBOT D11H is suitable for a wide range of uses, including organizing documents, creating name tags, price tags, date reminders for food, and labeling items in the kitchen, office, or warehouse.

5. Priežiūra

To ensure optimal performance and longevity of your NIIMBOT D11H label printer, follow these maintenance guidelines:

• Valymas: Regularly clean the print head with a soft, lint-free cloth moistened with alcohol. Ensure the printer is off before cleaning.
• Saugykla: Spausdintuvą laikykite vėsioje, sausoje vietoje, apsaugotoje nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.
• Baterija: Reguliariai kraukite spausdintuvą, net jei juo nesinaudojate dažnai, kad palaikytumėte akumuliatoriaus veikimo laiką.

6. Problemų sprendimas

If you encounter issues with your NIIMBOT D11H, refer to the following common troubleshooting steps:

• Spausdintuvas neprisijungia: Ensure Bluetooth is enabled on your smartphone and the printer is powered on. Try restarting both devices and reconnecting through the app.
• Prasta spausdinimo kokybė: Check if the label paper is loaded correctly and is a genuine NIIMBOT thermal label. Clean the print head if necessary. Adjust print density in the app settings.
• Popieriaus strigtis: Open the paper compartment, carefully remove any jammed paper, and reload the label roll correctly.
• Spausdintuvas neatsako: Ensure the battery is charged. If the device is unresponsive, try resetting it by holding the power button for an extended period (e.g., 10-15 seconds).

7. Specifikacijos

8. Garantija ir palaikymas

For warranty information or technical support, please refer to the official NIIMBOT websvetainėje arba susisiekite su pardavėju. Išsaugokite pirkimo kvitą kaip pirkimo įrodymą.
