Philips CR6RLMCCT LED Recessed Can Retrofit Kit User Manual

1. Įvadas

This manual provides detailed instructions for the safe installation, operation, and maintenance of the Philips CR6RLMCCT LED Recessed Can Retrofit Kit. The Lightolier Commercial retrofit Downlight DualSelect is designed for easy installation and features adjustable lumen and Color Correlated Temperature (CCT) output. It is suitable for various applications including retail, residential, and office environments. Please read this manual thoroughly before installation and retain it for future reference.

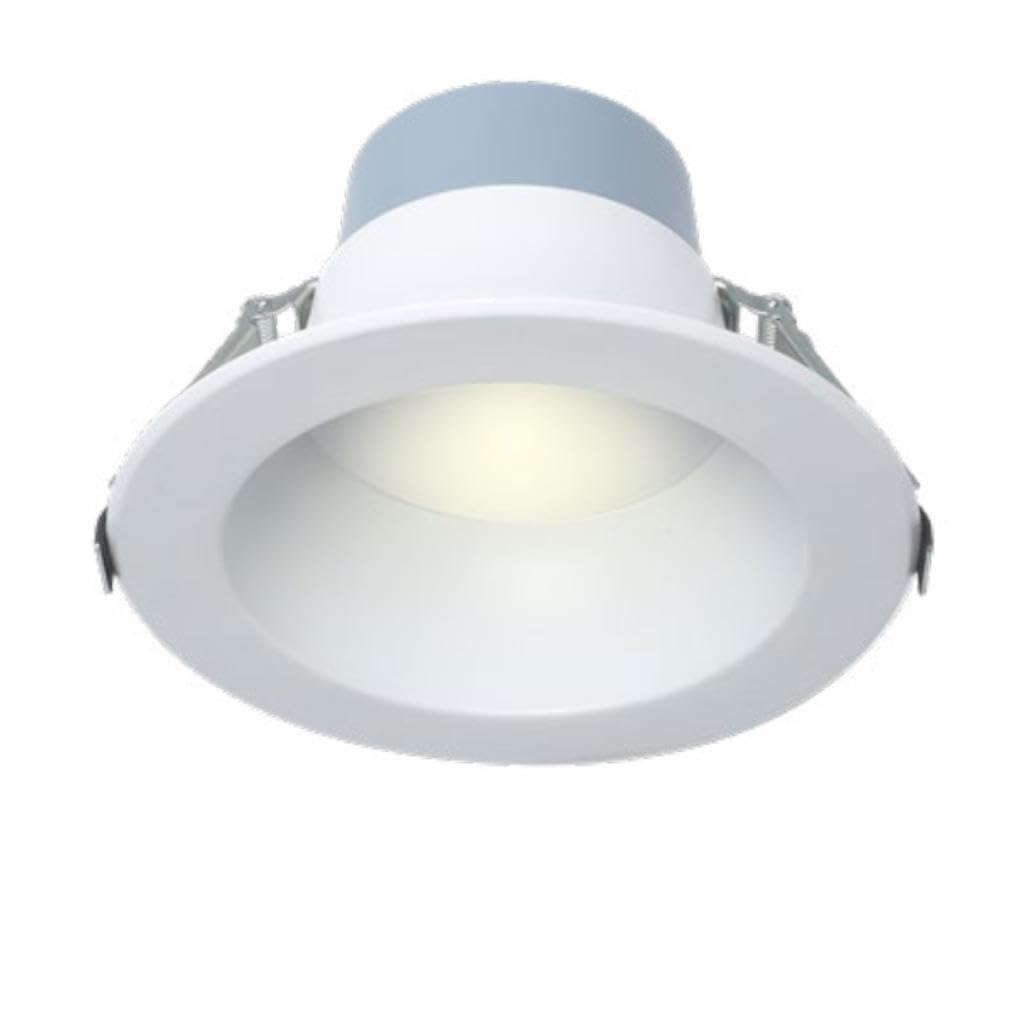

Image 1.1: Philips CR6RLMCCT LED Recessed Can Retrofit Kit. This image shows the complete retrofit kit, including the LED module and mounting springs, ready for installation into an existing recessed housing.

2. Saugos informacija

WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the fuse or circuit breaker before installation or servicing.

• Montavimą turi atlikti kvalifikuotas elektrikas, laikydamasis visų nacionalinių ir vietinių elektros kodeksų.
• Užtikrinkite tiekimo tūrįtage is compatible with the fixture (120V AC).
• Nekeiskite ir nemodifikuokite įrenginio. Bet kokie pakeitimai gali panaikinti garantiją ir sukelti pavojų saugai.
• Nemontuokite vietose, kur darbinė temperatūra viršija įrenginio vardinę temperatūrą.
• Montavimo metu mūvėkite apsauginius akinius ir pirštines.
• Šis prietaisas nėra skirtas naudoti su avariniais išėjimais.

3. Pakuotės turinys

Carefully unpack the fixture and inspect for any damage. Ensure all components are present:

• 1 x Philips CR6RLMCCT LED Recessed Can Retrofit Kit
• 1 x Standard E26 Screw-in Adapter (for connecting to existing socket)
• 2 x Torsion Springs or Friction Clips (pre-attached to fixture)
• 1 x Naudotojo vadovas (šis dokumentas)

Visual aid: An image here would typically show all the components listed above laid out clearly.

4. Sąranka (diegimas)

1. Išjungti maitinimą: Locate the circuit breaker or fuse box controlling the recessed lighting fixture. Turn off the power to the circuit before beginning installation.
2. Remove Existing Trim and Bulb: Carefully remove the existing trim ring and light bulb from the recessed housing. If the housing has a socket plate, remove it as well.
3. Prijunkite E26 adapterį: Screw the provided E26 screw-in adapter into the existing socket within the recessed housing. Ensure it is securely tightened.
4. Connect Retrofit Kit: Locate the twist-lock connector on the retrofit kit. Plug this connector into the E26 adapter's receptacle. Ensure a firm connection.

   Visual aid: An image here would show the E26 adapter screwed into the housing socket and the retrofit kit's connector being plugged into it.

5. Adjust CCT and Lumen Settings (Pre-Installation): Before pushing the fixture into the housing, locate the CCT and lumen selector switches on the side of the retrofit kit. Select your desired color temperature and brightness level. Refer to Section 5 for details on these settings.

   Visual aid: An image here would highlight the CCT and lumen selector switches on the side of the retrofit kit.
6. Install into Housing: Gently push the retrofit kit up into the recessed housing. The torsion springs or friction clips will secure the fixture in place. Ensure the fixture is flush with the ceiling.

   Visual aid: An image here would demonstrate pushing the retrofit kit into the recessed housing until it is flush.

7. Atkurti maitinimą: Once the fixture is securely installed, turn the power back on at the circuit breaker or fuse box.
8. Bandomoji operacija: Įjunkite šviesos jungiklį, kad patikrintumėte tinkamą veikimą.

5. Naudojimo instrukcijos

The Philips CR6RLMCCT LED Recessed Can Retrofit Kit features DualSelect technology, allowing adjustment of both Color Correlated Temperature (CCT) and lumen output.

5.1. Spalvinės temperatūros (CCT) reguliavimas

The CCT selector switch is located on the side of the fixture. This switch allows you to choose from multiple color temperature options (e.g., 2700K, 3000K, 3500K, 4000K, 5000K). To change the CCT:

1. Turn off power to the fixture at the wall switch.
2. Carefully pull the fixture down from the recessed housing to access the switch.
3. Slide the CCT switch to your desired color temperature setting.
4. Push the fixture back into the housing until it is flush.
5. Atkurkite maitinimą ir patikrinkite.

5.2. Adjusting Lumen Output

The lumen selector switch is also located on the side of the fixture, adjacent to the CCT switch. This switch allows you to select different brightness levels (e.g., 800 lumens, 1000 lumens, 1200 lumens). To change the lumen output:

1. Turn off power to the fixture at the wall switch.
2. Carefully pull the fixture down from the recessed housing to access the switch.
3. Slide the lumen switch to your desired brightness level.
4. Push the fixture back into the housing until it is flush.
5. Atkurkite maitinimą ir patikrinkite.

Visual aid: An image here would clearly label and show the CCT and lumen selector switches and their available settings.

6. Priežiūra

The Philips CR6RLMCCT LED Recessed Can Retrofit Kit requires minimal maintenance.

• Valymas: Prieš valydami, įsitikinkite, kad maitinimas išjungtas. Naudokite minkštą, sausą arba šiek tiek sudrėkintą šluostę.amp cloth to wipe the surface of the fixture. Do not use abrasive cleaners, solvents, or cleaners containing alcohol, as these can damage the finish or electrical components.
• Šviesos diodų ilgaamžiškumas: Integruotas LED šviesos šaltinis yra sukurtas ilgam tarnavimo laikui ir nereikalauja keisti lemputės.

7. Problemų sprendimas

If you experience issues with your retrofit kit, refer to the following troubleshooting guide:

If the problem persists after attempting these solutions, contact Philips customer support.

8. Specifikacijos

• Modelis: 131273 CR6RLMCCT
• Prekinis ženklas: Philips
• Tipas: LED įleidžiamas skardinės modifikavimo komplektas
• Korpuso suderinamumas: 5-6 Inch Recessed Housing
• Medžiaga: Varis (vidiniai komponentai)
• Prekės pakuotės kiekis: 1
• Reikalingos baterijos: Nr
• Reguliuojamas CCT: Yes (Multiple settings, e.g., 2700K, 3000K, 3500K, 4000K, 5000K)
• Adjustable Lumen Output: Yes (Multiple settings)
• Įvesties tomastage: 120V kintamoji srovė

9. Garantija ir palaikymas

Philips products are manufactured to the highest quality standards. This product is covered by Philips' standard limited warranty. Please refer to the official Philips webKonkrečias garantijos sąlygas, taikomas jūsų regione, rasite svetainėje arba pirkimo dokumentuose.

For technical support, troubleshooting assistance, or warranty claims, please contact Philips Customer Service:

• Websvetainė: www.philips.com/support
• Telefonas: Refer to the Philips support webregioninių kontaktinių numerių svetainė.

When contacting support, please have your product model number (131273 CR6RLMCCT) and proof of purchase readily available.
