„Troy-Bilt TB30E XP“ vejapjovės naudotojo vadovas

Svarbi saugos informacija

Read and understand all instructions before operating the mower. Failure to follow these instructions could result in serious injury or property damage.

• Always wear appropriate safety gear, including eye protection and sturdy footwear.
• Laikykite vaikus ir naminius gyvūnus toliau nuo darbo zonos.
• Never operate the mower under the influence of drugs or alcohol.
• Inspect the area for debris (rocks, sticks, etc.) before mowing.
• Disconnect power and remove the key before performing any maintenance or clearing obstructions.

Produktas baigtasview

The Troy-Bilt TB30E XP is a 56V MAX Lithium-Ion battery-powered compact riding mower designed for efficient and quiet lawn care. It features a 30-inch cutting deck and is capable of mowing up to 1 acre or running for up to 1 hour on a single charge.

1 paveikslas: Priekyje-kairėn view of the Troy-Bilt TB30E XP riding mower, showcasing its compact design and red and black color scheme.

2 paveikslas: Priekyje view of the Troy-Bilt TB30E XP riding mower, highlighting the steering wheel and front bumper.

Sąranka ir pradinis įkrovimas

1. Išpakavimas: Carefully remove the mower and all components from the packaging. Inspect for any shipping damage.
2. Surinkimas: Follow the quick assembly guide for attaching the steering wheel and seat, if not pre-assembled. Ensure all fasteners are securely tightened before operation.
3. Akumuliatoriaus įkrovimas:

   The mower is powered by a 56V MAX Lithium-Ion battery. Before first use, fully charge the battery to ensure optimal performance and runtime.



   3 paveikslas: Iš arti view of the charging port cover on the Troy-Bilt TB30E XP, located on the side of the mower.

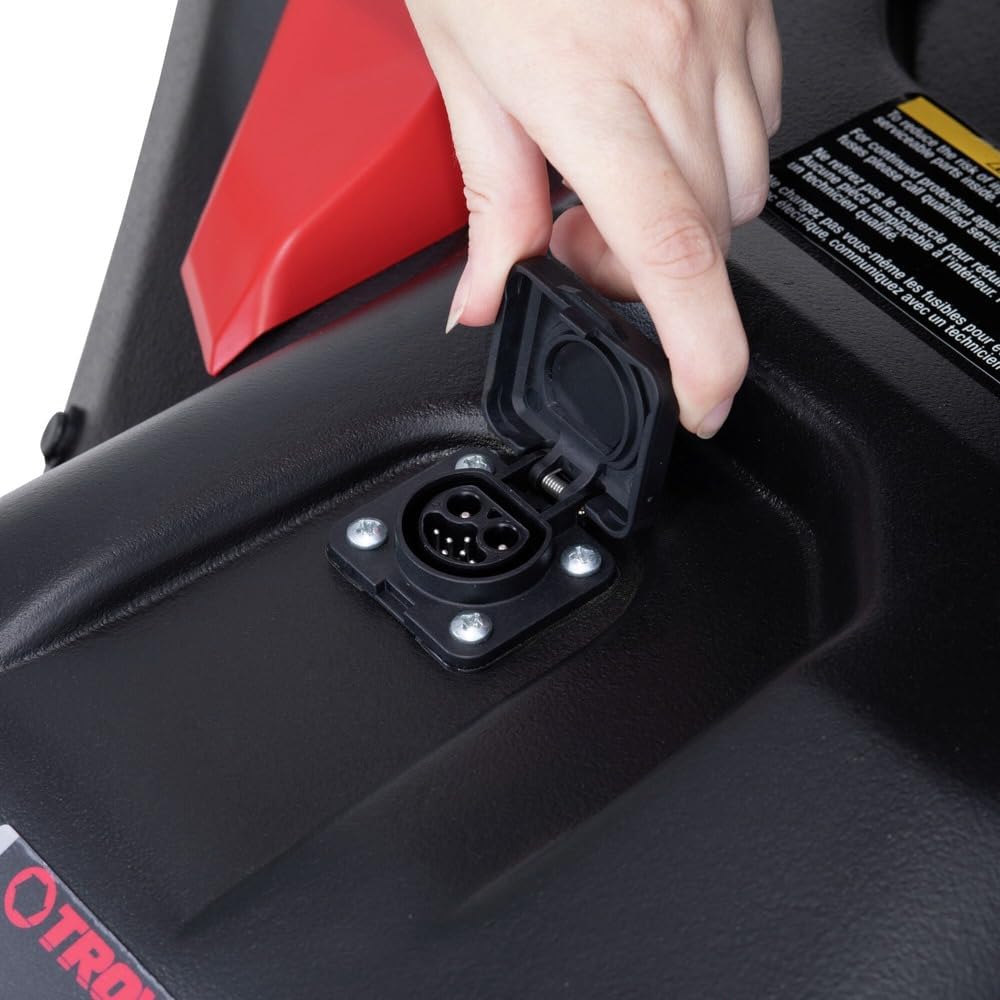

   4 paveikslas: The charging port of the Troy-Bilt TB30E XP with the cover open, showing the multi-pin connector.

   • Locate the charging port, typically found on the side or rear of the mower.
   • Connect the charger to the mower's charging port.
   • Įjunkite įkroviklį į standartinį elektros lizdą.
   • Allow the battery to charge until the indicator lights show a full charge. This may take several hours for the initial charge.
4. Patikra prieš eksploataciją: Before each use, ensure tires are properly inflated, cutting blades are sharp and securely attached, and all safety features (e.g., seat switch, parking brake) are functional.

Naudojimo instrukcijos

1. Vejapjovės paleidimas:
   • Įsitikinkite, kad įjungtas stovėjimo stabdys.
   • Sit firmly in the operator's seat.
   • Insert the key (if applicable) and turn it to the "ON" position.
   • Engage the blade lever to start the cutting deck.
2. Pjovimo aukščio reguliavimas:

   The mower features multiple cutting height positions to suit various grass types and desired lengths.



   5 paveikslas: Close-up of the cutting height adjustment lever on the Troy-Bilt TB30E XP, showing numbered settings from 1 to 5.

   • Use the cutting height adjustment lever to select the desired grass length.
   • Adjust the height before starting to mow.
3. Driving and Mowing:
   • Atleiskite stovėjimo stabdį.
   • Use the foot pedals to control forward and reverse motion.
   • Vairuokite naudodami vairą.
   • Mow at a safe and steady pace. Avoid sudden turns or stops, especially on slopes.
   • The electric brushless motor ensures quiet operation, allowing for a more pleasant mowing experience.
4. Vejapjovės sustabdymas:
   • Atleiskite peilio svirtį.
   • Įjunkite stovėjimo stabdį.
   • Turn the key to the "OFF" position and remove it for safety.

Priežiūra

Regular maintenance ensures the longevity and optimal performance of your Troy-Bilt TB30E XP riding mower. Always disconnect power and remove the key before performing any maintenance.

Po kiekvieno naudojimo:

• Valymas: Clean the cutting deck and exterior of the mower to remove grass clippings and debris. Use a damp cloth; avoid high-pressure water directly on electrical components.
• Ašmenų patikrinimas: Check the cutting blades for sharpness and damage. Sharpen or replace as needed.
• Akumuliatoriaus įkrovimas: Recharge the battery after each use to ensure it's ready for the next mowing session.

Sezoninė priežiūra:

• Akumuliatoriaus priežiūra: For long-term storage, ensure the battery is fully charged and stored in a cool, dry place. Recharge periodically during the off-season to maintain battery health.
• Bendra apžiūra: Check all nuts, bolts, and fasteners for tightness. Lubricate moving parts as recommended in the full manual.

Trikčių šalinimas

Specifikacijos

• Modelis: TB30E XP (33AA27JDB66)
• Maitinimo šaltinis: 56V MAX Lithium-Ion Battery (30 Ah)
• Denio dydis: 30 colių
• Veikimo laikas: Up to 1 hour or 1 acre per charge
• Variklio tipas: Elektrinis be šepetėlių
• Gamintojas: Trojos Biltas
• ASIN: B0D53451BL
• Pirmas prieinamas: 1 m. gegužės 2024 d

Informacija apie garantiją

The Troy-Bilt TB30E XP riding mower and its battery are covered by a 3 metų ribota garantijaŠi garantija taikoma medžiagų ir gamybos defektams, atsiradusiems įprasto naudojimo sąlygomis.

Please refer to the official warranty document included with your product for full terms and conditions, including coverage details, limitations, and the process for making a warranty claim.

Pagalba klientams

For technical assistance, replacement parts, or warranty claims, please contact Troy-Bilt customer support.

Websvetainė: Visit the official Troy-Bilt website for comprehensive FAQs, product registration, and support resources. www.troybilt.com

Telefonas: Refer to your product packaging or the Troy-Bilt websvetainė, kurioje rasite naujausius klientų aptarnavimo kontaktinius numerius.

When contacting support, please have your model number (TB30E XP) and ASIN (B0D53451BL) ready to expedite service.
