„Ninestars“ 13 galonų / 50 litrų talpos automatinė bekontakčio judesio jutiklio stačiakampė šiukšliadėžė. Naudotojo vadovas.
Model: B0D6XMY3F
Įvadas
This manual provides instructions for the proper setup, operation, and maintenance of your Ninestars 13 Gallon / 50 Liter Automatic Touchless Motion Sensor Rectangular Trash Can. Please read this manual thoroughly before use to ensure optimal performance and longevity of your product.
1. Sąranka
1.1 Išpakavimas ir komponentai
Atsargiai išimkite visus komponentus iš pakuotės. Įsitikinkite, kad yra visos dalys:
- Trash Can Body (Stainless Steel)
- Lid (with motion sensor)
- Linijinis žiedas

1.1 vaizdas: Sprogo view showing the main components: the Lid, the Liner Ring, and the Stainless Steel Body of the trash can.
1.2 Akumuliatoriaus įdėjimas
- Apatinėje dangtelio pusėje raskite akumuliatoriaus skyrių.
- Atidarykite akumuliatoriaus skyriaus dangtelį.
- Insert two (2) "D" size batteries (not included) according to the polarity indicators (+/-) inside the compartment.
- Saugiai uždarykite akumuliatoriaus skyriaus dangtelį.

1.2 vaizdas: Illustration indicating the requirement for two "D" size batteries, which are not included with the product.
1.3 Assembling the Trash Can
- Place a trash bag into the stainless steel body.
- Fit the liner ring over the top edge of the trash bag and into the body to secure the bag in place.
- Carefully place the lid onto the top of the trash can body, ensuring it is seated properly.
2. Naudojimo instrukcijos
2.1 Automatinis judesio jutiklio veikimas
The trash can features a motion-activated sensor for hands-free operation.
- To open the lid, simply wave your hand or an object within 6-10 inches (15-25 cm) above the sensor located on the front of the lid.
- The lid will open automatically and remain open for approximately 5 seconds.
- After 5 seconds, the lid will close gently and quietly due to the slow-close mechanism.

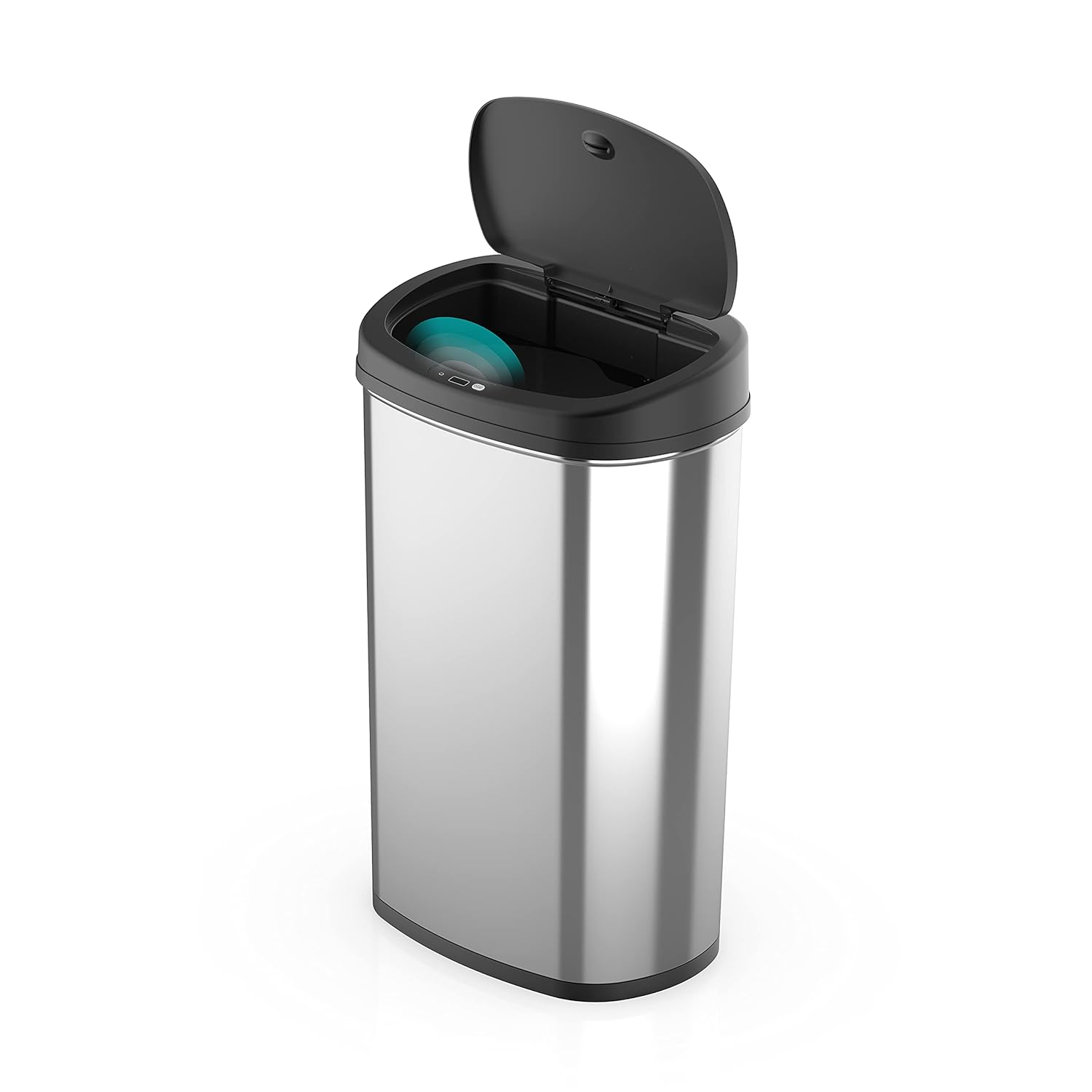

2.1 vaizdas: The Ninestars automatic trash can with its lid open, illustrating the motion sensor's position on the lid.

2.2 vaizdas: The Ninestars automatic trash can with its lid closed, demonstrating its compact and sleek appearance.

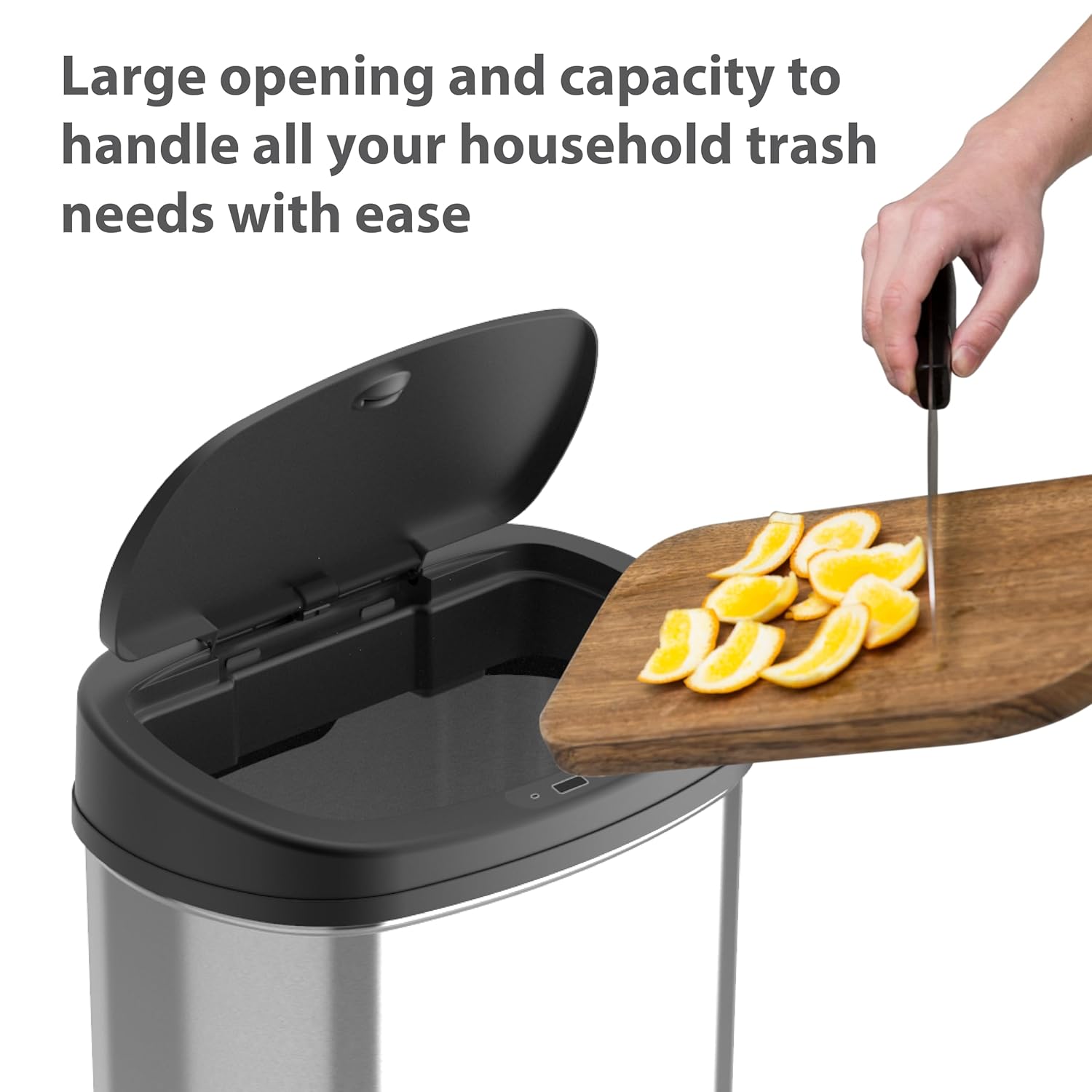

2.3 vaizdas: A user disposing of waste into the trash can, highlighting the wide opening for easy disposal.
3. Priežiūra
3.1 Išorės valymas
To maintain the appearance of the stainless steel body:
- Išorę nuvalykite minkšta, damp cloth and a mild stainless steel cleaner.
- Avoid abrasive cleaners or scrubbers, as these can scratch the surface.
- Kruopščiai nusausinkite švaria, minkšta šluoste, kad neliktų vandens dėmių.
3.2 Vidaus valymas
For the interior, especially after removing a full trash bag:
- Remove the lid and liner ring.
- Wipe the inside of the body with a damp cloth and a mild disinfectant.
- Ensure the interior is completely dry before replacing the trash bag, liner ring, and lid.
3.3 Akumuliatoriaus keitimas
When the sensor's response becomes slow or inconsistent, it may be time to replace the batteries. Refer to Section 1.2 for battery installation instructions.
4. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|
| Dangtis neatsidaro automatiškai. | - Baterijos išsikrovusios arba neteisingai įdėtos.
- Jutiklis užblokuotas arba nešvarus.
- Insufficient light in the area.
| - Replace batteries with new "D" size batteries, ensuring correct polarity.
- Nuvalykite jutiklio langą minkšta, sausa šluoste.
- Ensure the trash can is not placed in an area with extremely low light.
|
| Dangtis užsidaro per greitai arba lėtai. | - Maža akumuliatoriaus energija.
- Dangčio mechanizmo kliūtis.
| - Pakeiskite baterijas.
- Check for any debris or objects preventing smooth lid movement.
|
| Lid remains open. | - Jutiklis nuolat suveikia.
- Lid mechanism jammed.
| - Ensure no objects are continuously within the sensor's range.
- Check for any physical obstruction preventing the lid from closing.
|
5. Specifikacijos
| Funkcija | Detalė |
|---|
| Modelis | B0D6XMY3F |
| Talpa | 13 galonų (50 litro) |
| Gaminio matmenys (I x P x A) | 11.3 x 16.4 x 26.4 colio (28.8 x 41.6 x 67.1 cm) |
| Svoris | 14 svarų (6.35 kg) |
| Medžiaga | Nerūdijantis plienas, plastikas |
| Atidarymo mechanizmas | Judesio jutiklis |
| Maitinimo šaltinis | 2 x "D" Size Batteries (not included) |
| Ypatingos savybės | Motion Sensor, Quiet Close, Fingerprint-Resistant |

5.1 vaizdas: Detailed dimensions of the Ninestars trash can, including height with the lid open and closed, width, and depth.
6. Garantija ir palaikymas
For warranty information, product support, or to purchase replacement parts, please refer to the official Ninestars website or contact their customer service department. Contact details are typically available on the product packaging or the manufacturer's official online resources.
