1. Įvadas
Thank you for choosing OKPRO Solar Street Lights. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your 6800W Integrated Solar Street Light and 300W Octagonal Solar Lights. Please read this manual thoroughly before use and retain it for future reference.
2. Saugos informacija
- Ensure all components are intact before installation. Do not install damaged products.
- Installation should be performed by individuals familiar with local electrical codes and safety practices.
- Nežiūrėkite tiesiai į šviečiantį LED šviesos šaltinį, nes tai gali sukelti akių nuovargį.
- Kad įkrovimas būtų optimalus, saulės bateriją laikykite švarią.
- Nebandykite ardyti ar modifikuoti gaminio. Tai panaikins garantiją ir gali sukelti žalą ar sužalojimą.
- Baterijas ir elektroninius komponentus utilizuokite pagal vietinius reikalavimus.
3. Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi toliau išvardyti daiktai:
- 1 x OKPRO 6800W Integrated Solar Street Light
- 4 x OKPRO 300W Octagonal Solar Lights
- 1 x Remote Control (for 6800W light)
- 1 x Pole Mounting Bracket (for 6800W light)
- Mounting Hardware (screws, expansion bolts)
- 1x garantinis talonas
1 paveikslas: Package Contents. Includes the 6800W integrated street light, four 300W octagonal lights, remote control, mounting bracket, and hardware.
4. Produkto ypatybės
4.1 OKPRO 6800W Integrated Solar Street Light
- Ypatingas ryškumas: Equipped with 1152 high-brightness 5730 type LED beads, emitting 7000K cold white light.
- Plataus kampo apšvietimas: Unique three-curve design provides 240° wide-angle illumination, covering 900-1152 square feet.
- Didelio efektyvumo saulės baterijos: Innovative solar panels convert over 25% of solar energy into electricity.
- Ilgalaikė galia: Features a 30000mAh large capacity battery for all-night illumination.
- Patvari konstrukcija: Brand-new ABS plastic shell with IP66 waterproof rating, resistant to heavy rain and high temperatures.
- Integruotas dizainas: Combines solar panel, battery, and LED light into a single unit for easy installation.

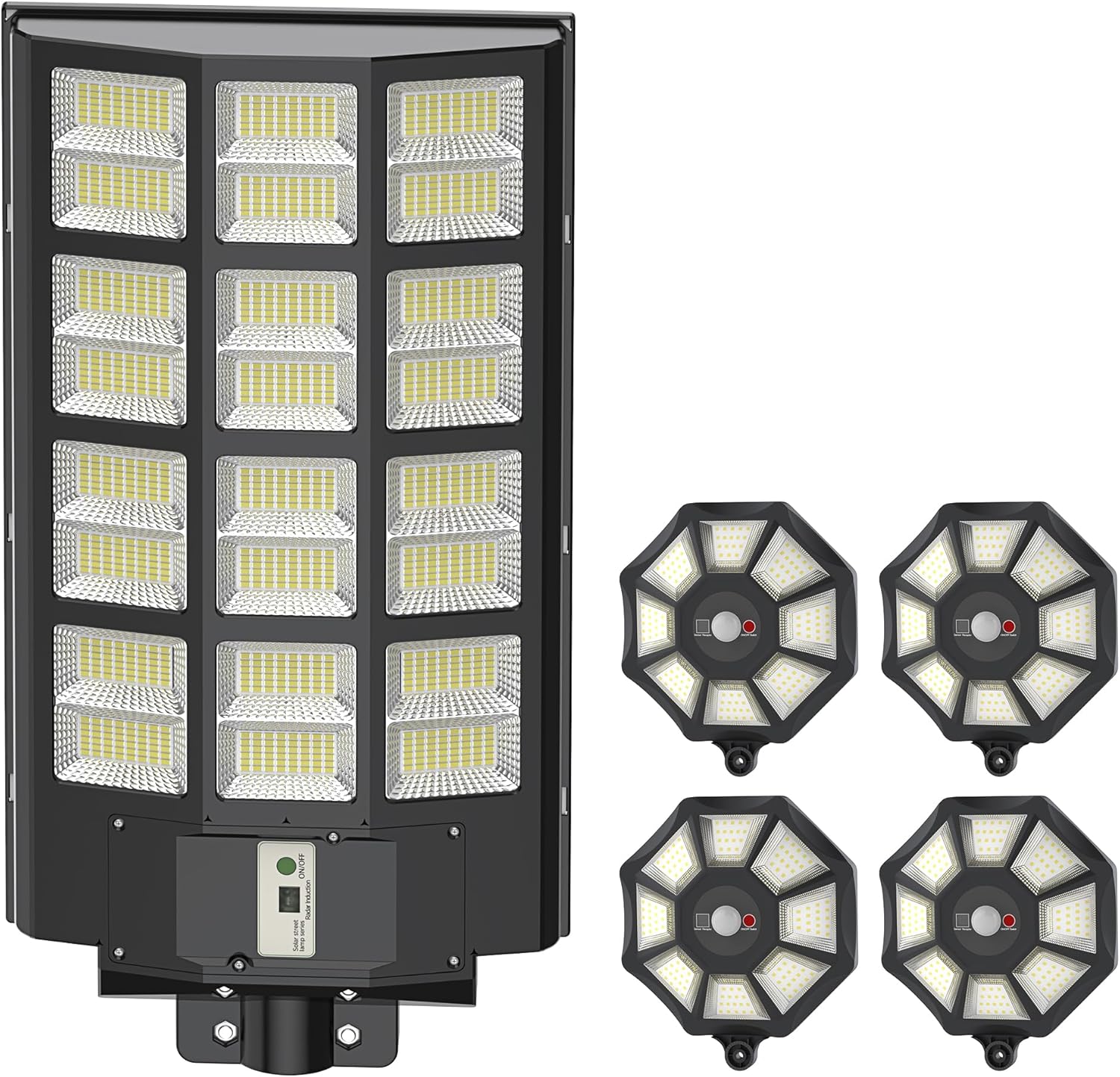

2 paveikslas: The 6800W Integrated Solar Street Light (left) and the 300W Octagonal Solar Lights (right).
3 paveikslas: 240° Wide-Angle Illumination of the 6800W light.
4.2 OKPRO 300W Octagonal Solar Lights
- Unique Octagonal Design: Provides comprehensive 360° lighting without blind spots.
- Didelio efektyvumo šviesos diodai: Equipped with 168 super LED beads for optimal brightness.
- Judesio jutiklis: Integrated motion sensor for enhanced security and energy saving.
- Patvarus ir atsparus vandeniui: Designed for outdoor use with robust construction.
4 paveikslas: Four 300W Octagonal Solar Lights mounted.
5 paveikslas: 360° Lighting from an Octagonal Solar Light.
5. Montavimas
The OKPRO Solar Street Lights are designed for easy, wire-free installation. Ensure the chosen installation location receives ampoptimaliam įkrovimui saugokite nuo tiesioginių saulės spindulių.
5.1 Svetainės pasirinkimas
- Choose a location where the solar panel can receive 4-6 hours of direct sunlight daily.
- Avoid areas under trees, eaves, or other obstructions that may block sunlight.
- Consider the desired illumination area for optimal light coverage.
5.2 Installation for 6800W Integrated Solar Street Light
This light can be installed on walls or lamp posts (1.5 to 4 inches diameter). Recommended installation height is 9.84-19.69 feet (3-6 meters).
- Paruoškite montavimo paviršių: Mark the drilling points on the wall or lamp post using the mounting bracket as a template.
- Gręžimo skylės: Drill holes at the marked positions. Insert expansion bolts if installing on concrete or masonry.
- Pritvirtinkite laikiklį: Secure the pole mounting bracket to the wall or lamp post using the provided screws.
- Šviesos kalnas: Attach the 6800W solar street light to the pole mounting bracket. Ensure it is securely fastened.
- Sureguliuoti kampą: Adjust the light angle to direct illumination as desired.
6 paveikslas: 6800W Light Wall Mount Example.
5.3 Installation for 300W Octagonal Solar Lights
These lights are typically wall-mounted.
- Paruoškite montavimo paviršių: Pažymėkite gręžimo taškus ant sienos.
- Gręžimo skylės: Drill holes at the marked positions and insert expansion bolts if necessary.
- Šviesos kalnas: Secure the octagonal solar light to the wall using the provided screws.
6. Operacija
Both solar lights feature automatic dusk-to-dawn operation and motion sensing capabilities.
6.1 Pradinis aktyvinimas
Upon first use, ensure the lights are exposed to direct sunlight for at least 6-8 hours to fully charge the internal battery. The lights will automatically turn on at dusk and off at dawn.
6.2 Remote Control (for 6800W Light)
The 6800W Integrated Solar Street Light comes with a remote control for adjusting settings.
- ĮJUNGTA/IŠJUNGTA: Rankiniu būdu įjunkite arba išjunkite šviesą.
- Ryškumo reguliavimas: Adjust light intensity (e.g., 25%, 50%, 75%, 100%).
- Laikmačio nustatymai: Set the light to operate for a specific duration (e.g., 2H, 3H, 5H, 8H).
- Judesio jutiklio režimas: Activate or deactivate the motion sensor. In motion sensor mode, the light will dim when no motion is detected and brighten when motion is sensed.
6.3 300W Octagonal Solar Lights
These lights typically operate with an integrated motion sensor. They will automatically turn on at dusk, dim when no motion is detected, and brighten to full intensity upon sensing movement.
7. Priežiūra
Reguliarus saulės šviestuvų remontas užtikrina optimalų veikimą ir ilgaamžiškumą.
- Švarios saulės baterijos: Periodically wipe the solar panels with a soft, damp šluoste, kad pašalintumėte dulkes, nešvarumus ir šiukšles. Švarus skydelis užtikrina maksimalų saulės šviesos sugėrimą.
- Patikrinkite, ar nėra pažeidimų: Regularly check the light fixtures and mounting hardware for any signs of wear, corrosion, or damage. Tighten any loose screws.
- Išvalytos kliūtys: Ensure no new obstructions (e.g., growing tree branches) are blocking sunlight from reaching the solar panels.
- Akumuliatoriaus priežiūra: The internal batteries are designed for long life. Avoid prolonged storage in a completely discharged state. If storing, ensure they are fully charged first.
8. Problemų sprendimas
If you encounter issues with your OKPRO Solar Street Lights, refer to the following common problems and solutions:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Šviesa neįsijungia naktį. | Insufficient sunlight exposure. Battery not charged. | Ensure solar panel is in direct sunlight for 6-8 hours. Clean the solar panel. Relocate if necessary. |
| Šviesos trukmė trumpesnė nei tikėtasi. | Partial charging due to cloudy weather or obstructions. | Verify solar panel cleanliness and unobstructed sunlight exposure. Allow several sunny days for full charge. |
| Šviesa mirga arba yra pritemdyta. | Low battery charge. Faulty LED or wiring. | Allow for full charge. If problem persists, contact customer support. |
| Remote control not working (6800W light). | Remote battery depleted. Obstruction between remote and light. | Replace remote control battery. Ensure clear line of sight to the light's sensor. |
| Judesio jutiklis neaptinka judesio. | Sensor obstructed or dirty. Incorrect sensitivity setting. | Clean sensor lens. Ensure no objects are blocking the sensor's field of view. (For 6800W, check remote settings). |
9. Specifikacijos
| Funkcija | Aprašymas |
|---|---|
| Prekės ženklas | OKPRO |
| Model (6800W Light) | Integruotas saulės gatvių apšvietimas |
| Model (300W Lights) | Octagonal Solar Light (4-Pack) |
| Medžiaga | Akrilnitrilo butadieno stirenas (ABS) |
| Maitinimo šaltinis | Varomas saulės energija |
| Šviesos šaltinio tipas | LED (5730 type for 6800W, 168 beads for 300W) |
| Šviesios spalvos | Cool White (7000K for 6800W) |
| Brightness (6800W) | 84000 liumenų |
| Battery Capacity (6800W) | 30000 mAh |
| Saulės energijos konversijos koeficientas | daugiau nei 25 proc. |
| Įkrovimo laikas | 4-6 hours (with abundant sunlight) |
| Illumination Angle (6800W) | 240° platus kampas |
| Illumination Area (6800W) | 900–1152 kvadratinių pėdų |
| Atsparumas vandeniui | IP66 Atsparus vandeniui |
| Kontrolės metodas | Remote Control (6800W), Motion Sensor (Both) |
| Diegimo tipas | Surface Mount (Wall/Pole) |
| Recommended Installation Height (6800W) | 9.84–19.69 pėdos (3–6 m) |
| Sertifikatai | FCC, CE, RoHS |
10. Garantija ir palaikymas
OKPRO Solar Street Lights come with a 24 mėnesių garantija nuo pirkimo datos.
If you encounter any problems or are dissatisfied with your product for any reason, please contact us directly through the Amazon message window. Our professional service team is committed to providing satisfactory solutions within 24 hours.
Prašome išsaugoti pirkimo kvitą kaip pirkimo įrodymą garantiniams reikalavimams.
