1. Įvadas ir pabaigaview

The Aveek 4 Channel Mixer is a compact, low-noise stereo audio mixer designed for precision sub-mixing of multiple audio inputs. Ideal for microphones, guitars, bass, and stage setups, it offers effortless multi-channel mixing with crystal clear, distortion-free sound. Its durable metal casing and flexible DC 5V power supply make it suitable for various environments, from home studios to live events.

1 pav.: priekis view of the Aveek 4 Channel Mixer, showing input and output controls.

2. Kas yra dėžutėje

• 1 x Aveek Audio Mixer
• 1 x kintamosios ir nuolatinės srovės adapteris
• 1 x Naudotojo vadovas
• 1 x tipo C laidas

3. Pagrindinės savybės

• Effortless Multi-Channel Mixing: Simplifies managing multiple inputs from various instruments.
• Crystal Clear, Low-Noise Sound: Equipped with 5 ROHM low-noise, high-quality operational amplifiers for distortion-free audio.
• Stereo/Mono Easy Switching: Offers flexible audio configurations using 1/4" TRS stereo or 1/4" TS mono connectors.
• Kompaktiškas ir patvarus dizainas: Built with a robust metal casing and independent volume controls for each channel.
• Flexible DC 5V Power Supply: Ready for various environments with an included power adapter.

2 pav. Vidinis view highlighting the low-noise circuitry.

4. Sąrankos vadovas

Follow these steps to set up your Aveek 4 Channel Mixer:

1. Maitinimo jungtis: Connect the included Type-C cable to the DC 5V/2A port on the mixer and the USB end to the AC/DC adapter. Plug the adapter into a power outlet. The power indicator light will illuminate.
2. Įvesties jungtys: Connect your audio sources (e.g., microphones, keyboards, guitars, electronic drums) to the IN1, IN2, IN3, and IN4 input jacks using 1/4" TRS stereo or 1/4" TS mono cables (cables not included).
3. Išvesties jungtis: Connect the OUTPUT jack of the mixer to your amplifier, speaker, or recording device using a 1/4" TRS or TS cable.
4. Įžeminimas (pasirinktinai): If experiencing hum or noise, connect a ground wire to the GND screw terminal on the mixer and to a suitable ground point in your setup.

Demonstracinio vaizdo įrašo sąranka

Video 1: A step-by-step guide to setting up the Aveek 4 Channel Mixer, including power and audio connections.

Išpakavimo ir pradinio nustatymo vaizdo įrašas

Video 2: Unboxing the Aveek 4 Channel Mixer and initial setup procedures.

3 pav. Išsamus view of the 1/4" TRS (stereo) and TS (mono) input and output connections.

4 pav. Pvzamples of suitable equipment for connection, such as line-in devices, dynamic microphones, electronic organs, electric guitars, and electronic drums.

5. Naudojimo instrukcijos

Once your mixer is set up, you can begin mixing your audio sources:

1. Individualus garsumo valdymas: Each input channel (IN1-IN4) has an independent volume knob. Rotate these knobs clockwise to increase the volume for that specific channel and counter-clockwise to decrease it.
2. Stereo/Mono Switching: Above each input volume knob, there is a switch to select between MONO and STEREO modes. Use STEREO mode with 1/4" TRS cables for stereo signals. For mono signals, use 1/4" TS connectors and select MONO mode.
3. Master Output Control: The 'OUTPUT' knob controls the overall volume of the mixed signal. Adjust this to achieve the desired output level for your ampilgaamžiškumą ar įrašymo įrenginį.

Veiklos pabaigaview Vaizdo įrašas

Video 3: A demonstration of the Aveek Mini Passive Mixer's unboxing and setup, including a brief overview of its operational features.

Figure 5: Close-up of the mono/stereo switches and individual input volume controls, along with the master output volume.

6. Specifikacijos

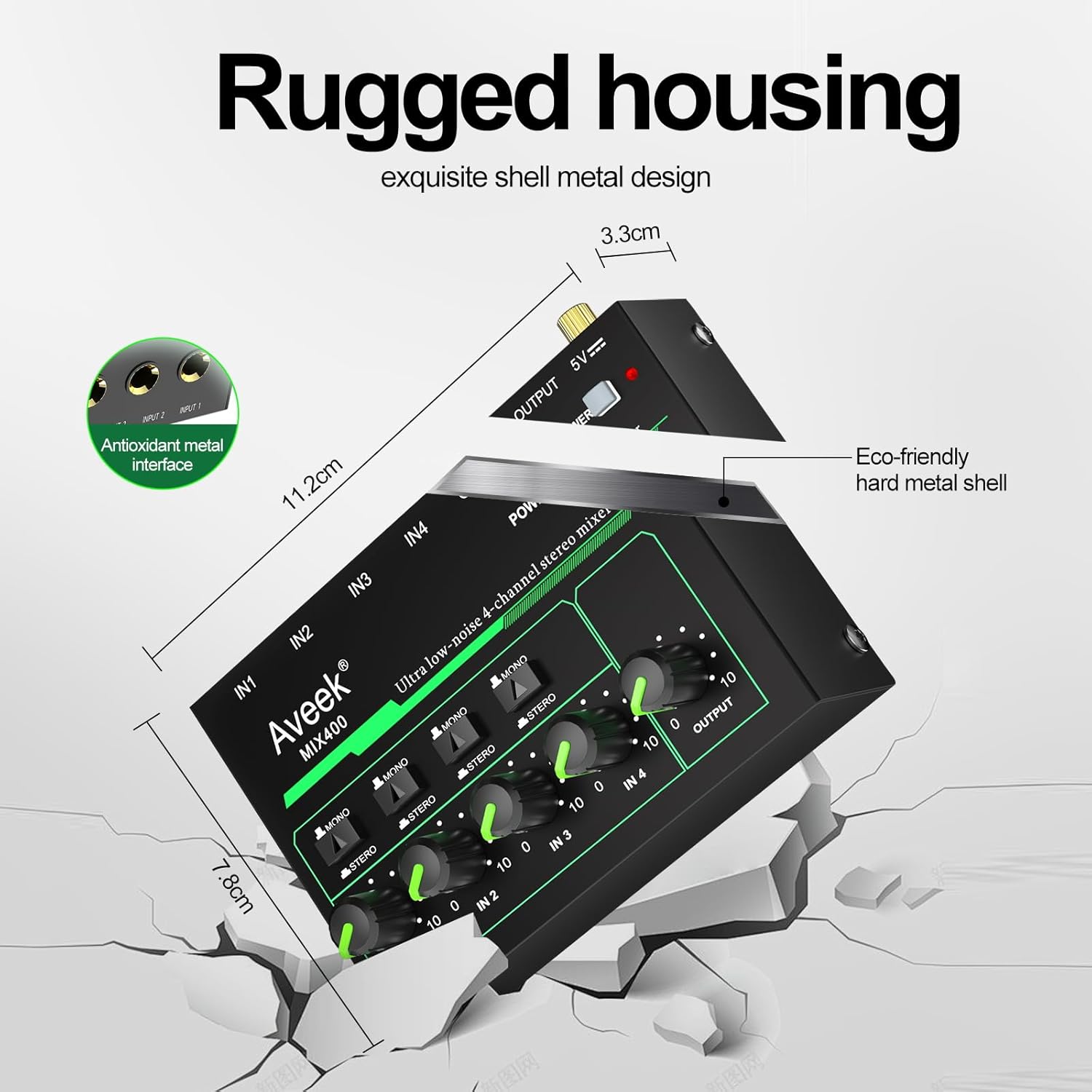

Figure 6: Dimensions and robust aluminum housing of the mixer.

7. Priežiūra

To ensure the longevity and optimal performance of your Aveek 4 Channel Mixer, follow these maintenance guidelines:

• Valymas: Use a soft, dry cloth to clean the exterior of the mixer. Avoid using liquid cleaners or abrasive materials, as they may damage the finish or internal components.
• Saugykla: When not in use, store the mixer in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
• Tvarkymas: Handle the mixer with care. Avoid dropping it or subjecting it to strong impacts, which can damage the internal circuitry or external casing.
• Kabelių valdymas: Ensure all cables are connected securely and are not under strain. Avoid bending cables sharply or placing heavy objects on them.

8. Problemų sprendimas

If you encounter issues with your Aveek 4 Channel Mixer, refer to the following common problems and solutions:

• Nėra galios:
  • Ensure the AC/DC adapter is securely plugged into both the mixer and a working power outlet.
  • Check if the power indicator light on the mixer is illuminated. If not, try a different power outlet.
• Nėra garso išvesties:
  • Verify that all input and output cables are correctly connected and fully inserted into their respective jacks.
  • Check the volume knobs for each input channel and the master OUTPUT knob. Ensure they are turned up sufficiently.
  • Patvirtinkite, kad esate prisijungę amplifier or speaker is powered on and its volume is adjusted appropriately.
  • Ensure the MONO/STEREO switches are set correctly for your cables (TRS for Stereo, TS for Mono).
• Dūzgimas arba triukšmas:
  • Ensure proper grounding by connecting a wire to the GND terminal on the mixer.
  • Patikrinkite, ar nėra laisvų kabelių jungčių.
  • Try using different cables or power outlets to rule out interference.
  • Ensure all connected devices are properly grounded.
• Iškraipytas garsas:
  • Reduce the volume levels of individual input channels or the master OUTPUT to prevent clipping.
  • Ensure the input signals are not too strong for the mixer.

9. Garantija ir palaikymas

Aveek products are designed for reliability and performance. For specific warranty information, please refer to the warranty card or documentation included with your product at the time of purchase. If you require technical support, have questions about product functionality, or need assistance with troubleshooting beyond this manual, please contact Aveek customer service through the official channels provided on the product packaging or the brand's websvetainę.

Prašome išsaugoti pirkimo įrodymą bet kokiems garantiniams reikalavimams.
