Įvadas
The Roca Multiclean® M4 SQUARE COMPACT is an advanced toilet seat designed to transform your existing toilet into a shower toilet, offering enhanced hygiene and comfort. This seat integrates customizable washing and drying functions, along with self-cleaning features for optimal sanitation. This manual provides essential information for the installation, operation, and maintenance of your Multiclean® M4 SQUARE COMPACT seat.
Sąranka ir diegimas
The Multiclean® M4 SQUARE COMPACT seat is designed for straightforward installation, requiring only a water supply connection and a conventional power outlet. Ensure your toilet is compatible with the SQUARE COMPACT dimensions before proceeding.

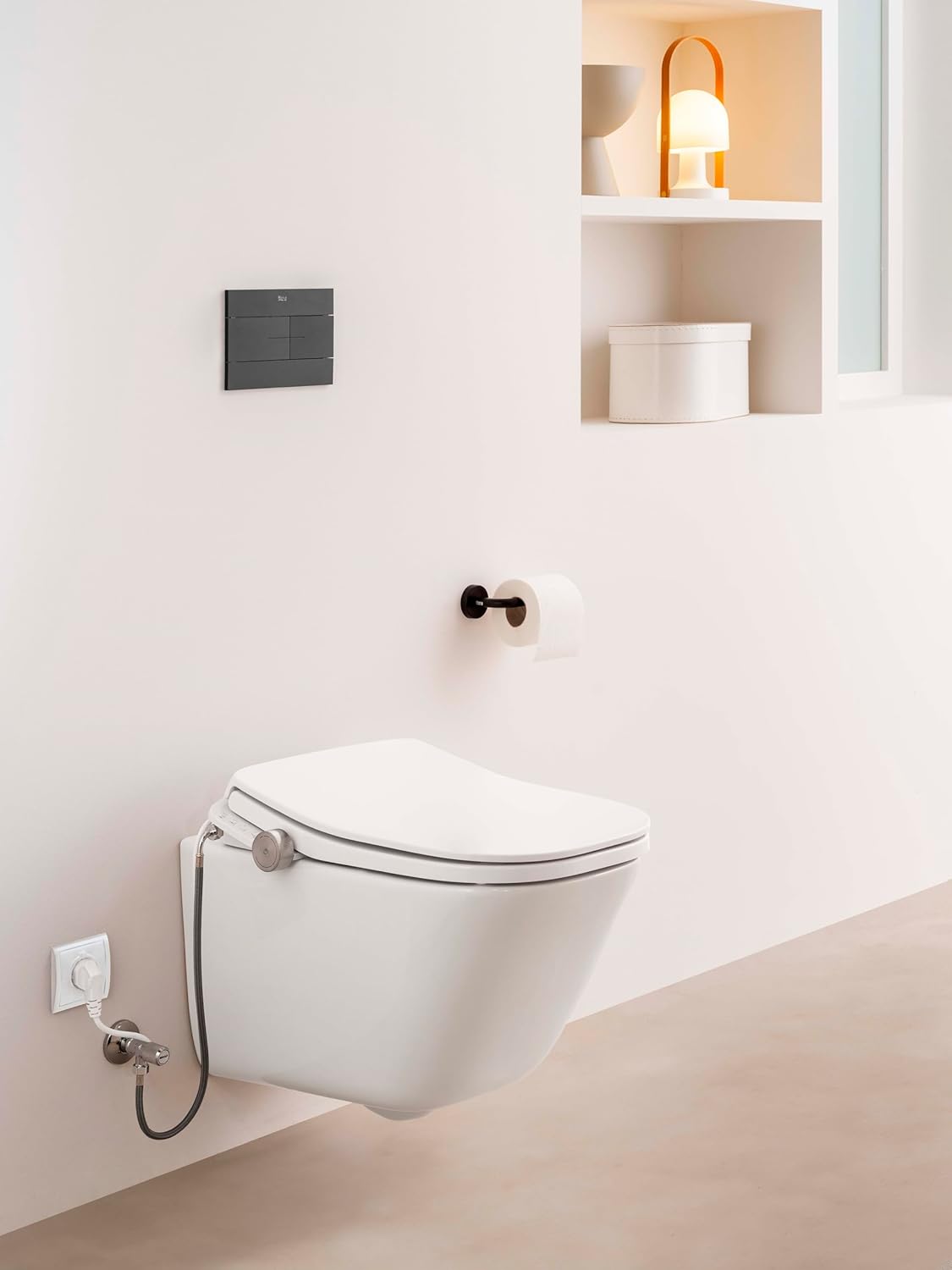

Image: The Multiclean M4 SQUARE COMPACT seat installed on a wall-hung toilet, showing the necessary water and electrical connections. Note the power cable extending to a nearby outlet and the water hose connecting to the toilet's water inlet.
Image: The Multiclean M4 SQUARE COMPACT seat installed on a traditional floor-standing toilet. This view highlights the discreet integration of the seat with the existing toilet structure and the external connections for power and water.
Suderinamumo patikrinimas
Before installation, verify your toilet's compatibility using the provided dimensions and compatibility chart. The seat is designed for SQUARE COMPACT toilet models.
Image: A detailed compatibility chart for Roca Multiclean seats, indicating which toilet collections and models (SQUARE, ROUND, SQUARE COMPACT, ROUND COMPACT) are compatible with the Multiclean M4. Users should cross-reference their toilet model with this chart.
Ryšio reikalavimai
- Vandens tiekimas: Connect the seat to a clean water supply line. Ensure all connections are secure to prevent leaks.
- Maitinimas: Plug the seat into a standard electrical outlet. Ensure the outlet is properly grounded and meets local electrical codes.
The seat can also be configured and controlled via a mobile application, enhancing user convenience.
Naudojimo instrukcijos
The Multiclean® M4 SQUARE COMPACT offers personalized washing and drying experiences, controlled via a side panel or a mobile app.
Image: The Roca Multiclean M4 SQUARE COMPACT toilet seat, highlighting the integrated side control panel with a circular knob and various function buttons. This panel allows users to easily manage the washing and drying features.
Pagrindinės funkcijos
- Skalbimo funkcija: Provides a gentle and effective wash. Water temperature and pressure are adjustable to suit individual preferences.
- Džiovinimo funkcija: After washing, a warm air stream provides comfortable drying. Air temperature is also adjustable.
- Purkštukų savaiminis išsivalymas: The nozzle (cannula) is self-cleaning, ensuring hygiene before and after each use.
- UV dezinfekcija: The nozzle undergoes ultraviolet light disinfection for enhanced cleanliness.
Valdymo skydelis
The side panel features a circular button for easy control of all functions. Refer to the icons on the panel for specific operations such as wash, dry, temperature adjustment, and pressure control.
Programų mobiliesiems valdymas
For advanced control and customization, download the official Roca Multiclean app. The app allows for precise adjustments of water temperature, pressure, and air temperature, as well as managing other smart features.
Priežiūra
Regular maintenance ensures the longevity and optimal performance of your Roca Multiclean® M4 SQUARE COMPACT seat.
Kasdienis valymas
- Wipe the exterior of the seat with a soft, damp šluoste ir švelniu, neabrazyviniu valikliu.
- Avoid using harsh chemicals, abrasive pads, or solvents, as these can damage the surface.
Purkštukų priežiūra
The nozzle features an automatic self-cleaning cycle and UV disinfection. No manual cleaning of the nozzle is typically required under normal use. If visible debris is present, gently wipe the nozzle with a soft, damp cloth while the seat is powered off.
Filter Cleaning (if applicable)
Consult the full product manual or Roca's support resources for information on cleaning or replacing any internal filters, if present.
Trikčių šalinimas
If you encounter issues with your Multiclean® M4 SQUARE COMPACT seat, refer to the following common troubleshooting steps:
- Nėra galios: Įsitikinkite, kad maitinimo laidas yra tvirtai įjungtas į veikiantį elektros lizdą. Patikrinkite savo namų elektros grandinės jungiklį.
- Nėra vandens srauto: Verify that the water supply valve is fully open and that there are no kinks in the water hose.
- Silpnas vandens slėgis: Check the water supply pressure to your toilet. Ensure any inline filters are not clogged.
- Functions Not Responding: Try resetting the unit by unplugging it from the power outlet for a few minutes, then plugging it back in. Ensure the control panel is clean and free of obstructions.
- Programos ryšio problemos: Ensure your mobile device's Bluetooth or Wi-Fi (depending on connection type) is enabled and that the seat is within range. Restart the app and try reconnecting.
For persistent issues, please contact Roca customer support.
Specifikacijos
Detailed specifications for the Roca Multiclean® M4 SQUARE COMPACT toilet seat (Model: A804057021).
Image: A technical diagram illustrating the precise dimensions of the Roca Multiclean M4 SQUARE COMPACT toilet seat, including length, width, and height measurements, crucial for installation and compatibility checks.
| Funkcija | Detalė |
|---|---|
| Gamintojas | ROCA |
| Modelio numeris | A804057021 |
| Gaminio matmenys | 54.9 x 45.3 x 2.51 cm; 7.1 kg |
| Spalva | Baltas |
| Stilius | Modernus |
| Medžiaga | Duroplastas |
| Forma | Kvadratas |
| Produktų skaičius | 1 |
| Sudedamosios dalys | Configurable and controllable via mobile APP, Self-cleaning nozzle and UV disinfection, Side panel with circular button for easy function control |
| Reikalingos baterijos | Nr |
| Prekės svoris | 7.1 kg |
| ASIN | B0D9HPD9D2 |
| Pirmoji laisva data | 15 m. liepos 2024 d |
Garantija ir palaikymas
For warranty information and customer support, please refer to the documentation included with your product or visit the official Roca websvetainę. Taip pat galite apsilankyti Roca Brand Store on Amazon dėl papildomų išteklių ir kontaktinės informacijos.
Roca is committed to providing high-quality products and excellent customer service. Do not hesitate to reach out for assistance with installation, operation, or troubleshooting.
