Vrabocry SP548E SPI RGB LED Controller User Manual

1. Įvadas

The Vrabocry SP548E is an advanced SPI RGB LED controller designed for digital addressable LED strip lights. It offers versatile control options including WiFi, Bluetooth, 2.4G RF remote, and onboard buttons. This controller supports a wide range of LED ICs such as WS2811, WS2812B, WS2815, and SK series, operating on DC 5-24V. It enables users to manage up to 1200 controllable pixels, providing dynamic lighting effects, music synchronization, and smart home integration via Alexa.

2. Pakuotės turinys

Patikrinkite, ar jūsų siuntinyje yra visi toliau išvardyti daiktai:

• 1x Vrabocry SP548E WiFi BT Pixel LED Controller
• 1x 2.4G RF Remote Control (Battery not included)
• 1x Naudotojo vadovas (šis dokumentas)
• 1x Mounting Clip (may vary by package)

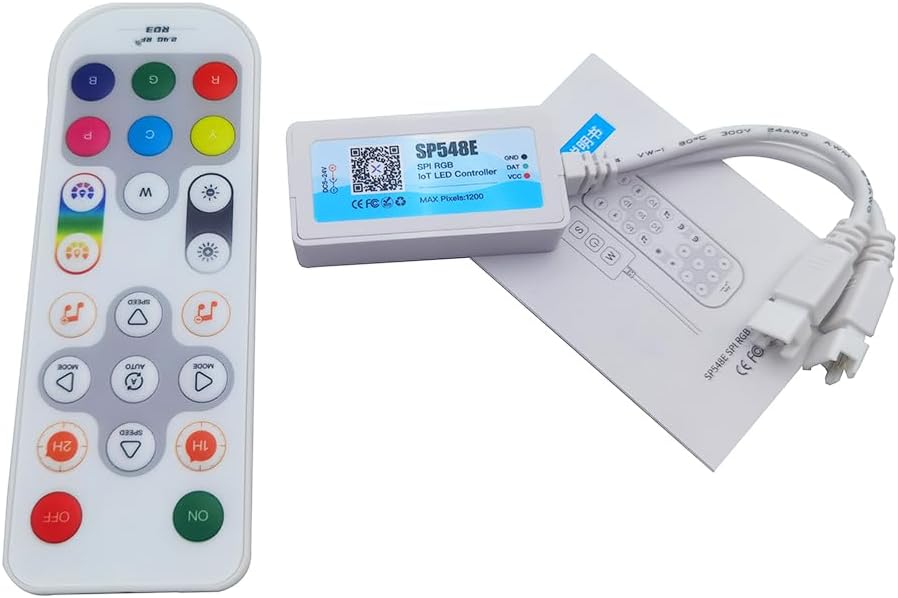

Image: The SP548E controller, its 2.4G RF remote, and the included instruction manual, laid out on a white surface.

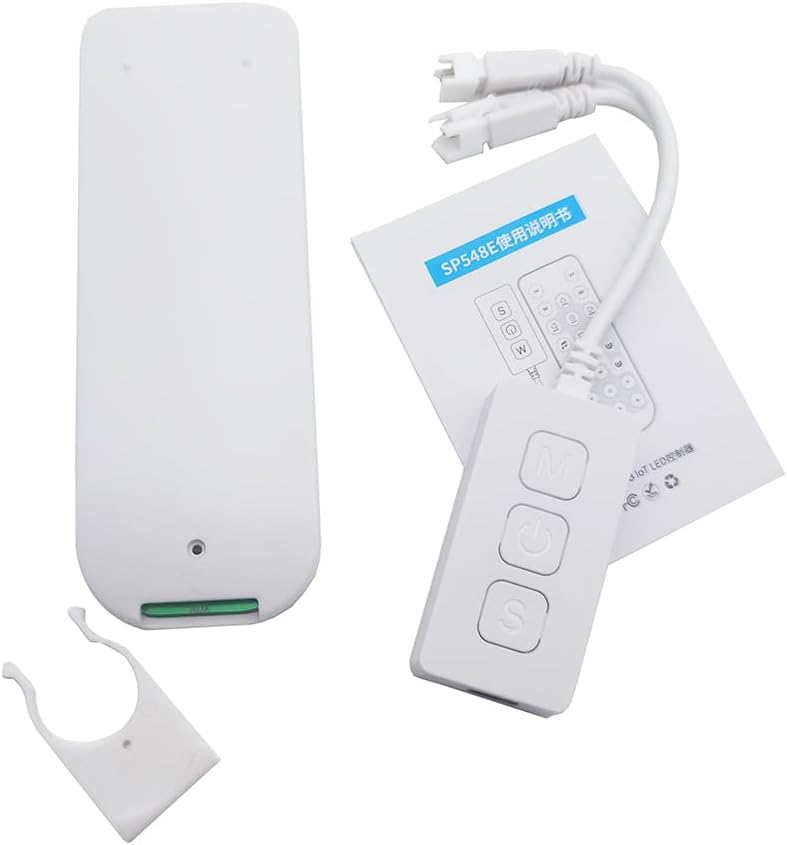

Paveikslėlis: pilnas view of the package contents, including the SP548E controller, the remote, the manual, and a white mounting clip.

3. Specifikacijos

4. Sąrankos instrukcijos

4.1 Valdiklis baigtasview

Familiarize yourself with the controller's ports and buttons before proceeding with installation.

Image: The SP548E controller showing its 5.5x2.5mm DC input, 3-pin output for LED strips, and onboard buttons labeled for Music mode, ON/OFF, and Speed adjustment.

4.2 Sujungimo schema

Follow the diagram below to correctly connect the LED controller to your power supply and LED strip.

Image: A simplified wiring diagram illustrating the connection. The DC 5-24V power input connects to the controller, and the controller's 3-pin output connects to a compatible LED strip (e.g., Cob Strip).

1. Ensure all power is disconnected before making any connections.
2. Connect a DC 5-24V power supply to the controller's DC input port.
3. Connect your compatible digital addressable LED strip (e.g., WS2811, WS2812B) to the controller's 3-pin output connector. Ensure correct polarity (Data, Ground, VCC).
4. Once all connections are secure, connect the power supply to an electrical outlet.

4.3 App Installation (Banlanx)

To utilize the full features of your controller, download the "Banlanx" app from your device's app store (available for iOS and Android). Follow the in-app instructions to pair your controller via WiFi or Bluetooth.

5. Naudojimo instrukcijos

5.1 Nuotolinio valdymo pulto funkcijos

The included 2.4G RF remote control provides convenient access to various lighting modes and settings. Ensure the remote has batteries installed (not included).

Image: A detailed layout of the 2.4G RF remote control, indicating the function of each button. Key functions include ON/OFF, Speed adjustment, Timed Delay-Off, Effect Cycle, Mode selection, Music effects, Brightness control, and Color selection.

1. ĮJUNGIMO mygtukas: Trumpai paspauskite, kad įjungtumėte šviesą. Ilgai paspauskite per 20 sekundžių nuo valdiklio įjungimo, kad surištumėte / atrištumėte nuotolinio valdymo pultą.
2. OFF mygtukas: Short press to turn off the light. Long press within 20 seconds of powering on the controller (after turning off the light completely) to clear all paired remote controllers.
3. Greitis +/-: Adjusts the speed of dynamic effects.
4. Timed 1H/2H Delay-Off: Sets a timer for the lights to turn off after 1 or 2 hours.
5. All Effect Cycle (AUTO): Cycles through all available dynamic effects.
6. Režimas +/-: Selects different dynamic lighting modes.
7. Music +/-: Selects different music synchronization effects.
8. Ryškumas +/-: Adjusts the brightness level of the lights.
9. Color +/-: Fine-tunes color selection within certain modes.
10. Color Select Buttons (W, Y, C, P, R, G, B): Directly selects White, Yellow, Cyan, Purple, Red, Green, or Blue colors.

The 2.4G RF remote offers a long control distance and stable signal transmission.

Image: The 2.4G RF remote control overlaid on an image of a room illuminated by colorful LED strip lights, demonstrating its wireless control capability.

5.2 Įmontuotas mygtukų valdymas

The controller itself features three buttons for basic control:

Image: The SP548E controller with its three buttons labeled: 'M' for Mode adjust, power symbol for ON/OFF, and 'S' for Speed adjust. The controller is shown in a room with LED strip lighting.

• Maitinimo mygtukas (viduryje): Turns the LED lights ON or OFF.
• 'M' Button (Top): Adjusts the lighting mode.
• 'S' Button (Bottom): Reguliuoja dinaminio apšvietimo efektų greitį.

5.3 Smart APP Control (Banlanx)

The "Banlanx" app provides comprehensive control over your LED lights. After pairing your controller via WiFi or Bluetooth, you can:

• Select from 180 non-music dynamic effects with adjustable brightness and speed.
• Choose from 8 built-in music effects for synchronization with audio.
• Access 8 dynamic LED effects and 8 solid color scenes.
• Customize colors and create personalized lighting scenes.
• Set timers and schedules for automatic operation.

5.4 Alexa Smart Voice Control

The SP548E controller supports integration with Alexa for voice commands. Once configured through the Banlanx app and linked to your Alexa account, you can use voice commands to:

• Turn lights ON/OFF.
• Change colors.
• Sureguliuokite ryškumą.
• Activate specific dynamic LED effects, solid color scenes, or music effects.

Refer to the Banlanx app's help section for detailed instructions on Alexa integration.

6. Priežiūra

• Keep the controller in a dry environment, away from moisture and extreme temperatures.
• Clean the controller's exterior with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Užtikrinkite tinkamą vėdinimą aplink valdiklį, kad jis neperkaistų.
• If the remote control is unresponsive, check and replace its batteries.

7. Problemų sprendimas

8. Garantija ir palaikymas

Specific warranty information for the Vrabocry SP548E SPI RGB LED Controller is not provided in this manual. For warranty details, technical support, or further assistance, please contact your retailer or the manufacturer directly. Please retain your proof of purchase for any warranty claims.
