1. Produktas baigtasview
The FLUENTPOWER Cordless Submersible Water Pump Kit (Model FSP20DC-2) is an innovative 18V 4.0Ah battery-powered solution designed for efficient water transfer. Ideal for draining water directly from rain barrels, water butts, tanks, pools, or ponds, this portable pump eliminates the need for power cables, offering unparalleled convenience for garden watering and other water transfer needs.
Its compact design and robust performance make it a versatile tool for various applications, from garden irrigation to emergency water removal.
2. Pakuotės turinys
Your FLUENTPOWER Cordless Submersible Water Pump Kit includes all the essential components for immediate use:
- Komunalinis siurblys
- Baterijos valdymo blokas
- Connecting Hose (7.2-foot) with Hose Guide and Quick Connector
- Bako priedas
- Tvirtinimas prie sienos
- 18 V 4.0 Ah baterija
- Įkroviklis
- 2 Adapters (Quick-connect Adapter, GHT 3/4" Adapter)

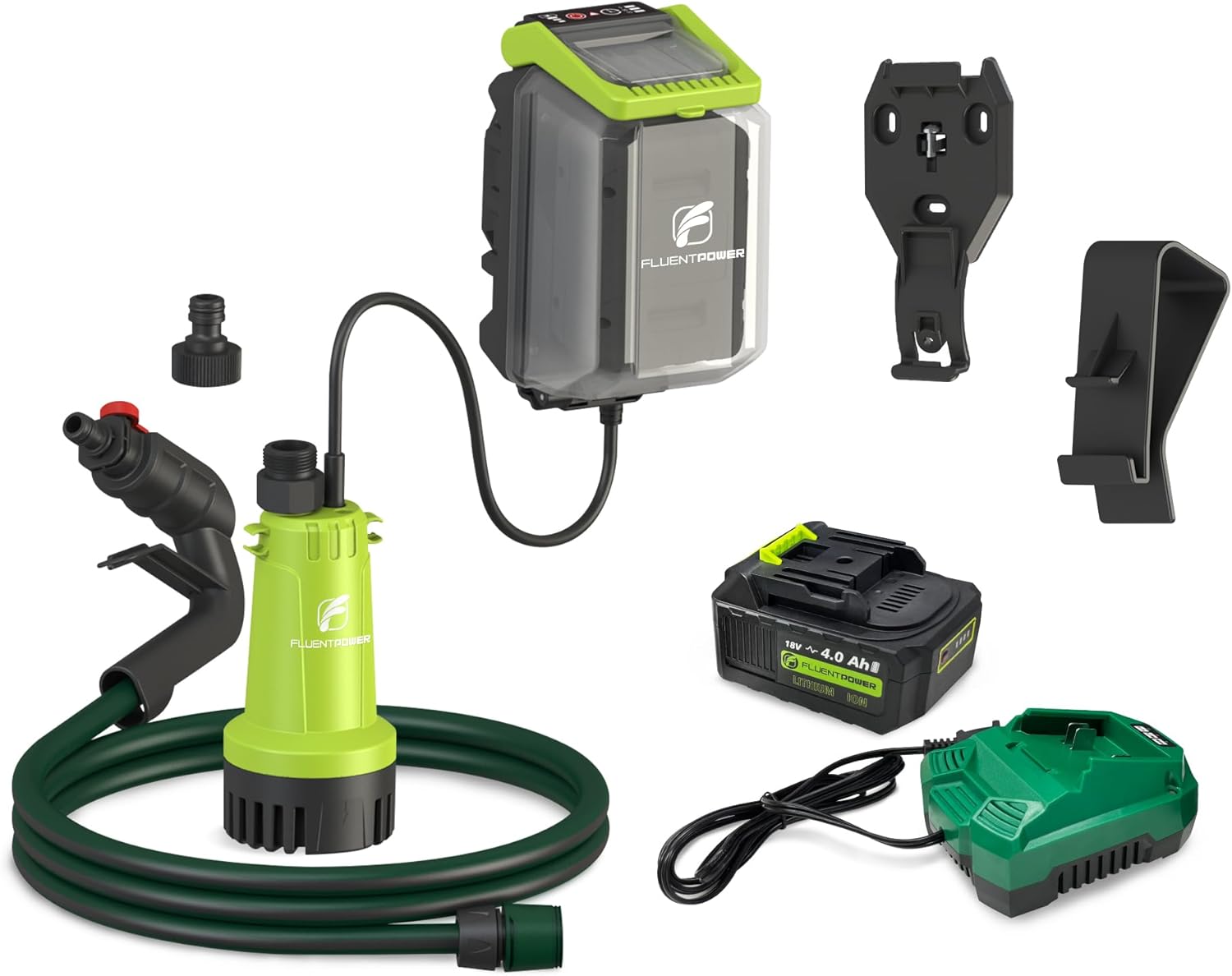

Image: Complete kit contents including pump, battery, charger, and accessories.
3. Specifikacijos
| Funkcija | Specifikacija |
|---|---|
| Maitinimo šaltinis | 18V 4.0Ah ličio jonų baterija |
| Variklis Wattage | 90 W |
| Maks. Srauto greitis | 530 GPH (9 galonų per minutę) |
| Max. Delivery Height (Head) | 65.6 FT |
| Maks. Slėgis | 2 barų |
| Maks. Panardinimo gylis | 6 FT |
| Minimum Water Level to Start | apytiksliai 6 colio |
| Drain Down Level | Down to 1 inch |
| Pump Dimensions (W x H) | 3.3" x 7.1" |
| Siurblio svoris | 1.5 svaras |
| Maitinimo kabelio ilgis | 8.2 FT |
| Jungiamosios žarnos ilgis | 7.2 FT |
| Išleidimo anga | 3/4" GHT |
| Laikmačio funkcija | 5/10/15 minučių |
Image: Pump specifications and flow rate chart.
Image: Product dimensions for the pump and battery unit.
4. Sąranka
4.1 Akumuliatoriaus įdėjimas
To install the 18V 4.0Ah battery:
- Move the carrying handle up on the battery control unit.
- Atidarykite akumuliatoriaus skyriaus dangtelį.
- Insert the 18V battery into the compartment, ensuring it clicks securely into place.
- Close the battery compartment cover firmly to ensure a waterproof seal.
Image: Battery compartment and mounting options.
Video: Demonstrates the installation of the battery into the waterproof compartment and overall kit setup.
4.2 Žarnos jungtis
Connect the 7.2-foot hose to the pump's outlet using the quick connector. Ensure a tight fit to prevent leaks.
Image: Easy hose connection steps.
4.3 Montavimo parinktys
The battery control unit offers two convenient installation methods:
- Sieninis: Use the included wall attachment to secure the unit to a vertical surface (e.g., a wall or tree).
- Tank Attachment: Utilize the tank attachment to easily hang the unit on the edge of a rain barrel or water tank.
The curved hose guide can be attached to the barrel edge and positioned as needed to direct the hose.
Video: Shows the wall-mounted and tank attachment installation methods for the pump.
5. Naudojimo instrukcijos
5.1 Maitinimo įjungimas/išjungimas
To start or stop the pump, simply press the control panel button located on the battery control unit. The unit will indicate battery life and operational status.
5.2 Laikmačio funkcija
The pump features a convenient timer function with three settings:
- 5 minučių
- 10 minučių
- 15 minučių
Select your preferred run time, and the pump will automatically operate for the chosen duration.
Video: Demonstrates the pump's operation, including the timer function and water flow.
5.3 Water Level Requirements
The minimum water level required for the pump to start working is approximately 6 inches. It is capable of draining water down to a level of 1 inch, ensuring efficient water removal.
5.4 Programos
This versatile pump is suitable for a variety of water transfer tasks:
- Rain Barrel/Water Butt: Easily transfer collected rainwater for garden irrigation.
- Pool/Pond: Ideal for draining small pools or ponds.
- Basement: Can be used for emergency water removal in basements or flooded areas.
- Sodo laistymas: Connects to sprinklers, sprayers, and standard garden hoses for convenient watering.
- Outdoor Shower: Provides water pressure for outdoor showering setups.
Image: Diverse applications of the pump.
6. Priežiūra
6.1 Removable Strainer Base
The pump features a removable strainer base designed to prevent clogs from debris. Regularly inspect and clean the strainer base to ensure optimal performance and longevity of the pump.
6.2 Apsauga nuo šiluminės perkrovos
The pump is equipped with built-in thermal overload protection. This feature automatically shuts off the pump if it detects overheating, preventing damage and ensuring safe operation. Allow the pump to cool down before resuming use if this protection is activated.
7. Problemų sprendimas
If you encounter issues with your FLUENTPOWER Cordless Submersible Water Pump, consider the following:
- Siurblys neįsijungia: Ensure the 18V battery is fully charged and properly inserted into the waterproof compartment. Check that the power button on the control panel is pressed.
- Mažas vandens srautas: Verify that the water source has sufficient depth (at least 6 inches for starting). Inspect the removable strainer base for any clogs or debris and clean if necessary. Check the hose for kinks or blockages.
- Pump Stops Unexpectedly: The thermal overload protection may have activated due to overheating. Allow the pump to cool down for a period before attempting to restart. Ensure the pump is adequately submerged during operation.
- Vandens nutekėjimas: Check all hose connections, especially the quick connector, to ensure they are tight and properly sealed.
8. Garantija ir palaikymas
FLUENTPOWER is committed to providing high-quality products and excellent customer service. Your Cordless Submersible Water Pump Kit comes with:
- Lifelong technical consultation.
- 24-hour customer service for any inquiries or assistance.
For support, please refer to the contact information provided in your product packaging or visit the official FLUENTPOWER websvetainę.
