This manual provides essential information for the safe and efficient operation of your Bosch Serie 8 SMS8TCI04E freestanding dishwasher. Please read these instructions carefully before using the appliance for the first time.
The Bosch SMS8TCI04E dishwasher features advanced technologies such as PerfectDry for impeccable drying results, Home Connect for remote control and smart features, and Max Flex Pro baskets for flexible loading. It is designed for reduced energy consumption and includes remote diagnostics capabilities.
Figure 1: Bosch Serie 8 SMS8TCI04E Dishwasher in a kitchen setting.
2. Saugos informacija
Naudodami elektros prietaisus, visada laikykitės pagrindinių saugos priemonių, kad sumažintumėte gaisro, elektros smūgio ir asmenų sužalojimo riziką.
Prieš naudodami indaplovę perskaitykite visas instrukcijas.
This appliance is equipped with a child safety lock. Ensure it is engaged to prevent unintended operation by children.
Nelieskite kaitinimo elemento naudojimo metu arba iškart po jo.
Naudokite tik automatinėms indaplovėms rekomenduojamas skalbimo priemones ir skalavimo priemones.
The AquaStop system provides protection against water damage. However, always turn off the water supply if leaving the appliance unattended for an extended period.
Figure 2: AquaStop system, designed to prevent water leaks from the dishwasher.
3. Sąranka ir diegimas
The Bosch SMS8TCI04E is a freestanding dishwasher. Ensure proper placement and connection according to the provided installation guide.
3.1 Matmenys
The product dimensions are 60P x 60l x 84H cm (Depth x Width x Height). Refer to the detailed diagram for specific measurements and connection points.
Figure 3: Dishwasher dimensions and connection points (all measurements in cm).
3.2 Elektros ir vandens prijungimas
Ensure that the electrical outlet and water supply connections are correctly installed and meet local regulations. The appliance requires a standard power outlet and a cold water connection. The AquaStop system is integrated for water safety.
4. Naudojimo instrukcijos
4.1 Indaplovės įkrovimas
The Max Flex Pro baskets offer flexible loading options for various dishware. Arrange items to allow water to reach all surfaces. The cutlery drawer provides dedicated space for utensils.

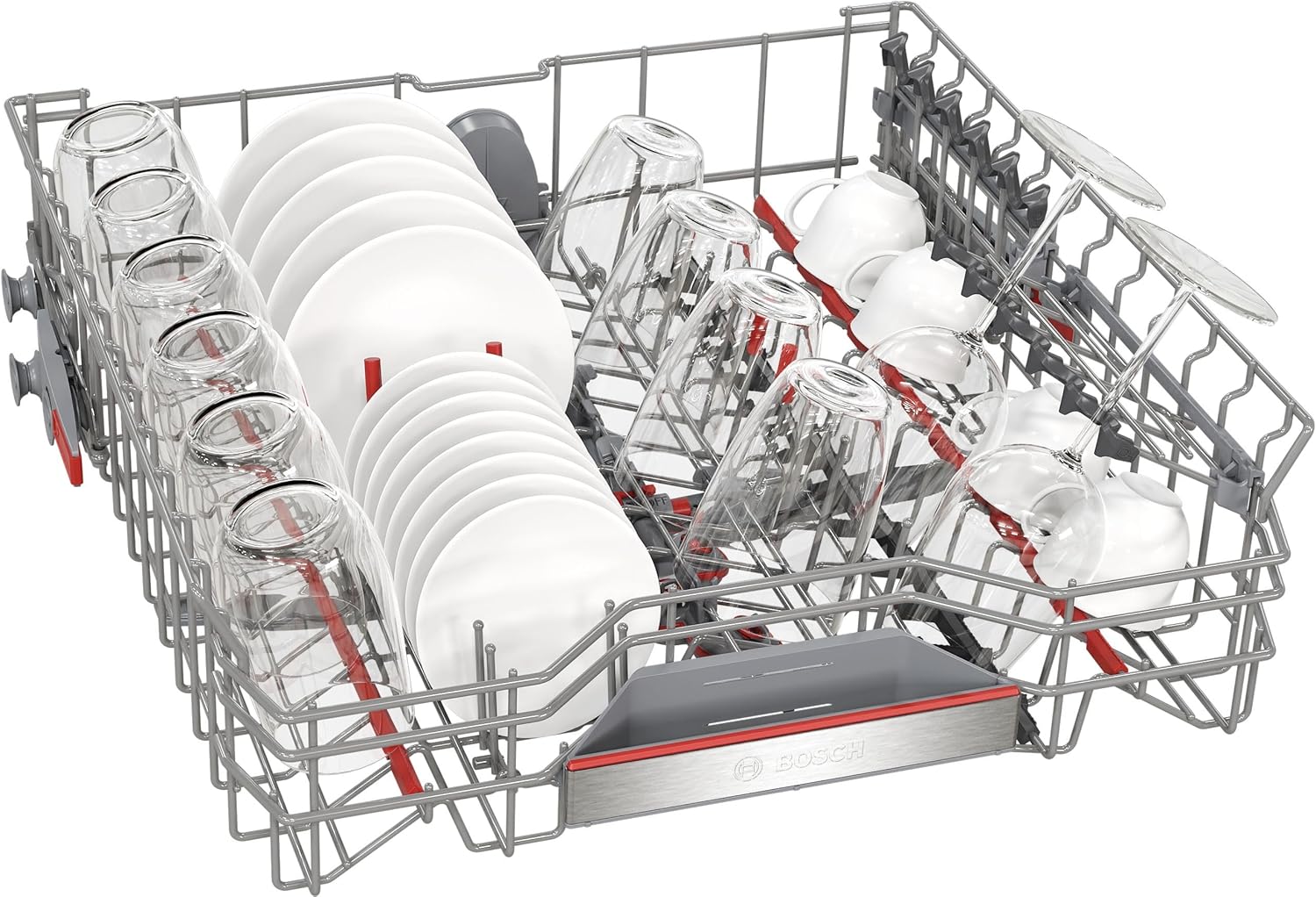

Figure 4: Max Flex Pro baskets for flexible loading of dishes.5 pav. Pvzample of a loaded lower basket.6 pav. Pvzample of a loaded upper basket.Figure 7: Dedicated cutlery drawer for optimal cleaning.
4.2 Detergent Dispensing (EcoDosage)
The EcoDosage system ensures optimal detergent dissolution for effective cleaning results. Place the detergent tablet or powder in the designated dispenser.
Figure 8: EcoDosage system for optimal detergent dissolution.
4.3 PerfectDry Technology
PerfectDry utilizes Zeolite, a natural mineral, to absorb humidity from the air and transform it into warm air. This ensures impeccable drying results, even for difficult-to-dry items like plastics, while reducing energy consumption.
Video 1: Demonstration of PerfectDry technology, showing how Zeolite absorbs humidity and releases warm air for superior drying, even on plastic items.
4.4 „Home Connect“ funkcijos
The Home Connect app allows you to control your dishwasher remotely, access digital instruction manuals, and receive useful usage tips directly from your smartphone.
„Smart Start“: Optimizes energy consumption by automatically setting the wash start time based on renewable energy availability or lower electricity tariffs.
Skalbimo asistentas: Answer a few simple questions via the Home Connect app, and the system will suggest the most suitable program for your load.
Nuotolinė diagnostika: Access diagnostic information and support remotely.
„EmotionLight“: Two LED lights illuminate the dishwasher interior when loading or unloading, enhancing visibility and aesthetics.
Figure 10: Home Connect app interface for smart control and monitoring.
2 vaizdo įrašas: Viršview of the Smart Start feature via Home Connect, demonstrating how the dishwasher can be programmed to run during optimal energy times.
4.5 Extra Clean Zone
The Extra Clean Zone in the upper basket provides intensive cleaning for heavily soiled dishes, ensuring thorough results.
Figure 11: Extra Clean Zone for stubborn dirt.
5. Priežiūra ir priežiūra
Reguliarus valymas užtikrina jūsų indaplovės ilgaamžiškumą ir optimalų veikimą.
Filtrų valymas: Regularly check and clean the filter system at the bottom of the dishwasher to prevent blockages and ensure efficient cleaning.
Purškimo svirties valymas: Ensure the spray arm nozzles are not blocked. Remove and clean them if necessary.
Druska ir skalavimo skystis: Stebėkite druskos ir skalavimo priemonės indikatorius ir prireikus papildykite.
Išorinis valymas: Išorinius paviršius nuvalykite minkšta, damp cloth. For stainless steel surfaces, use a specialized cleaner to avoid streaks.
Figure 12: Dishwasher interior showing the spray arm and filter system.
6. Problemų sprendimas
Prieš kreipdamiesi į klientų aptarnavimo tarnybą, peržiūrėkite šias dažniausiai pasitaikančias problemas ir jų sprendimus:
Reload dishes correctly, clean spray arm nozzles, check detergent dispenser.
Indaplovėje likęs vanduo
Clogged filter, blocked drain hose.
Clean the filter, check and clear the drain hose.
Indaplovė neįsijungia
Door not closed properly, power supply issue, child safety lock engaged.
Ensure door is latched, check power, disengage child safety lock.
Blogi džiovinimo rezultatai
Insufficient rinse aid, incorrect program selection, items not suitable for dishwasher.
Refill rinse aid, select a program with PerfectDry, ensure items are dishwasher safe.
7. Specifikacijos
Key technical specifications for the Bosch Serie 8 SMS8TCI04E dishwasher:
Funkcija
Vertė
Prekės ženklas
Bosch
Modelis
SMS8TCI04E
Diegimo tipas
Pastatomas
Gaminio matmenys (DxPxA)
60P x 60lx 84A cm
Talpa
14 Vietos nustatymai
Ypatinga funkcija
Child Safety Lock, Home Connect, PerfectDry
Spalva
Plienas
Valdymo tipas
Palieskite
Medžiaga
Nerūdijantis plienas
Triukšmo lygis
42 decibelų
Energijos vartojimo efektyvumo klasė
A (New EU Label)
Energijos suvartojimas (100 ciklų)
54 kWh
Vandens suvartojimas (per ciklą)
9.5 litrai
Eko programos trukmė
4:55 valandos
Figure 13: EU Energy Label for the Bosch SMS8TCI04E dishwasher.Figure 14: Detailed technical parameters and regulatory information.
8. Garantija ir palaikymas
For detailed warranty information, service requests, or to download the full digital manual, please visit the official Bosch website or the EPREL database.
