isinwheel SK14 Electric Bike for Kids User Manual

1. Įvadas

Thank you for choosing the isinwheel SK14 Electric Bike for Kids. This manual provides essential information for the safe assembly, operation, and maintenance of your electric bike. Please read it thoroughly before use and retain it for future reference.

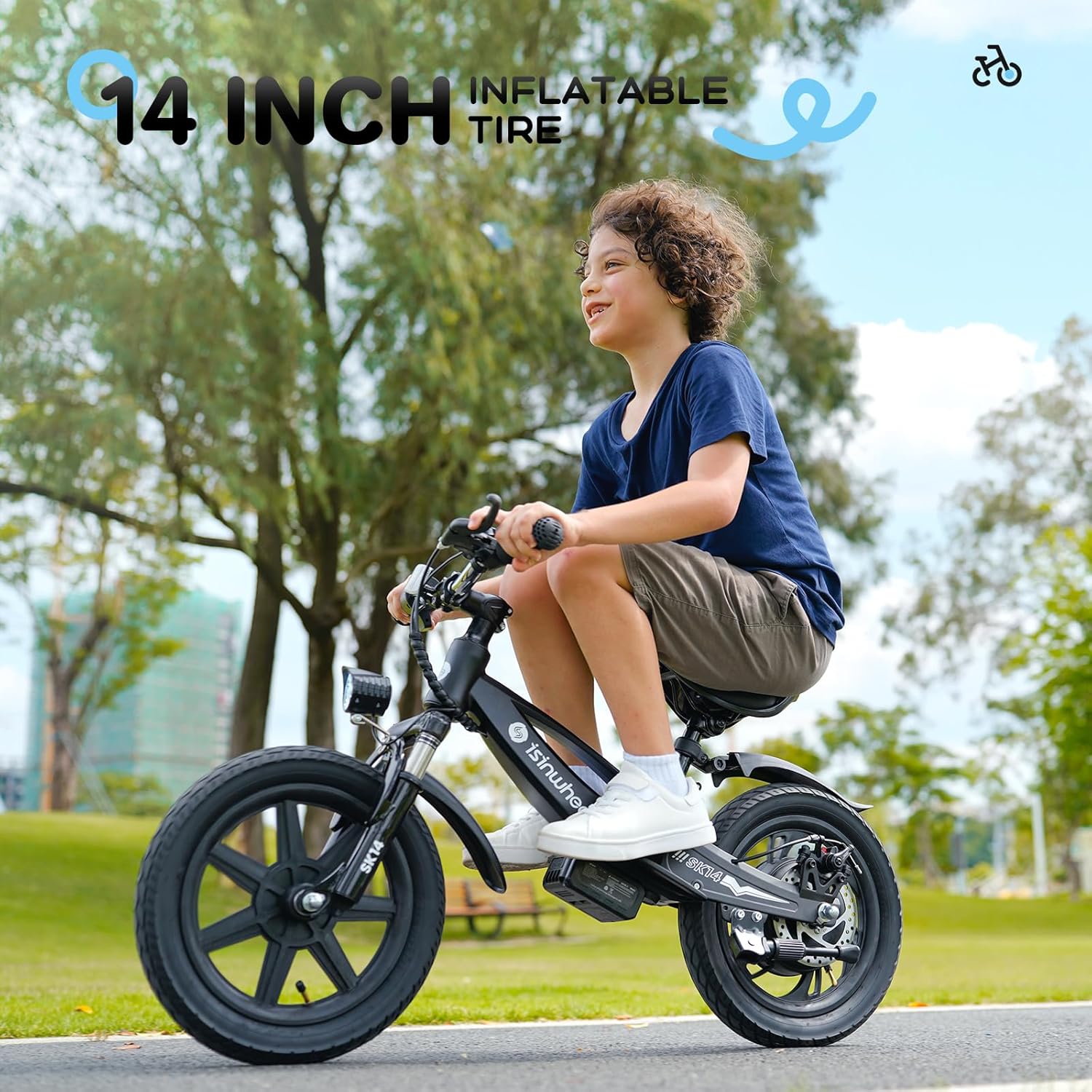

The isinwheel SK14 is designed as a 2-in-1 electric balance bike, featuring a powerful 250W motor, 14-inch inflatable tires, and a swappable battery. It offers three speed settings (3/6/10 mph) and is equipped with both an electronic brake and a disc brake for reliable stopping power. The adjustable seat ensures comfort for growing children, and the advanced shock absorption system provides a smoother ride on various terrains.

2. Saugos informacija

ĮSPĖJIMAS: Nesilaikant šių saugos nurodymų, galima sunkiai susižaloti arba mirti.

• Važiuodami visada dėvėkite šalmą ir atitinkamas apsaugos priemones (kelių, alkūnių apsaugas).
• Adult supervision is required at all times when a child is operating the electric bike.
• Ensure the rider's age and skill level are appropriate for this product.
• Before each ride, check that all bolts and fasteners are tight, brakes are functioning correctly, and tires are properly inflated.
• Do not ride in traffic, on public roads, or in areas with pedestrians. Use in safe, open environments.
• Avoid riding in wet conditions, on steep inclines, or over large obstacles.
• Rankas ir kojas laikykite toliau nuo judančių dalių.
• Do not modify the electric bike. Any modifications can compromise safety and void the warranty.
• The maximum weight recommendation for the rider is 154 pounds.

3. Kas yra dėžutėje

Carefully unpack all components and check against the list below. If any items are missing or damaged, contact customer support immediately.

• isinwheel SK14 Electric Bike Frame
• Instrukcijų vadovas
• Prekės ženklo kortelė
• Įkroviklis
• „Hex Key“
• Veržliaraktis
• Priekinė ašis
• Priekinis ratas
• Galinis sparnas
• Sėdynės
• Baterija

4. Sąranka ir surinkimas

Assembly is required. Please follow these steps carefully. Tools needed (Hex Key, Wrench) are included.

1. Sumontuokite priekinį ratą: Attach the front wheel to the fork using the front axle and secure it with the provided nuts and wrench. Ensure the wheel spins freely and is centered.
2. Pritvirtinkite vairo rankenas: Įkiškite vairo iškyšą į šakės vamzdį ir priveržkite užveržimo veržlę.amping bolts with the hex key. Ensure the handlebars are straight and secure.
3. Sumontuokite sėdynę: Insert the seat post into the frame's seat tube. Adjust the seat height to an appropriate level for the rider, ensuring their feet can comfortably touch the ground. Secure the seat post with the quick-release lever or bolt.
4. Install the Rear Fender: Attach the rear fender to the designated mounting points on the frame.
5. Įkraukite akumuliatorių: Before first use, fully charge the battery. Refer to the 'Battery Charging' section for detailed instructions.
6. Patikrinkite padangų slėgį: Ensure both tires are inflated to the recommended pressure (usually found on the tire sidewall).

Illustration of battery installation and removal.

5. Naudojimo instrukcijos

5.1 Akumuliatoriaus įkrovimas

The SK14 features a removable battery for convenient charging.

1. Remove the battery from the bike by pressing the release latch and sliding it out.
2. Prijunkite įkroviklį prie standartinio sieninio lizdo.
3. Connect the charger's output plug to the battery's charging port.
4. Įkroviklio indikatoriaus lemputė rodys įkrovimo būseną (pvz., raudona, kai kraunama, žalia, kai visiškai įkrauta).
5. Once fully charged (approximately 5 hours), disconnect the charger from the battery and then from the wall outlet.
6. Reinstall the battery into the bike, ensuring it clicks securely into place.

The removable battery connected to its charger.

5.2 Įjungimas / išjungimas ir greičio valdymas

1. Maitinimas: Press the power button on the LED display unit. The display will illuminate, showing battery level and current speed mode.
2. Greičio režimai: The bike has three adjustable speed gears: 3 mph, 6 mph, and 10 mph. Use the buttons on the display unit to switch between these modes according to the rider's skill and environment.
3. Droselio veikimas: To engage the motor, press the finger paddle throttle. The bike will accelerate based on the selected speed mode.
4. Išjungti: Paspauskite ir palaikykite maitinimo mygtuką, kol ekranas išsijungs.

The clear LED display shows power and speed information.

5.3 Stabdžių sistema

The SK14 is equipped with a dual braking system for enhanced safety: an electronic brake and a disc brake.

• To slow down or stop, gently squeeze the brake lever on the handlebars.
• Practice braking in a safe, open area to familiarize the rider with the bike's stopping distance.

The dual braking system provides reliable stopping power.

5.4 Priekinių žibintų veikimas

The super bright headlight ensures visibility and safety, especially during evening rides.

• The headlight can be turned on or off using a dedicated button on the display unit or handlebars, if available. Refer to the specific controls on your bike.

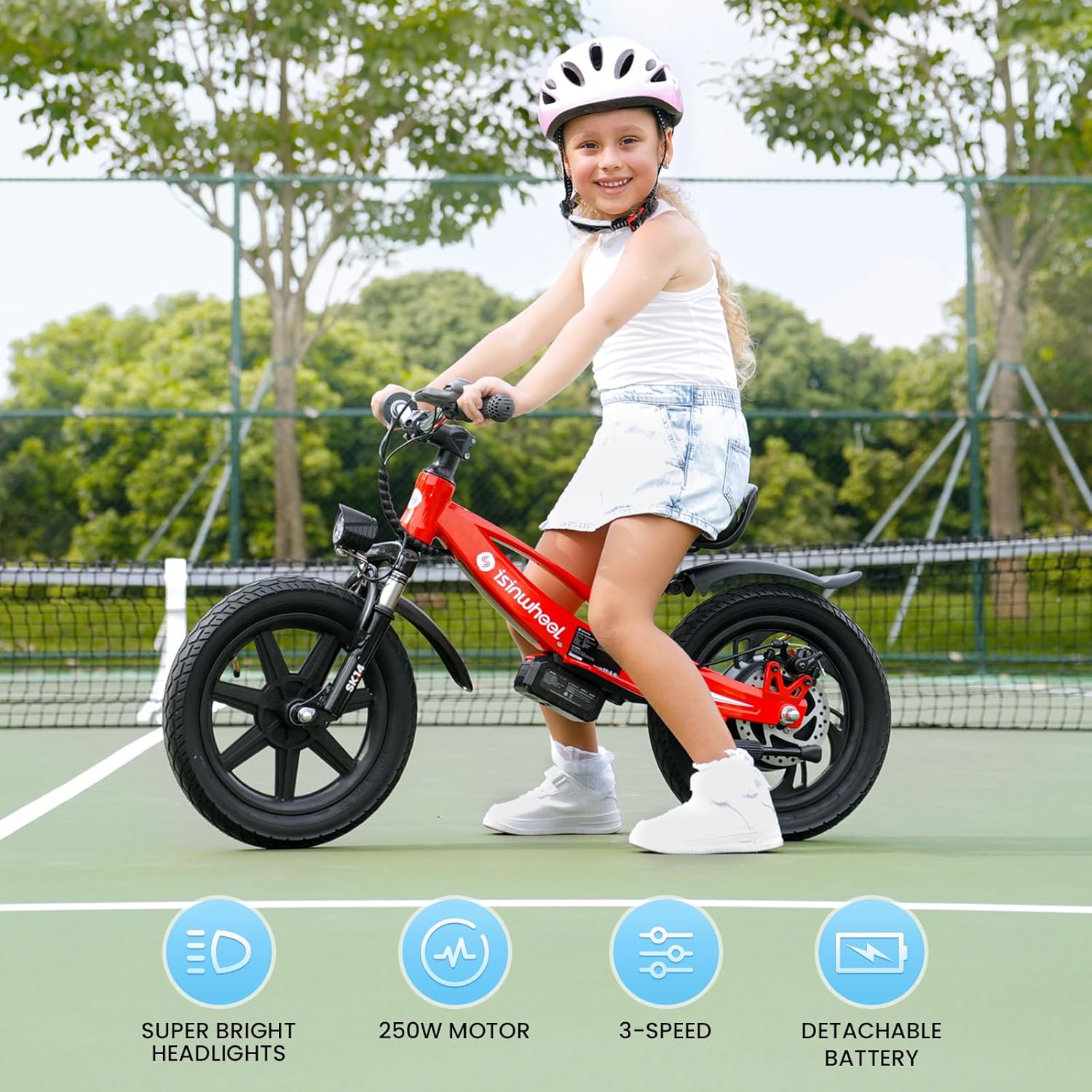

The super bright headlight for improved visibility.

6. Priežiūra

Regular maintenance ensures the longevity and safe operation of your isinwheel SK14.

• Valymas: Nuvalykite dviratį reklamaamp po kiekvieno važiavimo nuvalykite šluoste. Venkite naudoti aukšto slėgio vandens srovę tiesiai ant elektros komponentų.
• Padangos: Regularly check tire pressure and inflate as needed. Inspect tires for wear, punctures, or damage.
• Stabdžiai: Periodically check brake lever tension and brake pad wear. Adjust or replace as necessary.
• Akumuliatoriaus priežiūra: Store the battery in a cool, dry place. If not used for extended periods, charge it every 1-2 months to maintain battery health. Do not expose the battery to extreme temperatures.
• Tvirtinimo detalės: Regularly check all bolts, nuts, and screws to ensure they are tight.
• Bendra apžiūra: Inspect the frame, fork, and other components for any signs of damage or wear.

7. Problemų sprendimas

This section addresses common issues you might encounter with your SK14 electric bike.

If you encounter issues not listed here or require further assistance, please contact isinwheel customer service.

8. Specifikacijos

9. Garantija ir palaikymas

isinwheel provides a 365-day quality assurance for the SK14 Electric Bike. This warranty covers manufacturing defects and issues with the battery or other accessories. In case of a problem, contact customer service for prompt assistance and potential reissue of parts, avoiding lengthy repair processes.

For any questions, concerns, or support needs, please utilize our 24/7/365 customer services online. Refer to the brand card included in your package for contact details or visit the official isinwheel websvetainę.

10. Produktas baigtasview
