NPET CR87 Mechanical Gaming Keyboard Instruction Manual

1. Įvadas

Thank you for choosing the NPET CR87 Mechanical Gaming Keyboard. This compact 87-key keyboard is designed for both gaming and typing, offering a responsive experience with hot-swappable red switches and customizable RGB lighting. This manual provides detailed instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.

2. Pakuotės turinys

Prašome patikrinti, ar pakuotėje yra visi reikalingi daiktai:

• NPET CR87 Mechanical Gaming Keyboard
• USB-C į USB-A laidas
• Klaviatūros traukiklis
• Extra 3 Red Switches

3. Sąranka

3.1 Klaviatūros prijungimas

The NPET CR87 keyboard uses a detachable USB-C cable for connectivity. Simply plug the USB-C end into the port on the keyboard and the USB-A end into an available USB port on your computer (Windows/macOS). No additional drivers are required for basic functionality.

Video: Demonstrates connecting the USB-C cable to the NPET CR87 keyboard and adjusting the foot supports.

3.2 Klaviatūros aukščio reguliavimas

Klaviatūra turi dvi raidestage adjustable feet on the underside to customize the typing angle for ergonomic comfort. Flip out the desired level of feet to raise the keyboard.

Image: The underside of the NPET CR87 keyboard, highlighting the double kickstand feet for height adjustment.

3.3 Karštojo keitimo jungikliai

The CR87 keyboard is equipped with 3-pin hot-swappable sockets, allowing you to easily change switches without soldering. Use the provided keycap puller and switch puller for this process.

1. Gently pull off the keycap using the keycap puller.
2. Naudokite jungiklio traukiklį, kad atsargiai suimtumėte jungiklį ir patrauktumėte jį tiesiai aukštyn.
3. Sulygiuokite naujo jungiklio kaiščius su spausdintinės plokštės skylėmis ir tvirtai paspauskite, kol jis užsifiksuos.
4. Uždėkite klavišo dangtelį.

Vaizdas: Stambus planas view of the NPET CR87 keyboard with several keycaps removed, revealing the hot-swappable red switches underneath. Note: Only supports 3-pin switches.

Image: A visual guide demonstrating the process of removing and replacing mechanical switches on the keyboard, emphasizing the hot-swappable feature.

4. Naudojimo instrukcijos

4.1 RGB apšvietimo valdymas

The NPET CR87 features immersive RGB lighting with 19+ dynamic effects and 3 brightness levels. Use the Function (Fn) key combinations to customize your lighting experience:

• Fn + PrtSc: Cycle through 20 preset RGB lighting modes.
• Fn + rodyklė aukštyn: Increase brightness (3 levels).
• Fn + rodyklė žemyn: Decrease brightness (3 levels).
• Fn + rodyklė kairėn: Decrease lighting speed.
• Fn + rodyklė dešinėn: Increase lighting speed.
• Fn + Esc: Turn off/on RGB lighting.

Image: The 87-key RGB gaming keyboard showcasing its customizable backlight with various colors and effects.

Image: A diagram illustrating the Function (Fn) key combinations for adjusting RGB modes, brightness, and speed on the keyboard.

5. Pagrindinės savybės

5.1 Compact 87-Key Layout

The tenkeyless (TKL) 87-key design saves approximately 20% of desk space compared to full-sized keyboards, providing more room for mouse movement, which is beneficial for gaming.

Image: The compact 75% mechanical gaming keyboard held in a hand, illustrating its portability and space-saving design.

5.2 Anti-Ghosting with N-Key Rollover

Full N-key rollover ensures that every keystroke is registered accurately, even when multiple keys are pressed simultaneously. This prevents input lag and ghosting, crucial for fast-paced gaming and efficient typing.

5.3 Durable and Ergonomic Design

The keyboard features a reinforced polymer frame with IP56 dust and water resistance, offering enhanced durability. Doubleshot ABS keycaps provide long-lasting legends, and the 6° incline promotes natural wrist alignment for extended use.

5.4 Linear Red Switches

The pre-lubed 45g red switches offer a smooth, linear keystroke with minimal resistance and quiet actuation. This provides precise feedback and a comfortable typing experience, ideal for both gaming and office work.

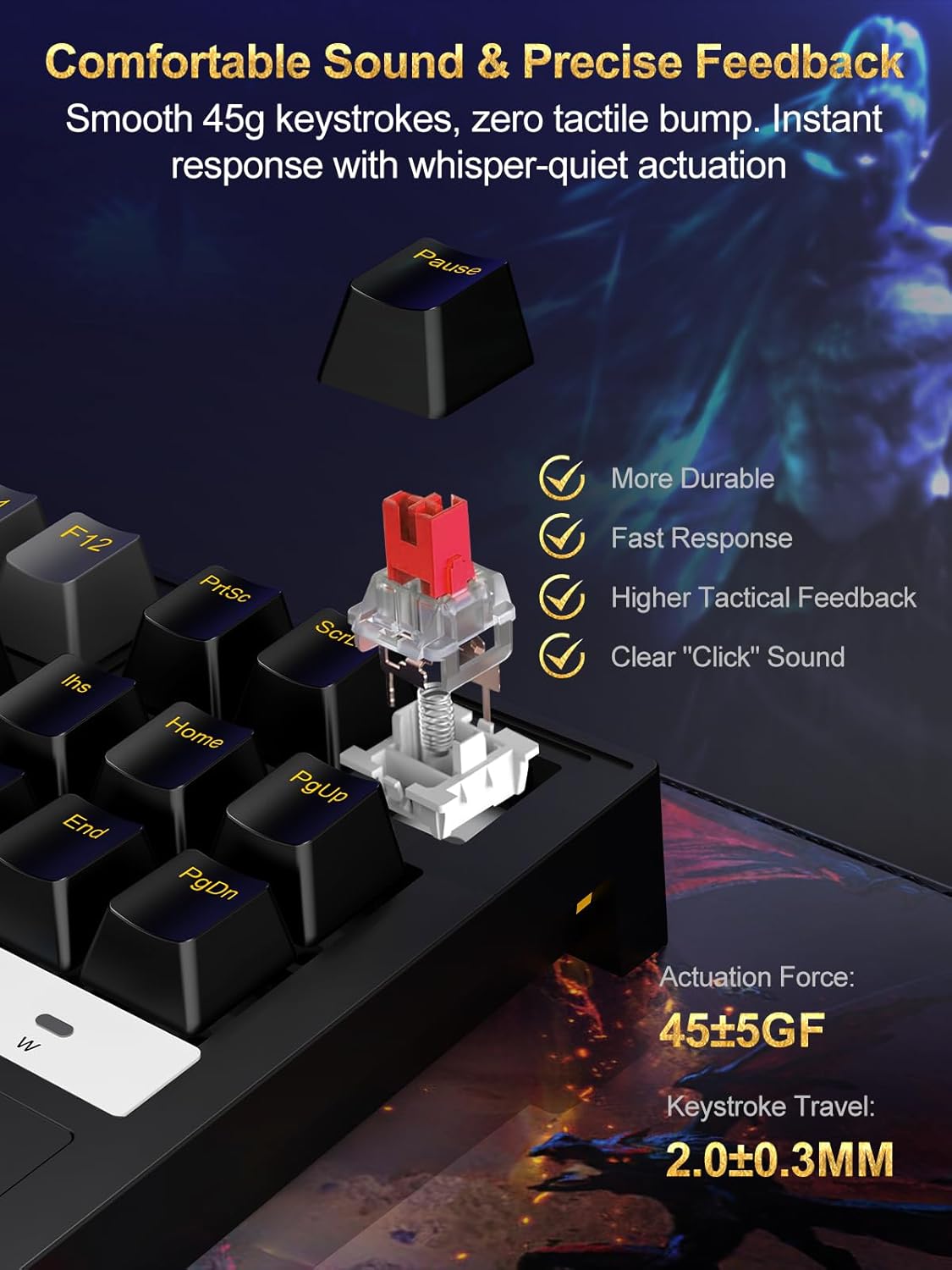

Paveikslėlis: detalus view of a red mechanical switch, highlighting its smooth 45g keystrokes and precise feedback. Specifications for actuation force and keystroke travel are visible.

6. Priežiūra

To ensure the longevity and optimal performance of your NPET CR87 keyboard, follow these maintenance tips:

• Reguliarus valymas: Dulkėms ir šiukšlėms pašalinti iš tarpų tarp klavišų dangtelių naudokite minkštą šepetėlį arba suslėgtą orą.
• Klaviatūros dangtelių valymas: For deeper cleaning, remove keycaps using the provided puller and wash them with mild soap and water. Ensure they are completely dry before reattaching.
• Išsiliejimo valdymas: Due to its IP56 rating, the keyboard offers some resistance to dust and water. In case of a spill, immediately unplug the keyboard, wipe off any liquid, and allow it to air dry completely before reconnecting.
• Kabelio priežiūra: Kad nepažeistumėte USB-C laido, venkite staigių lenkimų ir per didelio tempimo.

7. Problemų sprendimas

If you encounter any issues with your NPET CR87 keyboard, please refer to the following common solutions:

• Klaviatūra nereaguoja:
  • Įsitikinkite, kad USB-C laidas yra tvirtai prijungtas prie klaviatūros ir kompiuterio.
  • Pabandykite prijungti klaviatūrą prie kito kompiuterio USB prievado.
  • Išbandykite klaviatūrą kitame kompiuteryje, kad atmestumėte su sistema susijusią problemą.
• RGB apšvietimas neveikia / yra netinkamas:
  • Paspauskite Fn + Esc to ensure the lighting is not turned off.
  • Perjunkite apšvietimo režimus naudodami Fn + PrtSc.
  • Reguliuokite ryškumą naudodami Fn + rodyklė aukštyn / žemyn.
• Neveikia tam tikri klavišai:
  • Carefully remove the keycap and switch using the provided tools.
  • Inspect the switch for any visible damage or debris. Clean if necessary.
  • Try replacing the faulty switch with one of the spare switches provided.
• Input Lag or Ghosting:
  • Ensure the keyboard is directly connected to a USB port on your computer, avoiding USB hubs if possible.
  • Verify that your computer's operating system and drivers are up to date.

8. Specifikacijos

9. Garantija ir palaikymas

9.1 Informacija apie garantiją

NPET products are designed and manufactured to the highest quality standards. This product is covered by a limited warranty from the date of purchase against defects in materials and workmanship. Please retain your proof of purchase for warranty claims.

The warranty does not cover damage caused by accident, abuse, misuse, natural disaster, or unauthorized modification or repair. For detailed warranty terms and conditions, please refer to the official NPET websvetainėje arba susisiekite su klientų aptarnavimo tarnyba.

9.2 Pagalba klientams

If you have any questions, require technical assistance, or need to make a warranty claim, please contact NPET Customer Support through the following channels:

• El. paštas: support@npet.com (example email, please refer to actual product documentation for correct contact)
• Websvetainė: Visit the NPET Store on Amazon
• Telefonas: (Please refer to actual product documentation for correct contact number)

Mūsų palaikymo komanda pasirengusi padėti jums visais su produktais susijusiais klausimais.
