FLUENTPOWER Deep Well Submersible Pump User Manual

1. Įvadas

This manual provides essential information for the safe and efficient operation of your FLUENTPOWER Deep Well Submersible Pump. Designed for powerful and stable water transfer, this 1.5HP pump is ideal for various applications including garden and farmland irrigation, water tank filling, and domestic or industrial water supply from deep wells, shafts, reservoirs, rivers, and cisterns.

Please read all instructions carefully before installation and operation to ensure proper use and longevity of the product.

2. Saugos informacija

Always adhere to local electrical codes and safety regulations. Ensure the pump is connected to a properly grounded, Ground-Fault Circuit-Interrupter (GFCI) protected receptacle to reduce the risk of electric shock.

• Nenaudokite siurblio su degiais arba ėsdinančiais skysčiais.
• The temperature of the liquid must not exceed 95°F (35°C).
• Ensure the pump is fully immersed in water during operation to prevent dry running and overheating.
• Veikiant siurbliui, vaikus ir neįgaliotus asmenis laikykite atokiau nuo jo.
• Prieš atlikdami bet kokius techninės priežiūros ar valymo darbus, atjunkite maitinimą.

3. Produkto ypatybės

• Powerful and Stable Performance: 1.5 HP oil-free motor, 1700 GPH (Gallons Per Hour) flow rate at zero feet.

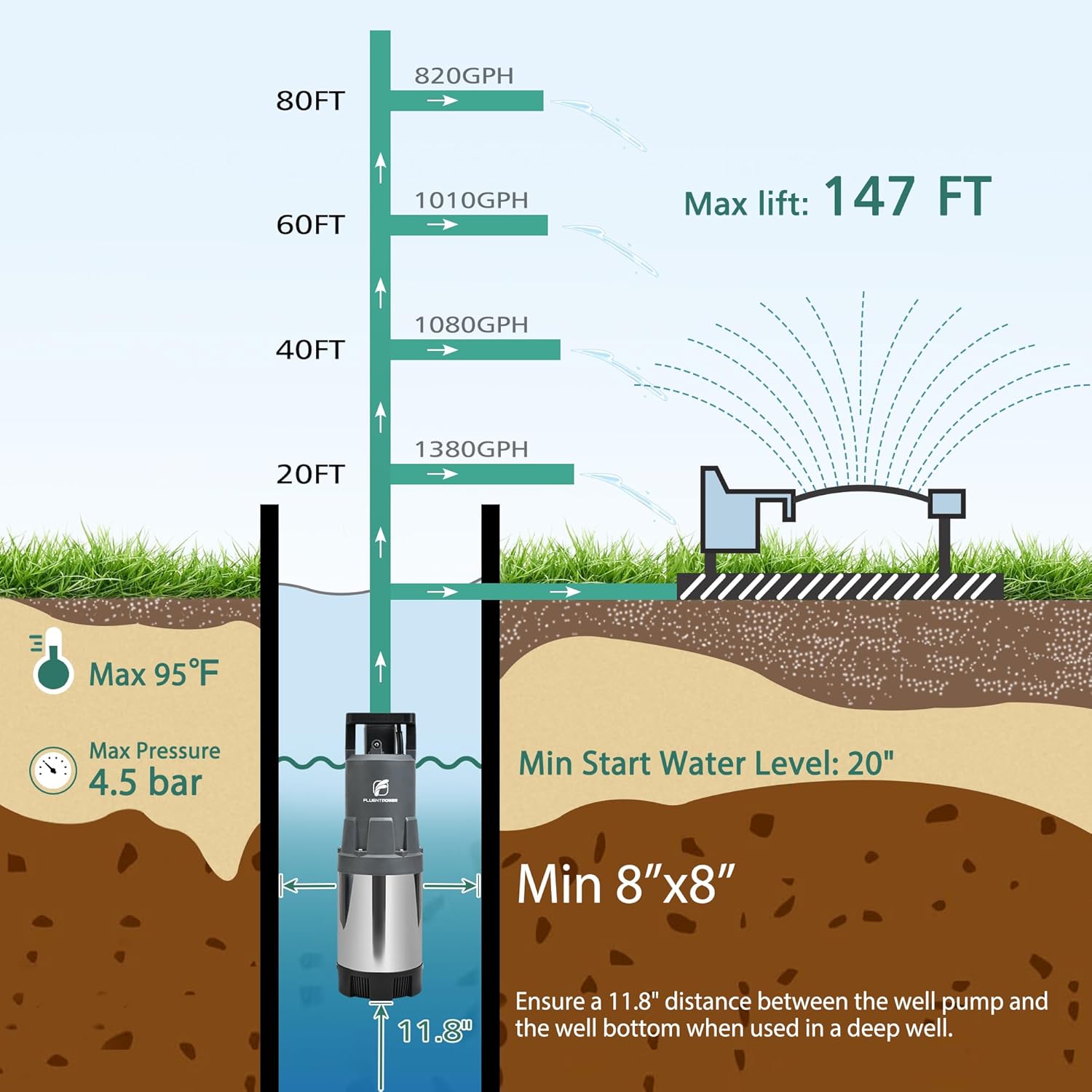

• Aukšto slėgio išvestis: 4-stage impellers generate a maximum pressure of 4.5 bar (65 psi) and can deliver water up to 147 ft of vertical height.
• Automatic Pressure Switch and Check Valve: Automatically switches off if water flow stops for more than 30 seconds. Automatically switches on when water pressure drops sufficiently. Built-in check valve prevents back-flow.
• Apsauga nuo šiluminės perkrovos: Prevents the motor from overheating and burning out.
• Platus pritaikymas: Suitable for deep wells (min 8"x8"), shafts, reservoirs, rivers, and cisterns. Ideal for garden/farmland irrigation and water tank filling.
• Išplėstinis pasiekiamumas: 49-foot power cable allows immersion depths up to 39 feet.
• Patvari konstrukcija: Stainless steel and plastic materials for longevity.

4. Pakuotės turinys

Išpakuodami patikrinkite, ar visi daiktai yra ir yra geros būklės:

• FLUENTPOWER Deep Well Submersible Pump (1.5HP)
• 1" NPT to 3/4" GHT Male Adapter (for threaded garden hoses)
• 3/4" GHT thread male hose quick connector (for standard garden hose)
• 66-foot nylon rope
• Instrukcijų vadovas

5. Sąranka

Proper setup is crucial for optimal performance and safety. Follow these steps:

1. Pritvirtinkite žarną: Connect your desired hose to the pump's 1" NPT outlet. Use the provided adapters (1" NPT to 3/4" GHT Male Adapter or 3/4" GHT thread male hose quick connector) as needed for your specific hose type. Ensure all connections are tightly sealed using thread tape if necessary.
2. Siurblio užpildymas: Before initial use, the pump must be primed. Remove the water filler opening cap (usually on top) and fill the pump casing completely with clean water. This ensures the pump can create suction.
3. Secure with Rope: Attach the provided 66-foot nylon rope to the pump's handle. This rope is essential for safely lowering and retrieving the pump from deep wells or tanks.
4. Padėties nustatymas: Lower the pump into the water source. Ensure the pump is fully submerged and maintains a minimum distance from the bottom of the well/tank (11.8" for wells, 5" for tanks) to prevent drawing in sediment. The minimum well size is 8"x8".
5. Maitinimo jungtis: Connect the 49-foot power cable to a properly grounded 110V/60Hz GFCI-protected electrical outlet.

6. Naudojimo instrukcijos

Kai siurblys tinkamai sumontuotas ir paruoštas darbui, galite pradėti jį eksploatuoti:

1. Maitinimas: Press the power button on the control panel. The "Power On" indicator light will illuminate.
2. Automatinis veikimas: The pump features an automatic pressure control system. It will start pumping water as soon as there is a demand (e.g., opening a faucet or sprinkler).
3. Automatinis išsijungimas: If the water flow stops for more than 30 seconds (e.g., closing a faucet), the pump will automatically switch off to prevent dry running.
4. Automatinis paleidimas iš naujo: As soon as the water pressure has dropped sufficiently (e.g., opening a faucet again), the pump will automatically switch on.
5. Stebėjimas: Observe the indicator lights on the control panel for operational status and any warning codes.

7. Priežiūra

Reguliarus siurblio aptarnavimas užtikrina jo ilgaamžiškumą ir efektyvumą:

• Filtro valymas: Periodically check and clean the base filter to prevent clogging, especially if pumping water with sediment or debris. The frequency depends on the water quality.
• Saugojimas žiemą: If storing the pump for extended periods or in freezing temperatures, ensure all water is drained from the pump and hoses to prevent damage. Store in a dry, protected area.
• Bendras valymas: Keep the exterior of the pump clean and free from dirt and debris.

8. Problemų sprendimas

Jei kyla problemų, žr. toliau pateiktas dažniausiai pasitaikančias problemas ir sprendimus:

The pump's control panel features indicator lights that can signal issues. Refer to the instruction manual for specific warning codes and their meanings.

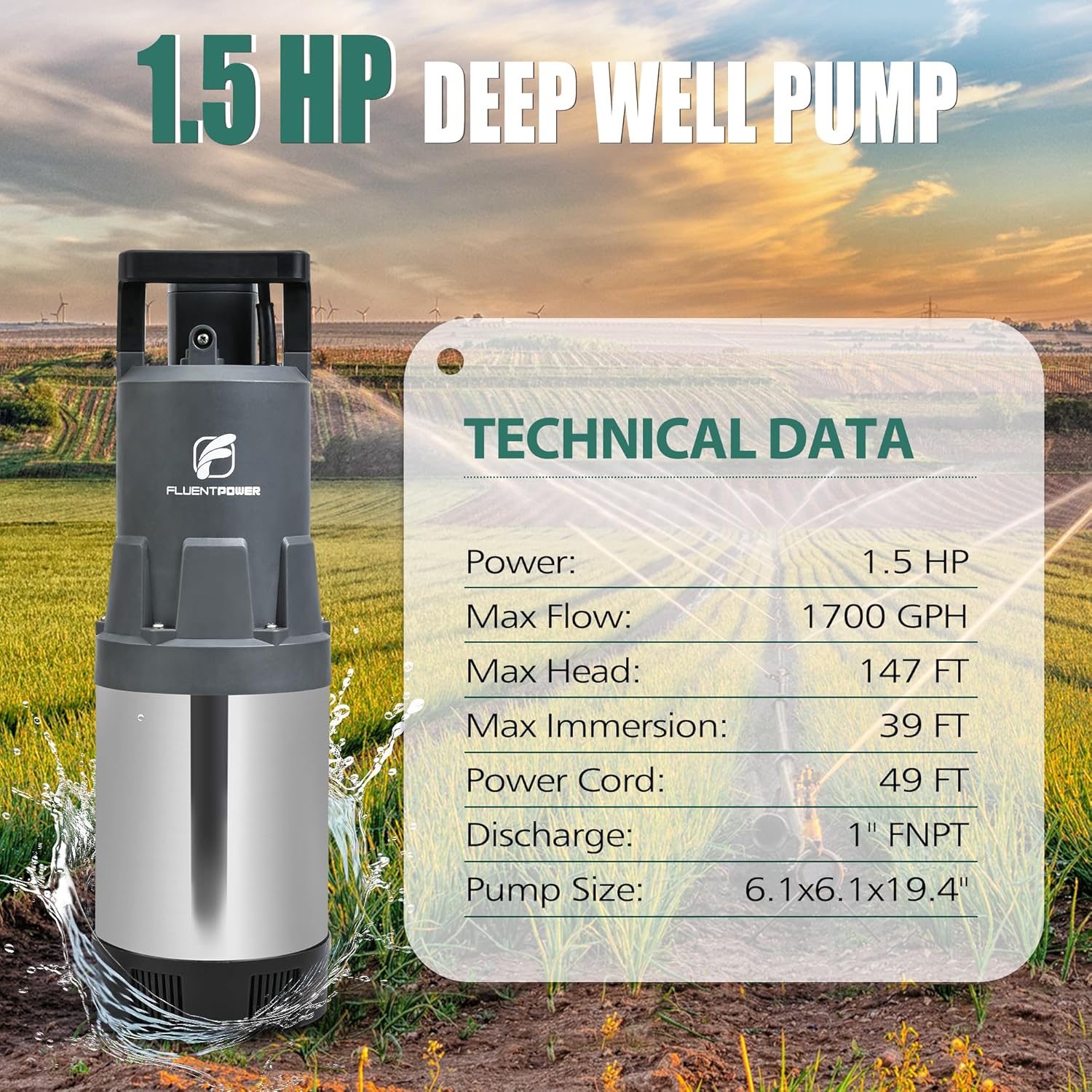

9. Specifikacijos

10. Garantija ir palaikymas

FLUENTPOWER is committed to providing long-life professional technical consultation and timely customer service. If you encounter any problems or have questions regarding your Deep Well Submersible Pump, please do not hesitate to contact us.

For support, please refer to the contact information provided in your product packaging or visit the official FLUENTPOWER websvetainę.
