1. Įvadas
Thank you for choosing the Olucia Shivani Round Bathroom Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new light fixture. Please read these instructions carefully before installation and retain them for future reference.
The Olucia Shivani is a functional and stylish lighting solution designed for bathrooms. Its IP44 rating ensures splash water resistance, making it suitable for damp aplinkos.
2. Saugos informacija
WARNING: Electrical shock hazard. Always disconnect power at the main circuit breaker before installation, maintenance, or cleaning.
- Montavimą turėtų atlikti kvalifikuotas elektrikas arba kompetentingas asmuo, laikydamasis vietinių elektros kodeksų.
- Užtikrinkite tiekimo tūrįtage atitinka ttage specified on the product label (220-240V).
- Do not modify the light fixture in any way. Unauthorized modifications may void the warranty and create safety hazards.
- Do not install the fixture on surfaces that are not structurally sound or cannot support its weight.
- Keep the fixture away from direct water jets, despite its IP44 rating.
- Pakavimo medžiagas išmeskite atsakingai.
- This product contains an integrated LED light source that is not user-replaceable.
3. Pakuotės turinys
Patikrinkite, ar yra visi komponentai ir ar jie nepažeisti:
- 1 x Olucia Shivani Round Bathroom Ceiling Light (Model 1020003)
- Tvirtinimo detalės (varžtai, sieniniai kaiščiai)
- Vartotojo vadovas
Vaizdas: priekis view of the Olucia Shivani Round Bathroom Ceiling Light, showcasing its sleek black frame and white diffuser.
4. Specifikacijos
| Prekės ženklas | Olucia |
| Modelio numeris | 1020003 |
| Matmenys (skersmuo x aukštis) | 21 cm x 2.8 cm |
| Svoris | 1 kg |
| Spalva | Juoda |
| Medžiaga | Plastikiniai |
| Šviesos šaltinis | Integruotas LED |
| Energijos suvartojimas | 8 vatų |
| Šviesos temperatūra | 3000K (šiltai balta) |
| Šviesos išvestis | 800 lm |
| IP reitingas | IP44 (Splash Water Resistant) |
| Pritemdomas | Nr |
| Ryšio ttage | 220-240V |
| Energijos etiketė | F |
| Maitinimo šaltinis | DC |
5. Sąranka ir diegimas
5.1 Prieš pradėdami
- Įsitikinkite, kad įrengimo vietos elektros tiekimas yra išjungtas pagrindiniu grandinės pertraukikliu.
- Gather necessary tools: screwdriver, drill, drill bits, wire strippers, pencil, measuring tape.
- Read all instructions thoroughly before proceeding with installation.
5.2 diegimo žingsniai
- Išpakuokite armatūrą: Carefully remove the ceiling light from its packaging. Inspect for any damage.
- Separate the Mounting Base: The light fixture consists of a main body and a separate mounting base. Gently twist or unclip the main body from the mounting base. Refer to the 'Open' and 'Close' indicators on the base if present.
- Gręžimo taškų žymėjimas: Hold the mounting base against the ceiling at your desired installation location. Use a pencil to mark the positions for drilling holes. Ensure the base is level.
- Gręžkite skyles ir įkiškite sieninius kaiščius: Pažymėtose vietose išgręžkite skyles naudodami tinkamą grąžtą, skirtą jūsų lubų medžiagai. Į išgręžtas skyles įkiškite pateiktus sieninius kaiščius.
- Prijunkite laidus: Pass the electrical wires from the ceiling through the central opening of the mounting base. Connect the wires to the terminal block on the light fixture's base:
- Connect the Live (L) wire (usually brown or black) to the terminal marked 'L'.
- Connect the Neutral (N) wire (usually blue) to the terminal marked 'N'.
- Connect the Earth/Ground (E) wire (usually green/yellow) to the terminal marked with the earth symbol (⚡).
- Saugus tvirtinimo pagrindas: Attach the mounting base to the ceiling using the provided screws. Ensure it is firmly secured.
- Pritvirtinkite šviestuvą: Align the main body of the light fixture with the secured mounting base. Gently push and twist or clip the main body onto the base until it is securely fastened.
- Atkurti maitinimą: Once the installation is complete and all connections are secure, restore power at the main circuit breaker. Test the light fixture.

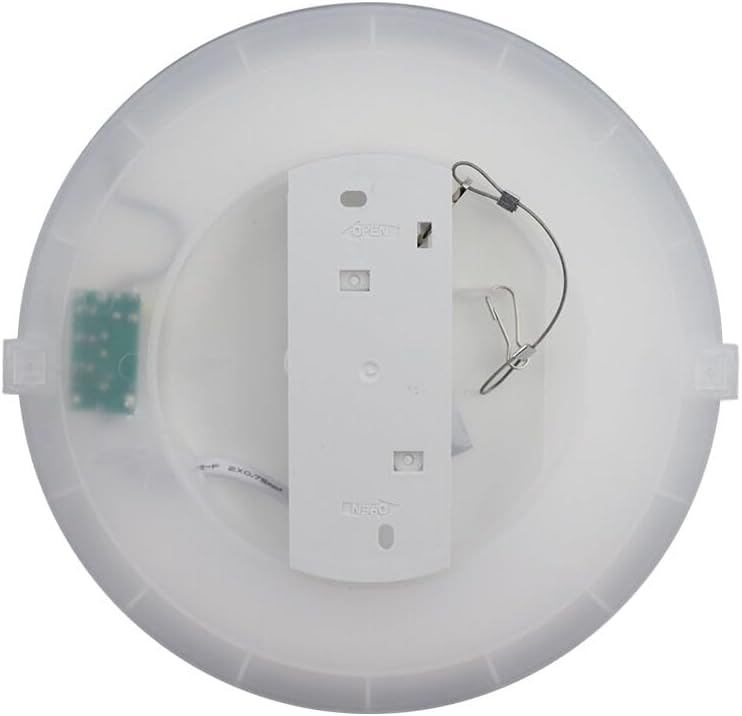

Vaizdas: Galinis view of the Olucia Shivani ceiling light, showing the detachable mounting base and the internal wiring compartment. Note the 'Open' and 'Close' markings for detaching the base.

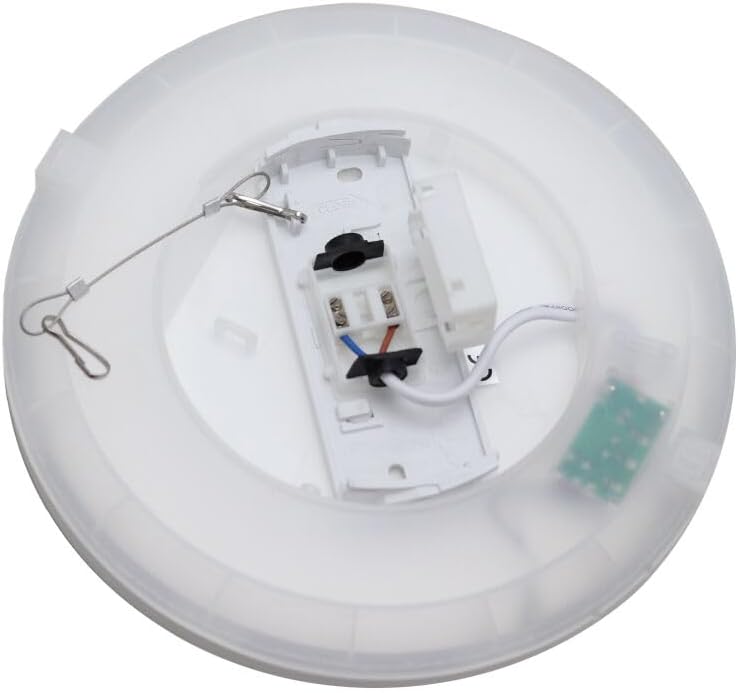

Image: Close-up of the internal wiring connections on the Olucia Shivani ceiling light's mounting base. The terminal block clearly shows connections for Live, Neutral, and Earth wires.

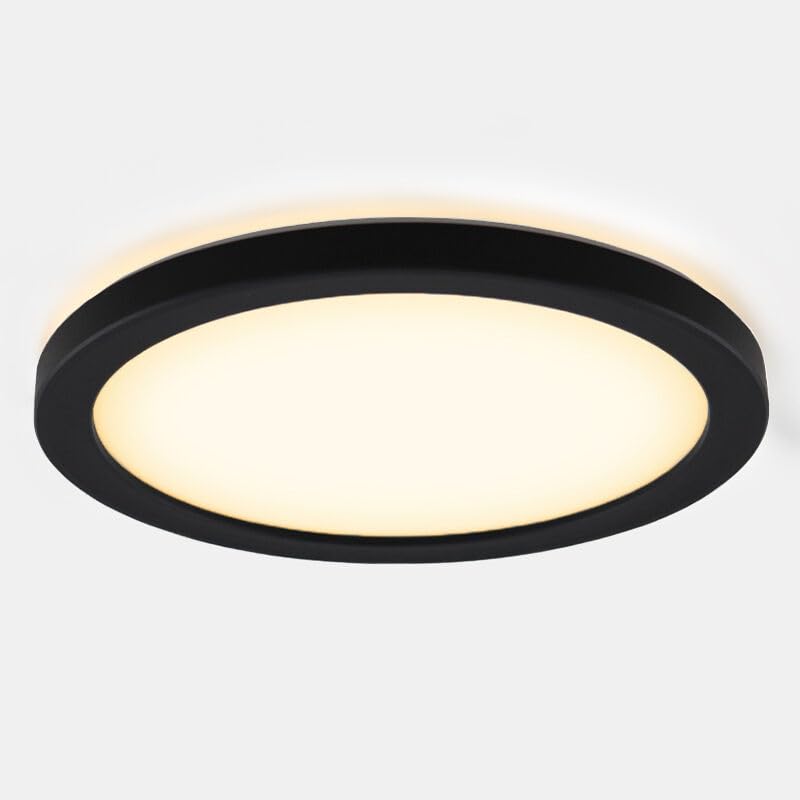

Image: The Olucia Shivani Round Bathroom Ceiling Light fully installed and illuminated in a modern bathroom setting, demonstrating its flush-mount design.
6. Naudojimo instrukcijos
The Olucia Shivani Round Bathroom Ceiling Light is operated via a standard wall switch connected to its power supply. Simply toggle the wall switch to turn the light ON or OFF.
- This fixture is not dimmable. Do not connect it to a dimmer switch, as this may damage the integrated LED.
- The integrated LED provides a warm white light at 3000K.

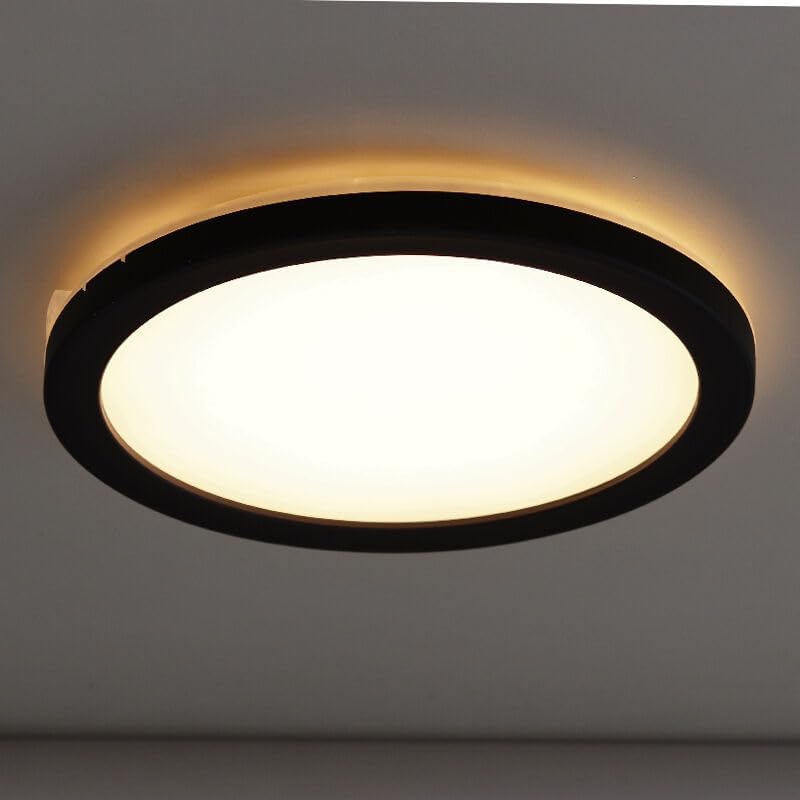

Vaizdas: View of the Olucia Shivani ceiling light from below, showing the even distribution of warm white light from its diffuser.
7. Priežiūra
To ensure the longevity and optimal performance of your Olucia Shivani ceiling light, follow these simple maintenance guidelines:
- Valymas: Prieš valydami visada atjunkite maitinimą. Naudokite minkštą, sausą arba šiek tiek sudrėkintą šluostę.amp cloth to wipe the surface of the fixture. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and diffuser.
- Nėra vartotojo aptarnaujamų dalių: The LED light source is integrated and not designed to be replaced by the user. Attempting to open or repair the fixture may void the warranty and pose a safety risk.
- Patikra: Reguliariai tikrinkite šviestuvą, ar nėra pažeidimų ar atsilaisvinusių jungčių. Jei aptinkama problemų, atjunkite maitinimą ir kreipkitės į kvalifikuotą elektriką.
8. Problemų sprendimas
If you encounter any issues with your Olucia Shivani ceiling light, please refer to the table below for common problems and their solutions:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Šviesa neįsijungia | Nėra maitinimo Atsipalaidavusi laidų jungtis Sugedęs sieninis jungiklis | Patikrinkite grandinės pertraukiklį ir įsitikinkite, kad maitinimas atkurtas. Patikrinkite, ar visi laidai yra tvirtai sujungti (išjungus maitinimą). Test the wall switch with another appliance or consult an electrician. |
| Šviesa mirksi arba yra silpna | Nestabilus maitinimo šaltinis Atsipalaidavusi laidų jungtis Incompatible dimmer switch (if mistakenly used) | Ensure stable power supply. If issues persist, consult an electrician. Patikrinkite visus laidų sujungimus (išjungus maitinimą). Ensure the light is not connected to a dimmer switch. |
| Šviesa skleidžia zvimbimą | Atsilaisvinę laidai Incompatible electrical component | Atjunkite maitinimą ir patikrinkite visus laidų sujungimus. If buzzing persists, consult a qualified electrician. |
Jei problema išlieka ir išbandžius šiuos sprendimus, kreipkitės į klientų aptarnavimo tarnybą arba kvalifikuotą elektriką.
9. Garantija ir palaikymas
9.1 Informacija apie garantiją
The Olucia Shivani Round Bathroom Ceiling Light comes with a dvejų metų garantija from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by improper installation, misuse, accidents, unauthorized repairs, or normal wear and tear.
Išsaugokite pirkimo įrodymą, kad galėtumėte kreiptis dėl garantijos.
9.2 Pagalba klientams
For technical assistance, warranty claims, or any questions regarding your Olucia Shivani ceiling light, please contact your retailer or the Olucia customer service department. Contact details can typically be found on the retailer's websvetainėje arba pirkimo dokumentuose.
Kreipdamiesi į palaikymo tarnybą, turėkite po ranka savo modelio numerį (1020003) ir pirkimo įrodymą.
