1. Produktas baigtasview
The LENCENT UK Travel Adapter (Model PA030EUUK) is a compact and versatile charging solution designed for travelers. It converts European (Type F/E) plugs to UK (Type G) outlets and provides multiple charging ports for various electronic devices. This adapter is not a voltage keitiklis.

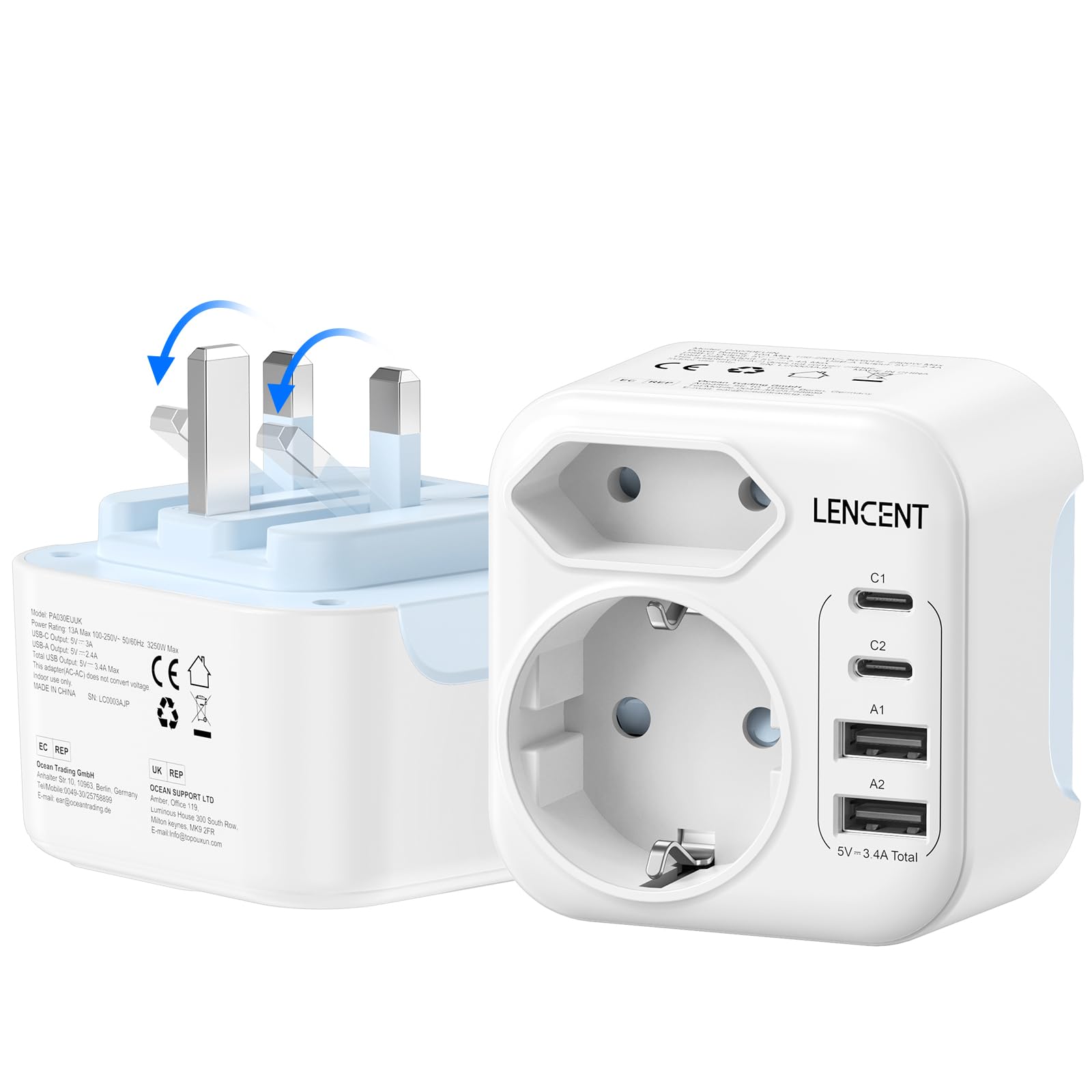

Figure 1: LENCENT UK Travel Adapter (Model PA030EUUK)
2. Pagrindinės savybės
- Įkrovimas „trys viename“: Features 1 Type G AC outlet, 1 Euro AC outlet, 2 USB-C ports (15W each), and 2 USB-A ports (12W each), allowing simultaneous charging of up to 6 devices.
- Type G Compatibility: Suitable for countries using Type G sockets, including the UK, Ireland, Scotland, Dubai, Maldives, Hong Kong, Kenya, Malta, Malaysia, Singapore, Uganda, Cyprus, and more.
- Kompaktiškas ir sulankstomas dizainas: Measuring 7.3 x 4.2 x 7 cm and weighing 114g, its foldable Type G pins prevent damage and scratches to other items during travel, making it easy to pack.
- Platus ttage Diapazonas: Palaiko įvesties tūrįtage from 100V to 250V, compatible with most international power standards.
- Saugos apsaugos: Equipped with protection against overloads, overheating, overcurrents, overvoltages, and short-circuits, housed in a fire-resistant shell.
2 pav.: 6 viename įkrovimo galimybės

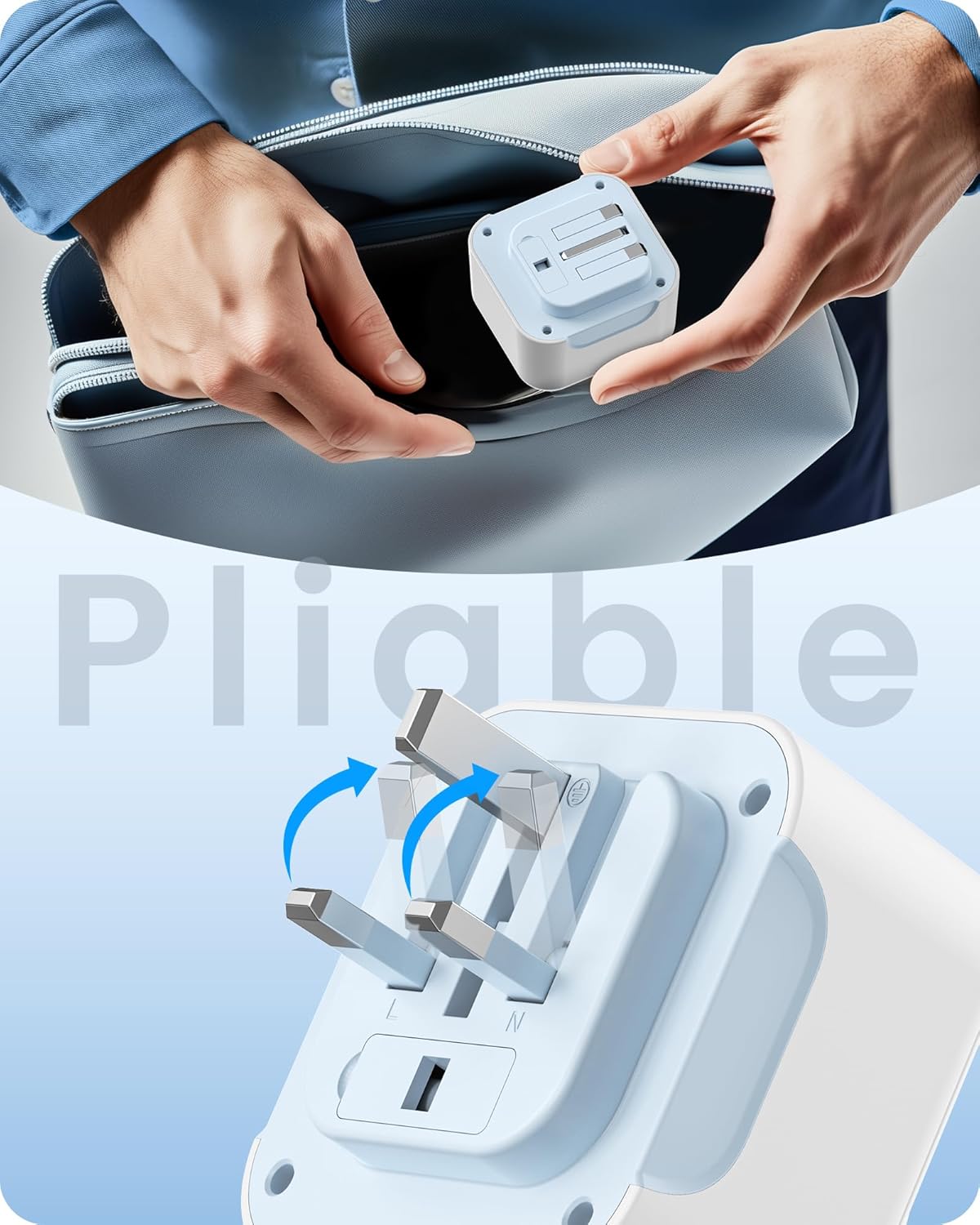

Figure 3: Foldable Pin Design for Portability
3. Saugos informacija
IMPORTANT: This adapter is NOT a voltage keitiklis.
- Ensure your devices operate with a dual voltage range of 100-250V. Check your device's power specifications before use.
- Do not exceed the maximum power rating of 3250W at 250V. High-power appliances like hair dryers, electric razors, or straighteners must be dual voltage compatible and within the adapter's power limit.
- Naudoti tik sausose patalpose.
- Laikyti vaikams nepasiekiamoje vietoje.
- Neardykite ir nemodifikuokite adapterio.
4 pav.: ttage Compatibility and Power Limits
4. Sąrankos ir naudojimo instrukcijos
4.1 Unfolding the Type G Pins
- Locate the foldable pins on the back of the adapter.
- Gently pull out the three pins until they lock into place, forming the Type G plug configuration.
4.2 Connecting to a Wall Outlet
- Insert the unfolded Type G plug into a compatible wall socket in the UK, Ireland, or other Type G regions.
- Ensure the adapter is securely seated in the wall outlet.
4.3 Įrenginių įkrovimas
- Kintamosios srovės maitinamiems įrenginiams: Plug your device's European (Type F/E) plug into the Euro AC outlet on the front of the adapter.
- USB-C įrenginiams: Connect your USB-C charging cable to one of the two USB-C ports (C1 or C2) on the side of the adapter and then to your device.
- USB-A įrenginiams: Connect your USB-A charging cable to one of the two USB-A ports (A1 or A2) on the side of the adapter and then to your device.
- You can charge multiple devices simultaneously, up to the adapter's maximum power output.
Figure 5: Foldable Type G Pins in use
Figure 6: Fast Charging an iPhone via USB-C
Video 1: LENCENT UK Travel Adapter in action, demonstrating its compact design, multiple ports, foldable plug, and simultaneous charging capabilities for various devices.
5. Specifikacijos
| Prekės ženklas | LENCENTAS |
| Modelio numeris | PA030EUUK |
| Spalva | Baltas |
| Įvesties tomastage Diapazonas | 100-250V |
| AC išvesties ttage | 100-250V |
| Maksimali galia | 3250W at 250V (13A Max) |
| USB-C išvestis | 2 x USB-C ports, 15W each |
| USB-A išvestis | 2 x USB-A ports, 12W each |
| Bendra išvestis | 1 Type G AC, 1 Euro AC, 2 USB-C, 2 USB-A (Total 6) |
| Kištuko tipas | Type G (UK Standard) |
| Matmenys (I x P x A) | 7 cm x 7 cm x 4.2 cm |
| Prekės svoris | 130 gramų |
6. Problemų sprendimas
- Nėra maitinimo išvesties:
- Įsitikinkite, kad adapteris yra visiškai įkištas į veikiantį sieninį lizdą.
- Check if the wall outlet itself is functioning by testing with another device.
- Verify that your device's power cable is correctly connected to the adapter.
- Įrenginys neįkraunamas:
- Confirm your device is dual voltage compatible (100-250V) if using the AC outlet.
- Ensure the total power consumption of all connected devices does not exceed 3250W.
- Išbandykite kitą adapterio USB prievadą arba kintamosios srovės lizdą.
- Test your device's charging cable with another power source to rule out cable issues.
- Adapterio perkaitimas:
- Immediately disconnect all devices and unplug the adapter from the wall.
- Leiskite jam atvėsti.
- Ensure you are not exceeding the maximum power rating. Reduce the number of connected devices or use lower-power devices.
7. Priežiūra
- Adapterį valykite sausa, minkšta šluoste. Nenaudokite skystų valiklių ar tirpiklių.
- Store the adapter in a cool, dry place when not in use, preferably with the pins folded for protection.
- Saugokite adapterį nuo kritimo ir stiprių smūgių.
8. Garantija ir palaikymas
The LENCENT UK Travel Adapter comes with a 2 metų gamintojo garantija.
For technical support, warranty claims, or further inquiries, please contact LENCENT customer service through the retailer where the product was purchased or visit the official LENCENT websvetainę.
Prašome išsaugoti pirkimo įrodymą garantijos tikslais.
