1. Įvadas
Thank you for choosing the OKPRO 10000W Solar Street Light Outdoor. This manual provides essential information for the proper installation, operation, and maintenance of your solar street light. Please read these instructions carefully before use to ensure optimal performance and longevity of the product. This solar street light is designed for efficient and reliable outdoor illumination, utilizing solar energy for power.
2. Produktas baigtasview
2.1. Sudedamosios dalys
Pakuotėje yra šie elementai:
- 1x Solar Street Light fixture
- 1x saulės baterija
- 1x nuotolinio valdymo pultas
- 1x naudojimo instrukcija (šis dokumentas)
- 1x Installation Screw Accessories Set
2.2. Pagrindinės savybės
- Ultra Bright LED Beads: Features 60pcs 5054-SMD lamp beads for uniform and wide-range illumination, providing up to 500,000 lumens with 6500K color temperature.
- Didelio efektyvumo saulės baterijos: 6V/40W polycrystalline solar panel converts up to 25% of solar energy.
- Didelės talpos baterija: Equipped with a 50,000mAh high-capacity lithium-ion battery for stable voltage and extended operation.
- Operacija nuo sutemų iki aušros: Automatic lighting at sunset and charging at sunrise, requiring no manual intervention.
- Nuotolinio valdymo pultas: Allows for ON/OFF control, brightness adjustment (25%, 50%, 75%, 100%), and timer settings (3/5/8 hours).
- Baterijos indikatoriaus ekranas: Shows remaining battery status (25%, 50%, 75%, 100%).
- Patvari konstrukcija: Aluminum frame and die-cast iron lamp pole, IP66 waterproof rating, heat-resistant, frost-resistant, and lightning-proof for harsh weather conditions.
- Lengvas montavimas: Designed for wall or pole mounting with no wiring required.
Figure 1: OKPRO 10000W Solar Street Light with its solar panel and remote control.
3. Saugos informacija
- Ensure all components are securely fastened during installation to prevent falling.
- Neardykite ir nemodifikuokite gaminio. Neleistinos modifikacijos gali panaikinti garantiją ir kelti pavojų saugumui.
- Laikykite saulės kolektorių švarų, kad užtikrintumėte efektyvų įkrovimą.
- Kai LED šviesos šaltinis šviečia, venkite tiesioginio akių kontakto su juo.
- Baterijas ir elektroninius komponentus utilizuokite pagal vietinius reikalavimus.
- Do not install near flammable or explosive materials.
4. Diegimo vadovas
The OKPRO Solar Street Light can be mounted on a wall or a pole. No electrical wiring is required, simplifying the installation process.
4.1. Įrengimo vietos pasirinkimas
- Select a location where the solar panel receives direct sunlight for at least 6-8 hours daily. Shaded areas will reduce charging efficiency and light duration.
- Ensure the light fixture is positioned to illuminate the desired area effectively.
- Recommended installation height is 12-25 feet (3.6-7.6 meters) above the ground for optimal coverage.
4.2. Montavimo parinktys
The light supports both wall and pole mounting. The included installation screw accessories set provides the necessary hardware.
Figure 2: Installation options (Pole Mounted and Wall Mounted) and included accessories.
4.2.1. Montavimas ant stulpo
- Ensure the pole diameter is between 1.5 to 4 inches (3.8 to 10.2 cm).
- Attach the mounting bracket to the pole using the provided screws and bolts.
- Secure the solar street light fixture to the mounting bracket.
- Adjust the angle of the solar panel to face the sun for maximum exposure.
4.2.2. Sienų montavimas
- Mark the drilling points on the wall based on the mounting bracket.
- Išgręžkite skyles ir, jei reikia, įstatykite sieninius inkarus.
- Pritvirtinkite tvirtinimo laikiklį prie sienos naudodami pateiktus varžtus.
- Secure the solar street light fixture to the mounting bracket.
- Adjust the angle of the solar panel to face the sun for maximum exposure.
After installation, ensure all connections are tight and the light is stable.
5. Naudojimo instrukcijos
5.1. Pradinis aktyvinimas
Upon first use, allow the solar panel to charge for a full day (6-8 hours) in direct sunlight before activating the light. This ensures the battery has sufficient charge for initial operation.
5.2. Dusk to Dawn Mode
The light is designed to operate automatically in dusk-to-dawn mode. It will:
- Automatically charge during daylight hours when the solar panel is exposed to sunlight.
- Automatically illuminate at dusk and turn off at dawn.
Figure 3: Automatic Dusk to Dawn operation of the solar street light.
5.3. Baterijos indikatorius
The light features a battery indicator display to show the remaining power level:
- 25 %
- 50 %
- 75 %
- 100 %
Figure 4: Battery indicator display on the solar street light.
6. Nuotolinio valdymo funkcijos
The included remote control allows for manual adjustment of the light's settings.
Figure 5: Remote control for the OKPRO Solar Street Light.
- ĮJUNGTA/IŠJUNGTA: Paspauskite ON mygtuką, kad įjungtumėte šviesą, ir IŠJUNGTA mygtuką, kad jį išjungtumėte.
- AUTOMATINIS režimas: Paspauskite AUTO to activate the dusk-to-dawn sensor, allowing the light to operate automatically.
- Ryškumo reguliavimas: Naudokite + ir - buttons to cycle through brightness levels (25%, 50%, 75%, 100%).
- Laikmačio funkcija: Set the light to stay on for a specific duration after dusk:
- 3H: Light stays on for 3 hours.
- 5H: Light stays on for 5 hours.
- 8H: Light stays on for 8 hours.
7. Priežiūra
- Saulės baterijų valymas: Reguliariai valykite saulės baterijos paviršių minkšta, drėgna šluosteamp šluoste, kad pašalintumėte dulkes, nešvarumus ir šiukšles. Švarus skydelis užtikrina maksimalų saulės šviesos sugėrimą ir įkrovimo efektyvumą.
- Įrenginio apžiūra: Periodically check the light fixture and mounting hardware for any signs of damage, corrosion, or loose connections. Tighten any loose screws or bolts.
- Akumuliatoriaus priežiūra: The integrated lithium-ion battery is designed for long life. Avoid prolonged storage of the light in a completely discharged state. If storing, ensure the battery is partially charged.
- Aplinkos apsauga: The IP66 waterproof rating ensures protection against dust and strong jets of water. While designed to withstand harsh weather, extreme conditions like heavy snow accumulation on the solar panel should be cleared to maintain charging.
8. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Šviesa neįsijungia naktį. |
|
|
| Šviesos trukmė trumpesnė nei tikėtasi. |
|
|
| Nuotolinio valdymo pultas neveikia. |
|
|
9. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | OKPRO |
| Modelio pavadinimas | S-2000A Solar Parking Lot Light |
| Vattage | 10000 watts (equivalent illumination) |
| Ryškumas | 500,000 liumenų |
| Šviesos šaltinio tipas | LED (60pcs 5054-SMD beads) |
| Spalvos temperatūra | 6500 kelvinų (balta) |
| Saulės skydas | 6V/40W Polycrystalline |
| Baterija | 50,000mAh Lithium-ion (1 AA batteries required for remote, included) |
| Medžiaga | Aluminum (shade), Acrylonitrile Butadiene Styrene |
| Atsparumo vandeniui lygis | IP66 Atsparus vandeniui |
| Kontrolės metodas | Nuotolinio valdymo pultas |
| Diegimo tipas | Wall or Pole Mount |
| Gaminio matmenys | 4.27 colio ilgio x 2.32 colių pločio x 10.49 colio aukščio |
| Prekės svoris | 12.77 svaro |
| Darbinė temperatūra | -22°F iki 140°F (nuo -30°C iki 60°C) |

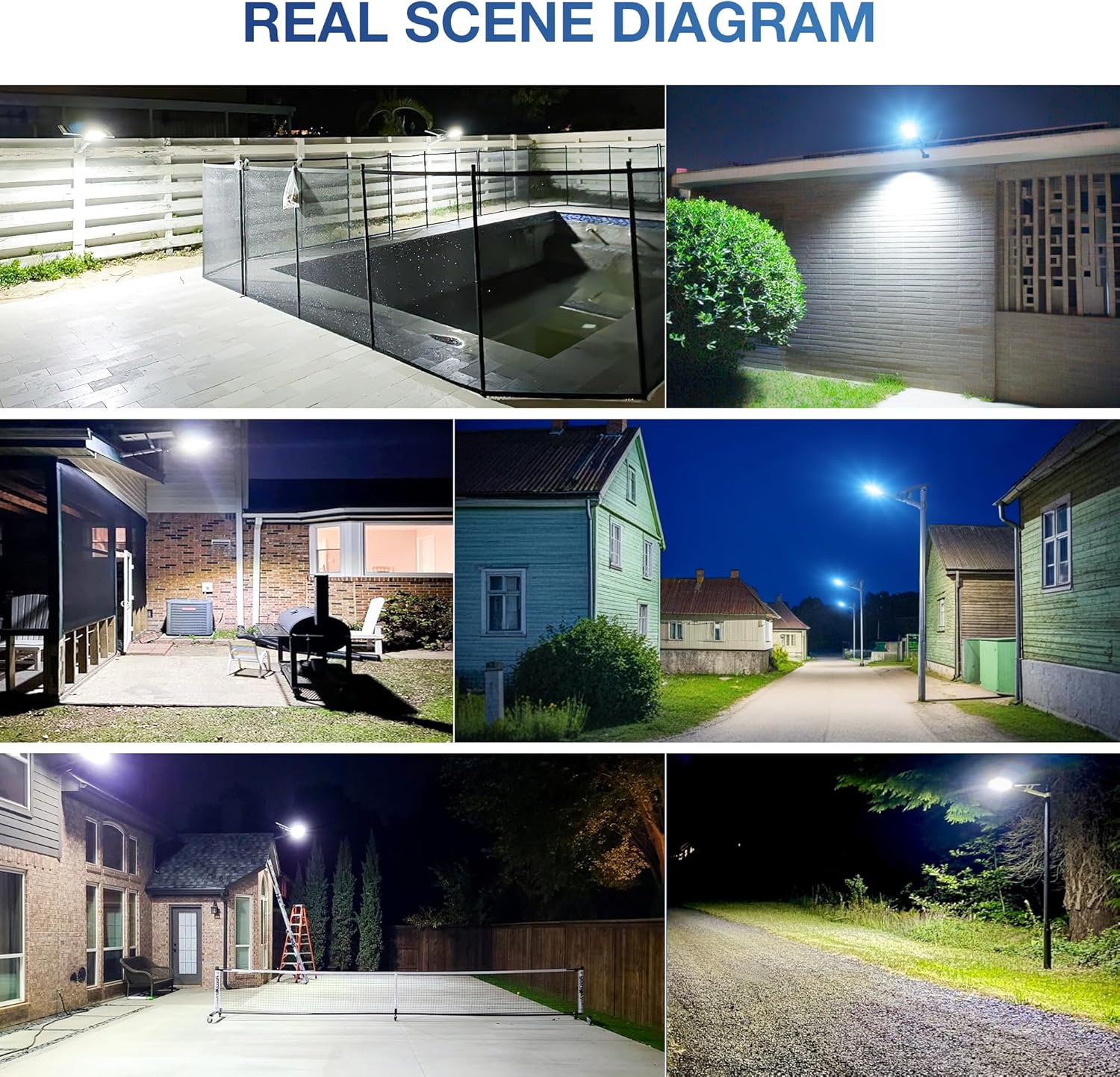

| Rekomenduojami naudojimo būdai | Outdoor illumination for parking lots, streets, driveways, garages, parks, pools, etc. |
10. Garantija ir palaikymas
OKPRO provides a 2-year customer service warranty for this product. If you encounter any issues or have questions regarding your OKPRO 10000W Solar Street Light, please contact our customer support team. Please retain your proof of purchase for warranty claims.
For support, please visit the OKPRO Store on Amazon or contact us through the platform where you purchased the product.
OKPRO Store Link: OKPRO Official Store
