OMRON HEM-7144T2 Automatic Arm Blood Pressure Monitor User Manual

1. Įvadas

The OMRON HEM-7144T2 Automatic Arm Blood Pressure Monitor is a reliable and easy-to-use device designed for accurate blood pressure measurement at home. It features a cuff wrap guide to ensure correct cuff placement and Bluetooth connectivity for seamless data transfer to the OMRON connect app on your smartphone. This manual provides essential information for safe and effective use of your monitor.

Pakuotės turinys

Įsitikinkite, kad pakuotėje yra visi komponentai:

• Automatinis rankos kraujo spaudimo monitorius
• Universal Arm Cuff HEM-RML31-B (fits arm circumference 22 to 42 cm)
• 4 AA baterijos
• Sandėliavimo dėklas
• OMRON connect Guide
• Instrukcijų vadovas (šis dokumentas)

Image 1.1: OMRON HEM-7144T2 Blood Pressure Monitor, universal cuff, and retail box. This image shows the main components included in the product package, highlighting the monitor, cuff, and packaging design.

2. Sąranka

2.1 Akumuliatoriaus įdėjimas

1. Open the battery cover located on the back of the monitor.
2. Insert the 4 AA batteries according to the polarity indications (+/-) inside the battery compartment.
3. Saugiai uždarykite akumuliatoriaus dangtelį.

Pastaba: Replace all four batteries simultaneously when the low battery indicator appears on the display.

2.2 Rankovės uždėjimas

1. Insert the air plug of the arm cuff into the air jack on the left side of the monitor.
2. Wrap the cuff firmly around your upper left arm, approximately 1-2 cm above your elbow. Ensure the air tube runs down the center of your arm.
3. The cuff wrap guide on the monitor display will indicate if the cuff is correctly applied. An "OK" symbol will appear when the cuff is properly positioned.

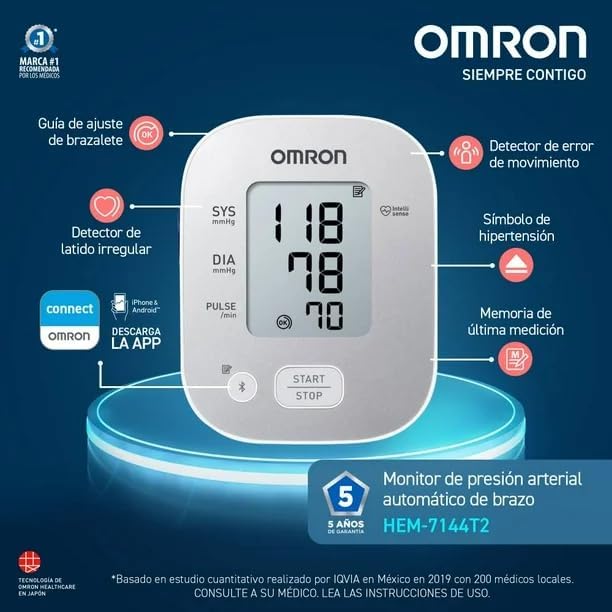

2.1 vaizdas: Baigtaview of OMRON HEM-7144T2 features. This diagram highlights key functionalities such as the cuff wrap guide, irregular heartbeat detector, movement error detector, hypertension symbol, and memory function.

2.3 Connecting to OMRON connect App (Bluetooth)

1. Download the "OMRON connect" app from your smartphone's app store (available for iPhone and Android).
2. Įjunkite „Bluetooth“ savo išmaniajame telefone.
3. Open the OMRON connect app and follow the on-screen instructions to pair your HEM-7144T2 monitor.
4. Once paired, your measurement data will automatically transfer to the app after each reading.

3. Naudojimo instrukcijos

3.1 Matavimo atlikimas

1. Sit comfortably with your back supported and feet flat on the floor. Avoid talking or moving during the measurement.
2. Padėkite ranką ant stalo taip, kad manžetė būtų širdies lygyje.
3. Paspauskite START/STOP mygtuką. Manžetė pradės automatiškai pūsti.
4. Remain still until the measurement is complete and the blood pressure readings (Systolic, Diastolic, and Pulse) are displayed.
5. The monitor will automatically store the reading and, if connected, transfer it to the OMRON connect app.
6. Paspauskite START/STOP button again to turn off the monitor. It will automatically power off after two minutes of inactivity.

Image 3.1: User performing a blood pressure measurement. This image illustrates the proper setup for taking a reading, with the cuff on the arm and the OMRON connect app displaying results on a smartphone.

3.2 Understanding Display Symbols

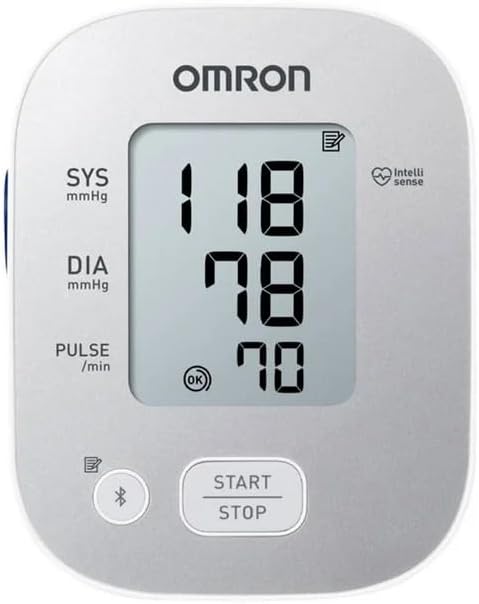

3.2 pav.: Išsamus view of the OMRON HEM-7144T2 display. This image shows the digital readings for systolic (SYS), diastolic (DIA), and pulse, along with indicators for cuff wrap guide (OK), irregular heartbeat, and IntelliSense technology.

• Hypertension Symbol: Appears if your systolic blood pressure is 135 mmHg or higher, and/or your diastolic blood pressure is 85 mmHg or higher. Consult a healthcare professional if this symbol frequently appears.
• Judėjimo klaidų detektorius: This symbol indicates that the reading was affected by excessive user movement during the measurement. Retake the measurement, ensuring you remain still.
• Nereguliaraus širdies plakimo detektorius: Alerts the user to the presence of potentially irregular heartbeats if detected two or more times during a measurement. If this symbol appears frequently, consult your doctor.
• Cuff Wrap Guide (OK): Confirms that the arm cuff has been applied correctly and securely.
• Memory Symbol: Indicates that the displayed reading is stored in the device's memory.
• „Bluetooth“ simbolis: Indicates active Bluetooth connection or pairing mode.

4. Priežiūra

4.1 Valymas

• Nuvalykite monitorių ir manžetę minkštu, sausu skudurėliu.
• If necessary, use a soft cloth lightly moistened with water or a mild detergent, then wipe dry.
• Nenaudokite abrazyvinių valiklių, alkoholio ar benzeno.
• Neplaukite manžetės ir nemerkite matuoklio į vandenį.

4.2 Saugykla

• Store the monitor and cuff in the provided storage case.
• Laikykite prietaisą švarioje, sausoje vietoje, toliau nuo tiesioginių saulės spindulių, ekstremalių temperatūrų ir drėgmės.
• Avoid storing the device where it may be exposed to strong vibrations or shocks.

4.3 Akumuliatoriaus keitimas

When the low battery indicator appears on the display, replace all four AA batteries with new ones. Do not mix old and new batteries, or different types of batteries.

5. Problemų sprendimas

6. Specifikacijos

7. Informacija apie garantiją

The OMRON HEM-7144T2 Blood Pressure Monitor comes with a 5 metų ribota garantija. This warranty covers defects in materials and workmanship under normal use. Please refer to the warranty card included in your package for full terms and conditions, or visit the official OMRON websvetainėje, kur rasite išsamią informaciją.

8. Parama

For further assistance, technical support, or inquiries regarding your OMRON HEM-7144T2 Blood Pressure Monitor, please contact OMRON customer service. Contact information can typically be found on the OMRON websvetainėje arba dokumentuose, pridėtuose prie jūsų produkto.

It is recommended to consult your healthcare professional for any medical concerns or interpretation of your blood pressure readings.
