Įvadas
The REACHER 16.5-inch Digital LED Wall Clock (Model GQ01-DE) combines a clock, timer, and temperature display into one device. Featuring a super clear LED screen with large, vibrant digits, it ensures readability from a distance. The included remote control allows for convenient adjustment of all settings. An ambient light sensor automatically adjusts brightness, while manual brightness control with 6 levels (including total darkness) is also available. This clock is suitable for various environments such as homes, gyms, offices, and schools.
Pakuotės turinys
- REACHER 16.5-inch Digital LED Wall Clock
- Nuotolinio valdymo pultas
- Maitinimo adapteris su 3m laidu
- Montavimo šablonas
- Vartotojo vadovas
Note: 1 x AAA battery for backup memory is not included and must be purchased separately.
Saugos informacija
- Įsitikinkite, kad maitinimo adapteris suderinamas su jūsų vietiniu maitinimo šaltiniu.
- Nelaikykite laikrodžio itin aukštose temperatūrose, tiesioginiuose saulės spinduliuose ar didelėje drėgmėje.
- Saugokite prietaisą nuo vandens ar kitų skysčių.
- Nebandykite patys ardyti ar taisyti laikrodžio. Kreipkitės į kvalifikuotus techninės priežiūros darbuotojus.
- Išmeskite baterijas laikydamiesi vietinių taisyklių.
Sąranka
1. Maitinimo prijungimas
- Connect the power adapter to the clock's power input port.
- Prijunkite maitinimo adapterį į standartinį elektros lizdą. Įsijungs laikrodžio ekranas.
2. Baterijos atsarginės kopijos įrengimas
To retain time and settings during a power outage, install one AAA battery (not included) into the battery compartment on the back of the clock. During battery backup, the display will be blank to conserve power, but settings will be preserved.
3. Sienų montavimas
- Select a suitable location on a wall.
- Use the provided drilling template to mark the positions for the mounting screws.
- Išgręžkite skyles ir, jei reikia, įstatykite sieninius inkarus.
- Install screws, leaving a small gap for the clock's keyhole slots.
- Align the clock's two keyhole slots with the screws and slide the clock down to secure it.
- Utilize the integrated cable organizer on the back of the clock to manage the power cable for a clean appearance.
This image depicts the back of the clock, showcasing the integrated cable organizer designed to keep the power cable tidy and flush against the wall. The 3-meter (9.87 ft) power cable is shown extending downwards, emphasizing a clean installation.
Naudojimo instrukcijos
All functions of the clock can be controlled using the included remote control.
1. Basic Time Setting
Refer to the remote control for specific buttons to set the time (e.g., 'SET' button, arrow keys for hour/minute adjustment). The clock supports 12-hour and 24-hour formats.
2. Ryškumo reguliavimas

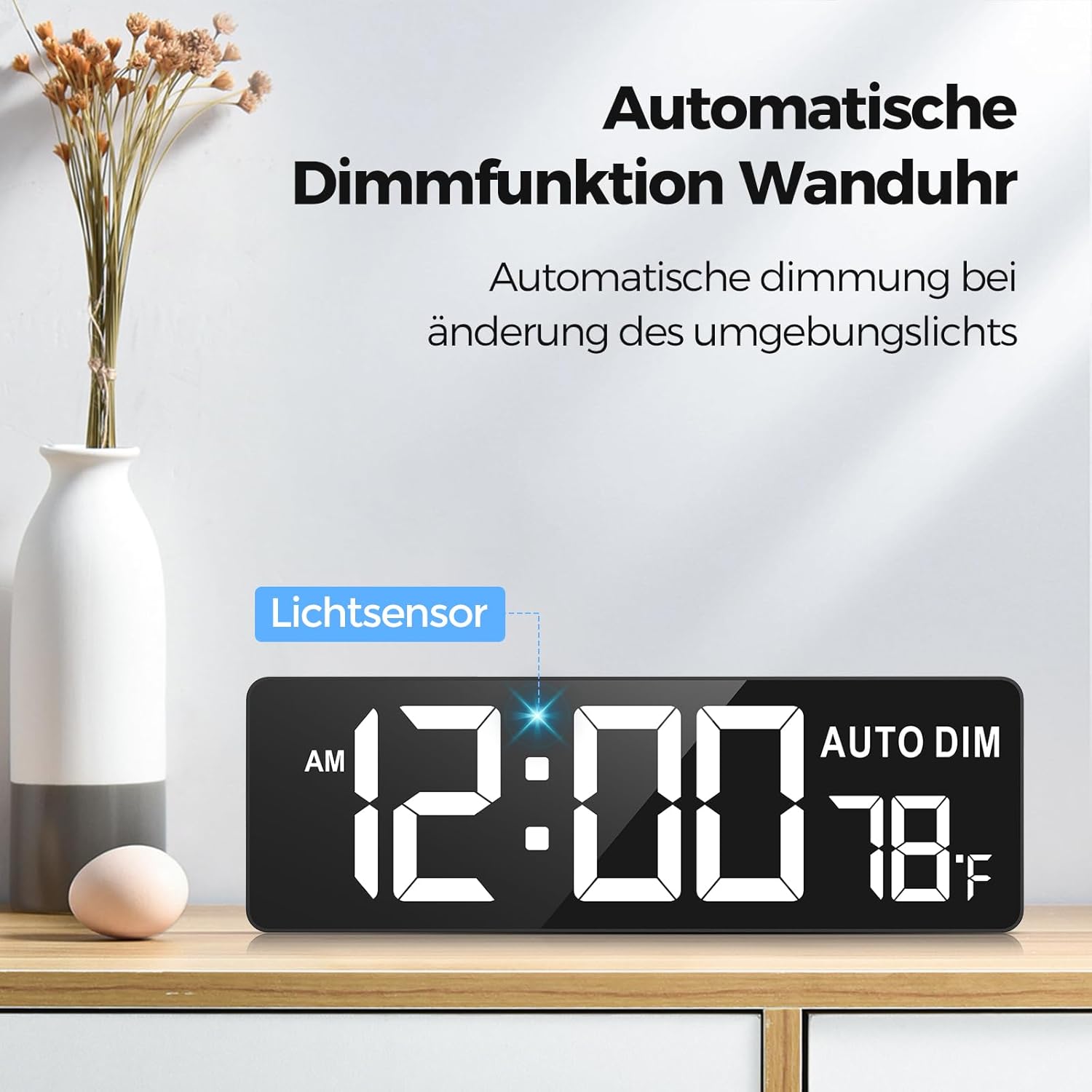

The clock is shown on a wooden shelf, illustrating its automatic dimming feature. A 'Lichtsensor' (light sensor) is indicated, which adjusts the display brightness based on ambient light conditions. The time 12:00 AM and temperature 78°F are visible.
- Automatinis pritemdymas: The clock features an ambient light sensor that automatically adjusts the display brightness based on the surrounding light conditions. This sensor reduces brightness in dark environments and increases it in bright areas.
- Manual Brightness: Use the remote control to manually adjust the brightness through 6 levels, including a total darkness option.
3. Spalvų pasirinkimas

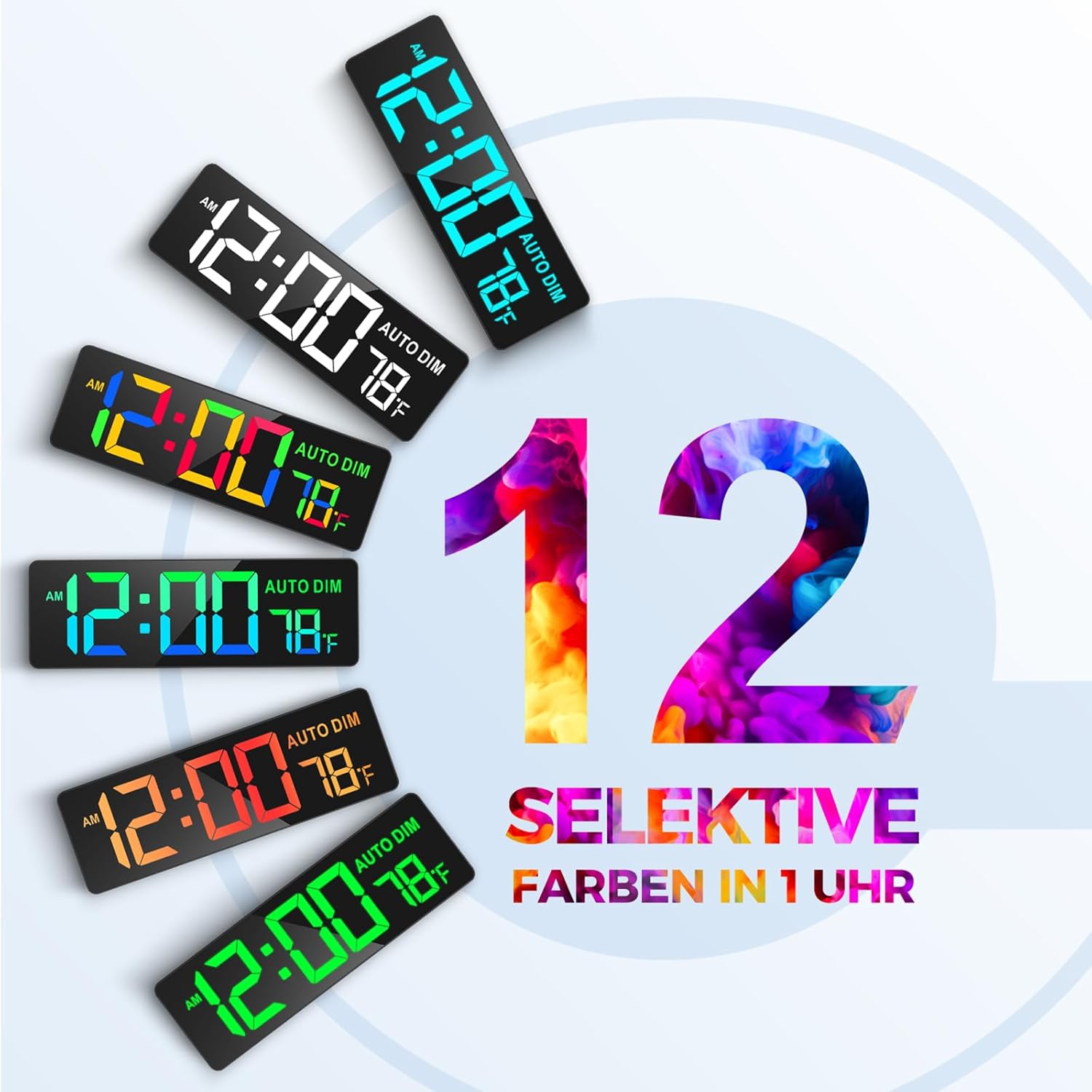

This graphic demonstrates the 12 selective color options available for the clock's digits. Various clock faces are shown with different vibrant colors, highlighting the customization feature for style and ambiance.
The clock offers 12 distinct digit colors, including 4 color gradients and a rainbow mode. Use the dedicated color selection buttons on the remote control to cycle through these options and choose your preferred display color.
4. Countdown and Count-up Timer Function
This image features the clock displaying a countdown timer set to 99 minutes and 59 seconds. The remote control is shown with quick access buttons for common countdown durations (30s, 1m, 3m, 5m, 10m, 15m, 30m), demonstrating its intelligent control for training or other activities.
The clock is mounted on a wall in a classroom, showing '00:00' and 'AUTO DIM' with temperature. This illustrates its function as a quiet counter, useful for managing learning time for students, with a maximum count-up/countdown capacity of 99 minutes and 59 seconds.
- Greita prieiga: The remote control includes 7 shortcut keys for common countdown durations (30 seconds to 30 minutes).
- Pasirinktinis laikmatis: Set a custom countdown or count-up timer up to 99 minutes and 59 seconds using the remote control's numeric and control buttons.
- Apimtis: The timer features 30 volume levels for alerts.
5. Temperatūros ekranas
The clock displays the ambient temperature. Use the remote control to switch between Celsius and Fahrenheit units if applicable.
This image displays the 16.5-inch LED screen of the clock, highlighting its large digits for clear visibility. It shows the time, 'AM' indicator, 'AUTO DIM' status, and temperature in Fahrenheit. Dimensions of 16.5 inches (41.9 cm) width and 4.3 inches (10.9 cm) height are marked.
6. Nuotolinio valdymo pulto naudojimas
The remote control operates wirelessly with a range of up to 9 meters (30 feet). Its soft-touch buttons ensure quiet operation. Point the remote control towards the clock when making adjustments.
Priežiūra
- Valymas: Laikrodžio paviršių nuvalykite minkšta, sausa šluoste. Nenaudokite abrazyvinių valiklių ar tirpiklių.
- Baterijos keitimas: If the backup battery (AAA) is installed, replace it periodically to ensure settings are saved during power interruptions.
- Saugykla: If storing the clock for an extended period, disconnect it from power and remove the backup battery.
Trikčių šalinimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Laikrodžio ekranas tuščias. | No power supply. Backup battery is active (display off). | Check power connection. If on backup battery, display is intentionally off. |
| Nuotolinio valdymo pultas neveikia. | Remote battery depleted. Obstruction between remote and clock. | Replace remote control battery. Ensure clear line of sight to the clock. |
| Laiko / nustatymų atstatymas po elektros energijos tiekimo nutraukimotage. | No backup battery installed or battery depleted. | Install a fresh AAA backup battery. |
| Display too dim/bright. | Automatic dimming active or manual setting incorrect. | Adjust brightness manually using the remote or check ambient light conditions. |
Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | REACHER |
| Modelio numeris | GQ01-DE |
| Spalva | Juoda |
| Gaminio matmenys (I x P x A) | 41 x 3.81 x 13.5 cm (16.14 x 1.5 x 5.31 colio) |
| Prekės svoris | 1.04 kilogramų (2.29 svarai) |
| Medžiaga | Plastikiniai |
| Ekrano dydis | 16.5 colio (įstrižainė) |
| Skaitmenų dydis | 9.4x4.3 colių |
| Ryškumo lygiai | 6 (manual) + Automatic Dimmer |
| Ekrano spalvos | 12 selectable colors, including gradients and rainbow mode |
| Laikmačio maksimali trukmė | 99 minutės 59 sekundžių |
| Nuotolinio valdymo pulto diapazonas | Iki 9 metrų (30 pėdų) |
| Atsarginė baterija | 1 x AAA (neįtraukta) |
Informacija apie garantiją
REACHER products are designed and manufactured to the highest quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact REACHER customer support. Keep your proof of purchase for warranty claims.
Palaikymas
For technical assistance, troubleshooting, or product inquiries, please contact REACHER customer support. Contact information can typically be found on the product packaging, warranty card, or the official REACHER websvetainę.
