Gedsffati HD08-G 4-in-1 Carbon Monoxide and Natural Gas Detector User Manual

1. Įvadas

This manual provides essential information for the safe and effective operation of your Gedsffati HD08-G 4-in-1 Carbon Monoxide and Natural Gas Detector. This device is designed to monitor carbon monoxide (CO), combustible gases (such as propane and methane), temperature, and humidity in your environment. Please read this manual thoroughly before installation and use, and retain it for future reference.

2. Pagrindinės savybės

4 viename aptikimas: Integrated sensors for carbon monoxide, combustible gas, temperature, and humidity.
Įskiepio dizainas: Compatible with 110V to 220V AC outlets for easy installation.
Integruota atsarginė baterija: 1000 mAh battery provides approximately 10 hours of operation during power outages, allowing for portable use.
Didelės raiškos ekranas: 2.1-inch HD screen for clear real-time display of gas concentrations, temperature, and humidity.
Garsiniai ir vaizdiniai pavojaus signalai: 85 dB alarm and screen color changes provide immediate alerts for detected hazards.
Platus aptikimo diapazonas: CO detection range of 0-999ppm, with alarm activation above 50ppm.

3. Pakuotės turinys

Į paketą paprastai įeina:

1 x Gedsffati HD08-G 4-in-1 Detector
1 x Vartotojo vadovas

Gavę siuntinį, patikrinkite jo turinį, kad įsitikintumėte, jog visi daiktai yra pakuote ir nepažeisti.

4. Saugos informacija

This detector is a safety device. Please observe the following precautions:

Do not paint over the detector. Paint can clog the sensor openings and prevent the unit from functioning properly.
Do not block the ventilation openings on the detector.
Do not install in areas with high humidity, excessive dust, or extreme temperatures.
Do not install near exhaust vents, furnaces, water heaters, or other combustion appliances.
Reguliariai tikrinkite detektorių, kaip aprašyta šiame vadove.
This device is intended to detect CO and combustible gases. It is not designed to detect smoke or fire.
Įsijungus signalizacijai, nedelsiant evakuokitės iš patalpų ir iškvieskite greitosios pagalbos tarnybas.

5. Sąranka ir diegimas

The Gedsffati HD08-G detector is designed for simple plug-and-play installation.

Pasirinkite vietą: Select an appropriate location for installation. For CO detection, place the unit at least 5 feet (1.5 meters) from any fuel-burning appliance. For combustible gas detection, place it near potential leak sources, but not directly above them. Avoid corners or areas with poor air circulation.
Prijunkite: Insert the detector directly into a standard 110V-220V AC electrical outlet. The device will power on automatically.
Initial Self-Test: Upon plugging in, the detector will perform an initial self-test. The screen will illuminate, and you may hear a brief audible signal.
Atsarginė baterija: The built-in 1000 mAh battery will begin charging once plugged in. This battery provides continuous operation during power outages and allows for portable use.

Gedsffati HD08-G detector plugged into a wall outlet, showing its direct insertion design. — Image: The Gedsffati HD08-G detector shown plugged directly into a wall outlet, highlighting its compact, direct-insertion design for easy installation.

Illustration of the Gedsffati HD08-G detector with a battery icon and a graphic representing a built-in backup battery. — Image: An illustration depicting the Gedsffati HD08-G detector with a visual representation of its internal rechargeable backup battery, indicating 9-10 hours of power life for emergencies.

6. Naudojimo instrukcijos

Once plugged in and initialized, the detector continuously monitors the environment.

6.1 Rodyti informaciją

Close-up of the Gedsffati HD08-G detector's 2.1-inch HD color screen displaying CO, GAS, temperature, and humidity readings. — Paveikslėlis: detalus view of the detector's 2.1-inch HD color screen, showing real-time readings for CO concentration (PPM), gas levels (represented by a bar graph), temperature (68°F), and humidity (60%).

CO (Carbon Monoxide): Displays the current CO concentration in parts per million (PPM).
DUJOS: Indicates the level of combustible gas detected, often represented by a bar graph or numerical value.
Temperatūra: Rodo aplinkos temperatūrą.
Drėgmė: Displays the ambient humidity level.
Baterijos indikatorius: Rodo dabartinį akumuliatoriaus įkrovos lygį.
Brightness/Sound Icons: May indicate current settings for screen brightness and alarm sound.

6.2 Pavojaus signalai

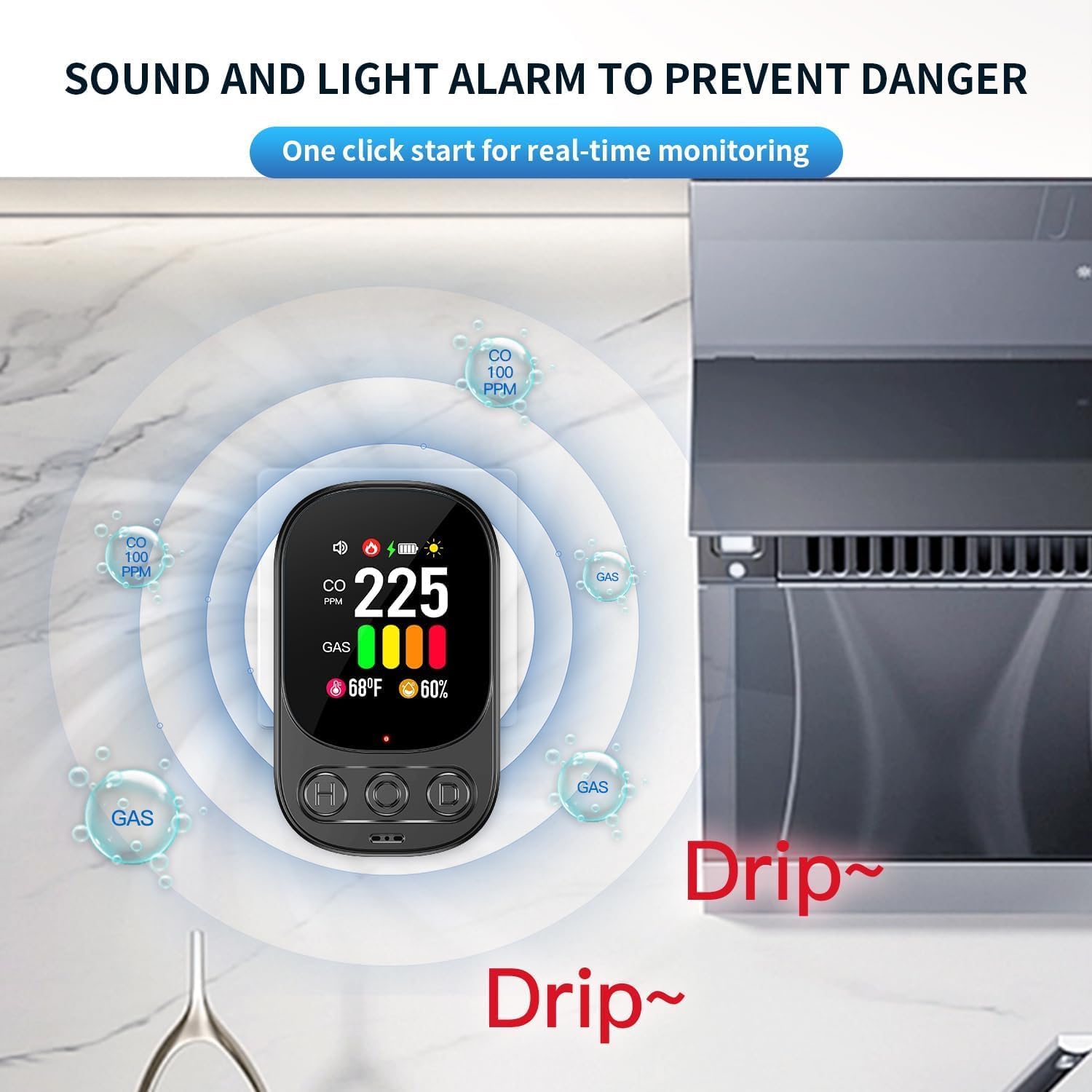

Gedsffati HD08-G detector alarming with sound waves and gas icons, indicating detection of CO and combustible gas near a kitchen stove. — Image: The detector is shown in an alarm state, emitting sound waves and displaying gas icons, indicating the detection of CO and combustible gas. This scenario is depicted near a kitchen stove, emphasizing its function in preventing danger.

When CO concentration exceeds 50ppm, or combustible gas levels exceed the alarm threshold, the detector will activate an audible alarm (85 dB) and the screen display will change, often with flashing indicators or color changes.
Follow emergency procedures immediately upon alarm activation.

6.3 Savikontrolės funkcija

Gedsffati HD08-G detector showing a green light for normal operation and a red light for alarm/malfunction, with a finger pressing the self-test button. — Image: The detector illustrates its intelligent power indicator light system. A green light indicates normal operation, while a red light signifies an alarm or sensor malfunction. A finger is shown pressing the 'H' button for a short press self-test.

To perform a self-test, short press the designated test button (often labeled 'H' or similar). The detector will briefly activate its alarm and display all indicators to confirm proper functioning.
A green indicator light typically signifies normal operation, while a red light may indicate an alarm or sensor malfunction.

7. Priežiūra

Proper maintenance ensures the longevity and reliability of your detector.

Valymas: Švelniai nuvalykite detektoriaus išorę minkšta,amp cloth. Do not use harsh chemicals, abrasive cleaners, or spray directly onto the unit. Ensure no liquid enters the sensor openings.
Reguliarus testavimas: Perform a self-test at least once a week to confirm the alarm and display are functioning correctly.
Baterijos patikrinimas: The built-in backup battery is designed for long-term use. If the detector frequently runs out of power during outages or the battery indicator shows low charge even after prolonged charging, the battery may be degrading. Contact customer support if you suspect a battery issue.
Venkite kliūčių: Ensure that the detector's ventilation openings are not blocked by dust, debris, or household items.

8. Problemų sprendimas

Jei kyla problemų dėl detektoriaus, žr. šias dažniausiai pasitaikančias problemas ir sprendimus:

Problema	Galima priežastis	Sprendimas
Detektorius neįsijungia.	No power from outlet; unit not fully plugged in; backup battery depleted.	Ensure the outlet is functional. Plug the unit firmly into the outlet. Allow time for the backup battery to charge.
Alarm sounds frequently without apparent gas.	False alarm due to strong odors (e.g., cleaning products, aerosols); sensor contamination; actual low-level gas presence.	Ventilate the area. Move the detector to a different location temporarily. Clean the detector. If alarms persist, investigate potential gas leaks.
Display is blank or shows an error code.	Power issue; sensor malfunction; internal fault.	Check power connection. Perform a self-test. If the issue persists, contact customer support.
Žadintuvas per tylus arba visai neskamba.	Speaker obstruction; unit malfunction.	Ensure speaker is not blocked. Perform a self-test. If the alarm is still not audible, the unit may be faulty and requires replacement.

If troubleshooting steps do not resolve the issue, please contact Gedsffati customer support for further assistance.

9. Specifikacijos

The following are the technical specifications for the Gedsffati HD08-G detector:

Modelio numeris: HD08-G
Gamintojas: Shenzhen Huidu Technology Co., Ltd.
Prekės svoris: 2.12 uncijos (60 gramų)
Pakuotės matmenys: 4.17 x 2.87 x 2.13 colio
Maitinimo įvestis: 110V-220V AC (Plug-in)
Atsarginė baterija: 1000 mAh (Rechargeable, included)
CO Detection Range: 0-999 ppm
CO Alarm Threshold: > 50 ppm
Signalo garsumas: 85 dB
Ekranas: 2.1 colio HD spalvotas ekranas
Spalva: Baltas

10. Garantija ir palaikymas

Gedsffati products are designed for reliability and performance. Specific warranty details are typically provided with the product packaging or can be found on the official Gedsffati websvetainėje. Prašome išsaugoti pirkimo įrodymą garantiniams reikalavimams.

For technical support, troubleshooting assistance, or warranty inquiries, please refer to the contact information provided in your product packaging or visit the Gedsffati brand store online.
