Outsunny Professional Metal Detector Model 847-009V00CG User Manual

Įvadas

This manual provides essential information for the safe and efficient operation of your Outsunny Professional Metal Detector, Model 847-009V00CG. Please read these instructions thoroughly before use and retain them for future reference.

Saugos instrukcijos

• Always operate the metal detector in well-ventilated areas.
• Keep the control box away from water. Only the search coil is IP68 waterproof.
• Do not attempt to modify or disassemble the detector. This may void the warranty and cause damage.
• Use only the specified 9V batteries. Ensure correct polarity when inserting.
• Atsakingai išmeskite baterijas pagal vietinius reikalavimus.
• Avoid using the detector near power lines or buried cables to prevent electric shock.
• Be aware of your surroundings when detecting, especially in public areas or near historical sites.
• Always seek permission before detecting on private property.
• Kasdami būkite atsargūs, kad išvengtumėte sužalojimų ar turto sugadinimo.
• Store the detector in a dry, cool place when not in use.

Pakuotės turinys

Patikrinkite, ar jūsų pakuotėje yra visi toliau išvardyti daiktai:

• Outsunny Professional Metal Detector (Main Unit)
• Ausinės
• Multi-functional Folding Shovel
• Kuprinė
• 2 x 9 V baterijos
• Vartotojo vadovas (šis dokumentas)

This image displays the complete set of accessories: the main metal detector unit, a pair of headphones, a multi-functional folding shovel, and a backpack for convenient transport.

The product is delivered in a single package, as shown in this image of the shipping box.

Produktas baigtasview

Susipažinkite su pagrindiniais metalo detektoriaus komponentais:

1. Valdymo langelis: Houses the LCD screen, control buttons, and battery compartment.
2. Reguliuojamas stiebas: Allows for length adjustment to suit different users.
3. Paieškos ritė: The waterproof detection unit that scans the ground.
4. Porankis: Provides comfort and stability during use.
5. Ausinių lizdas: For connecting the included headphones.

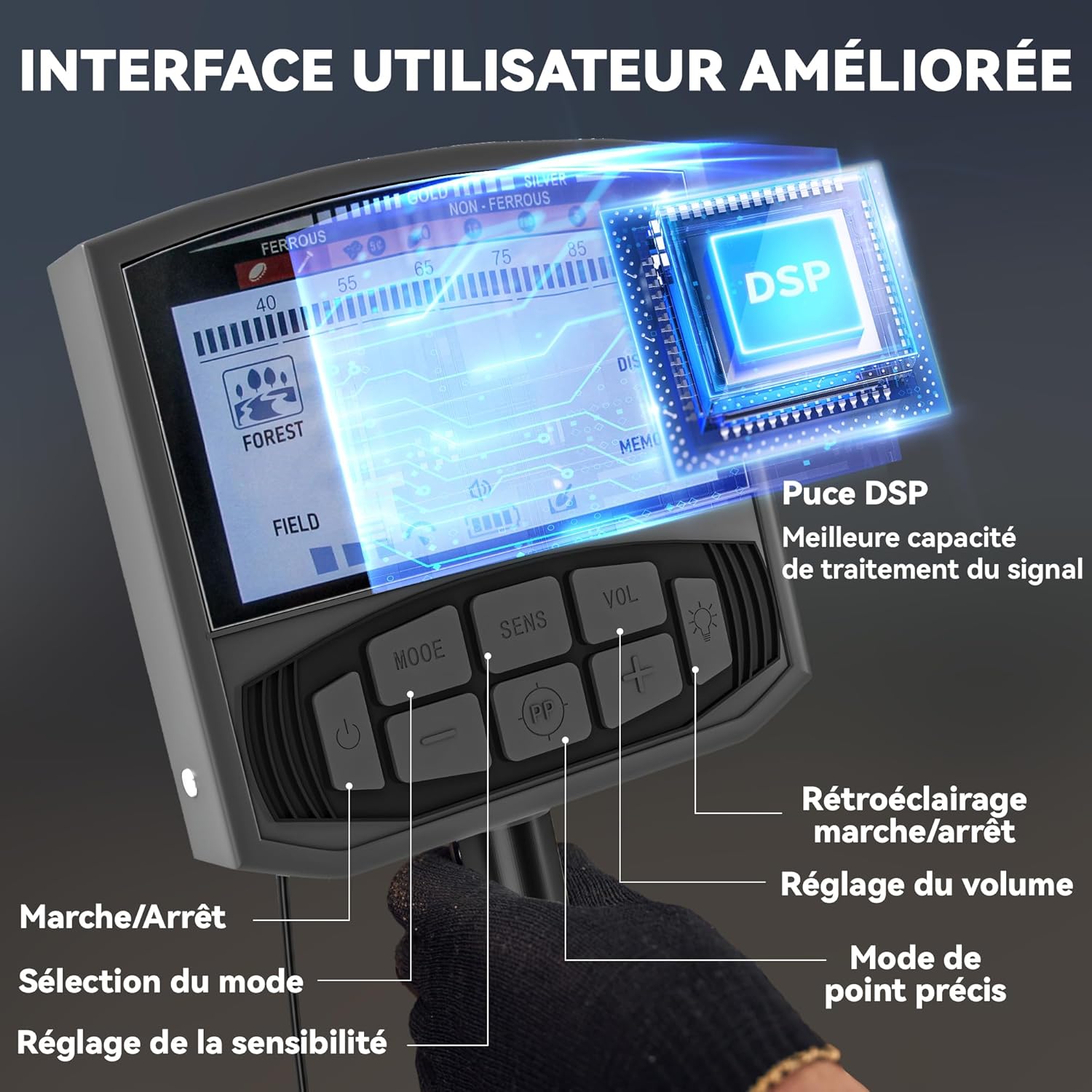

This image illustrates the enhanced user interface of the control box, featuring a clear LCD screen, an advanced DSP chip for signal processing, and intuitive buttons for power, mode selection, sensitivity adjustment, volume control, and pinpoint mode activation. A backlight function is also available for low-light conditions.

Sąranka

1. Surinkimas: Connect the search coil to the lower stem, then attach the lower stem to the middle stem, and finally connect the middle stem to the upper stem with the control box and armrest. Ensure all connections are secure.
2. Akumuliatoriaus montavimas: Open the battery compartment on the control box. Insert the two 9V batteries, observing the correct polarity (+/-). Close the compartment securely.
3. Aukščio reguliavimas: Loosen the locking collar on the adjustable stem. Extend or retract the stem to a comfortable length, typically where the search coil is parallel to the ground when standing upright. Tighten the locking collar to secure the stem. The stem is adjustable from 48 cm to 130 cm.
4. Porankio reguliavimas: Position the armrest for comfortable use, ensuring your forearm rests securely.
5. Ausinių jungtis: Plug the included headphones into the headphone jack on the control box.

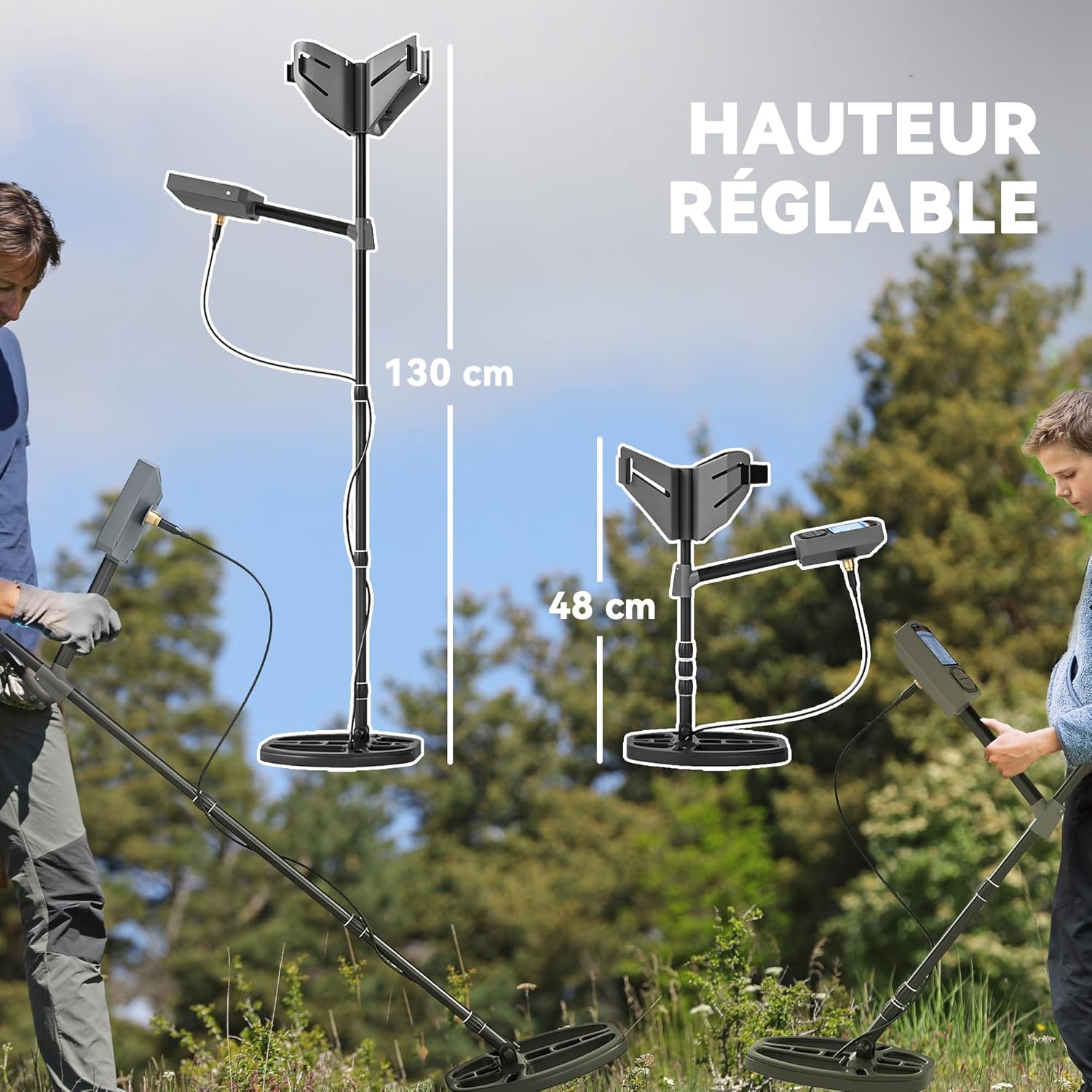

This image demonstrates the adjustable height of the metal detector, ranging from 48 cm to 130 cm, making it suitable for both adults and beginners. The telescopic shaft allows for easy customization to the user's height.

Naudojimo instrukcijos

Aptikimo režimai

Your Outsunny metal detector features five distinct detection modes. Press the REŽIMAS mygtuką, kad galėtumėte juos peržiūrėti:

• Forest Mode: Detects all types of metals. Ideal for general searching in varied environments.
• Lauko režimas: Designed to eliminate iron signals, focusing on non-ferrous metals.
• Disc Mode (Discrimination): Allows you to eliminate unwanted metal types (e.g., trash metals like aluminum pull tabs, bottle caps) based on their conductivity. Adjust the discrimination level using the sensitivity buttons.
• Atminties režimas: Detects only the specific metal type that has been previously memorized. This is useful for targeting specific finds.
• Pinpoint Mode (PP): Used to precisely locate the target once a general area has been identified. Press the PP mygtuką, kad suaktyvintumėte.

This image visually explains the five detection modes: Forest for all metals, Memory for specific memorized metals, Pinpoint for precise target location, Disc for eliminating unwanted metals, and Field for filtering out iron.

Detection Tips

• Sweep the search coil slowly and steadily, keeping it parallel to the ground and as close as possible without touching.
• Overlap each sweep by about half the coil's diameter to ensure thorough coverage.
• When a target is detected, the LCD screen will display information about the potential metal type and depth. An audio tone will also sound.
• Use Pinpoint mode to narrow down the exact location of the target before digging.
• The detector can detect a quarter coin up to 28 cm deep and larger objects at greater depths.

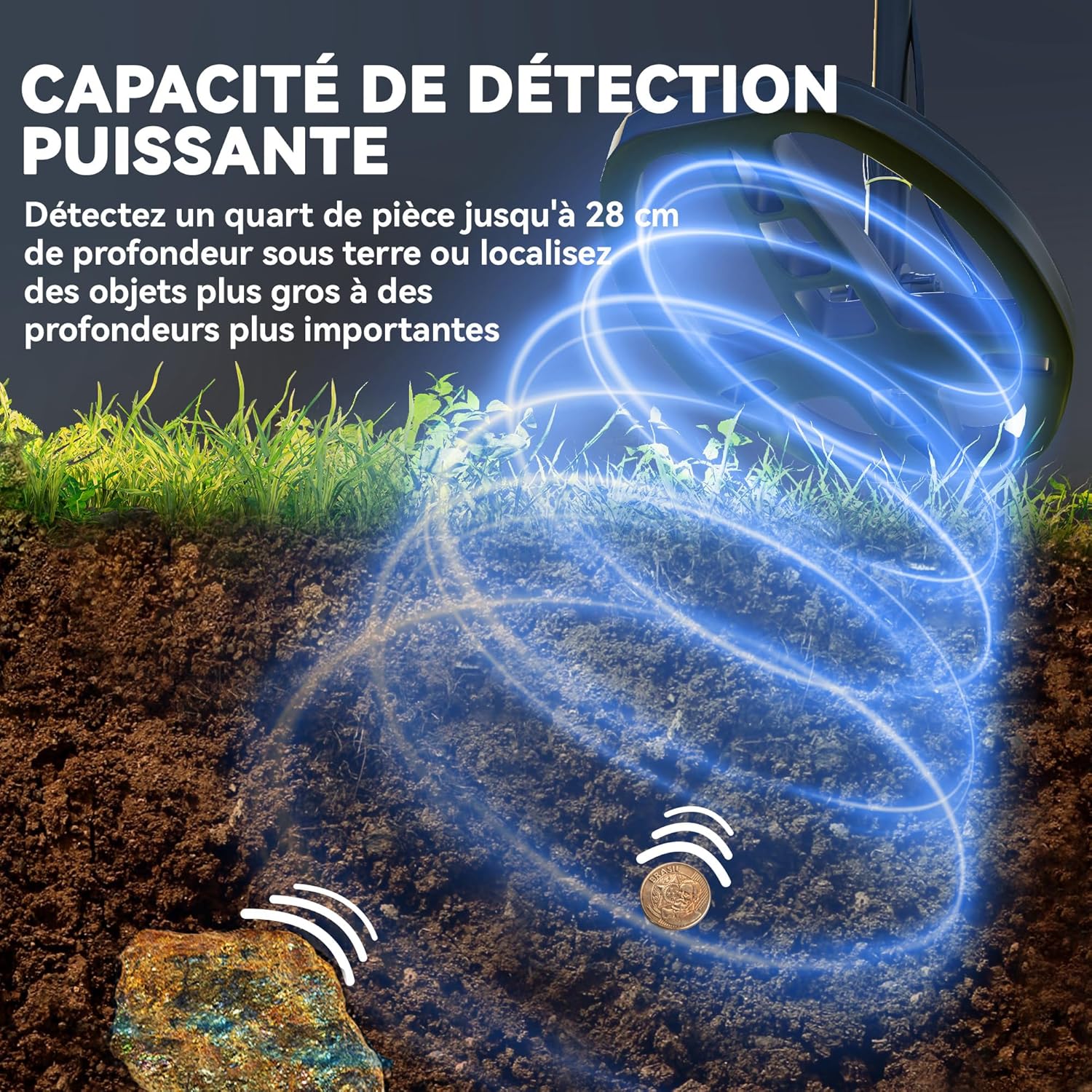

This image demonstrates the powerful detection capability, showing the search coil identifying objects buried up to 28 cm deep, such as a coin, and larger objects at even greater depths.

Vandeniui atspari paieškos ritė

The search coil is IP68 waterproof, allowing for detection in shallow water environments such as beaches, streams, and shallow pools. IMPORTANT: The control box is NOT waterproof and must be kept dry at all times.

This image highlights the IP68 waterproof rating of the search coil, suitable for use in shallow water environments like pools, streams, and beaches. A crucial reminder is included that the control box itself is not waterproof.

Priežiūra

• Valymas: Po kiekvieno naudojimo nuvalykite detektorių drėgnu skudurėliu.amp cloth. Do not use abrasive cleaners or solvents. Ensure the search coil is clean of dirt and debris.
• Saugykla: Store the detector in a dry, cool place, away from direct sunlight and extreme temperatures. If storing for an extended period, remove the batteries to prevent leakage.
• Akumuliatoriaus priežiūra: Replace batteries when the low battery indicator appears on the LCD screen. Always use fresh, high-quality 9V batteries.
• Ritės apsauga: Avoid striking the search coil against hard objects.

Trikčių šalinimas

Specifikacijos

This image provides a visual representation of the metal detector's key dimensions, including its maximum height of 130 cm, the width of the control box area at 21 cm, and the 28 cm diameter of the search coil.

Garantija ir palaikymas

For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Outsunny website. Please have your model number (847-009V00CG) and purchase date available when contacting support.
