1. Įvadas
The cudinham X6 Mini Printer (MP-01) is a compact, inkless thermal printer designed for on-the-go printing. It connects wirelessly to your smartphone via Bluetooth, allowing you to print photos, notes, to-do lists, and custom stickers using the dedicated 'Tiny Print' application. This manual provides essential information to help you get the most out of your device.
2. Kas yra dėžutėje
Išpakuodami, patikrinkite pakuotės turinį:
- 1 x cudinham X6 Mini Printer (MP-01)
- 1 x USB Type-C įkrovimo laidas
- 5 x Rolls of Adhesive Thermal Printing Paper
- 5 x Rolls of Standard Thermal Printing Paper
- 1 x Vartotojo vadovas

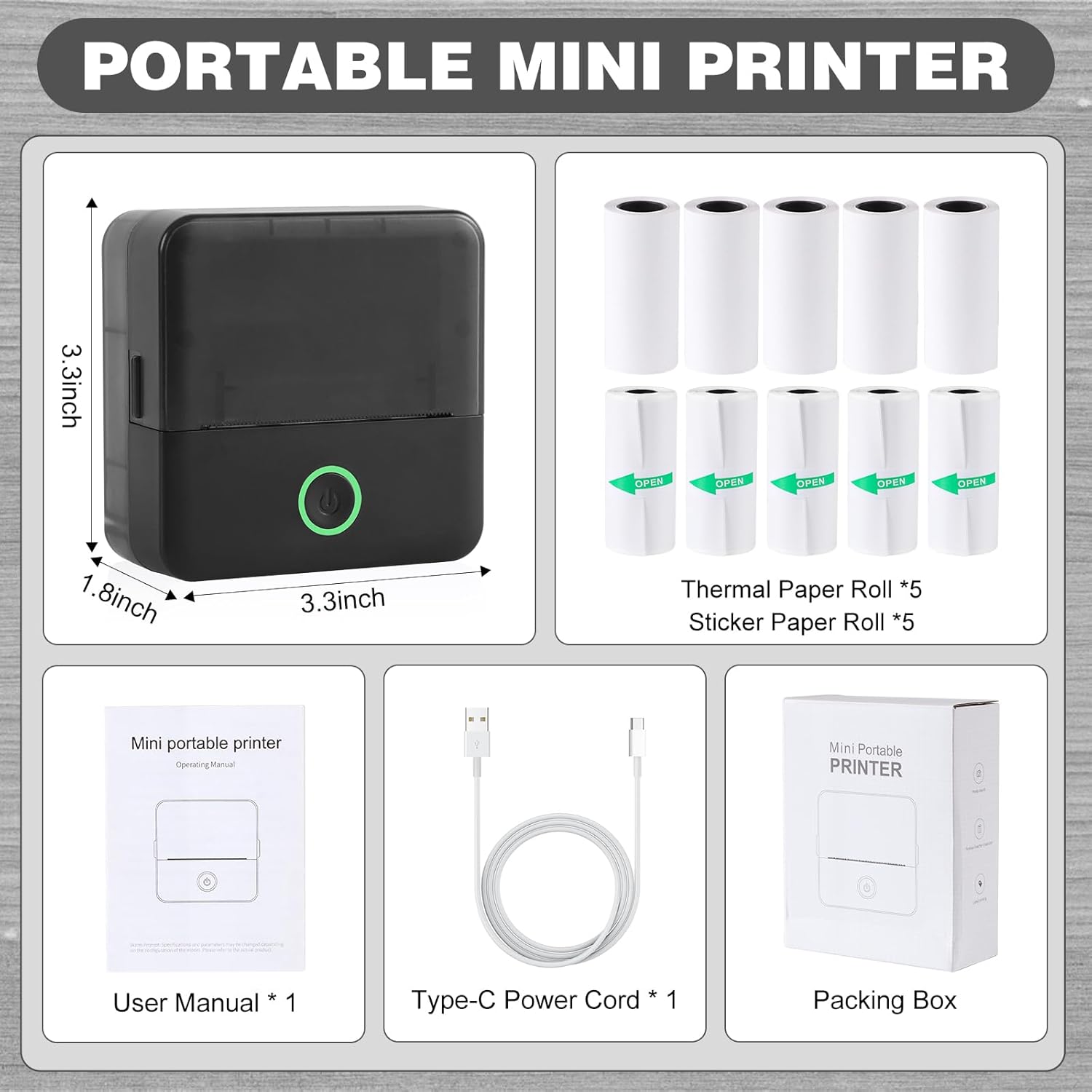

Image: The cudinham X6 Mini Printer and its included accessories: charging cable, user manual, and various thermal paper rolls.
3. Sąranka
3.1. Spausdintuvo įkrovimas
Before first use, ensure the printer is fully charged. Connect the provided USB Type-C cable to the printer's charging port and a compatible USB power adapter (not included). The power indicator light will show charging status.
3.2. Programos diegimas
The cudinham X6 Mini Printer operates via the 'Tiny Print' mobile application. Download the app from the „App Store“ („iOS“) or „Google Play“ parduotuvė („Android“).
Image: The 'Tiny Print' app interface, highlighting its various functions for printing.
3.3. „Bluetooth“ ryšys
- Įjunkite spausdintuvą paspausdami ir palaikydami maitinimo mygtuką, kol užsidegs indikatoriaus lemputė.
- Įjunkite „Bluetooth“ savo išmaniajame telefone.
- Open the 'Tiny Print' app. The app will automatically search for nearby printers.
- Select your printer (e.g., 'X6h-XXXX') from the list within the app to establish a connection. Ensure Bluetooth permissions are granted to the app.
Image: Visual instructions for connecting the printer to your smartphone via the 'Tiny Print' app.
3.4. Terminio popieriaus įdėjimas
- Open the printer's paper loading compartment by gently pushing the top cover upwards.
- Insert a roll of thermal paper. Ensure the arc part of the paper roll is facing downwards, and the printing side (smooth side) is facing up.
- Pull out a small portion of the paper (approximately 1cm) and close the top cover firmly until it clicks into place.
Image: Opening the printer's paper compartment.
Image: Correct orientation for loading the thermal paper roll.
Image: Pulling out paper and closing the printer lid.
3.5. Mokomieji vaizdo įrašai
Video: A demonstration of the Cudinham X6 Mini Thermal Printer, showcasing its inkless printing capabilities and ease of use.
Vaizdo įrašas: Viršijimasview of the Cudinham X6 Print Pod Mini Printer, highlighting its features and how it functions.
4. Spausdintuvo valdymas
4.1. Printing Photos and Images
- Ensure your printer is connected to the 'Tiny Print' app via Bluetooth.
- In the app, select 'Photo Printing' or 'Graphic Editing'.
- Choose an image from your phone's gallery or use the app's built-in materials.
- Adjust the image as desired (e.g., crop, rotate). Note that the printer outputs in black and white.
- Before printing, adjust the 'Print Depth' setting for optimal clarity. A depth between 4 and 7 is recommended for high-definition images.
- Tap 'Print' to send the image to the printer.
Image: The mini printer in action, printing an image from the app.
Image: App interface for adjusting image print depth.
4.2. Printing Text and Lists
The 'Tiny Print' app offers various templates for notes, to-do lists, and labels. You can also input custom text.
- From the app's main screen, select 'Sticky Note', 'To Do List', 'Document Print', or 'Label Printing'.
- Choose a template or enter your text.
- Adjust text size, font, and layout as needed.
- For text, you can also adjust 'Print Depth' to ensure readability.
- Tap 'Print' to generate your text output.
Image: App interface for adjusting text print depth.
4.3. Kūrybinės programos
The printer supports both standard and adhesive thermal paper, allowing for diverse creative projects:
- „Pasidaryk pats“ lipdukai: Print custom designs on adhesive paper for decorating journals, mugs, or personal items.
- Notes & Study Aids: Quickly print study notes, diagrams, or important reminders.
- Etiketės: Create labels for organization in your home or office.
- Photo Albums & Bullet Journals: Print small black and white photos to personalize your albums and journals.
Vaizdas: pvzamples of creative uses for the cudinham mini printer.
4.4. Operating Video
Video: A demonstration of the Cudinham Thermal Mini Printer, showing its functionality for printing various items like stickers and notes.
5. Priežiūra
5.1. Spausdinimo galvutės valymas
If print quality degrades or appears unclear after repeated use, the print head (laser bar) may need cleaning. Gently wipe the laser bar, located in the paper loading compartment, with an alcohol-dampened cloth or cotton swab. Ensure the printer is off before cleaning.
5.2. Akumuliatoriaus priežiūra
The printer is equipped with a built-in 1200mAh lithium-ion battery. To prolong battery life, avoid exposing the device to extreme temperatures. Charge the device regularly, even if not in frequent use, to maintain battery health.
6. Problemų sprendimas
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Print is unclear or faded | Dirty print head; incorrect print depth setting. | Clean the print head with alcohol. Adjust the 'Print Depth' in the app (recommended range 4-7 for high definition). |
| Cannot connect to the app via Bluetooth | Bluetooth not enabled; app permissions not granted; printer not discoverable. | Ensure Bluetooth is enabled on your phone and printer. Grant necessary app permissions. Restart the printer and app. |
| Paper jam or incorrect feeding | Popierius įdėtas neteisingai; popieriaus kelyje yra pašalinis objektas. | Ensure paper is loaded with the arc facing down and the smooth side up. Remove any obstructions. |
| Spausdintuvas neįsijungia | Žema akumuliatoriaus įkrova; įrenginio gedimas. | Charge the printer fully. If the issue persists, contact customer support. |
7. Specifikacijos
| Funkcija | Detalė |
|---|---|
| Prekės ženklas | cudinham |
| Modelio pavadinimas | X6 |
| Prekės modelio numeris | MP-01 |
| Ryšio technologija | Bluetooth |
| Spausdinimo technologija | Šiluminis |
| Spausdintuvo išvestis | Monochrominis (juodas rašalas) |
| Didžiausias spausdinimo greitis, vienspalvis | 1 ppm |
| Maksimali juodai balto spausdinimo skiriamoji geba | 200 dpi |
| Spausdinimo laikmena | Etiketės (terminis popierius) |
| Lapo dydis | 57 X 25 Millimeters (Max Media Size: 57 X 350 mm) |
| Gaminio matmenys | 1.77 x 3.35 x 3.35 colio |
| Prekės svoris | 14.4 uncijos |
| Baterija | 1200 mAh ličio jonų akumuliatorius (pridedamas) |
| Techninės įrangos sąsaja | USB |
8. Garantija ir palaikymas
The cudinham X6 Mini Printer comes with a limited warranty. For specific warranty terms and conditions, please refer to the warranty card included in your package or contact cudinham customer support.
If you encounter any issues not covered in this manual or require further assistance, please visit the cudinham Store on Amazon arba susisiekite tiesiogiai su jų klientų aptarnavimo tarnyba.
