1. Įvadas
This manual provides essential information for the safe operation, maintenance, and care of your PUCKIPUPPY Boxer ST Electric Bicycle. Please read this manual thoroughly before your first ride to ensure proper assembly, function, and safety. Retain this manual for future reference.
Saugos įspėjimas:
- Važiuodami visada dėvėkite šalmą ir atitinkamą apsaugos įrangą.
- Susipažinkite su vietos kelių eismo taisyklėmis ir taisyklėmis.
- Perform pre-ride checks as outlined in this manual.
- Do not operate the ebike under the influence of alcohol or drugs.
2. Produktas baigtasview
The PUCKIPUPPY Boxer ST is a full-suspension electric bicycle designed for versatile riding, featuring a powerful motor, long-range battery, and robust fat tires. Its step-thru frame design enhances accessibility.
Pagrindiniai komponentai

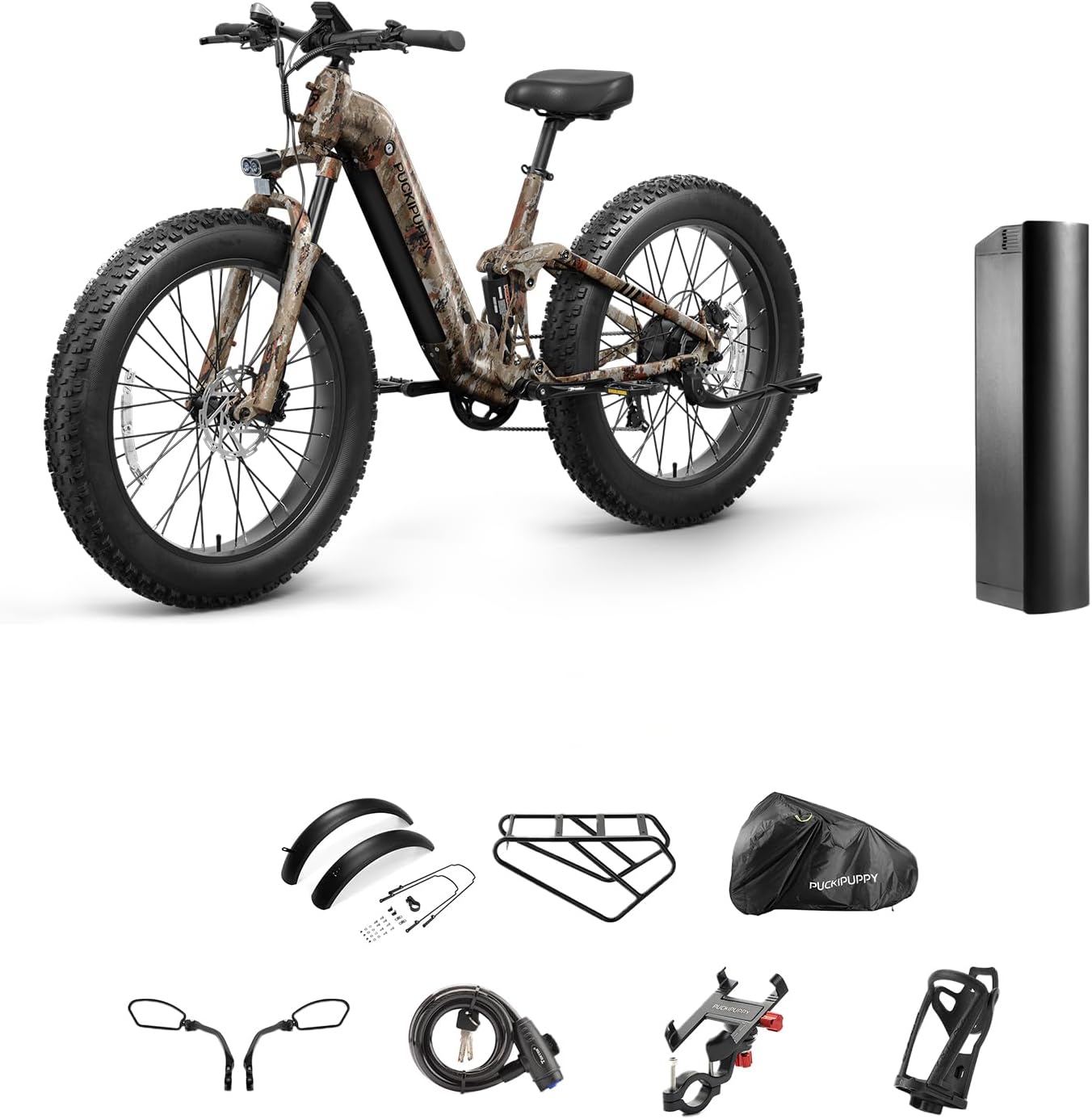

2.1 pav. Baigtaview of the PUCKIPUPPY Boxer ST Electric Bicycle and its accessories, including an additional battery, rear rack, fenders, cell phone holder, bike lock, water cup holder, bike cover, and bike mirrors.

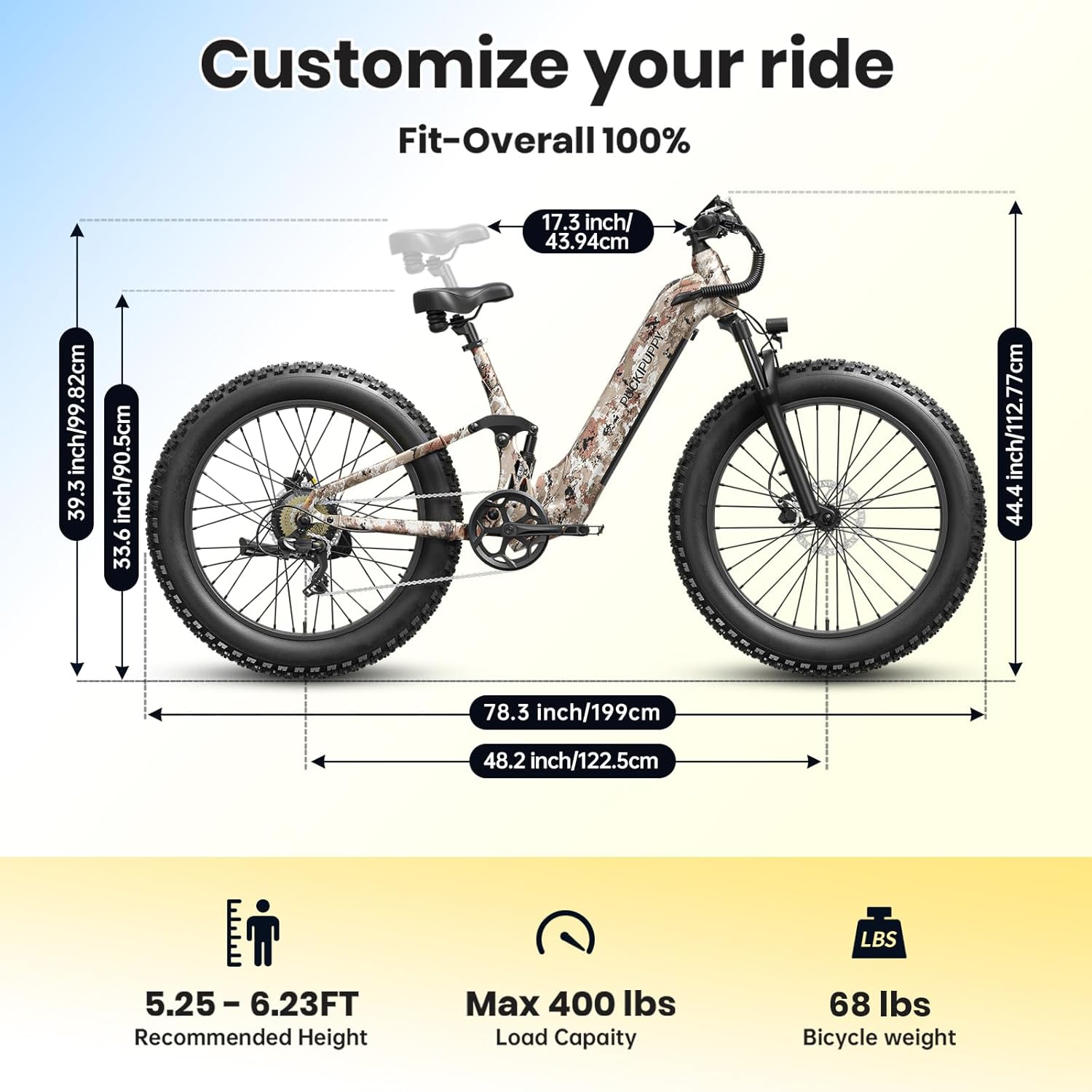

Figure 2.2: Detailed dimensions of the Boxer ST ebike, showing overall length, height, wheel size, and recommended rider height (5.25 - 6.23 ft), maximum load capacity (400 lbs), and bicycle weight (68 lbs).
3. Sąranka ir surinkimas
Your PUCKIPUPPY Boxer ST electric bicycle arrives 85% pre-assembled. Follow these steps to complete the assembly.
3.1 Išpakavimas
- Carefully remove the ebike and all components from the packaging.
- Inspect for any shipping damage. Contact support immediately if damage is found.
- Pašalinkite visas apsaugines pakavimo medžiagas.
3.2 Vairo montavimas
- Loosen the stem bolts on the front fork.
- Insert the handlebar stem into the fork tube, ensuring it is aligned with the front wheel.
- Tvirtai priveržkite koto varžtus.
3.3 Pedalų montavimas
- Nustatykite kairįjį (L) ir dešinįjį (R) pedalus.
- The right pedal (R) threads clockwise into the crank arm.
- The left pedal (L) threads counter-clockwise into the crank arm.
- Tvirtai priveržkite abu pedalus veržliarakčiu.
3.4 Priekinių ratų montavimas
- Align the front wheel with the fork dropouts.
- Insert the quick-release skewer or axle through the hub.
- Secure the wheel according to the quick-release mechanism or axle nuts. Ensure it is centered and tight.
3.5 Akumuliatoriaus įdėjimas
The 48V 20AH removable battery is integrated into the frame. Ensure it is securely locked before riding.
Figure 3.1: The 48V 20Ah removable battery, securely housed within the ebike's frame, providing an electric range of 40-80 miles and featuring BMS for power saving.
3.6 Pradinis akumuliatoriaus įkrovimas
Before your first ride, fully charge the battery. Connect the charger to the battery port and then to a power outlet. The indicator light on the charger will change when fully charged (typically 6-8 hours).
Figure 3.2: Illustration of the 48V 20Ah battery being charged, highlighting its easy disassembly and safety features like short circuit, overcharge, and temperature protection.
4. Naudojimo instrukcijos
4.1 Įjungimas / išjungimas
- To power on the ebike, press and hold the power button on the LCD display.
- Norėdami išjungti, dar kartą paspauskite ir palaikykite maitinimo mygtuką, kol ekranas išsijungs.
4.2 LCD ekrano funkcijos
The intelligent LCD display provides real-time riding data and allows you to control various settings.
Figure 4.1: The intelligent LCD display showing speed, distance, time, and power levels, allowing control over various riding modes.
4.3 Važiavimo režimai
The Boxer ST offers five distinct riding modes:
- Elektrinis režimas: Pure electric power via throttle.
- Pedal-assist Mode: Motor provides assistance as you pedal. Adjustable assist levels.
- Kruizo režimas: Maintains a set speed without continuous throttle or pedaling.
- Rankinis režimas: Važiuokite kaip įprastu dviračiu be variklio pagalbos.
- Ėjimo režimas: Suteikia pagalbą einant dviračiu nedideliu greičiu.
Figure 4.2: Illustration of the ebike being used in Manual Mode, where the rider propels the bike without electric assistance.
Figure 4.3: Illustration of the ebike being used in Pedal-assist Mode, where the motor provides assistance as the rider pedals.
Figure 4.4: Illustration of the ebike being used in Cruise Mode and Electric Mode, demonstrating hands-free speed maintenance and pure electric propulsion.
4.4 Pavarų perjungimas
The ebike is equipped with a Shimano 7-speed transmission. Use the shifter on the handlebar to change gears according to terrain and desired speed. Shift smoothly to avoid strain on the drivetrain.
4.5 Stabdžių sistema
The Boxer ST features dual 180mm hydraulic disc brakes for reliable stopping power.
4.5 pav. Iš arti view of the dual hydraulic disc brakes, designed for sensitive and safe stopping performance.
Figure 4.6: Illustration of the ebike's safe braking system, highlighting the front and rear hydraulic disc brakes in action during a ride.
- Apply both front and rear brakes simultaneously for optimal stopping.
- Venkite staigaus, stipraus stabdymo, ypač važiuojant dideliu greičiu arba ant nelygaus paviršiaus.
4.6 Pakabos reguliavimas
The full suspension system includes a lockable and adjustable hydraulic suspension fork and a new longitudinal rear suspension.
Figure 4.7: The full suspension system, showing the suspension fork lock and hydraulic suspension fork, designed to reduce bumps by 80% on rough roads.
Figure 4.8: Illustration of the dual suspension system, including the suspension fork lock and hydraulic suspension fork, contributing to a comfortable riding experience.
- Adjust the fork's lockout and rebound settings to suit terrain and riding style.
- Consult a professional bike mechanic for advanced suspension tuning.
5. Baterijos valdymas
5.1 Įkrovimas
- Use only the provided 54V 2A charger.
- Įkraukite sausoje, gerai vėdinamoje vietoje, atokiau nuo degių medžiagų.
- Neuždenkite įkroviklio naudojimo metu.
- Pilnas įkrovimas trunka maždaug 6–8 valandas.
5.2 Išėmimas ir montavimas
- To remove the battery, unlock it with the key and slide it out of the frame.
- Norėdami įdiegti, įstumkite bateriją atgal į rėmą, kol ji spragtelės į vietą, tada užfiksuokite ją raktu.
5.3 Priežiūra ir laikymas
- Store the battery in a cool, dry place between 0°C and 25°C (32°F and 77°F).
- Venkite ekstremalių temperatūrų.
- Jei akumuliatorių sandėliuosite ilgą laiką, įkraukite jį iki 50–70 % kas 2–3 mėnesius.
- Saugokite akumuliatorių nuo vandens ar drėgmės.
6. Priežiūra ir priežiūra
6.1 Reguliarūs patikrinimai
- Padangos: Check tire pressure before each ride. The 26"x 4" fat tires require specific pressure for optimal performance and comfort.
- Stabdžiai: Ensure brake levers are firm and responsive. Check brake pads for wear.
- Grandinė: Grandinę laikykite švarią ir suteptą.
- Varžtai ir tvirtinimo detalės: Periodiškai patikrinkite visų varžtų ir tvirtinimo detalių tvirtumą.

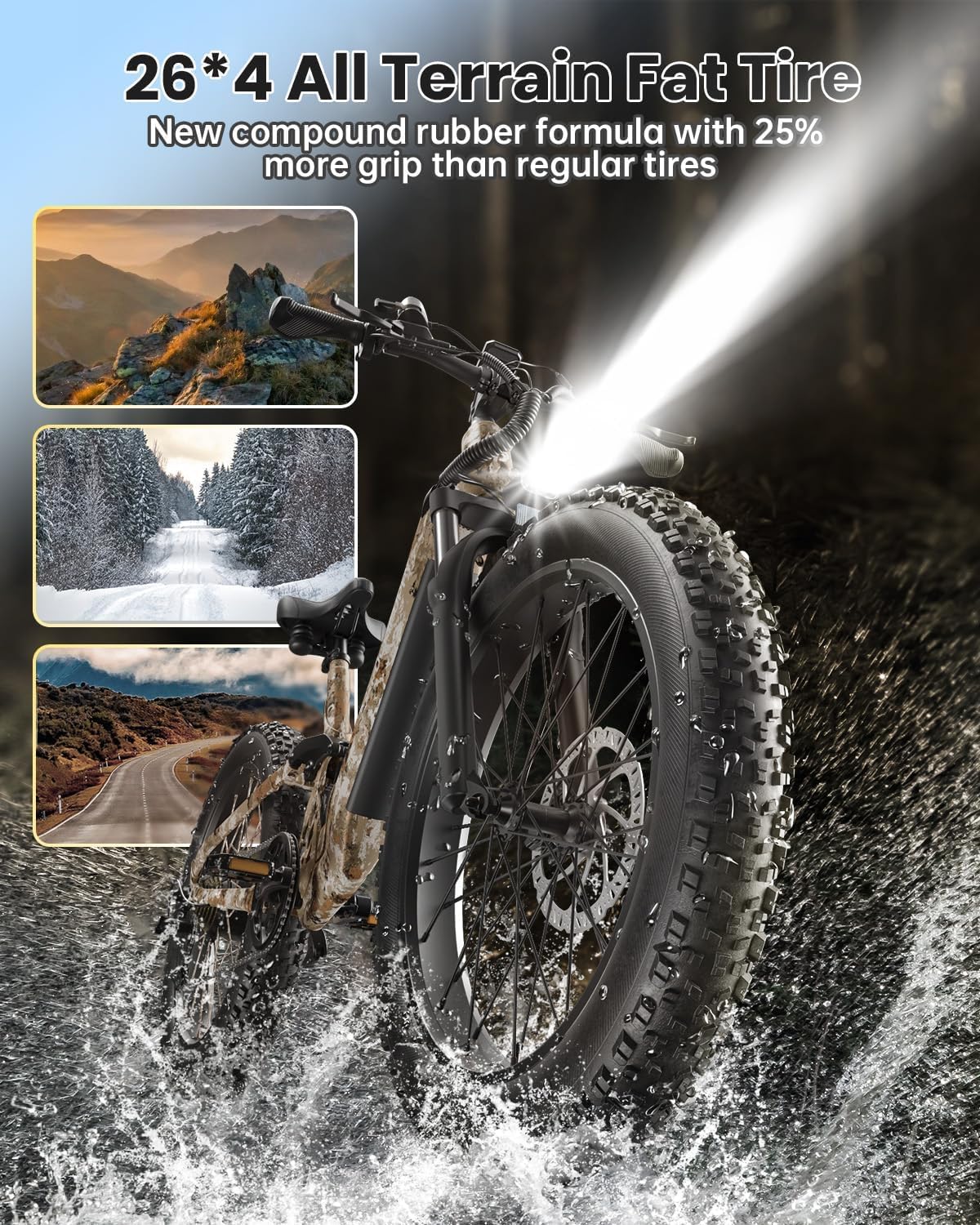

Figure 6.1: The 26x4 all-terrain fat tire, featuring a new compound rubber formula for 25% more grip, suitable for various terrains including mountains, snow, and wet conditions.
6.2 Valymas
- Nuvalykite rėmą reklamaamp Neplaukite aukšto slėgio srove tiesiai ant elektrinių komponentų.
- Clean the drivetrain with a degreaser and brush.
6.3 Saugykla
- Store the ebike in a dry, secure location, away from direct sunlight and extreme temperatures.
- If storing for long periods, remove the battery and follow battery storage guidelines.
7. Problemų sprendimas
This section addresses common issues you might encounter with your PUCKIPUPPY Boxer ST ebike.
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Ebike does not power on | Battery not charged or not properly installed; Power button not pressed correctly. | Įsitikinkite, kad akumuliatorius yra visiškai įkrautas ir tvirtai įdėtas. Tvirtai paspauskite ir palaikykite maitinimo mygtuką. |
| Variklis nepadeda | Battery low; Pedal-assist level set to zero; Sensor issue. | Charge battery. Increase pedal-assist level on display. Check for loose connections. |
| Stabdžiai jaučiasi silpni | Worn brake pads; Air in hydraulic lines; Misaligned calipers. | Inspect brake pads and replace if worn. Consult a bike mechanic for hydraulic system bleeding or caliper adjustment. |
| Neįprasti garsai iš pavaros sistemos | Dry or dirty chain; Misaligned derailleur. | Clean and lubricate chain. Adjust derailleur if necessary, or seek professional help. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact PUCKIPUPPY customer support.
8. Specifikacijos
Detailed technical specifications for the PUCKIPUPPY Boxer ST Electric Bicycle.
8.1 pav.: sprogo view of the 48V 960W powerful motor, highlighting its components and capabilities including 90Nm torque and 30-40 degree climbing ability.
| Funkcija | Specifikacija |
|---|---|
| Dviračio tipas | Elektrinis dviratis |
| Amžiaus diapazonas (aprašas) | Suaugęs |
| Prekės ženklas | Šuniukas |
| Greičių skaičius | 7 (Shimano) |
| Spalva | Kamufliažas |
| Rato dydis | 26 colių (4 colių storio padanga) |
| Rėmo medžiaga | Aluminum 6061 Alloy (Step-Thru Design) |
| Pakabos tipas | Dual (Hydraulic Suspension Fork & Longitudinal Rear Suspension) |
| Variklis | 960W Peak Brushless Rear Hub Motor (90Nm Torque) |
| Didžiausias greitis | Up to 28 MPH (Pedal Assist), 20 MPH (Pure Electric) |
| Baterija | 48 V 20 Ah nuimamas akumuliatorius |
| Maksimalus diapazonas | 40-80 Miles (Pedal Assist, varies by conditions) |
| Įkrovimo laikas | 6-8 Hours (with 54V 2A charger) |
| Stabdžiai | Dual 180mm Hydraulic Disc Brakes |
| Ekranas | Upgraded LCD Intelligent Display |
| Maksimalus laipiojimo sugebėjimas | Iki 40° |
| Rekomenduojamas motociklininko ūgis | 5.25–6.23 pėdos |
| Maksimali apkrova | 400 svaro |
| Dviračio svoris | 68 svaro |
9. Garantija ir palaikymas
PUCKIPUPPY is committed to providing high-quality products and excellent customer service.
9.1 Professional Support Team
If you have any questions regarding your ebike, assembly, operation, or maintenance, the PUCKIPUPPY professional support team is available to assist you. They aim to provide feasible solutions within 24 hours.
9.2 Informacija apie garantiją
Specific warranty details are provided with your purchase documentation. Please refer to those documents for terms and conditions. Generally, PUCKIPUPPY stands behind the quality of its products.
9.3 Kontaktinė informacija
For support, please refer to the contact details provided in your purchase package or visit the official PUCKIPUPPY websvetainę, kurioje rasite naujausią pagalbos informaciją.
