YANZEO S200 2D Barcode Scanner User Manual

Modelis: S200

1. Įvadas

The YANZEO S200 is a high-speed, plug-and-play 2D barcode scanner designed for efficient data capture in various environments, including retail, inventory management, and point-of-sale (POS) systems. It features an advanced CMOS sensor for quick and accurate decoding of both 1D and 2D barcodes, including QR codes, Data Matrix, and PDF417, from paper labels and digital screens. Its robust design ensures durability in demanding work settings.

2. Sąranka

2.1 Skaitytuvo prijungimas

The YANZEO S200 barcode scanner is designed for simple plug-and-play operation. No additional drivers or software installation are required for most operating systems.

  1. Locate an available USB port on your computer (desktop, laptop, or tablet).
  2. Connect the USB cable from the scanner to the USB port on your device.
  3. The operating system will automatically detect and install the necessary device components. The scanner will be ready for use within seconds.
YANZEO S200 barcode scanner connected via USB to a laptop, illustrating its plug-and-play functionality.
Image: The YANZEO S200 scanner connected to a laptop via USB, highlighting its quick plug-and-play setup.

2.2 Using the Fixed Stand

The scanner comes with a fixed stand (YS2308-11 Holder) that enables hands-free scanning. This is particularly useful for high-volume scanning tasks.

  • Place the scanner securely into the provided stand.
  • For enhanced stability, the stand can be permanently affixed to a surface using screws or adhesive (not included).
YANZEO S200 barcode scanner placed in its fixed stand on a retail checkout counter.
Image: The YANZEO S200 scanner positioned in its fixed stand on a checkout counter, ready for hands-free operation.

3. Skenerio valdymas

3.1 Pagrindinė nuskaitymo procedūra

  1. Ensure the scanner is properly connected to your computer.
  2. Open an application where you want the scanned data to appear (e.g., a text editor, spreadsheet, or POS software).
  3. Aim the scanner's light beam at the barcode or QR code you wish to scan. Ensure the entire code is within the scanning area.
  4. Press the trigger button (for handheld use) or present the code to the scanner (for hands-free use).
  5. A successful scan is typically indicated by an audible beep and/or a visual confirmation light. The scanned data will appear in your active application.

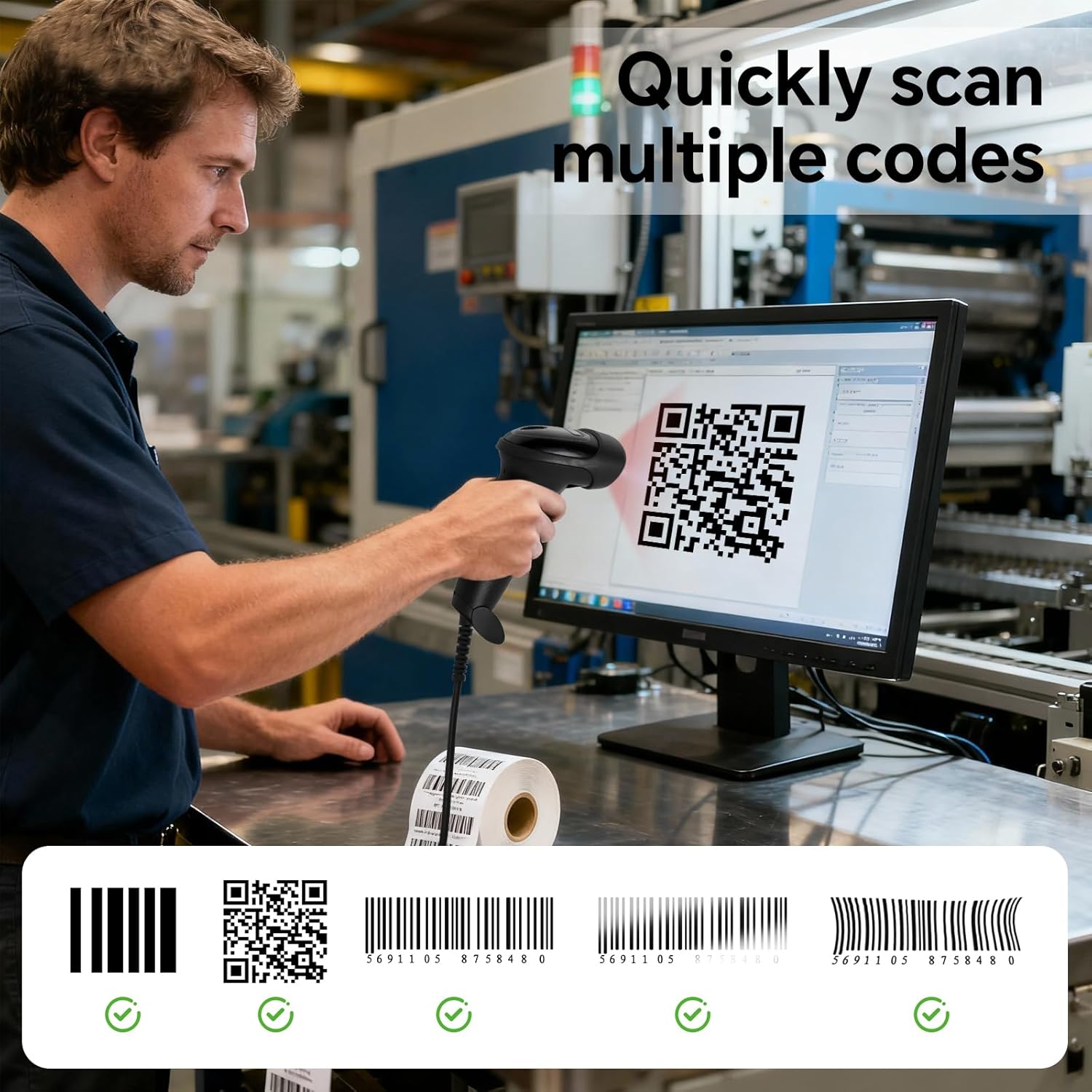

A person scanning multiple types of barcodes and QR codes displayed on a computer monitor with the YANZEO S200 scanner.
Image: The YANZEO S200 scanner demonstrating its ability to quickly scan various 1D and 2D codes, including QR codes.

3.2 Skenavimo režimai

The YANZEO S200 supports versatile scanning modes to suit different operational needs:

  • Rankinio paleidimo režimas: The scanner activates only when the trigger button is pressed. Ideal for precise, individual scans.
  • Automatinio aptikimo režimas: Skaitytuvas automatiškai aptinka ir nuskaito brūkšninius kodus, kai jie patenka į jo skaitymo lauką view, without needing to press the trigger. This mode is often used with the fixed stand for hands-free operation.
  • Nepertraukiamo nuskaitymo režimas: The scanner continuously emits its scanning beam, rapidly capturing any barcodes that pass through its field. Suitable for high-speed, repetitive scanning tasks.

3.3 Duomenų įkėlimo režimai

The scanner offers two primary data upload modes:

  • Momentinio įkėlimo režimas: Data is transmitted to the connected device immediately after each successful scan. This mode ensures real-time data synchronization.
  • Saugojimo režimas: Scanned data is stored internally within the scanner's memory. This allows for offline operation, with data uploaded to the connected device at a later time, typically in a batch.
Diagram illustrating the two upload modes: Instant Upload Mode for real-time data sync and Storage Mode for offline scanning and later batch upload.
Image: Visual representation of the Instant Upload Mode and Storage Mode, showing how data is transferred to a computer.

3.4 Produkto vaizdo demonstracija

Watch this video for a visual demonstration of the YANZEO S200 barcode scanner in action.

Video: A demonstration of the YANZEO S200 2D Barcode Scanner's features and operation.

4. Priežiūra

4.1 Valymas

To ensure optimal performance and longevity of your scanner, regular cleaning is recommended:

  • Use a soft, clean, lint-free cloth to wipe the scanner's exterior.
  • Skenavimo langeliui naudokite objektyvo valymo šluostę arba minkštą šluostę, lengvai nuvalytąampened with a mild, non-abrasive cleaning solution. Avoid harsh chemicals, solvents, or abrasive materials, as these can damage the device.
  • Ensure no liquid enters the scanner's housing.

4.2 Priežiūra ir tvarkymas

The YANZEO S200 is built with an IP54-rated housing, providing resistance to dust and water splashes, and can withstand drops from up to 1.5 meters. However, proper care is still essential:

  • Avoid exposing the scanner to extreme temperatures, direct sunlight for prolonged periods, or high humidity.
  • Do not attempt to disassemble or repair the scanner yourself. This will void the warranty and may cause damage.
  • Kai nenaudojate, skaitytuvą laikykite švarioje, sausoje aplinkoje.
Image showing the YANZEO S200 barcode scanner with text highlighting its durable, industrial-grade IP54 rating and drop-tested construction.
Image: The YANZEO S200 scanner's robust construction, emphasizing its IP54 rating and drop resistance for tough environments.

5. Problemų sprendimas

If you encounter issues with your YANZEO S200 barcode scanner, refer to the following common problems and solutions:

ProblemaGalima priežastisSprendimas
Kompiuteris neatpažino skaitytuvoAtsilaisvinęs USB ryšys, sugedęs USB prievadas, operacinės sistemos problema.Ensure the USB cable is securely connected. Try a different USB port or a different computer. Restart your computer.
Unable to scan barcodesIncorrect aiming, damaged barcode, unsupported barcode type, insufficient lighting, scanner in incorrect mode.Ensure the scanner is aimed directly at the center of the barcode. Check if the barcode is clear and undamaged. Verify the barcode type is supported (1D/2D). Ensure adequate lighting. Check the scanner's operating mode (manual, auto-detection).
Scanned data appears incorrectly or not at allApplication not in focus, incorrect keyboard layout, scanner configuration issue.Ensure the target application window is active and ready to receive input. Check your computer's keyboard layout settings. If using Storage Mode, ensure data has been uploaded.
No beep or light indication after scanningUnsuccessful scan, scanner settings.Confirm the barcode is valid and properly aimed. Check scanner configuration for sound and light indicators.

6. Specifikacijos

FunkcijaDetalė
Prekės ženklasYanzeo
ModelisS200
Ryšio technologijaUSB
Suderinami įrenginiaiDesktop computer, Laptop, Tablet (Windows, Mac, Linux, Android)
Maitinimo šaltinisElectric Cable (USB powered)
Veiklos ttage5 volto (DC)
IP reitingasIP54 (Dust and water splash resistant)
Atsparumas kritimuiIki 1.5 metrų
Palaikomi brūkšniniai kodai1D and 2D codes (e.g., QR, Data Matrix, PDF417)

7. Informacija apie garantiją

Specific warranty details for the YANZEO S200 barcode scanner are not provided in the product information. Please refer to the warranty policy provided by your retailer or contact YANZEO customer support for detailed warranty terms and conditions.

8. Parama

For further assistance, technical support, or inquiries regarding your YANZEO S200 barcode scanner, please contact the vendor or manufacturer directly. Refer to your purchase documentation for specific contact information.
