Mars Gaming MC-REV ATX Gaming Case Instruction Manual

Įvadas

Thank you for choosing the Mars Gaming MC-REV ATX Gaming Case. This manual provides essential information for the proper installation, operation, and maintenance of your new PC case. The MC-REV is designed for high-performance gaming systems, featuring a revolutionary airflow system, double tempered glass panels, and support for vertical GPU installation.

Please read this manual carefully before beginning the assembly process to ensure optimal performance and longevity of your components.

Produkto savybės

• Dual Seamless Tempered Glass Panels: Mėgaukitės panorama view of your build with frameless, screwless tempered glass panels, allowing easy access and an impressive aesthetic.
• Revolutionary Airflow System: Three 120mm ARGB fans are strategically tilted at a 25° angle to direct cool air directly to the GPU and motherboard, ensuring efficient heat dissipation.
• Compatibility with Reverse Port Motherboards: Designed to support motherboards with reverse connectors for optimized cable management and improved internal aesthetics.
• Vertical GPU Mounting System: A dedicated steel structure allows for vertical installation of your graphics card, enhancing visual appeal and airflow (optional riser cable not included).
• Advanced Connectivity & ARGB Hub: Features a lower control panel with USB-C, USB 3.0, USB 2.0, HD audio, and microphone ports. An integrated ARGB hub with RF remote control allows for customizable lighting effects and fan speed adjustments, with motherboard synchronization capability.
• Didžiausia talpa: Supports ATX, MicroATX, and Mini-ITX motherboards, GPUs up to 420mm, CPU coolers up to 157mm, and liquid cooling up to 360mm. Includes internal bays for 2 x HDD 3.5" + 1 x SSD 2.5" or 1 x HDD 3.5" + 2 x SSD 2.5".

Sąranka ir diegimas

Safety First: Always disconnect the power supply from the wall outlet before installing or removing any components. Wear an anti-static wrist strap to prevent electrostatic discharge (ESD) damage to your components.

1. Išpakavimas ir patikrinimas

Carefully remove the MC-REV case from its packaging. Inspect the case for any signs of damage during transit. Report any damage to your retailer immediately.

2. Šoninių plokščių nuėmimas

The MC-REV features screwless tempered glass panels. Gently lift and remove the side panels to access the interior for component installation.

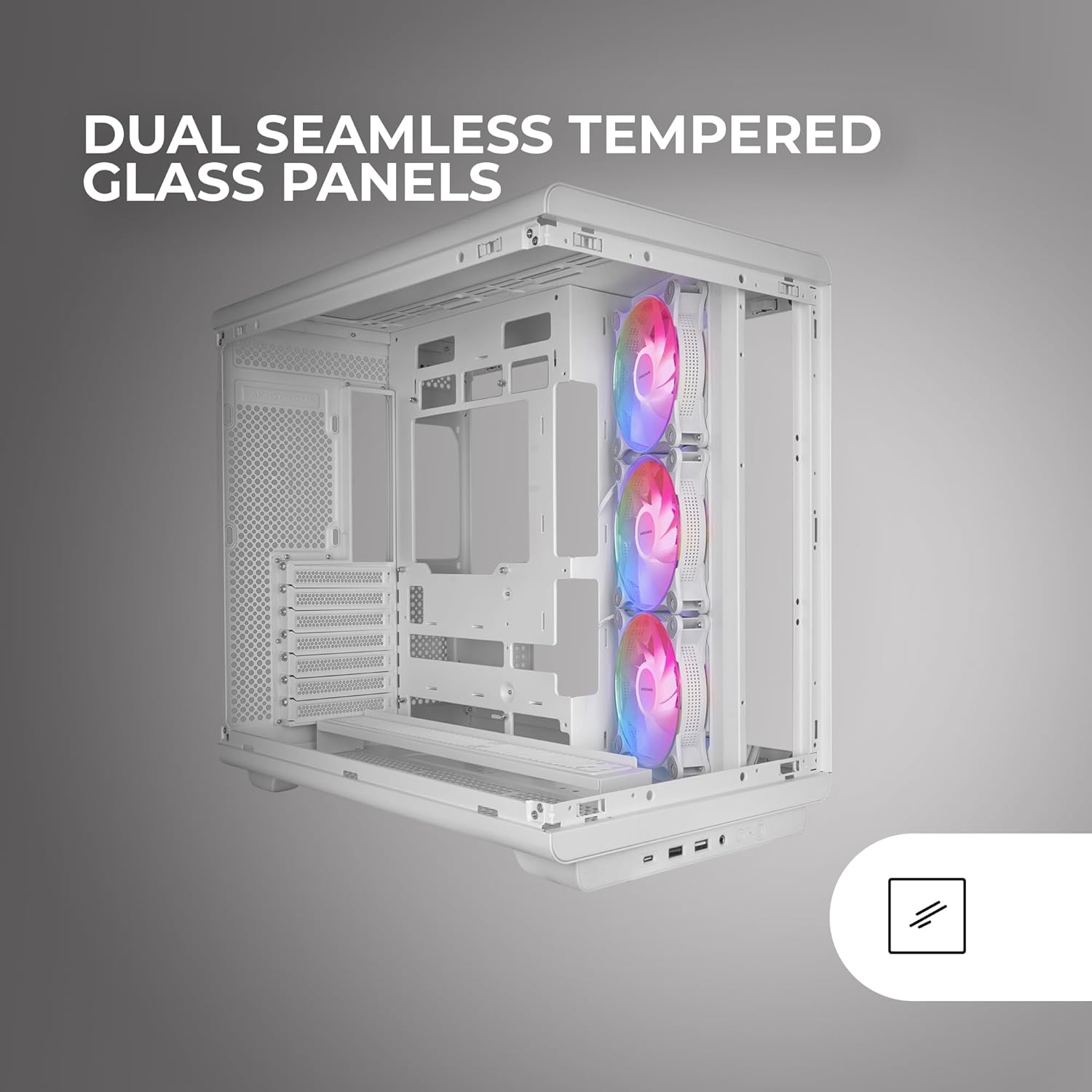

Image: The Mars Gaming MC-REV PC case with its dual seamless tempered glass panels removed, providing a clear view of the internal structure and component mounting areas.

3. Pagrindinės plokštės montavimas

1. Identify the correct standoffs for your ATX, MicroATX, or Mini-ITX motherboard. Install any necessary standoffs if they are not pre-installed.
2. Atsargiai uždėkite pagrindinę plokštę ant atramų, sulygiuodami varžtų skyles.
3. Pritvirtinkite pagrindinę plokštę pridėtais varžtais.
4. If using a reverse port motherboard, ensure all connectors are routed through the designated cutouts for optimal cable management.

Paveikslėlis: detalus view of a motherboard installed in the MC-REV case, demonstrating the compatibility with back-connect motherboards and the clean routing of power and data cables behind the motherboard tray.

4. Vaizdo plokštės (GPU) diegimas

• Standard Horizontal Installation: Remove the necessary PCIe slot covers. Insert your GPU into the primary PCIe slot on your motherboard and secure it with screws.
• Vertikalus montavimas: The MC-REV supports vertical GPU mounting. Install your graphics card into the vertical mounting bracket. Note: A PCIe riser cable is required for vertical GPU installation and is not included with the case. Secure the bracket to the case.

Image: The interior of the Mars Gaming MC-REV PC case, featuring a graphics card mounted vertically, showcasing the dedicated vertical GPU mounting system and the illuminated ARGB fans.

5. Atminties disko diegimas

• Locate the internal drive bays for 3.5" HDDs and 2.5" SSDs.
• Mount your drives into the appropriate bays and secure them with screws.

6. Maitinimo šaltinio (PSU) įrengimas

Install your PSU into the designated compartment, typically at the bottom rear of the case. Secure it with screws from the rear of the case. Route all necessary power cables through the cable management cutouts.

7. Fan and Liquid Cooling Installation

The MC-REV comes with three pre-installed 120mm ARGB fans. Additional fans (up to 10 total 120mm fans) or liquid cooling radiators (up to 360mm) can be installed in various locations. Refer to the case's specifications for supported mounting points.

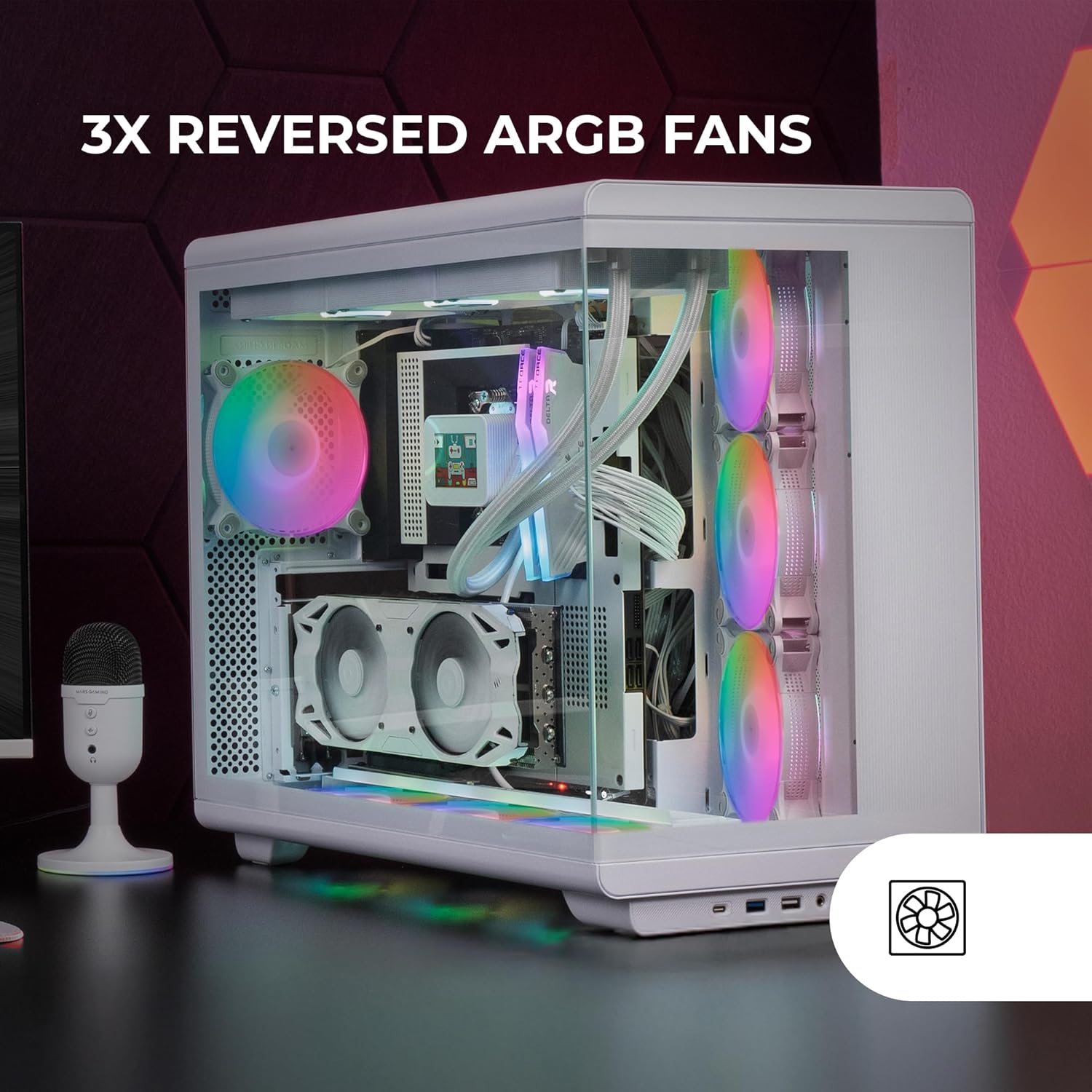

Image: The interior of the Mars Gaming MC-REV PC case, highlighting the three reversed ARGB fans with their vibrant illumination, designed for optimal airflow.

8. Connecting Front Panel I/O

Connect the cables from the case's front panel (USB-C, USB 3.0, USB 2.0, HD Audio, Microphone, Power, Reset) to the corresponding headers on your motherboard. Refer to your motherboard manual for header locations.

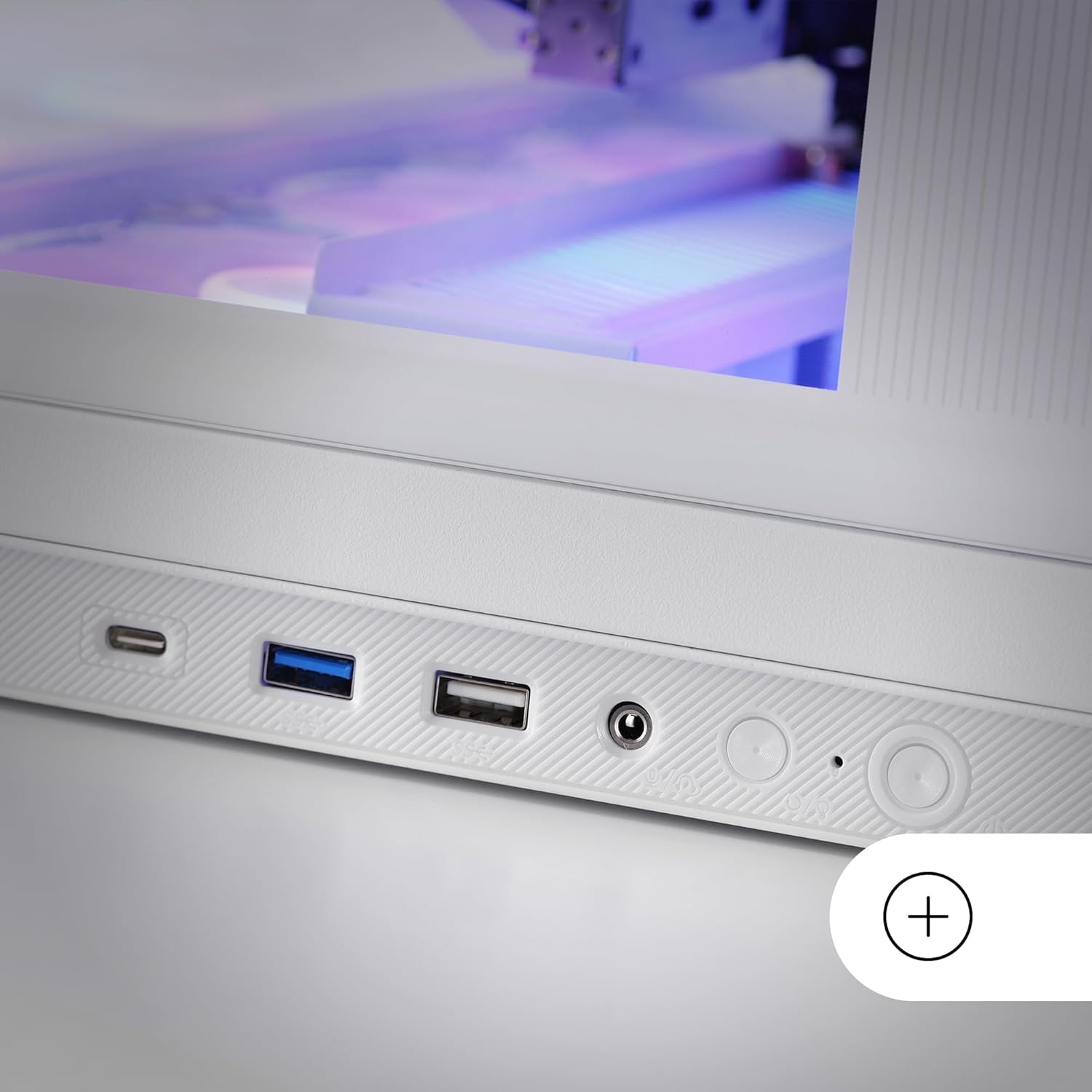

Image: A close-up of the lower control panel on the Mars Gaming MC-REV PC case, showing the USB-C, USB 3.0, USB 2.0, HD audio, and microphone ports.

9. ARGB Hub Connection

Connect the integrated ARGB hub to your power supply and, if desired, to your motherboard's ARGB header using the included connection cable for software synchronization.

10. Kabelių valdymas

Utilize the double chamber structure and cable routing channels behind the motherboard tray to organize and secure all cables. This improves airflow and maintains a clean interior aesthetic.

11. Reinstalling Side Panels

Once all components are installed and cables are managed, carefully reattach the tempered glass side panels.

Naudojimo instrukcijos

Įjungimas

After ensuring all connections are secure and the power supply is switched on, press the power button located on the front I/O panel to start your system.

ARGB apšvietimo valdymas

• RF nuotolinio valdymo pultas: Use the provided RF remote control to cycle through various ARGB lighting effects, adjust brightness, and change fan speeds for the connected fans.
• Pagrindinės plokštės sinchronizavimas: If the ARGB hub is connected to your motherboard's ARGB header, you can control the lighting effects and fan speeds through your motherboard's proprietary RGB software (e.g., ASUS Aura Sync, MSI Mystic Light, Gigabyte RGB Fusion).

Priežiūra

Korpuso valymas

• Išorė: Naudokite minkštą, damp šluoste išoriniams paviršiams valyti. Venkite abrazyvinių valiklių.
• Grūdinto stiklo plokštės: Clean with a glass cleaner and a microfiber cloth to avoid streaks.
• Dulkių filtrai: Periodically remove and clean the dust filters (if present) to maintain optimal airflow and prevent dust buildup inside the case.

Vidinis valymas

Every few months, or as needed, open the case and use compressed air to remove dust from fans, heatsinks, and other components. Ensure the system is powered off and unplugged before performing internal cleaning.

Trikčių šalinimas

• Sistema neįsijungia:
  • Patikrinkite visas maitinimo jungtis nuo maitinimo bloko iki pagrindinės plokštės ir komponentų.
  • Ensure the power button cable is correctly connected to the motherboard header.
  • Verify the PSU switch is in the "ON" position.
• Ventiliatoriai nesisuka / ARGB nešviečia:
  • Ensure all fans are properly connected to the ARGB hub or motherboard headers.
  • Verify the ARGB hub is receiving power.
  • If using motherboard sync, check your motherboard's RGB software settings.
  • Test the RF remote control's battery (1 AAAA battery included).
• Neveikiantys USB prievadai:
  • Check if the front panel USB cables are securely connected to the correct headers on your motherboard.
• Audio Jacks Not Functioning:
  • Ensure the HD Audio cable from the front panel is correctly connected to the motherboard's audio header.

For issues related to specific internal components (CPU, GPU, RAM, etc.), please refer to their respective manuals or manufacturer support.

Specifikacijos

Garantija ir palaikymas

Mars Gaming products are manufactured to high-quality standards. For warranty information and technical support, please refer to the official Mars Gaming websvetainėje arba susisiekite su vietiniu mažmenininku.

Išsaugokite pirkimo įrodymą, kad galėtumėte kreiptis dėl garantijos.

Oficialus prekės ženklas Websvetainė: Mars Gaming
