BUUBO metalo lydymo krosnis GF1100ND3 Naudotojo vadovas

1. Įvadas

This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your BUUBO Metal Melting Furnace GF1100ND3. Please read this manual thoroughly before using the product and retain it for future reference.

2. Saugos instrukcijos

ĮSPĖJIMAS: Nesilaikant šių saugos nurodymų, galima sunkiai susižaloti arba sugadinti turtą.

• Always wear appropriate personal protective equipment (PPE), including heat-resistant gloves, eye protection, and protective clothing, when operating the furnace.
• Operate the furnace in a well-ventilated area to prevent the accumulation of fumes.
• Ensure the furnace is placed on a stable, non-combustible surface.
• Do not touch hot surfaces. The furnace reaches extremely high temperatures.
• Never leave the furnace unattended during operation.
• Do not overload the crucible.
• Degias medžiagas laikykite toliau nuo krosnies.
• Prieš valydami ar techninę priežiūrą atjunkite maitinimą.
• Do not use the furnace for melting materials other than those specified (gold, silver, copper, aluminum, and other metals with melting points below 1100℃ / 2102℉).
• Laikykite vaikus ir naminius gyvūnus toliau nuo darbo zonos.

Image: The BUUBO Metal Melting Furnace GF1100ND3, shown with its main components including the furnace unit, crucible tongs, protective gloves, and power cable. This image provides a general overview gaminio ir jo pridedamų priedų.

3. Pakuotės turinys

Išpakuodami patikrinkite, ar visi daiktai yra pakuotėje ir nepažeisti.

• 1 x Melting Furnace Unit
• 1 x 1 KG Graphite Crucible (if included in your specific package)
• 1 x 3 KG Graphite Crucible
• 1 x Graphite Ingot Die (if included in your specific package)
• 1 x Crucible Tong
• 1 x apsauginės pirštinės
• 1x maitinimo laidas
• 1 x Gaminio vadovas (šis dokumentas)

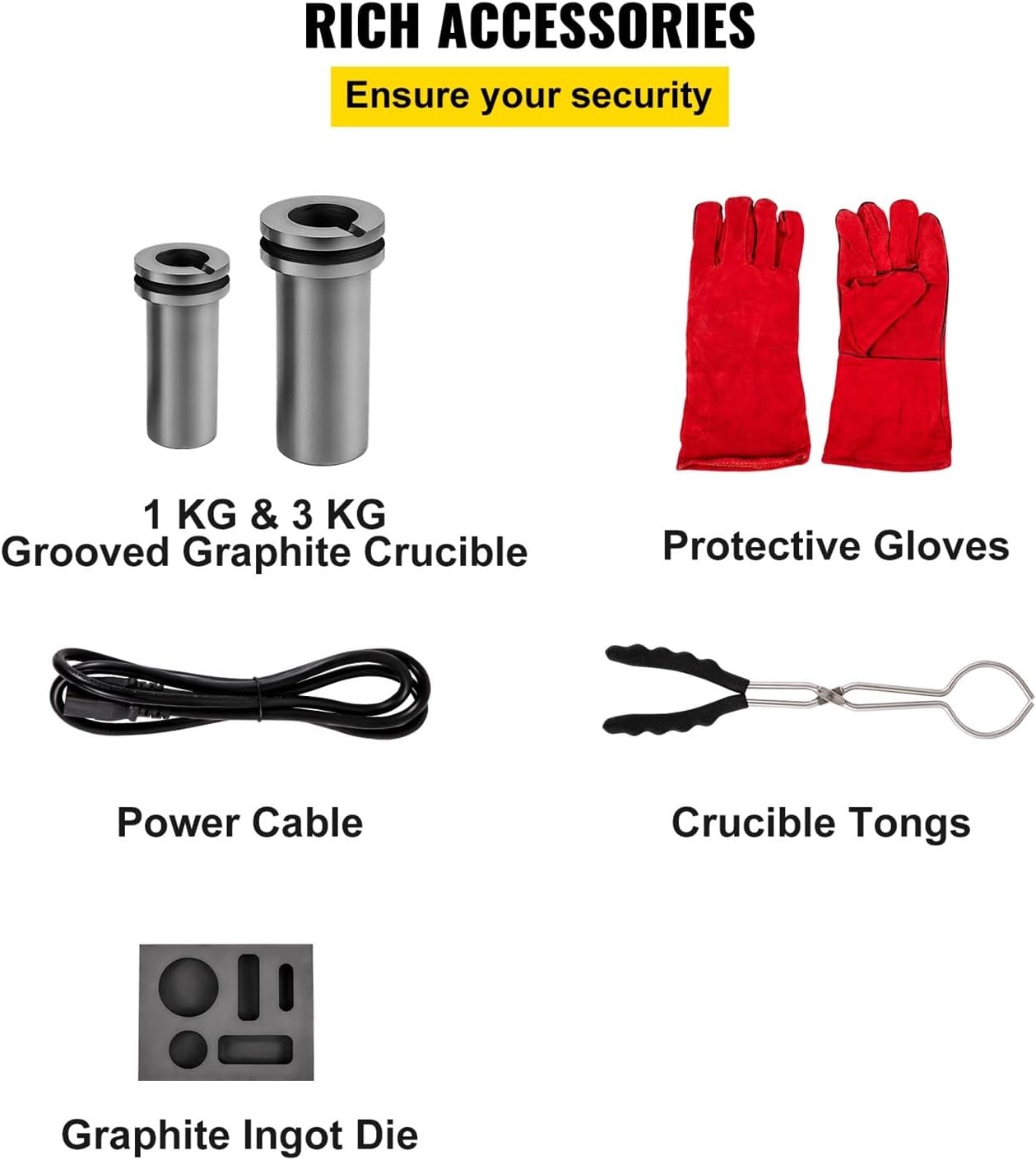

Image: A visual representation of the accessories included with the BUUBO Metal Melting Furnace. This includes the 1 KG and 3 KG graphite crucibles, protective gloves, power cable, crucible tongs, and a graphite ingot die.

4. Produktas baigtasview

The BUUBO Metal Melting Furnace GF1100ND3 is designed for melting precious metals such as gold, silver, copper, and aluminum. It features precise digital temperature control and efficient heating capabilities.

Pagrindinės funkcijos:

• Professional Melting Furnace: Equipped with a durable quartz lid and inner tank, and a quartz chamber with cooling holes for heat dissipation.
• High-Purity Graphite Crucible: Designed for rapid heating and resistance to heat, acids, and alkalis.
• Skaitmeninis temperatūros valdymas: Features a PID module and digital control system for accurate temperature monitoring and display via a K-type thermocouple.
• Fast & Efficient Heating: Utilizes high-temperature alloy heating wire to reach a maximum temperature of 1150℃ (2102℉) quickly, melting metals in approximately 45 minutes.

Image: The electric melting furnace in operation, illustrating its capability to melt various precious metals such as gold, silver, copper, and aluminum. This highlights the primary function of the device.

5. Sąranka

1. Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės. Patikrinkite, ar nėra transportavimo pažeidimų.
2. Vieta: Place the furnace on a stable, level, heat-resistant, and non-combustible surface. Ensure adequate clearance around the unit for ventilation.
3. Crucible Installation: Place the desired graphite crucible into the furnace chamber. Ensure it sits properly at the bottom.
4. Maitinimo jungtis: Connect the power cable to the furnace and then to a grounded electrical outlet. Ensure the power switch is in the "OFF" position before connecting.

Vaizdas: Stambus planas view of the high-quality graphite crucible and the premium quartz lid. This illustrates the components used for containing and insulating the molten metal during the melting process.

6. Naudojimo instrukcijos

1. Paruoškite medžiagą: Place the metal to be melted into the graphite crucible. Do not fill the crucible more than 80% of its capacity.
2. Uždaryti dangtį: Carefully close the furnace lid.
3. Maitinimas: Flip the main power switch to the "ON" position. The LED display will illuminate.
4. Nustatyti temperatūrą:
   • The display shows the current temperature and the set temperature.
   • Use the "U" (Up) and "D" (Down) buttons to adjust the target melting temperature. The maximum temperature is 1150℃ (2102℉).
   • Press the "P" (Program) button to confirm the set temperature.
5. Pradėti šildymą: The furnace will begin heating automatically to the set temperature. The display will show the current temperature rising.
6. Monitor Melting: Once the target temperature is reached, the furnace will maintain it. Monitor the melting process. Melting typically takes about 45 minutes for metals with a melting point below 1100℃.
7. Pouring Molten Metal:
   • Once the metal is fully molten, turn off the furnace by flipping the main power switch to "OFF".
   • Wearing protective gloves, carefully use the crucible tongs to lift the crucible out of the furnace.
   • Slowly and steadily pour the molten metal into a pre-heated ingot mold or desired casting form.
8. Atvėsinti: Place the empty crucible back into the furnace or on a heat-resistant surface to cool. Allow the furnace to cool completely before handling or storing.

Image: The LED display and touchpad control panel of the furnace. This panel allows users to set and monitor the precise temperature during the melting process, utilizing PID technology for accuracy.

7. Priežiūra

Regular maintenance ensures the longevity and optimal performance of your melting furnace.

• Valymas: Ensure the furnace is completely cool and unplugged before cleaning. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners or solvents.
• Crucible Care: Graphite crucibles are consumables. Inspect them for cracks or damage before each use. Replace damaged crucibles immediately. Avoid dropping or impacting crucibles.
• Saugykla: Store the furnace in a dry, dust-free environment when not in use.
• Patikra: Periodically check the power cable for any signs of damage. If damaged, discontinue use and contact customer support.

8. Problemų sprendimas

9. Specifikacijos

10. Garantija ir palaikymas

For warranty information or technical support, please contact BUUBO customer service. Keep your purchase receipt as proof of purchase.

Contact information can typically be found on the product packaging or the official BUUBO websvetainę.
