MACALLY BTZKEYA Bluetooth Wireless Keyboard for Mac (JIS Layout) - Rechargeable, Multi-Device Pairing Instruction Manual

Įvadas

Welcome to the Macally family. Thank you for purchasing the ACEBTKEY series keyboard. Our mission is to provide visually appealing, high-quality, and affordable peripherals and accessories to satisfy our customers. To achieve this, we create innovative and practical products, prioritizing ease of use above all else.

This manual provides comprehensive instructions for setting up, operating, and maintaining your new Macally BTZKEYA Bluetooth Wireless Keyboard. Please read it thoroughly to ensure optimal performance and longevity of your device.

Pakuotės turinys

• Macally BTZKEYA Bluetooth Wireless Keyboard
• USB-C į USB-A įkrovimo laidas
• Vartotojo vadovas

Sistemos reikalavimai

• Bluetooth-enabled computer, laptop, smartphone, or tablet.
• Mac OS X or later.
• A USB-A port on your laptop or desktop PC for charging the keyboard.
• If your laptop or desktop PC only has USB-C ports, a USB-C to USB-A hub or adapter is required for charging.

Produktas baigtasview

The Macally BTZKEYA keyboard is designed for efficiency and comfort, featuring a full-size layout with a numeric keypad and dedicated macOS shortcut keys. Its slim profile and scissor-switch keys provide a quiet and responsive typing experience.

1 paveikslas: The Macally BTZKEYA keyboard's slim profile and integrated kickstand. The keyboard is only 0.8 inches (approx. 2cm) thick.

2 paveikslas: The keyboard features 111 scissor-switch keys and 14 dedicated shortcut keys for macOS, enhancing productivity.

3 paveikslas: Scissor-switch keycaps provide a smooth, tactile, and quiet typing experience.

4 paveikslas: The keyboard supports multi-sync Bluetooth, allowing pairing with up to three devices like MacBook, iMac, iPad, and iPhone, with a wireless range of 30 feet.

Sąranka

Klaviatūros įkrovimas

Before initial use, ensure the keyboard is fully charged. The built-in rechargeable battery provides extended usage.

• Connect the USB-A end of the included cable to a USB-A port on your computer, laptop, or a USB-compatible AC adapter.
• Connect the USB-C end to the USB-C charging port located on the side of the keyboard.
• Pastaba: This cable is for charging only. The keyboard will not function as a wired device when connected via this cable.

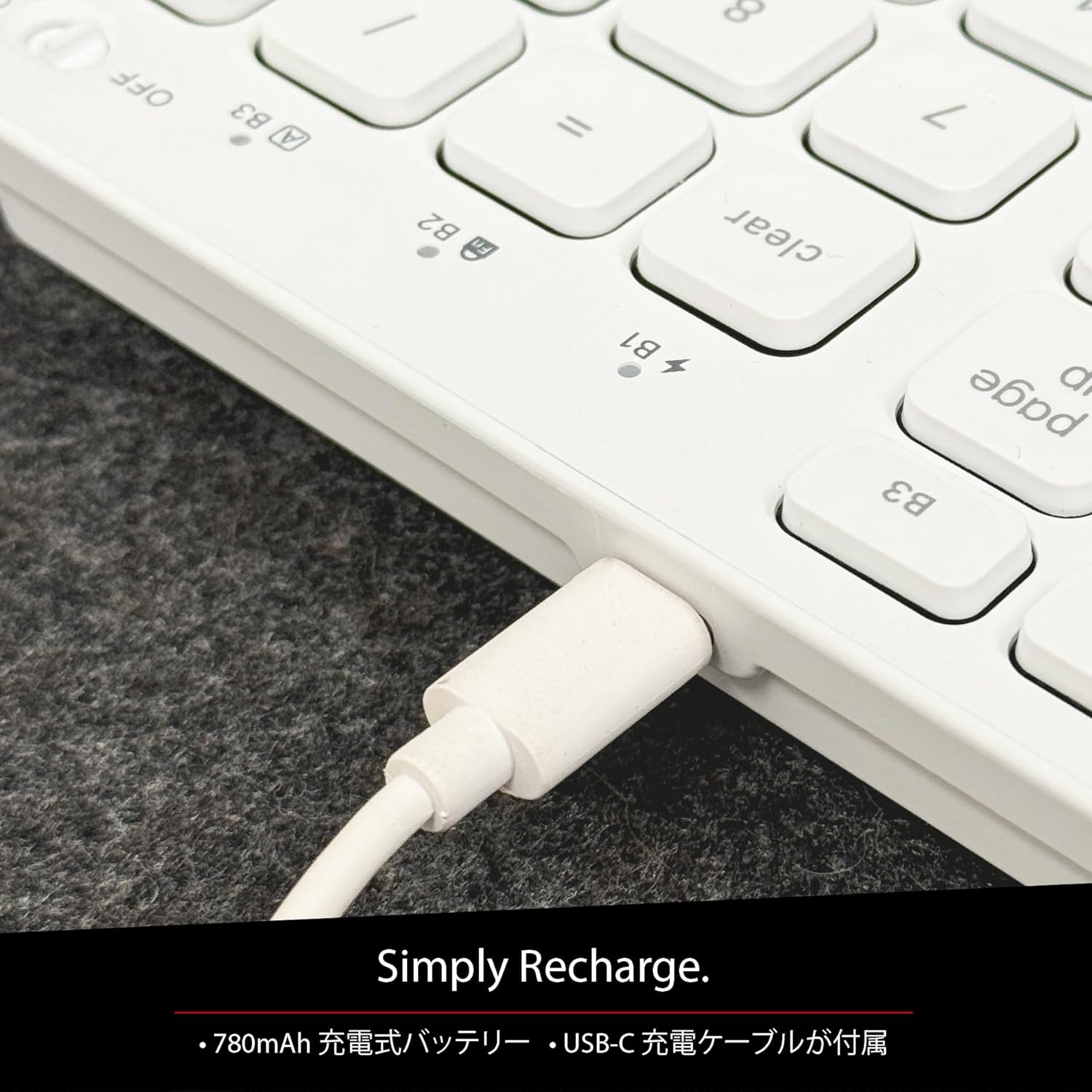

5 paveikslas: The USB-C charging port for easy recharging. The keyboard includes a 780mAh rechargeable battery.

Įkrovimo LED indikatoriai:

• Raudonas šviesos diodas: Vyksta įkrovimas.
• Žalias šviesos diodas: Pilnai įkrautas.
• All Bluetooth Channel LEDs flashing: Baterija išsikrovusi.

„Bluetooth“ susiejimo procedūra

The keyboard can be paired with up to three Bluetooth-enabled devices. The number keys 1, 2, and 3 on the top row (not the numeric keypad) are labeled B1, B2, and B3, representing the Bluetooth channels.

Ensure the keyboard is powered on and sufficiently charged before starting the pairing process. The power switch is a slide button located on the side of the keyboard (Red for Off, Green for On).

Steps to Pair (using Bluetooth Channel 1 (B1) as an example):

1. On the device you wish to connect (laptop, desktop, tablet, smartphone, etc.), open the Bluetooth settings screen.
2. Klaviatūroje paspauskite ir palaikykite fn klavišą, tada paspauskite 1 key (B1) to select Bluetooth Channel 1.
3. Next, press and hold the fn key and simultaneously press the P key. This will put the keyboard into pairing mode, and the B1 LED will flash rapidly.
4. On your device's Bluetooth settings screen, click or tap the device name "ACEBTKEY" to initiate pairing.
5. Once pairing is complete, the B1 LED on the keyboard will remain steadily lit in blue.

To connect to a second or third device, follow the same procedure using B2 (fn+2) or B3 (fn+3).

Keyboard Setup Assistant (For Mac Users)

If your Bluetooth keyboard is not immediately recognized by macOS, the Keyboard Setup Assistant will automatically launch, prompting you to specify the keyboard type. Follow the on-screen instructions.

1. When prompted, press the Z raktas.
2. Tada paspauskite ? raktas.
3. Confirm that "ANSI" is selected as the keyboard type and click "Done".

If keys do not respond or different characters are entered than printed, you may need to manually launch the Keyboard Setup Assistant:

1. Open "System Settings" or "System Preferences".
2. Select "Keyboard" and click "Change Keyboard Type".
3. When the "Keyboard Setup Assistant" window appears, click "Continue" and follow the on-screen instructions.

Naudojimo instrukcijos

Switching Between Multiple Devices

After pairing all your devices with the keyboard, you can easily switch between them:

• Paspauskite ir palaikykite fn raktas.
• Laikant fn, press the desired Bluetooth channel key (B1, B2, arba B3).
• Release both keys. The keyboard will switch to the selected device.

Shortcut and Function Keys

The F-row (function key row) at the top of the keyboard defaults to shortcut mode. These keys perform functions indicated by the small white icons or text printed on them (e.g., play, pause, cut, copy).

To use standard function keys (F1, F2, etc.), press the desired function key while holding down the fn raktas.

You can toggle between shortcut mode and standard F1-F12 function keys at any time by pressing fn + Esc. After switching, if you wish to use a shortcut function, press the desired shortcut key while holding down the fn raktas. Spaudimas fn + Esc again will return the keyboard to shortcut mode.

F-Key Functions:

Svarbi pastaba: Standard function keys (F1-F12) may have special functions assigned by the connected operating system or currently running programs.

Energijos taupymo režimas

The keyboard is designed with power-saving features. Based on an average of 3 hours of daily use, the built-in rechargeable battery can last up to 3 months on a single charge.

Priežiūra

To ensure the longevity and optimal performance of your Macally BTZKEYA keyboard, please follow these maintenance guidelines:

• Keep the device away from liquids, moisture, and water.
• Use the device only within the specified temperature range of 0°C (32°F) to 40°C (104°F).
• Clean the keyboard regularly with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Do not disassemble the device. Disassembly will void the warranty.
• When disposing of the product, do not treat it as general waste. Take it to your nearest recycling center for proper disposal.

Trikčių šalinimas

Susiejimo problemos:

• If pairing fails, delete all existing pairing records for the keyboard on your device and attempt to reconnect.
• Įsitikinkite, kad klaviatūra yra visiškai įkrauta ir įjungta.
• Įsitikinkite, kad jūsų įrenginio „Bluetooth“ ryšys įjungtas ir aptinkamas.

Key Response Issues:

• If keys do not respond or different characters are entered than printed, manually launch the Keyboard Setup Assistant on your Mac (refer to the "Keyboard Setup Assistant" section under Setup).
• Ensure the keyboard is within the 30-foot wireless range of your device.

Bendras suderinamumas:

• While designed for Mac, this keyboard is also compatible with Windows PCs. However, some functions may behave differently depending on the operating system or running programs.

Specifikacijos

Informacija apie garantiją

Macally Peripherals warrants this product against defects in title, materials, and workmanship for a period of one year from the date of purchase. If a defect is found in the product, Macally's sole obligation and your sole remedy will be to repair or replace the product.

This is a limited warranty applicable only to the product accompanied by this user guide. This warranty does not apply in the following cases:

• Abuse or misuse of the product.
• Exposure to abnormal electrical or environmental conditions.
• Use under conditions not considered normal use.
• Disassembly of the device.

Macally Peripherals' liability arising from this warranty and sale is limited to a refund of the purchase price. Macally is not responsible for the cost of procuring substitute products or services, lost profits, or any other consequential, incidental, direct, or indirect damages. These limitations apply even if the limited remedies fail of their essential purpose.

Techninė pagalba

For technical assistance, please contact Macally support during the following hours:

• Darbo valandos: Monday to Friday, 9 AM to 5 PM (Pacific Standard Time)
• El. paštas: techsupport@macally.com

When contacting support, please have your product model number (BTZKEYA) and purchase information ready.

FCC atitikties pareiškimas

Šis įrenginys atitinka FCC taisyklių 15 dalį. Naudojimui taikomos šios dvi sąlygos: (1) šis įrenginys negali sukelti žalingų trukdžių ir (2) šis įrenginys turi priimti bet kokius gaunamus trikdžius, įskaitant trikdžius, kurie gali sukelti nepageidaujamą veikimą.

Pakeitimai ar modifikacijos, kurių aiškiai nepatvirtino už atitiktį atsakinga šalis, gali panaikinti naudotojo teisę naudoti įrangą.

Ši įranga buvo išbandyta ir nustatyta, kad ji atitinka B klasės skaitmeninio įrenginio apribojimus pagal FCC taisyklių 15 dalį. Šios ribos sukurtos siekiant užtikrinti pagrįstą apsaugą nuo žalingų trukdžių įrengiant gyvenamosiose patalpose. Ši įranga generuoja, naudoja ir gali skleisti radijo dažnių energiją ir, jei ji sumontuota ir naudojama ne pagal instrukcijas, gali sukelti žalingų radijo ryšio trikdžių. Tačiau nėra garantijos, kad tam tikrame įrengime nebus trikdžių. Jei ši įranga sukelia žalingus radijo ar televizijos signalų priėmimo trikdžius, kuriuos galima nustatyti išjungiant ir įjungiant įrangą, naudotojas raginamas pabandyti ištaisyti trikdžius viena ar keliomis iš šių priemonių:

• Perkelkite arba perkelkite priėmimo anteną.
• Padidinkite atstumą tarp įrangos ir imtuvo.
• Įjunkite įrangą į kitokios grandinės lizdą nei imtuvas.
• Dėl pagalbos kreipkitės į pardavėją arba patyrusį radijo/televizijos techniką.

Šis prietaisas buvo įvertintas kaip atitinkantis bendruosius radijo dažnio poveikio reikalavimus. Prietaisas gali būti naudojamas nešiojamomis ekspozicijos sąlygomis be apribojimų.
