BUUBO F320 puodelių termo preso mašinos naudojimo instrukcija

1. Įvadas

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your BUUBO F320 Mug Heat Press Machine. Please read this manual thoroughly before using the device and retain it for future reference.

2. Saugos instrukcijos

Observe the following safety precautions to prevent injury or damage to the machine:

• Visada junkite mašiną prie įžeminto maitinimo lizdo.
• Nenaudokite įrenginio šlapiomis rankomis arbaamp aplinkos.
• Darbo metu laikykite vaikus ir naminius gyvūnus toliau nuo mašinos.
• Wear heat-resistant gloves when handling hot mugs or machine parts.
• Ensure adequate ventilation in the work area to dissipate fumes from sublimation.
• Unplug the machine from the power source before cleaning or maintenance.
• Nebandykite patys modifikuoti ar taisyti prietaiso. Kreipkitės pagalbos į kvalifikuotus techninės priežiūros darbuotojus.

3. Produktas baigtasview

The BUUBO F320 is a compact heat press designed for sublimation transfer onto various cylindrical items such as mugs and tumblers.

3.1 Pakuotės turinys

Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:

• 1 x Mug Heat Press Machine
• 20 x Sublimation Papers
• 1 x Roll of Tape
• 1 x Pair of Heat-resist Gloves
• 1 x Vartotojo vadovas
• 1 x maitinimo laidas

3.2 Mašinos komponentai

1 pav.: priekis view of the BUUBO F320 Mug Heat Press Machine, showing the main unit with handles and control panel.

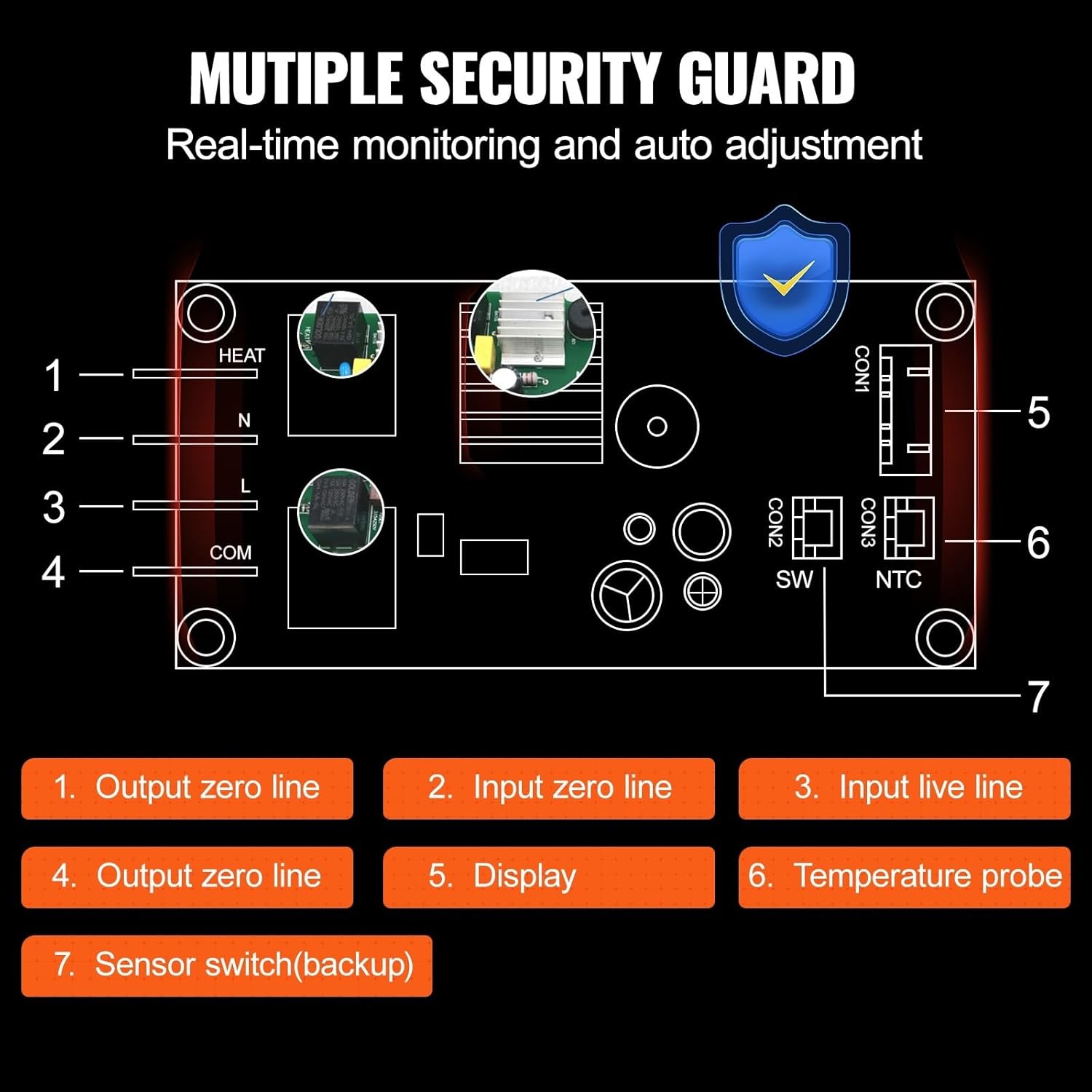

Figure 2: Diagram illustrating the internal circuit board components and their labels, including heat, input/output lines, display, and temperature probe connections.

4. Sąranka

Norėdami nustatyti terminio presavimo mašiną, atlikite šiuos veiksmus:

1. Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės. Patikrinkite, ar transportavimo metu nebuvo pažeista.
2. Vieta: Place the machine on a stable, heat-resistant, and level surface. Ensure there is sufficient space around the machine for ventilation and safe operation.
3. Maitinimo jungtis: Connect the power cord to the machine and then plug it into a standard grounded electrical outlet.

5. Naudojimo instrukcijos

This section details the steps for operating your BUUBO F320 Mug Heat Press Machine.

5.1 Įjungimas ir išjungimas

• To power on, press the power button located on the control panel. The display will illuminate.
• Norėdami išjungti, paspauskite ir palaikykite maitinimo mygtuką, kol ekranas išsijungs.

5.2 Temperatūros ir laiko nustatymas

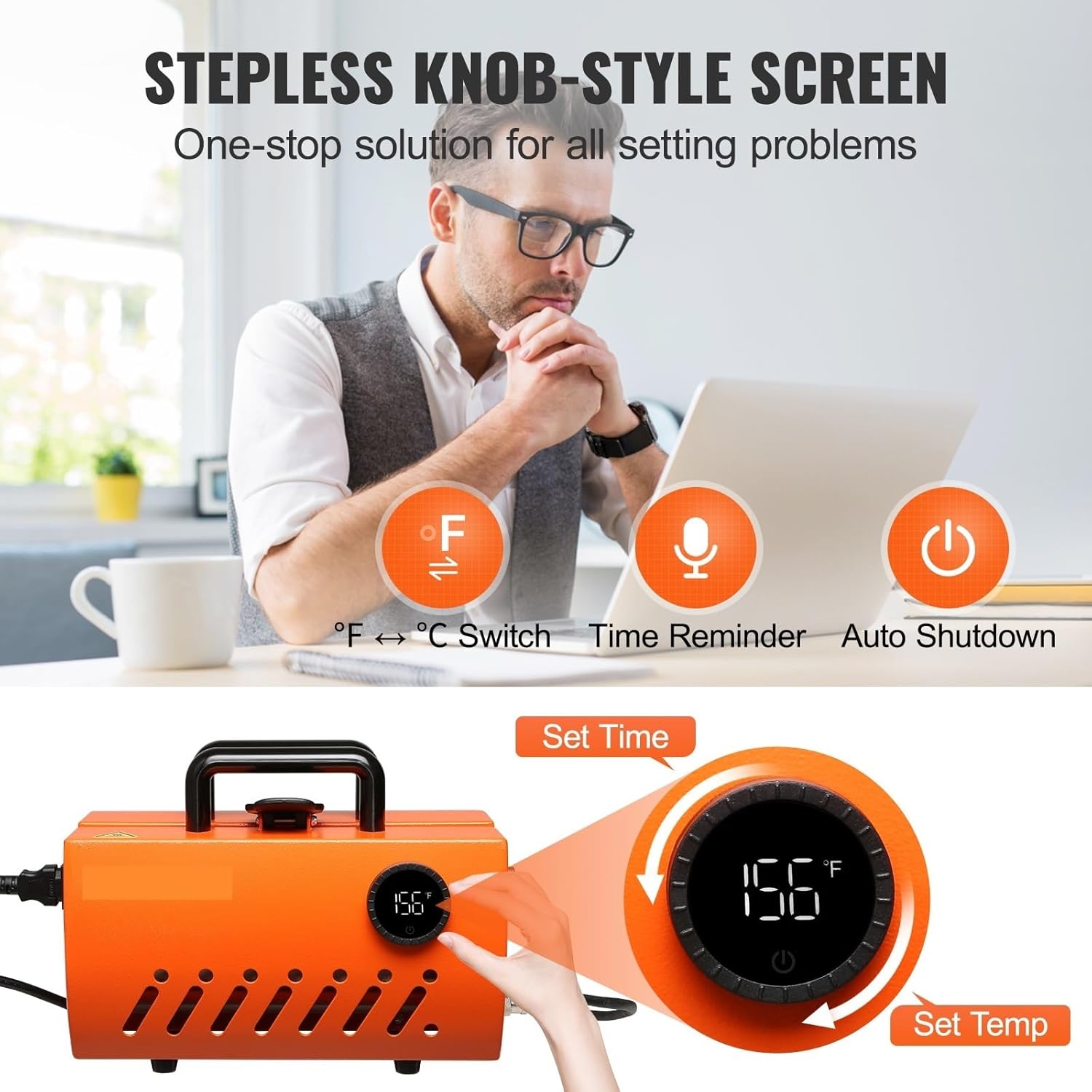

Figure 3: The innovative knob control panel allows for easy adjustment of temperature and time settings. Turn right to set temperature, turn left to set time.

1. Temperatūros nustatymas: Turn the control knob to the right. The temperature value on the LCD display will flash. Rotate the knob to adjust the desired temperature (e.g., 380°F / 193°C). Press the knob once to confirm.
2. Laiko nustatymas: Turn the control knob to the left. The time value on the LCD display will flash. Rotate the knob to adjust the desired time (e.g., 180 seconds). Press the knob once to confirm.
3. The machine will begin heating to the set temperature. An audible alarm will sound upon reaching the target temperature.

5.3 Preparing the Mug/Tumbler

Figure 4: This image illustrates the various cup types and sizes compatible with the heat press, including tumblers, can coolers, glasses, sippy cups, and mugs, along with maximum height and diameter specifications.

• Ensure the mug or tumbler is clean and dry.
• Print your design onto sublimation paper using sublimation ink.
• Securely attach the sublimation paper to the mug/tumbler using heat-resistant tape, ensuring the design is flat against the surface.

5.4 Sublimation Process

Figure 5: This diagram highlights the 620W high-power heating element and the anti-scalding Teflon coating with a thermal silica-gel inner layer, ensuring efficient and uniform heat transfer for quick sublimation.

1. Once the machine reaches the set temperature, carefully open the press.
2. Place the prepared mug/tumbler into the heating element. Ensure it is centered and the pressure is evenly applied.
3. Close the press handle firmly. The timer will automatically start counting down.
4. When the timer reaches zero, an alarm will sound. Carefully open the press handle.
5. Wearing heat-resistant gloves, remove the hot mug/tumbler and place it on a heat-resistant surface to cool.
6. Once cooled, carefully remove the sublimation paper to reveal the transferred design.

6. Priežiūra

Tinkama priežiūra užtikrina jūsų šiluminio preso ilgaamžiškumą ir optimalų veikimą.

• Valymas: After each use, ensure the machine is unplugged and cooled. Wipe down the heating element and exterior surfaces with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Saugykla: Kai nenaudojate, laikykite įrenginį švarioje, sausoje ir be dulkių aplinkoje.

7. Problemų sprendimas

Dažniausiai pasitaikančias problemas ir jų sprendimus žr. šioje lentelėje:

8. Specifikacijos

Technical specifications for the BUUBO F320 Mug Heat Press Machine:

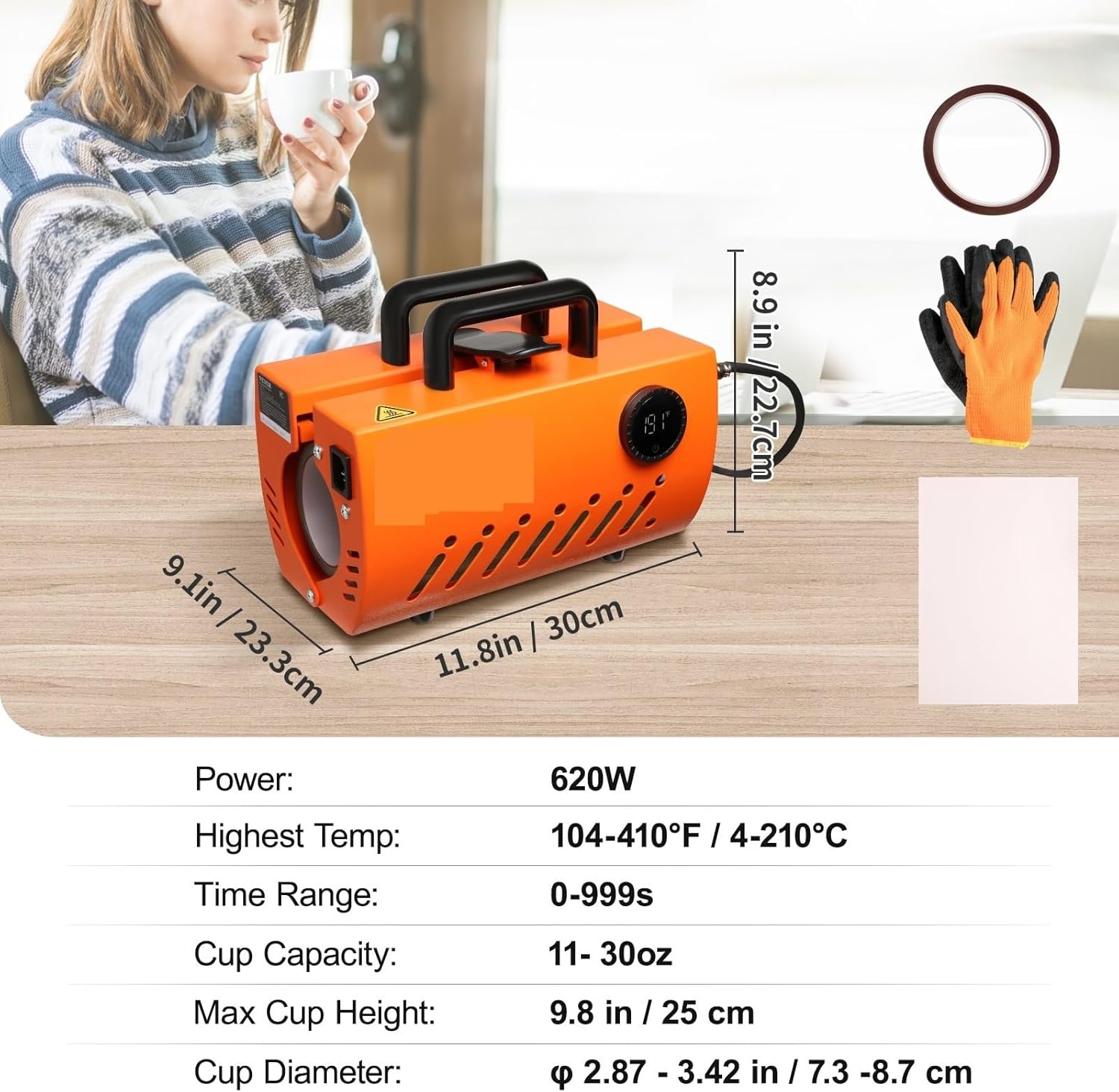

Figure 6: This image provides a visual representation of the machine's dimensions and a summary table of its key specifications, including power, temperature range, time range, cup capacity, height, and diameter.

9. Garantija ir palaikymas

This product comes with a standard manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or contact the retailer.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact BUUBO customer service through the official websvetainėje arba jūsų pirkimo platformoje.
