MechMaxx SFM27T 27-inch Tracked Walk-Behind Flail Mower User Manual

1. Įvadas

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your MechMaxx SFM27T 27-inch Tracked Walk-Behind Flail Mower. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

Image 1.1: The MechMaxx SFM27T flail mower, illustrating its overall dimensions (72.2"D x 32.9"W x 42"H), 27-inch cutting width, 0.8"-3.2" cutting height range, and 473 lbs machine weight.

2. Saugos informacija

Operating heavy machinery requires strict adherence to safety protocols. Failure to follow these guidelines can result in serious injury or death. Always wear appropriate personal protective equipment (PPE), including eye protection, hearing protection, sturdy footwear, and gloves.

• Perskaitykite vadovą: Prieš pradėdami eksploatuoti, susipažinkite su visais valdikliais ir saugos lipdukais.
• Išvalyti sritį: Before starting, ensure the work area is free of debris, rocks, and other objects that could be thrown by the blades.
• Laikykite pašalinius asmenis nuošalyje: Laikykitės saugaus atstumo nuo kitų žmonių, ypač vaikų ir naminių gyvūnėlių.
• Prieš naudodami patikrinkite: Check the machine for any damage, loose parts, or leaks before each operation.
• Variklio sauga: Operate in a well-ventilated area. Do not refuel while the engine is running or hot.
• Ašmenų sauga: Never attempt to clear debris from the cutting deck while the engine is running or the blades are engaged.
• Šlaito veikimas: Exercise extreme caution on slopes. Operate across the face of slopes, not up and down, and avoid excessively steep inclines.
• Saugus stovėjimas ant kojų: Ensure stable footing, especially on uneven or slippery terrain.

3. Produkto ypatybės

The MechMaxx SFM27T flail mower is designed for robust performance and user convenience.

• Galingas variklis: Equipped with a 10 HP, 302cc, Single Cylinder, 4-Stroke, Air-Cooled, OHV gasoline engine with electric start.
• Self-Propelled & Tracked: Features a 3-forward, 1-reverse transmission and high-traction tracks for superior grip on various terrains, including soft and sloped surfaces.
• Reguliuojama rankena: The handlebar can be adjusted both vertically and horizontally without tools, enhancing user comfort and maneuverability.
• Universalus pjovimas: Utilizes 38 Y-shaped flail blades that safely deflect off hard obstacles, protecting the spindle. Ideal for cutting, mulching, and spreading vegetation.
• Customizable Cutting Height: Easily adjust the cutting height to suit diverse user preferences and terrain conditions.
• Scalable & Detachable Footboard: Provides a platform for operator convenience and can be adjusted or removed as needed.

3.1 paveikslėlis: Stambus planas view of the 10HP 302cc gasoline engine with electric start and the included SLA battery for reliable ignition.

Image 3.2: Detail of the 38 Y-shaped flail blades, designed for efficient cutting and mulching while minimizing damage from obstacles.

Image 3.3: The scalable and detachable footboard, offering flexibility for operator positioning and transport.

4. Sąranka

The MechMaxx SFM27T requires some assembly. Follow these general steps for initial setup:

1. Išpakavimas: Atsargiai išimkite visus komponentus iš pakuotės.
2. Vairo mazgas: Attach the handlebar assembly to the main unit. Ensure all bolts are securely tightened.
3. Footboard Attachment: Install the scalable and detachable footboard if desired.
4. Skysčių patikrinimai:
   • Variklio alyva: Fill the engine with 10W-30 engine oil to the recommended level. Do not overfill.
   • Kuras: Fill the fuel tank with clean, fresh, unleaded gasoline.
5. Baterijos prijungimas: Connect the SLA battery for the electric start system. Ensure positive (+) and negative (-) terminals are correctly connected.
6. Patikra prieš operaciją: Double-check all connections, fasteners, and fluid levels before starting the engine.

5. Naudojimo instrukcijos

Follow these steps for safe and effective operation of your flail mower.

5.1 Valdymas baigtasview

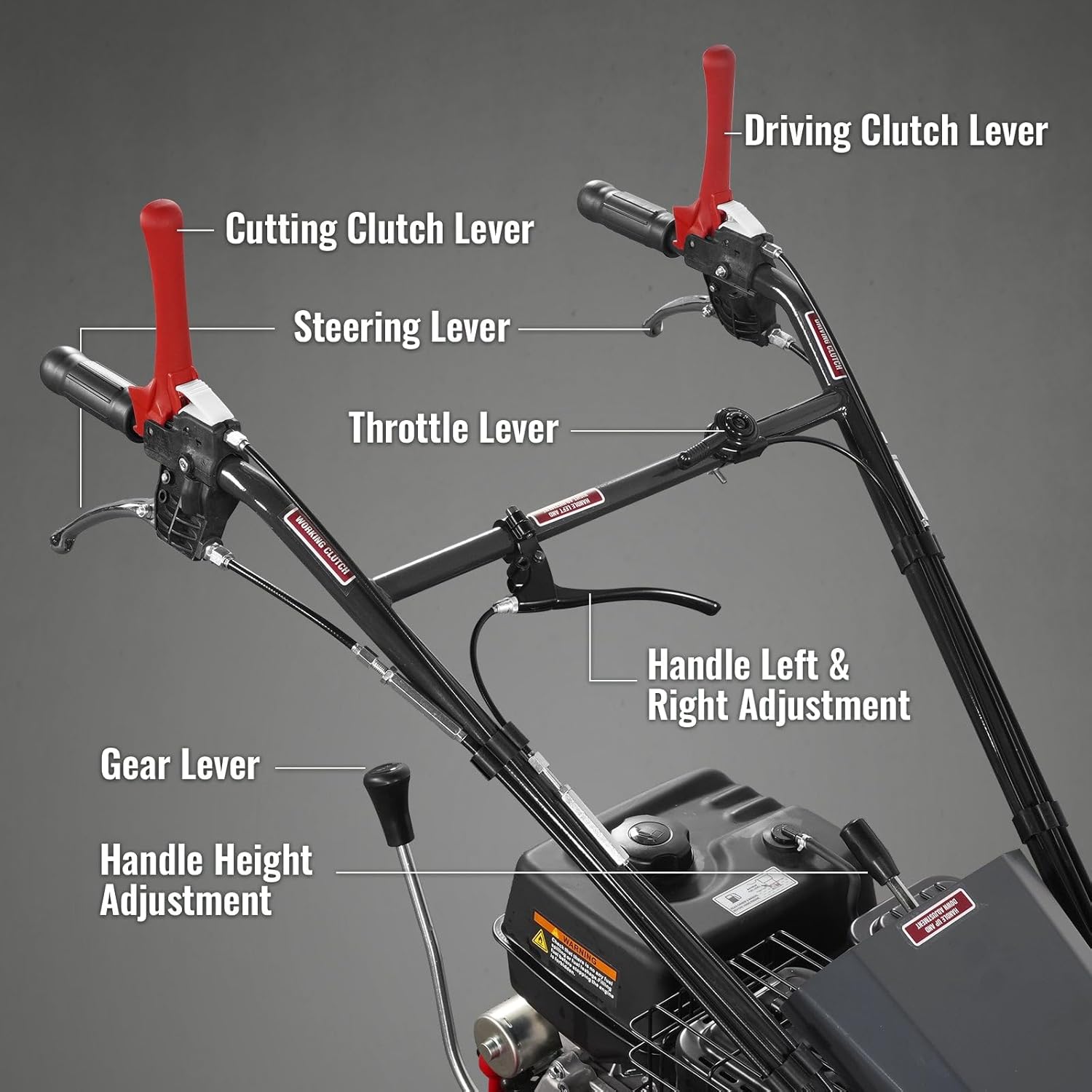

5.1 vaizdas: Baigtaview of the control levers, including Driving Clutch, Cutting Clutch, Steering Levers, Throttle Lever, Gear Lever, and Handle Adjustments.

5.2 Variklio užvedimas

1. Įsitikinkite, kad degalų vožtuvas yra atidarytas, o variklio jungiklis yra „ĮJUNGTA“ padėtyje.
2. Jei šalta, prireikus užpurkškite.
3. Press the electric start button until the engine starts. Release immediately once started.
4. Prieš įjungdami peilius arba važiuodami, leiskite varikliui kelias minutes apšilti.

5.3 Engaging Drive and Blades

1. Pavarų pasirinkimas: Use the gear lever to select the desired forward (3 speeds) or reverse (1 speed) gear.
2. Driving Clutch: Engage the driving clutch lever to activate the tracks and move the mower.
3. Cutting Clutch: Engage the cutting clutch lever to start the flail blades rotating.

Image 5.2: Illustration of the transaxle system, providing 3 forward speeds (0-2.8 mph) and 1 reverse speed (0-1.06 mph) for versatile operation.

5.4 Pjovimo aukščio reguliavimas

The cutting height can be adjusted to suit different vegetation types and desired results.

1. Ensure the engine is off and the blades are disengaged before adjusting.
2. Locate the cutting height adjustment mechanism, typically a lever or pin system near the front of the cutting deck.
3. Adjust to the desired height within the 0.8" to 3.2" range.
4. Ensure the adjustment is secure before resuming operation.

Image 5.3: Close-up of the cutting height adjustment mechanism, allowing for quick and easy changes to the cutting level.

5.5 Manevravimas

Use the steering levers on the handlebar to guide the mower. The tracked design provides excellent traction and stability, especially on uneven or sloped terrain.

5.6 Operational Demonstration

6. Priežiūra

Regular maintenance is crucial for the longevity and optimal performance of your flail mower.

• Variklio alyva: Check engine oil level before each use. Change oil according to the engine manufacturer's recommendations (typically after the first 5 hours, then every 25-50 hours). Use 10W-30 engine oil.
• Oro filtras: Reguliariai tikrinkite ir valykite oro filtrą. Jei pažeistas, pakeiskite.
• Uždegimo žvakė: Periodiškai apžiūrėkite ir valykite uždegimo žvakę. Pakeiskite, jei susidėvėjusi.
• Kuro sistema: Use fresh, unleaded gasoline. Drain the fuel system if storing for extended periods.
• Flail Blades: Inspect blades for wear, damage, or looseness before each use. Replace worn blades as a set to maintain balance.
• Takeliai: Inspect tracks for wear, tension, and damage. Adjust tension as needed.
• Diržai: Check drive belts for wear and proper tension. Replace if cracked or stretched.
• Bendras valymas: Clean the mower after each use, removing grass clippings and debris from the cutting deck and engine area.

6.1 paveikslėlis: Šonas view of the MechMaxx SFM27T, illustrating the robust track system and accessible belt drive for maintenance checks.

7. Problemų sprendimas

Šiame skyriuje pateikiami dažniausiai pasitaikančių veikimo problemų sprendimai. Dėl čia nepaminėtų problemų kreipkitės į klientų aptarnavimo tarnybą.

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information, technical support, or to order replacement parts, please contact MechMaxx customer service. Keep your purchase receipt and model number (SFM27T) readily available when contacting support.

Refer to the official MechMaxx webKonkrečias garantijos sąlygas ir nuostatas rasite svetainėje arba pirkimo dokumentuose.
