Ausom L1 Electric Scooter User Manual

1. Įvadas

Welcome to your new Ausom L1 Electric Scooter. This manual contains important information regarding the assembly, operation, maintenance, and safety of your scooter. Please read it thoroughly before your first ride to ensure safe and optimal performance. Always observe local laws and regulations regarding electric scooter usage.

2. Kas yra dėžutėje

• Ausom L1 Electric Scooter
• Vartotojo vadovas
• 1 Įkroviklis

3. Sąranka ir surinkimas

Follow these steps to assemble your Ausom L1 Electric Scooter. For a visual guide, please refer to the installation video below.

3.1 Paspirtuko išskleidimas

1. Open the kickstand to make the scooter stand upright.
2. Loosen the folding mechanism and unfold the stem until it locks into place.
3. Secure the bottom hook into the slot and push the upper part of the folding mechanism into the stem until it snaps into place.

3.2 Vairo pritvirtinimas

1. Loosen the four screws on the stem clamp ir atidarykite klamp.
2. Place the handlebar onto the stem clamp, užtikrindami, kad jis būtų centre.
3. Align the four M5 screws with the holes in the stem clamp and tighten them to securely attach the handlebar.

3.3 Ekrano pritvirtinimas

1. Place the display onto the handlebar.
2. Fasten the bottom of the display to secure it to the handlebars using the provided screws.

4. Naudojimo instrukcijos

4.1 Įjungimas / išjungimas

Press and hold the power button on the display to turn the scooter on or off. The 4.5-inch LCD screen will illuminate, showing speed, battery level, and riding mode.

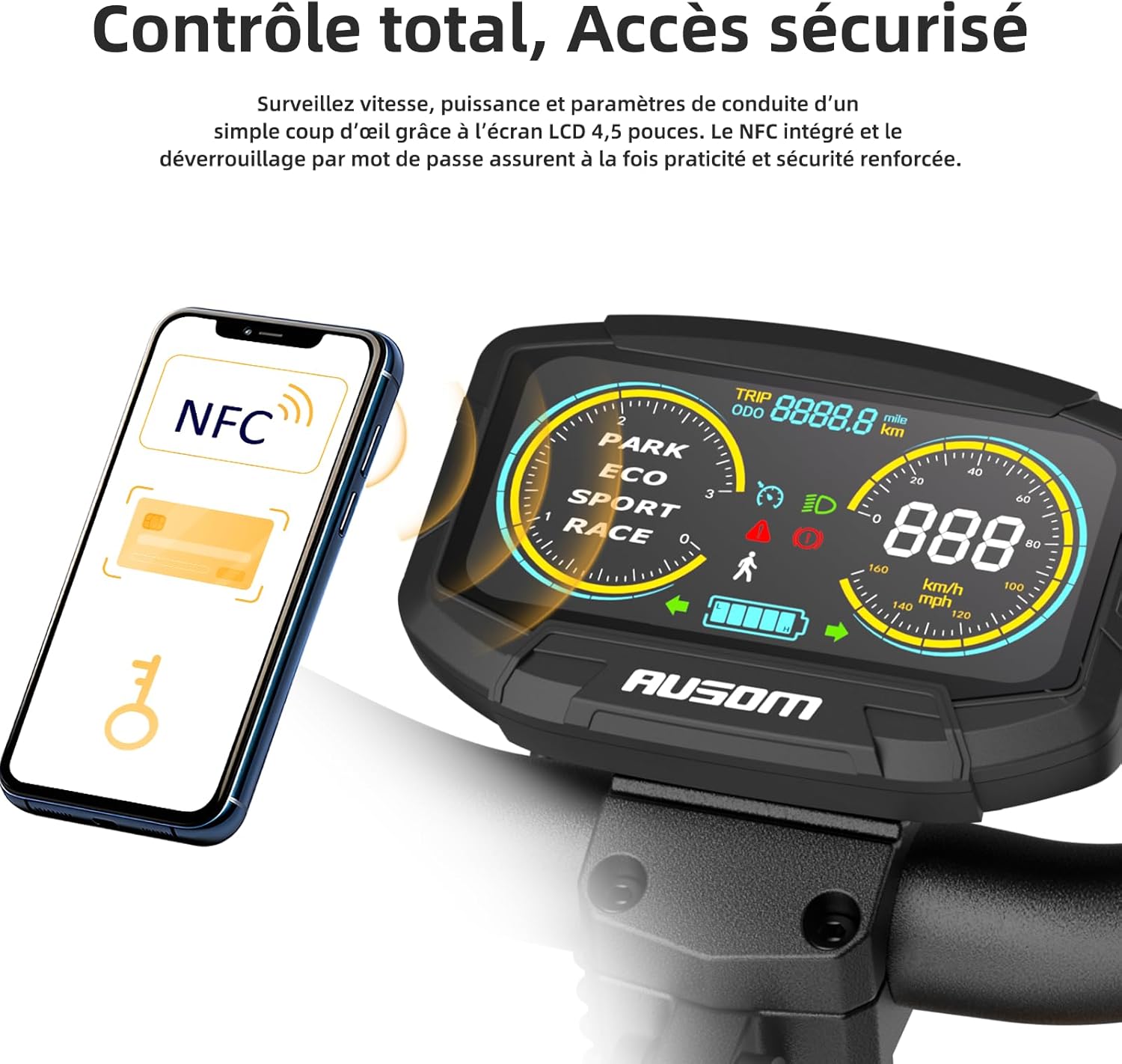

Vaizdas: The 4.5-inch LCD display provides clear information on speed, battery level, and current riding mode. It also highlights the NFC integrated unlock feature for enhanced security.

4.2 Važiavimo režimai

The Ausom L1 offers multiple riding modes to suit different preferences and terrains:

• ECO režimas: Maksimaliam veikimo atstumui ir energijos vartojimo efektyvumui.
• SPORTINIS režimas: For a balanced performance of speed and power.
• RACE Mode: For maximum speed and acceleration.

Switch between modes using the dedicated button on the handlebar.

4.3 Stabdžių sistema

The scooter is equipped with front and rear mechanical disc brakes and an E-ABS system for smooth and responsive braking. Apply the brake levers on the handlebar to slow down or stop. The brake light will activate automatically.

Vaizdas: Iš arti view of the scooter's dual disc braking system, featuring mechanical disc brakes on both front and rear wheels, complemented by E-ABS for enhanced safety and control.

4.4 Lighting and Indicators

The Ausom L1 features a comprehensive LED lighting system for visibility and safety:

• Powerful front headlight.
• Rear taillight and brake light.
• Integrated turn signals.

Ensure all lights are functioning correctly before riding, especially in low-light conditions.

Vaizdas: The scooter is shown in a low-light environment, highlighting its integrated LED headlight, taillight, and turn signals, ensuring visibility from all angles for safe riding day and night.

5. Funkcijos Overview

The Ausom L1 Electric Scooter is designed with advanced features for performance, safety, and comfort.

5.1 Powerful Motor and Long-Range Battery

• Variklis: 800W powerful motor for quick acceleration and climbing slopes up to 25°.
• Baterija: High-capacity 48V 15.6Ah lithium battery, providing up to 70 km of range on a single charge.

Vaizdas: The scooter's deck highlights the integrated 15.6Ah battery, emphasizing its capacity for long-distance travel up to 70km on a single charge.

5.2 All-Terrain Tires and Suspension

• Padangos: 10-inch tubeless tires with deep tread for excellent grip and puncture resistance on asphalt, gravel, and light off-road surfaces.
• Sustabdymas: Advanced swingarm suspension system absorbs shocks for a stable and comfortable ride.

Vaizdas: Close-up of the scooter's 10-inch tubeless tire on a rocky surface, illustrating its robust design and deep tread suitable for various terrains, including mud, snow, and gravel.

Vaizdas: The scooter is shown with a rider navigating a small bump, highlighting the effectiveness of its advanced swingarm suspension in absorbing shocks for a fluid and comfortable riding experience.

5.3 Ergonomic Design and Portability

• Reguliuojama rankena: Accommodates riders from 140 to 200 cm (4'8"-6'7").
• Maksimali apkrova: Atlaiko iki 130 kg.
• Sulankstymo mechanizmas: One-click folding for easy storage and transport.

Vaizdas: This image displays the Ausom L1 Electric Scooter in both its unfolded and folded states, with key dimensions highlighted to illustrate its compact design for storage and transport.

6. Priežiūra

Reguliarus paspirtuko techninis aptarnavimas užtikrina jo ilgaamžiškumą ir saugų veikimą.

6.1 Bendroji priežiūra

• Reguliariai valykite paspirtuką su reklamaamp audiniu. Venkite naudoti aukšto slėgio vandens srovę.
• Paspirtuką laikykite sausoje, vėsioje vietoje, toliau nuo tiesioginių saulės spindulių ir ekstremalių temperatūrų.

6.2 Padangos ir stabdžiai

• Check tire pressure regularly to ensure optimal performance and prevent punctures.
• Inspect brake levers and cables for proper function and wear. Adjust or replace as needed.

6.3 Akumuliatoriaus priežiūra

• Prieš pirmą kartą naudodami ir po kiekvieno važiavimo visiškai įkraukite akumuliatorių.
• Nepalikite akumuliatoriaus visiškai išsikrovusio ilgą laiką.
• Naudokite tik originalų įkroviklį, pateiktą kartu su paspirtuku.

7. Problemų sprendimas

If you encounter any issues with your Ausom L1 Electric Scooter, please refer to the following common troubleshooting tips:

• Paspirtukas neužsiveda: Check battery charge level. Ensure all connections are secure.
• Sumažintas diapazonas: Verify tire pressure. Ensure battery is fully charged. Riding style and terrain can affect range.
• Stabdymo problemos: Patikrinkite stabdžių kaladėles, ar jos nesusidėvėjusios. Patikrinkite stabdžių troso įtempimą.

For persistent issues or error codes displayed on the screen, please contact the seller for assistance.

8. Specifikacijos

9. Garantija ir palaikymas

For any questions, warranty claims, or technical support, please contact the seller directly. It is also important to be aware of and comply with all local laws and regulations regarding the use of electric scooters in your area.
