Įvadas
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Hifonics Autotek Street Machine 6.5 Inch (SM653) and 6x9 Inch (SM693) 3-Way Car Audio Universal Coaxial Speakers. Please read this manual thoroughly before installation and use to ensure proper function and longevity of your speakers.
Saugos informacija
- Always disconnect the vehicle's battery before beginning any electrical installation to prevent short circuits.
- Įsitikinkite, kad visi laidai yra tinkamai izoliuoti ir pritvirtinti, kad išvengtumėte pažeidimų ir trukdžių.
- Nemontuokite garsiakalbių tokiose vietose, kurios trukdo transporto priemonės veikimui ar saugos funkcijoms.
- Montavimo metu dėvėkite tinkamas apsaugos priemones, įskaitant akių apsaugą.
- Jei abejojate dėl kurios nors montavimo proceso dalies, kreipkitės į profesionalų automobilio garso sistemų montuotoją.
Pakuotės turinys
Patikrinkite, ar pakuotėje yra visi reikalingi daiktai:
- Hifonics Autotek Street Machine 6.5 Inch 3-Way Coaxial Speakers (2 units)
- Hifonics Autotek Street Machine 6x9 Inch 3-Way Coaxial Speakers (2 units)
- Tvirtinimo detalės (varžtai, spaustukai)
- Iškirptas šablonas lengvam montavimui
- Garsiakalbių grotelės (jei yra su konkrečiais modeliais)
Sąranka ir diegimas
Proper installation is crucial for optimal sound performance and speaker longevity. Follow these steps carefully.
1. Patikrinimai prieš montavimą
- Suderinamumas su transporto priemone: Ensure the speaker sizes (6.5 inch and 6x9 inch) are compatible with your vehicle's speaker openings.
- Galios reikalavimai: Confirm your car audio system (head unit and amplifier, if any) can provide adequate power without exceeding the speakers' RMS power handling.
- Reikalingi įrankiai: Gather necessary tools such as screwdrivers, wire strippers, crimping tool, drill, and safety glasses.
2. Garsiakalbių montavimas
Use the provided cut-out template to mark and cut the speaker openings if new holes are required. Ensure sufficient depth clearance for the speaker magnet.

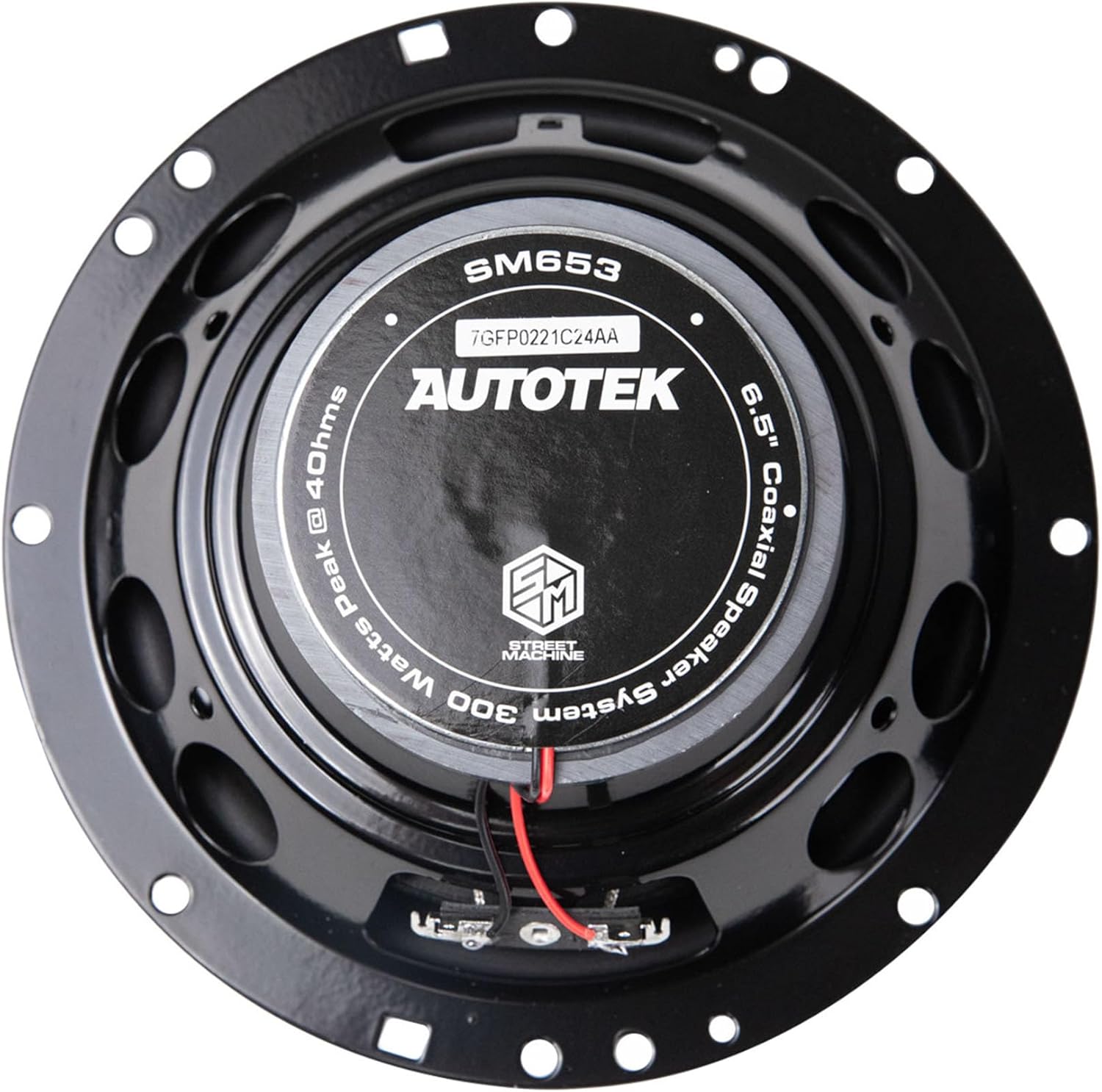

1 pav.: Nugara view of the 6.5-inch speaker (SM653) showing the magnet and wiring terminals. Note the model number printed on the magnet cover.
Figure 2: Diagram illustrating the dimensions (9.25" L x 6.5" W x 3.59" H) and key components (Neo Mylar Soft Dome Tweeters, Alpha-Cellulose Poly Cones) of the 6x9-inch speaker (SM693).
- Position the speaker in the opening and align the mounting holes.
- Secure the speaker using the provided screws. Do not overtighten, as this can damage the speaker frame.
- Ensure the anti-resonant stamped steel basket and textured ABS gasket provide a tight, secure fit to minimize distortion.
3. Garsiakalbių laidų prijungimas
Connect the speaker wires from your car audio system to the speaker terminals. Observe correct polarity (positive to positive, negative to negative) to ensure proper phase and sound quality.
- The speakers feature braided tinsel leads for high conductivity.
- Montavimui naudokite tinkamo skersmens garsiakalbio laidą.
- Secure all connections to prevent accidental disconnection or short circuits.
Naudojimo instrukcijos
Once installed, your Autotek Street Machine speakers are ready for use. These speakers are designed to deliver balanced, full-range audio.
- Pradinis atkūrimas: Start with a low volume and gradually increase it to ensure all connections are secure and the speakers are functioning correctly.
- Garso reguliavimas: Utilize your car audio system's equalizer and balance controls to fine-tune the sound to your preference. The Neo Mylar Soft Dome Tweeters provide crisp highs, while the Alpha-Cellulose Poly Cones produce rich midrange and deep bass.
- Crossover sistema: The built-in 6dB Butterworth crossover ensures smooth frequency transitions between the speaker components, minimizing distortion.
3 pav.: priekis view of the 6.5-inch speaker (SM653) showing the coaxial design with tweeter and cone.
Priežiūra
Your Autotek Street Machine speakers are built for durability and require minimal maintenance.
- Valymas: Gently wipe the speaker grilles and surrounds with a soft, damp audinys. Venkite naudoti stiprių cheminių medžiagų ar abrazyvinių valiklių.
- Aplinkos apsauga: The UV-resistant rubber surround provides protection against environmental elements. The high-temperature adhesive system and epoxy-infused natural fiber spider maintain integrity in various conditions.
- Šilumos valdymas: The pure copper voice coil with Kapton former and over-coil cooling system are designed for efficient heat dissipation, ensuring stable performance during extended use.
Trikčių šalinimas
Jei kyla problemų dėl garsiakalbių, žr. šias dažniausiai pasitaikančias problemas ir sprendimus:
| Problema | Galima priežastis | Sprendimas |
|---|---|---|
| Nėra garso iš garsiakalbio |
|
|
| Distorted or Unclear Sound |
|
|
| Pertraukiamas garsas |
|
|
Jei išbandžius šiuos sprendimus problemos išlieka, kreipkitės į klientų aptarnavimo tarnybą arba kvalifikuotą specialistą.
Specifikacijos
| Funkcija | Aprašymas |
|---|---|
| Modelio pavadinimas | SM653 (6.5 Inch), SM693 (6x9 Inch) |
| Garsiakalbio tipas | 3 krypčių koaksialinė |
| Garsiakalbio dydis | 6.5 Inches and 6x9 Inches |
| Didžiausia garsiakalbio išėjimo galia | 600 XNUMX vatų (didžiausia) |
| Speaker RMS Power Handling (SM693) | 200 vatų |
| Ryšio technologija | Laidinis |
| Montavimo tipas | Durų tvirtinimas |
| Product Dimensions (6.5 Inch) | 6.58 "D x 6.58" P x 2.54" A |
| Product Dimensions (6x9 Inch) | 9.25 colio ilgio x 6.5 colių pločio x 3.59 colio aukščio |
| Medžiaga | Steel, ABS Plastic, Mylar, Paper |
| Įtraukti komponentai | Iškirptas šablonas lengvam montavimui |
| Crossover | Passive Butterworth crossover, 6dB internal crossover |
| Aukštų dažnių garsiakalbis | Neo Mylar Soft Dome Tweeters |
| Kūgio medžiaga | Alpha-Cellulose Poly Cones |
| Balso ritė | Pure copper voice coil with Kapton former |
| Aplink | UV-resistant rubber surround |
| Voras | Epoxy-infused natural fiber spider |
| Krepšelis | Anti-resonant stamped plieno krepšys |
| Tarpiklis | Textured ABS gasket |
| Gamintojas | Maxxsonics |
| UPC | 193802400922 |
Garantija ir palaikymas
Hifonics products are designed for reliability and performance. For warranty information, please refer to the warranty card included with your purchase or visit the official Hifonics websvetainę.
For technical support or service inquiries, please contact Hifonics customer service through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
