Breezary 52-Inch Farmhouse Ceiling Fan with Lights and Remote Instruction Manual

1. Įvadas ir produkto apžvalgaview

Thank you for choosing the Breezary 52-Inch Farmhouse Ceiling Fan. This fan combines industrial, modern, and farmhouse aesthetics with practical features to enhance your living space. It is equipped with a quiet, reversible DC motor and includes a remote control for convenient operation. The fan features dual-finish blades, allowing you to choose between matte black and light wood grain to best suit your decor.

Pagrindinės funkcijos:

• Quiet Reversible DC Motor: Operates smoothly with low noise (under 35dB) and offers reversible airflow for year-round comfort. Downward airflow cools in summer, while upward airflow enhances circulation in winter.
• Nuotolinio valdymo pultas: Provides 6 wind speeds, light control (on/off), and a timer function (1H/2H/4H/8H). The remote includes a wall mount bracket for easy access. (Note: 2 x E26 bulbs and batteries for the remote are NOT included).
• Large Size & Wide Application: With a 52-inch diameter, this fan is suitable for medium to large rooms up to 450 sq. ft., including living rooms, bedrooms, dining rooms, kitchens, offices, and covered patios.
• Dual Finish Blades: Five plywood blades offer a choice between matte black and light wood grain finishes.

Image: Breezary 52-Inch Farmhouse Ceiling Fan illustrating its reversible airflow for summer cooling and winter heat circulation, alongside three adjustable wind settings (low, medium, high) for personalized comfort.

2. Kas yra dėžutėje

Please check the contents of the package to ensure all parts are present and undamaged before beginning installation. If any parts are missing or damaged, please contact customer service.

• 1 x 52-Inch 5-Blade Black Ceiling Fan Light
• 1x nuotolinio valdymo pultas
• 1 x 6-Inch Down Rod
• 1 x Vartotojo vadovas
• 5 x Dual Finish Plywood Blades (Black/Walnut Grain)
• Montavimo laikiklis ir aparatūra
• Nuotolinio valdymo imtuvas

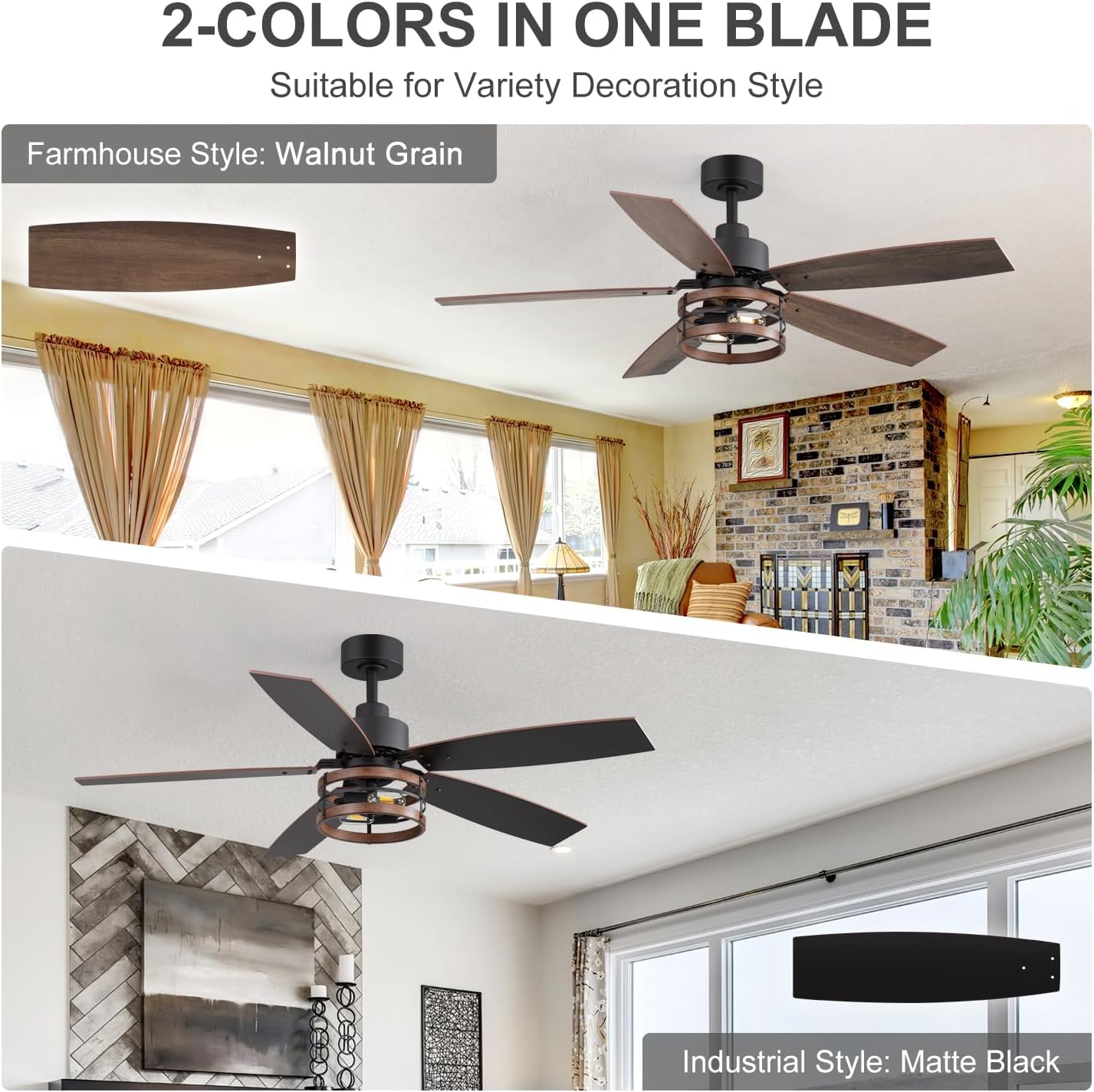

Image: The dual-finish blades of the Breezary 52-Inch Farmhouse Ceiling Fan, showcasing both the farmhouse-style walnut grain and the industrial-style matte black options.

3. Saugos informacija

Please read and understand all instructions before installing and operating this ceiling fan. Failure to follow these instructions may result in electric shock, fire, or personal injury.

• Prieš montuodami ar atlikdami techninę priežiūrą, įsitikinkite, kad maitinimas yra išjungtas grandinės pertraukikliu.
• Visa instaliacija turi atitikti nacionalinius ir vietinius elektros kodeksus.
• Jei abejojate dėl laidų prijungimo ar montavimo, pasitarkite su kvalifikuotu elektriku.
• Tvirtinimo konstrukcija turi būti pajėgi išlaikyti ventiliatoriaus svorį (maždaug 15.2 svaro).
• Montuodami ar valydami, nelenkite peilių laikiklių.
• Palaikykite mažiausiai 7 pėdų atstumą nuo grindų iki ventiliatoriaus menčių apačios.

4. Diegimo vadovas

Atidžiai atlikite šiuos veiksmus, kad tinkamai sumontuotumėte. Rekomenduojama, kad montavimą atliktų du žmonės.

1 veiksmas: pasiruoškite diegimui

• Išjunkite maitinimą pagrindiniu grandinės pertraukikliu.
• Ensure the mounting location is secure and can support the fan's weight.
• Išpakuokite visus komponentus ir padėkite juos ant minkšto paviršiaus, kad nesubraižytumėte.

Step 2: Assemble Fan Blades

Attach the fan blades to the blade brackets using the provided screws and washers. Ensure the desired blade finish (matte black or light wood grain) is facing downwards.

Step 3: Mount the Hanging Bracket

Secure the mounting bracket to the ceiling joist or support structure using appropriate hardware. Ensure it is firmly attached.

4 žingsnis: Prijunkite ventiliatorių

Connect the household wiring to the fan's wiring according to the wiring diagram in the user manual. Connect the receiver for the remote control at this stage. Ensure all connections are secure and insulated.

Video: This video demonstrates the process of placing the receiver for the ceiling fan's remote control during installation, ensuring proper connection and placement within the canopy.

Video: A detailed unboxing and installation guide for a 52-inch farmhouse ceiling fan with light, covering assembly of components and mounting to the ceiling.

Step 5: Attach the Fan to the Mounting Bracket

Carefully lift the fan assembly and hook it onto the mounting bracket. Ensure the hanger ball is properly seated in the bracket's groove.

Step 6: Install the Light Kit

Connect the light kit wires to the fan motor wires. Secure the light kit to the fan housing. Install 2 x E26 bulbs (not included) into the sockets.

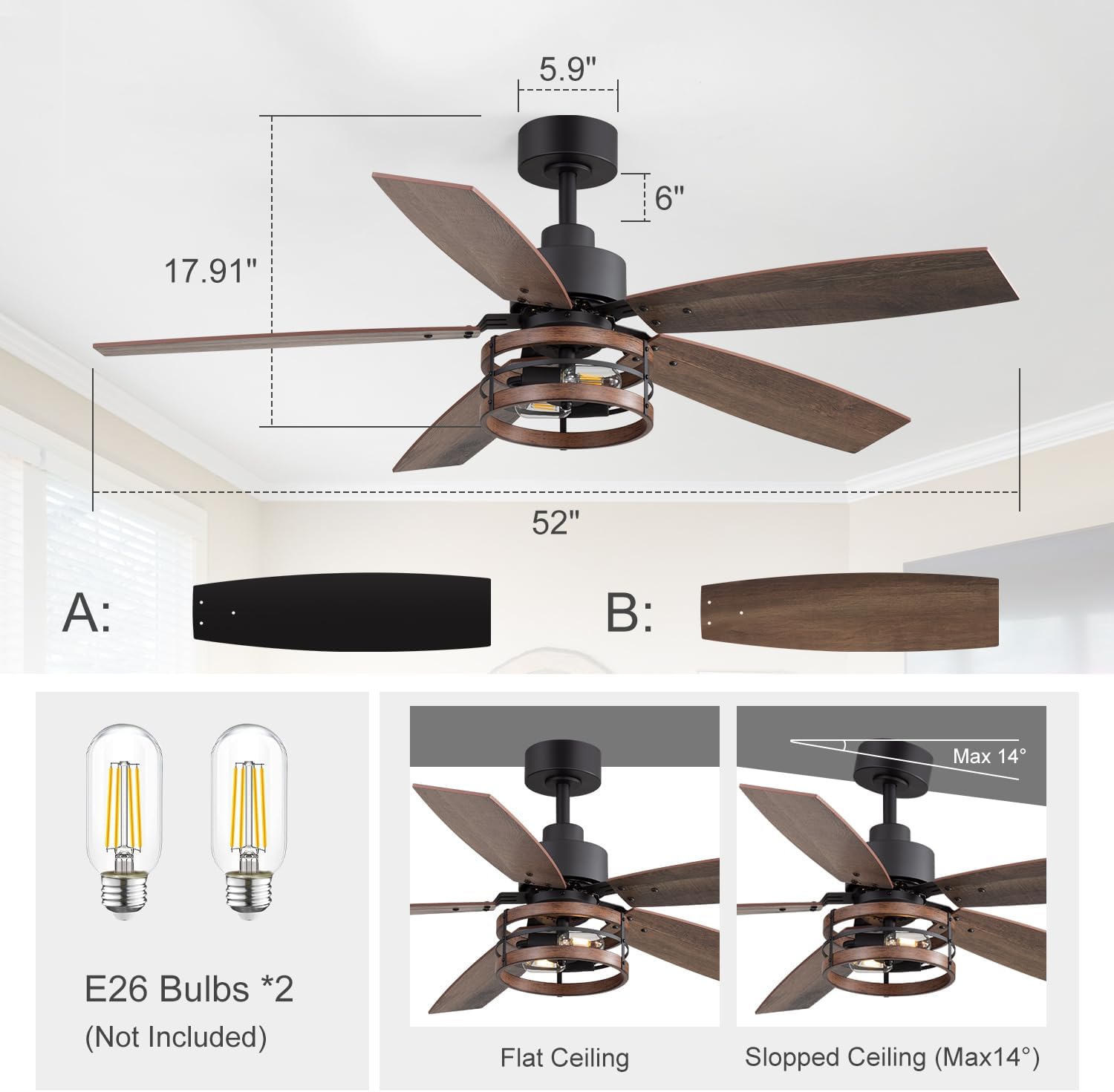

Image: This diagram provides key dimensions of the 52-inch ceiling fan, including its height and downrod length, along with visual guidance for installation on both flat and sloped ceilings. It also reminds users that E26 bulbs are not included.

5. Naudojimo instrukcijos

Your Breezary ceiling fan is operated via the included remote control. Ensure batteries are installed in the remote.

Nuotolinio valdymo pulto funkcijos:

• Ventiliatoriaus ĮJUNGIMAS/IŠJUNGIMAS: Press the 'FAN ON/OFF' button to turn the fan on or off.
• Ventiliatoriaus greitis: Select from 6 speed settings (1-6) to adjust airflow intensity.
• Šviesos įjungimas/išjungimas: Press the 'LIGHT ON/OFF' button to control the fan's light.
• Reversinis variklis: Use the 'F' (Forward) and 'R' (Reverse) buttons to change the direction of blade rotation for summer (downdraft) or winter (updraft) modes.
• Laikmatis: Set the fan to turn off automatically after 1H, 2H, 4H, or 8H.
• Tylos režimas: Activate 'No Beep' mode for quiet operation.

Image: The multi-function remote control for the Breezary ceiling fan, detailing all available buttons for fan speed, direction, light control, and timer settings.

6. Priežiūra

Reguliarus valymas užtikrina optimalų jūsų lubų ventiliatoriaus veikimą ir ilgaamžiškumą.

• Valymas: Reguliariai valykite ventiliatoriaus mentes ir variklio korpusą minkšta, damp audinys. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Priveržkite varžtus: Kasmet patikrinkite visus varžtus ir jungtis, kad įsitikintumėte, jog jie tvirtai pritvirtinti.
• Tepimas: Nuolatinės srovės variklis yra nuolat tepamas ir nereikalauja papildomo tepimo.

7. Problemų sprendimas

Jei kyla problemų dėl ventiliatoriaus, žr. šias dažniausiai pasitaikančias problemas ir sprendimus:

8. Specifikacijos

9. Garantija ir palaikymas

For warranty information or technical support, please refer to the contact details provided in your product packaging or visit the Breezary store on Amazon. Please retain your proof of purchase for any warranty claims.
