Įvadas
This manual provides detailed instructions for the installation, operation, and maintenance of your Rosewill VSB 750W 80+ Bronze Semi-Modular Power Supply. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Saugos informacija
WARNING: Power supplies contain high voltage components. Do not open the power supply unit. There are no user-serviceable parts inside. Opening the casing will void the warranty and poses a risk of electric shock.
- Prieš montuodami ar tvarkydami įsitikinkite, kad maitinimo šaltinis yra atjungtas nuo kintamosios srovės maitinimo lizdo.
- Maitinimo šaltinį įrenkite gerai vėdinamoje vietoje.
- Naudokite tik tuos laidus, kurie yra komplekte su maitinimo šaltiniu.
- Do not block any ventilation openings on the power supply.
- Šis gaminys skirtas naudoti asmeniniuose kompiuteriuose. Nenaudokite jo jokiems kitiems tikslams.
Sąranka ir diegimas
1. Išpakavimas
Carefully remove the power supply and all accessories from the packaging. Verify that all components are present:
- Rosewill VSB 750W Power Supply
- Kintamosios srovės maitinimo laidas
- Modular Cables (PCIe, SATA, Molex)
- Tvirtinimo varžtai
- Kabelių ryšiai
2. Fizinis įrengimas
Install the power supply into the designated PSU bay of your computer case. Secure it with the provided mounting screws.
The Rosewill VSB 750W features a compact 140x150x86mm chassis, which is 35% smaller than many regular ATX PSUs, allowing for flexible integration into various PC builds.
The power supply includes a 120mm ICB silent fan for optimized thermal control and quiet operation.
1 pav.: Iš viršaus į apačią view of the Rosewill VSB 750W Power Supply, highlighting the fan grill and branding.
3. Kabelių jungtys
The Rosewill VSB 750W is a semi-modular power supply. Essential cables (24-pin motherboard, 4+4 pin CPU) are permanently attached, while others are modular.
Connect the necessary cables to your motherboard and components.
2 pav. Baigtaview of available connectors for the Rosewill VSB 750W Power Supply.
Pagrindinės plokštės jungtis
Connect the 24-pin ATX cable from the power supply to the corresponding port on your motherboard.
CPU Power Connection
Connect the 4+4 pin CPU power cable(s) to the CPU power port(s) on your motherboard. Most motherboards require one 8-pin (4+4) connector, while some high-end boards may require two.
PCIe 5.1 / Gen 5 12V-2x6 Connector
This power supply includes a native PCIe 5.1 / Gen 5 12V-2x6 cable, designed to deliver up to 600W directly to compatible next-generation graphics cards. Connect this cable directly to your PCIe 5.1 GPU if applicable.
Figure 3: The native 12V-2x6 PCIe 5.1 connector for direct GPU power.
Additional PCIe Connections
For other graphics cards requiring 6+2 pin PCIe connectors, use the provided modular cables. Connect one end to the power supply's PCIe ports and the other to your graphics card.
SATA and Molex Connections
Connect the modular SATA power cables to your storage drives (SSDs, HDDs) and optical drives. Use Molex connectors for any peripherals that require them.

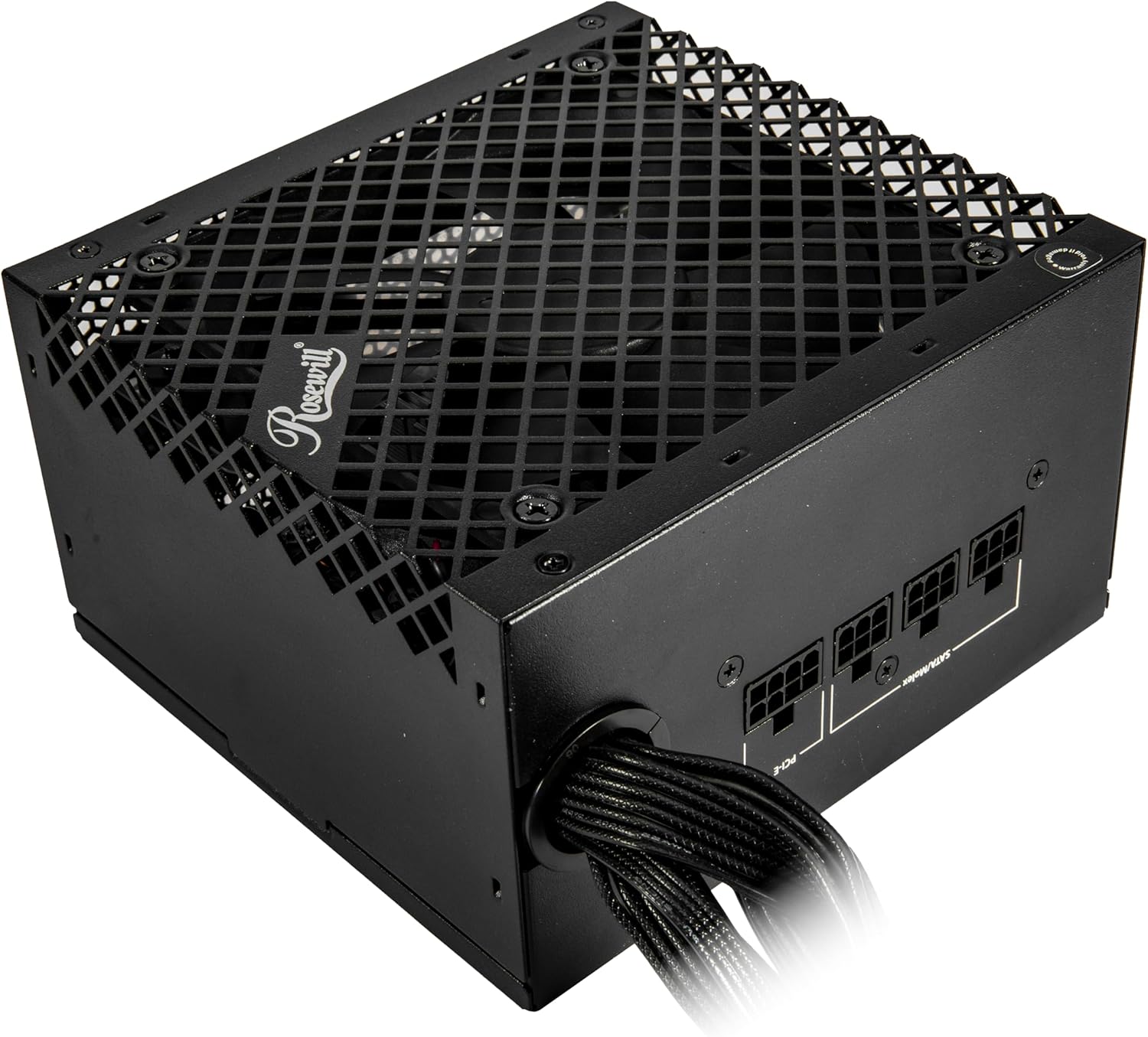

Figure 4: Modular cable connection ports on the power supply.
4. Maitinimo prijungimas
Once all internal connections are secure, connect the AC power cord to the power supply and then to a wall outlet or surge protector. Ensure the power switch on the back of the PSU is in the "OFF" (0) position before connecting to AC power.
Operacija
After completing all connections, flip the power switch on the back of the power supply to the "ON" (I) position. You can then power on your computer using the case's power button.
The 120mm ICB silent fan operates to maintain optimal temperatures while minimizing noise.
This power supply is Intel ATX 3.0 & 3.1 Ready, supporting up to 235% power excursion and 300% GPU power excursion for stable performance under demanding loads.
Priežiūra
Kad užtikrintumėte maitinimo šaltinio ilgaamžiškumą ir optimalų veikimą:
- Dulkių šalinimas: Periodically clean the exterior of the power supply and the fan grill to prevent dust buildup, which can impede airflow and cooling. Use compressed air or a soft brush. Ensure the power supply is disconnected from AC power before cleaning.
- Kabelių valdymas: Proper cable management helps maintain good airflow within your PC case, contributing to better cooling for all components, including the PSU.
- Aplinkos sąlygos: Operate the power supply within recommended temperature and humidity ranges. Avoid extreme heat or moisture.
Trikčių šalinimas
Jei kyla problemų dėl maitinimo šaltinio, žr. šias dažniausiai pasitaikančias problemas ir sprendimus:
- Nėra galios:
- Patikrinkite, ar kintamosios srovės maitinimo laidas yra tvirtai prijungtas prie maitinimo šaltinio ir sieninio lizdo.
- Ensure the power switch on the back of the PSU is in the "ON" (I) position.
- Verify all internal cables (24-pin ATX, CPU, PCIe) are correctly and securely connected.
- Patikrinkite sieninį lizdą su kitu įrenginiu, kad įsitikintumėte, jog jame yra maitinimas.
- Sistemos nestabilumas arba atsitiktiniai išsijungimai:
- This could indicate an overloaded power supply or a component issue. Ensure your system's power requirements do not exceed the PSU's 750W capacity.
- The Rosewill VSB 750W features an advanced protection suite (OCP, OPP, OTP, OVP, SCP, UCP) designed to prevent damage from various electrical anomalies. If these protections are triggered, the PSU may shut down to protect your components.
- Ventiliatoriaus triukšmas:
- While designed for silent operation, excessive fan noise could indicate dust buildup. Refer to the Maintenance section for cleaning instructions.
- If the noise persists, ensure the PSU is securely mounted and not vibrating against the case.
If troubleshooting steps do not resolve the issue, contact Rosewill customer support.
Figure 5: The Advanced Protection Suite ensures system safety.
Specifikacijos
The following table details the technical specifications of the Rosewill VSB 750W Power Supply.
| Funkcija | Detalė |
|---|---|
| Modelio pavadinimas | VSB750 |
| Prekės ženklas | Rosewill |
| Išėjimo vattage | 750 vatų |
| Formos faktorius | ATX |
| Maitinimo bloko dizainas | Pusiau modulinis |
| Efektyvumo sertifikavimas | 80 PLUS bronza |
| ATX standartas | ATX 3.0 & 3.1 Compatible |
| PCIe jungtis | Native PCIe 5.1 / Gen 5 12V-2x6 |
| Aušinimo būdas | Air (120mm ICB Silent Fan) |
| Matmenys (I x P x A) | 5.51 x 5.9 x 3.38 colio (140 x 150 x 86 mm) |
| Maksimalus įvesties tūristage | 240 voltai (kintamoji srovė) |
| Minimalus įvesties tūristage | 110 voltai (kintamoji srovė) |
| Kondensatoriai | 105°C/221°F Japanese Capacitor |
| Protection Suite | OCP, OPP, OTP, OVP, SCP, UCP |
| UPC | 840951136058 |
Garantija
The Rosewill VSB 750W Power Supply comes with a 5-year manufacturer's warranty. For warranty claims or detailed terms and conditions, please refer to the official Rosewill websvetainėje arba susisiekite su jų klientų aptarnavimo tarnyba.
Palaikymas
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please visit the official Rosewill support websvetainėje arba susisiekite su jų klientų aptarnavimo skyriumi. Kreipdamiesi į palaikymo tarnybą, laikykite po ranka pirkimo kvitą ir produkto serijos numerį.
