VEVOR 22.8-inch Freestanding Electric Fireplace Stove Heater

Įvadas

Thank you for choosing the VEVOR 22.8-inch Freestanding Electric Fireplace Stove Heater. This compact and portable unit is designed to provide efficient infrared heating and a realistic flame effect, creating a warm and comfortable atmosphere in your home. With easy installation and robust safety features, it's an ideal addition to any living space.

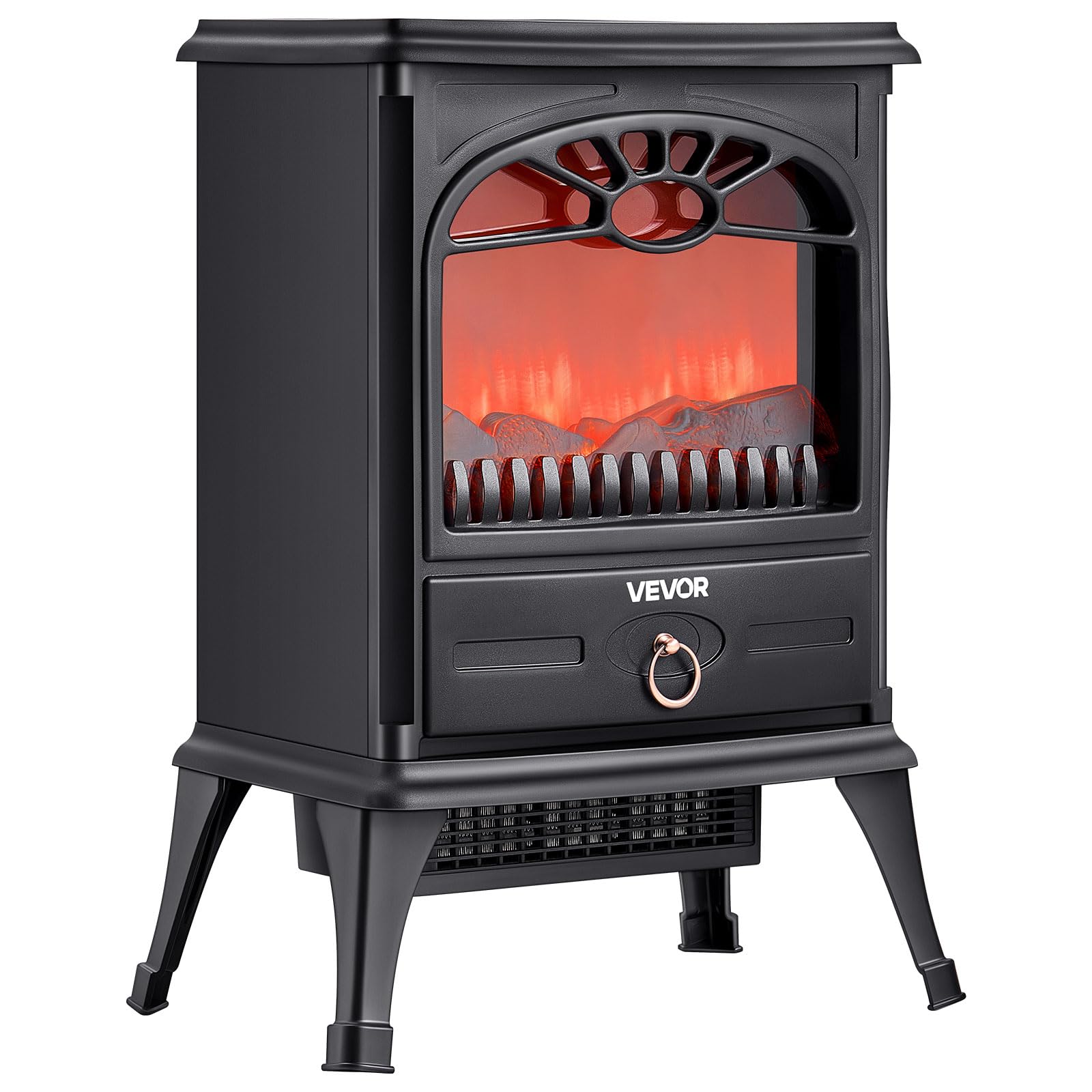

Figure 1: The VEVOR electric fireplace, ideal for adding warmth and ambiance to various rooms like living rooms, bedrooms, studies, and dining areas.

Saugos informacija

Please read all safety instructions carefully before using this electric fireplace. Keep this manual for future reference.

• Įsitikinkite, kad įrenginys pastatytas ant tvirto, lygaus paviršiaus.
• Do not cover the heater or block any air vents.
• Keep flammable materials at least 3 feet (0.9 meters) away from the front of the heater.
• Do not use outdoors or in wet locations.
• Visada junkite šildytuvą tiesiai į sieninį lizdą. Niekada nenaudokite su ilgintuvu ar perkeliamu maitinimo čiaupu.
• This appliance is equipped with an overheating protection system that automatically shuts off power at critical temperatures to prevent hazards. If this occurs, unplug the unit, allow it to cool, and then plug it back in.
• Saugokite vaikus ir naminius gyvūnus nuo šildytuvo.

Figure 2: The electric fireplace features an overheating auto shutoff for enhanced safety and peace of mind, especially in bedrooms.

Pakuotės turinys

Išpakuodami patikrinkite, ar visi daiktai yra ir yra geros būklės.

• Electric Fireplace Unit x 1
• Mounting Legs x 4
• Phillips Screws x 12
• Vartotojo vadovas x 1

Figure 3: Unpacked components of the VEVOR electric fireplace, showing the main unit and the separate legs that require assembly.

Sąranka ir surinkimas

Assembly of your VEVOR electric fireplace is quick and straightforward, requiring only a few minutes.

1. Pritvirtinkite kojas: Carefully place the main fireplace unit upside down on a soft, non-abrasive surface to prevent scratches. Align each of the four mounting legs with the designated screw holes on the bottom of the fireplace.
2. Pritvirtinkite varžtais: Use the provided Phillips screws to firmly attach each leg to the fireplace unit. Ensure all screws are tightened securely.
3. Padėtis ir prijungimas: Once all legs are attached, carefully turn the fireplace upright and place it in your desired location. Ensure it is on a stable, level surface and away from any flammable materials. Plug the power cord into a standard electrical outlet.

Figure 4: A visual guide illustrating the simple three-step assembly process: attaching the legs, securing them with screws, and plugging in the unit.

Naudojimo instrukcijos

Your electric fireplace offers both realistic flame effects and efficient heating modes.

Valdymo skydas baigtasview

The control panel, typically located on the unit, allows you to manage all functions:

• Maitinimo jungiklis: Įjungia/išjungia įrenginį.
• Flame Effect Switch: Activates the realistic 3D rolling flame effect independently.
• Heat Mode Switches: Select between 900W (low heat) and 1500W (high heat) settings.
• Termostato ratukas: Adjusts the desired room temperature. The heater will cycle on and off to maintain this setting.

Figure 5: The intuitive control panel allows users to independently control the flame effect and select between 900W (low) and 1500W (high) heating modes.

Naudojant liepsnos efektą

To enjoy the visual ambiance without heat, simply turn on the flame effect switch. The realistic 3D flames and glowing logs will provide a cozy atmosphere.

Figure 6: The realistic 3D rolling flame effect with glowing logs provides a comfortable visual experience, enhancing your decor.

Activating Heating Modes

Select either the 900W or 1500W switch to activate the heating function. Adjust the thermostat dial to your preferred temperature. The unit will automatically regulate heat output to maintain the set temperature.

Priežiūra

Reguliarus elektrinio židinio valymas užtikrina optimalų veikimą ir ilgaamžiškumą.

• Valymas: Prieš valydami visada atjunkite įrenginį nuo elektros tinklo. Naudokite minkštą,amp šluoste išoriniams paviršiams valyti. Nenaudokite abrazyvinių valiklių ar tirpiklių.
• Saugykla: When not in use, store the fireplace in a cool, dry place, preferably in its original packaging.
• Vėdinimas: Ensure the air intake and exhaust vents are free from dust and debris to maintain proper airflow.

Trikčių šalinimas

If you encounter any issues with your electric fireplace, refer to the following common solutions:

• Nėra galios: Check if the power cord is securely plugged into a working outlet. Verify that the outlet is receiving power by testing it with another appliance.
• Nėra karščio: Ensure the heat setting (900W or 1500W) is selected and the thermostat dial is set to a temperature higher than the current room temperature. Check if the overheating protection has activated (unplug and cool down).
• Nėra liepsnos efekto: Ensure the flame effect switch is turned on.
• Neįprastas triukšmas: If you hear unusual noises, immediately unplug the unit and contact customer support.

Specifikacijos

Figure 7: This diagram provides key product specifications including dimensions, power, heat output, material, color, weight, and a list of included accessories for easy reference.

Garantija ir palaikymas

For warranty information or technical support, please refer to the contact details provided in the separate warranty card included with your product or visit the official VEVOR websvetainėje. Išsaugokite pirkimo kvitą kaip pirkimo įrodymą.
